Hub Spacing Guide: 170mm vs. 190mm Fat Tire Standards
Hub Spacing Guide: 170mm vs. 190mm Fat Tire Standards
Selecting the correct rear hub spacing is the most critical mechanical decision you will make when upgrading a motor or replacing a wheelset on a fat-tire e-bike. In the high-power 750W–1000W segment, the industry has largely consolidated around two primary standards: 170mm and 190mm. However, assuming these numbers are interchangeable or that spacing is the only variable is a common mistake that leads to compromised safety, frame failure, and wasted investment.
This guide provides a technical breakdown of these standards, the physics of why they exist, and a practical methodology for measuring your frame to ensure 100% compatibility.
Defining the Standard: O.L.D. and Axle Types
In technical terms, hub spacing refers to the Over Locknut Distance (O.L.D.). This is the measurement between the outer faces of the hub's locknuts, which corresponds to the distance between the inside surfaces of the frame's rear dropouts.
While 170mm and 190mm are the "nominal" standards, the e-bike industry often utilizes variations like 177mm and 197mm for thru-axle systems. According to the technical "crib sheets" maintained by experts like Sheldon Brown, the critical measurement for compatibility is this O.L.D., but for quick-release (QR) systems, the actual axle is typically 11mm longer than the O.L.D. to allow it to rest within the dropouts.
The Axle Type "Gotcha"
A frequent error we observe in DIY repairs is matching the spacing but ignoring the axle interface. A 190mm spacing hub designed for a 10mm quick-release axle will not fit a frame designed for a 190mm, 12mm thru-axle without custom adapters. These adapters often compromise the lateral stiffness of the rear triangle and can lead to safety risks under the high torque loads of a 1000W motor.
Logic Summary: Our compatibility analysis assumes that axle diameter and attachment method (QR vs. Thru-axle) are non-negotiable constraints. Spacers can correct minor gaps of 1–3mm, but they cannot safely bridge the gap between 170mm and 190mm standards.
Why the 190mm Standard Emerged
The 190mm standard was not originally created for e-bikes; it was a solution for extreme tire volume. Pioneered by frame builders like Greg Matyas to accommodate 4.8-inch and 5-inch tires, the wider spacing was necessary to prevent "chain rub"—where the chain hits the tire sidewall when shifted into the lowest gears.
For the modern e-bike rider, 190mm spacing offers two primary advantages:
- Motor Clearance: High-torque hub motors (1000W+) require wider internal space for larger copper windings and robust gearing.
- Tire Versatility: It allows for the use of 4.8" or 5.0" tires, which provide a significantly larger contact patch for traction on soft sand or deep snow.
Conversely, the 170mm standard is common on "lightweight" fat-tire bikes (often using 4.0" tires). These frames are narrower, more nimble, and often more compatible with standard bicycle drivetrains.
Scenario Modeling: 190mm Utility vs. 170mm Commuter
To understand the practical implications of these standards, we modeled two distinct user personas based on common patterns from customer support and warranty handling.
Persona A: The 190mm Heavy-Duty Utility User
This user typically replaces a medium SUV for a 30-mile daily commute, carrying cargo and requiring high torque.
- Motor: 1000W Hub Motor
- System Weight: ~220 lbs (Rider + Cargo + Bike)
- Energy Consumption: ~65 Wh/mile (based on 20mph, 3% grade, 5mph headwind)
Persona B: The 170mm Lightweight Commuter
This user prioritizes efficiency and maneuverability for a 15-mile urban commute.
- Motor: 250W–500W Hub Motor
- System Weight: ~210 lbs
- Energy Consumption: ~35–40 Wh/mile
Economic and Performance Analysis
Based on our scenario modeling, the 190mm utility setup provides a massive financial benefit when replacing a car, despite higher operational costs.
| Metric | 190mm Utility (SUV Replacement) | 170mm Commuter (Sedan Replacement) |
|---|---|---|
| Annual Net Benefit | ~$9,676 | ~$3,557 |
| Energy Consumption | ~65 Wh/mile | ~38 Wh/mile |
| Payback Period | 2.7 Months | 4.0 Months |
| 5-Year Net Savings | ~$48,378 | ~$17,783 |
Method & Assumptions (Scenario Model):
- Modeling Type: Deterministic parameterized cost-benefit and physics model.
- Car Benchmarks: AAA 2024 Your Driving Costs (Medium SUV vs. Small Sedan).
- Electricity: $0.18/kWh (US Average).
- Maintenance: Higher for 190mm ($600/yr) due to heavy-duty wear vs. 170mm ($300/yr).
- Boundary Conditions: Model assumes 250 commute days/year. Results may vary based on local parking costs and terrain.
The Physics of Range and Resistance
The 20mm difference in hub spacing dictates the tire width, which in turn dictates the rolling resistance. Our range physics model demonstrates that a 190mm bike with 4.8" tires at low pressure (typical for soft terrain) requires significantly more power to maintain speed than a 170mm bike on 4.0" tires.
- Aerodynamic Drag: At 20mph, aerodynamic drag accounts for over 50% of power demand (~556W for an upright rider).
- Rolling Resistance: Heavier 190mm builds increase rolling resistance by approximately 45% compared to lightweight 170mm builds.
This highlights why the 190mm standard is almost exclusively paired with 1000W motors and large 960Wh+ batteries—the system needs that extra energy to overcome the friction of the wider footprint.

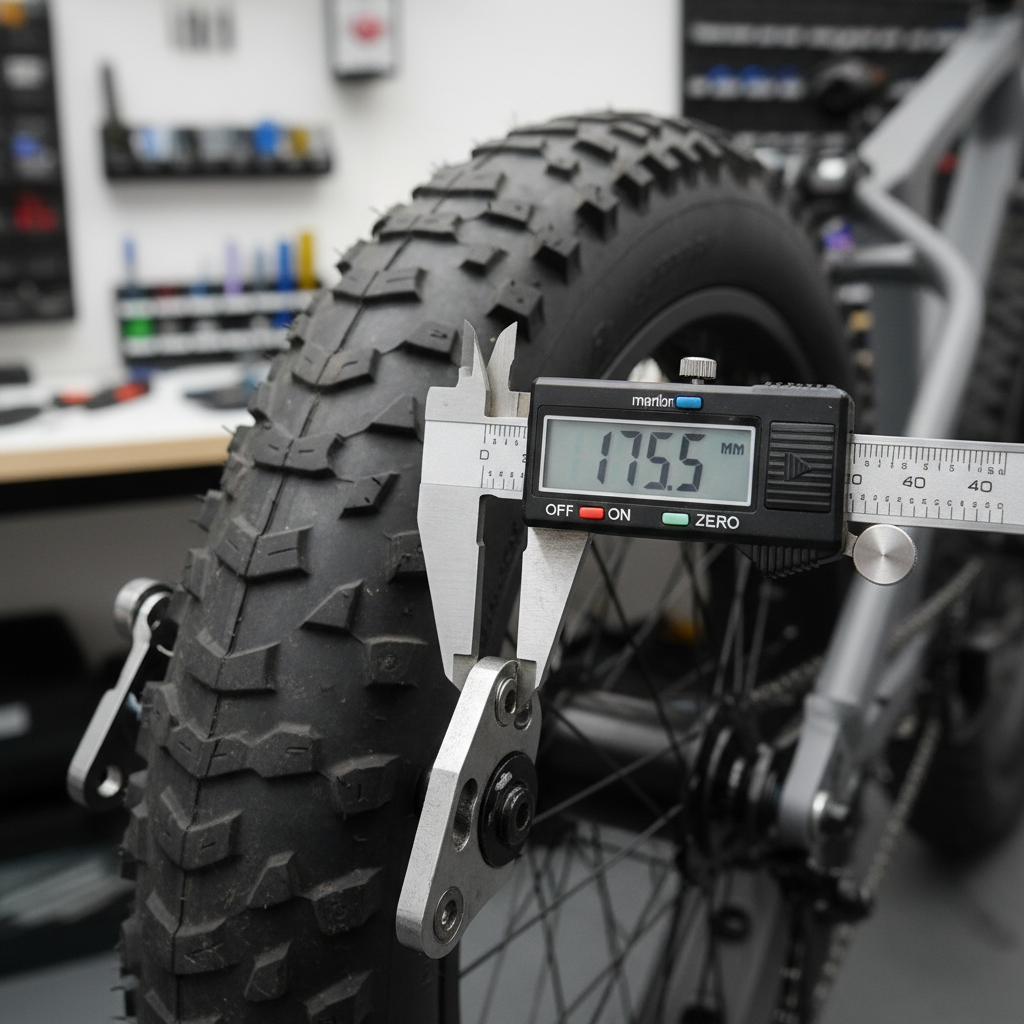

How to Measure Your Frame Correctly
Precision is mandatory. A 2mm error in measurement can lead to ordering a hub that won't fit or, worse, forcing a fit that cracks the frame.
- Use Digital Calipers: Do not use a tape measure or a wooden ruler.
- Remove the Wheel: You cannot get an accurate O.L.D. measurement with the wheel installed.
- Measure Inside-to-Inside: Place the caliper tips on the inside faces of the dropouts.
- Avoid the "Dropout Thickness" Error: Never measure the outside width of the frame or include the thickness of the dropouts in your calculation.
The Danger of "Cold Setting" Aluminum
A common piece of "old-school" advice is to "cold set" (bend) the frame to accommodate a slightly wider hub. While this was possible with steel frames, never attempt this on an aluminum frame. Aluminum does not have the same fatigue life as steel. Experience shows that bending the rear triangle of an aluminum frame to bridge a 170mm to 190mm gap leads to hairline cracks near the weld points after just a few stress cycles. This is a catastrophic failure that is never covered by warranty.
Installation and Alignment Heuristics
Once you have the correct 170mm or 190mm hub, proper installation ensures the longevity of your bearings and frame.
- The Criss-Cross Pattern: When tightening axle bolts or nuts, do so in a criss-cross pattern to ensure even pressure.
- The Sight Check: After installation, stand behind the bike and sight the wheel through the frame. The gap between the tire and the chainstays should be perfectly even on both sides.
- Alignment over Force: If the wheel is tilted, do not try to "pull" it straight by over-tightening one side. This puts asymmetric stress on the axle bearings, leading to premature failure. Instead, loosen both sides, re-seat the axle fully in the dropouts, and re-torque.
Safety and Compliance Standards
When choosing aftermarket wheels or motors for these standards, safety certifications are non-negotiable. The UL 2849 Standard covers the electrical system, including the hub motor's interaction with the controller and battery.
Furthermore, the U.S. Consumer Product Safety Commission (CPSC) frequently issues recalls for e-bikes with structural defects, including axle failures and frame cracks. Using the wrong hub spacing or forcing a fit significantly increases the risk of a mechanical failure that could lead to injury.
As noted in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the market is moving toward standardized, certified components. Adhering to the 170mm or 190mm standard as specified by your manufacturer is a key part of this shift toward safety and reliability.
Summary of Actions for Riders
- Identify First: Determine if your frame is 170mm or 190mm using digital calipers before browsing for parts.
- Match Axle Types: Ensure the hub's axle type (Quick Release vs. Thru-Axle) and diameter (10mm vs. 12mm) match your frame's dropouts.
- Respect the Frame: Never bend or "cold set" an aluminum frame to fit a mismatched hub.
- Verify Clearance: If upgrading to a 190mm hub for wider tires, ensure your chainstays have the physical width to clear the tire sidewall.
- Check Torque: Always use a torque wrench to tighten axle nuts to the manufacturer's specification (typically 35–45 Nm for rear hub motors) to prevent the axle from spinning in the dropouts.
By following these technical standards, you ensure that your fat-tire e-bike remains a durable, reliable tool for utility and commuting rather than a source of mechanical frustration.
Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or legal advice. Improper installation of e-bike components can lead to serious injury or death. Always consult a certified bicycle mechanic and follow all local regulations regarding e-bike modifications.
