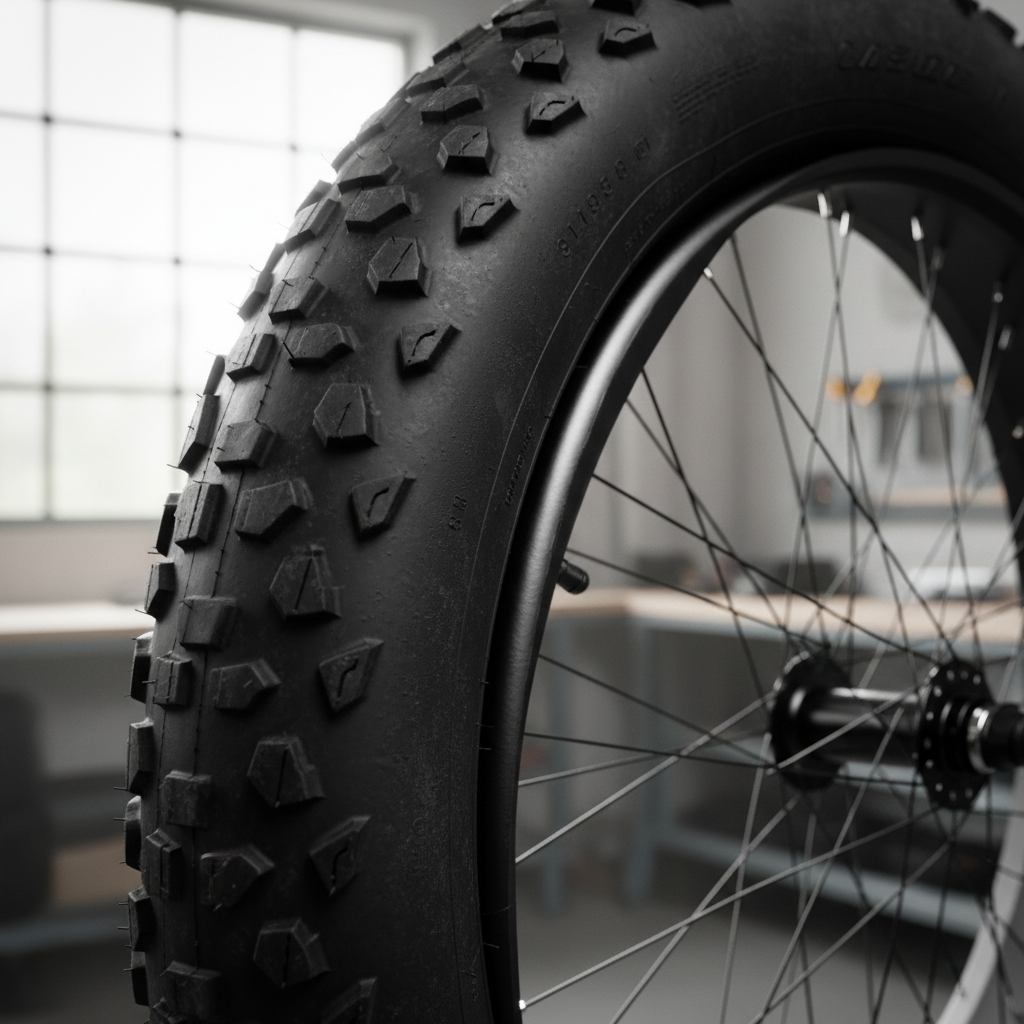

26x4.0 Tube Standards: Universal Spares for Fat E-Bikes
The Geometry of a Standard: Why 26x4.0 Matters
The 26x4.0 inner tube has emerged as the global benchmark for high-power fat-tire e-bikes. For the pragmatic rider using their vehicle for heavy-duty commuting or utility work, this standard represents more than just a size; it is a guarantee of serviceability. Whether you are operating a Class 2 (throttle-assisted to 20 mph) or a Class 3 (pedal-assist to 28 mph) e-bike, the ability to source a "universal" spare at a local shop is a critical factor in minimizing downtime.
However, the term "universal" is often used loosely. While the 26x4.0 designation suggests a broad fit, the reality is governed by the ISO 5775 standard, which defines precise width designations for rims and tires. A standard 26x4.0 tube is designed to expand into a carcass that is approximately 100mm wide. In practice, manufacturing tolerances create a "fit gap." A tire marketed as 4.0 inches may measure 4.2 inches in reality, while a budget tube might sit at the low end of the 4.0-inch tolerance. Under the high torque and weight of an e-bike, a stretched tube becomes thin and susceptible to failure.
Valve Compatibility: The 2mm Gap That Stops a Repair
The most common "gotcha" in sourcing a universal spare is the valve stem. Most utility-focused fat e-bikes utilize a Schrader valve (the same type found on car tires), which requires an 8.5mm hole in the rim. Some premium or performance-oriented models, however, use Presta valves, which are narrower at approximately 6.5mm.
According to technical guides on valve standards, these are not interchangeable. You cannot fit a Schrader valve through a Presta-drilled rim without drilling out the metal—a move that compromises the structural integrity of the wheel and likely voids your warranty. Conversely, putting a Presta valve in a Schrader hole without an adapter allows the valve to move, leading to "valve shear," where the edge of the rim hole cuts the rubber at the base of the stem.
Expert Insight: Always verify your valve type before buying a spare. For heavy e-bikes, a 48mm valve length is usually the sweet spot, providing enough clearance for deep-section rims without being so long that it catches on debris or cargo racks.
Material Science: Beyond "Standard" Butyl
For a workhorse vehicle, not all rubber is created equal. Most consumer-grade tubes are made of butyl rubber, but the quality of that rubber is determined by the ASTM D2663 dispersion rating. This rating measures how well carbon black is dispersed within the rubber.
- Rating 1: Indicates poor dispersion with "considerably depressed properties." These tubes are prone to premature failure under the heat and torque generated by 750W–1000W motors.
- Rating 5: Indicates "near maximum properties," offering the best resistance to tearing and heat.
While manufacturers rarely list this rating on the box, a reliable heuristic is the tube's wall thickness. A standard bicycle tube is roughly 0.9mm thick. For a heavy-duty e-bike carrying cargo, we recommend a "Heavy Duty" or "Thorn Resistant" tube with a wall thickness of 2.0mm or greater. This added mass helps resist pinch flats (also known as "snake bites") that occur when you hit a pothole or curb under load.
Modeling the Heavy-Duty Utility Use Case
To understand the stresses placed on these components, we modeled a "Heavy-Duty Utility Commuter" scenario. This assumes a rider using a fat-tire e-bike to replace a pickup truck for urban contracting work.
| Parameter | Value | Rationale |
|---|---|---|
| Total System Weight | 358 lbs | 220lb rider + 50lb tools + 88lb bike |
| Terrain | Mixed Urban/Gravel | Construction sites, alleys, and rough pavement |
| Energy Consumption | ~68 Wh/mile | High consumption due to load and stop-and-go |
| Annual Mileage | 3,750 miles | 15 miles/day, 5 days/week, 50 weeks |
| Tube Thickness | 2.0mm+ | Required to prevent pinch flats at 358lb load |
Modeling Note: This is a deterministic scenario model based on standard physics and industry heuristics (e.g., AAA 2024 driving costs). It is not a controlled lab study. Results may vary based on specific motor efficiency and local topography.
Economic Impact: The "Workhorse" Advantage
The decision to maintain a high-quality 26x4.0 tube standard isn't just about safety; it’s about the bottom line. Our analysis shows that for a contractor in a dense urban environment, switching from a half-ton pickup to a fat-tire e-bike yields a $6,544 annual net benefit. This includes savings on fuel, insurance, and approximately $1,440 in avoided parking fees.
Furthermore, the time savings are substantial. In environments like New York City, where car speeds average 12 mph due to congestion, an e-bike maintaining 18 mph can save a commuter 138 hours annually. At a labor rate of $25/hour, that time is valued at $3,462. However, these gains are only realized if the vehicle is reliable. A flat tire on the way to a job site can erase a day's profit, making the choice of a high-dispersion, thick-walled tube a critical business decision.
Installation Secrets: The "Talc and Seat" Method
Based on patterns observed in repair shops and warranty feedback, most tube failures aren't caused by punctures, but by improper installation. When a large 26x4.0 tube is stuffed into a tire, it can easily crease or bind.
- The Talc Dusting: Before inserting the tube, dust it lightly with talc or baby powder. This acts as a dry lubricant, allowing the tube to slide against the tire carcass as it inflates rather than sticking and creating a stress point.
- The Partial Inflate: Pump the tube just enough to give it shape (about 2–3 PSI) before tucking it into the tire. This prevents the tube from twisting.
- The Bead Check: Once the tire is on the rim, push the tire bead inward all the way around the wheel to ensure the tube isn't pinched between the tire and the rim.
- The Final PSI: For heavy loads, refer to a specific PSI guide for heavy commuters to find the balance between traction and rim protection.
Safety, Compliance, and Local Sourcing
When sourcing spares locally, you may encounter "ATV tubes" (e.g., 25x8-12) at auto parts stores. While these can be adapted in an absolute emergency, they are a last resort. They often require valve stem modifications and are significantly heavier, which can affect motor heat and braking performance.
It is better to stick to components that align with UL 2849 standards for electrical systems, as these ensure the bike is tested as a cohesive unit. While the tube itself isn't "UL certified," using non-standard parts can lead to imbalances that stress the motor and battery.
For those living in strictly regulated areas like New York City or California, ensure your e-bike and its components comply with local DMV classifications. Using the wrong tire/tube combination that significantly alters the effective wheel diameter could, in theory, change your speed sensor readings, potentially pushing a Class 2 bike into an unregulated speed category.
Environmental Break-Even
Many users are motivated by sustainability. Our modeling indicates that a heavy-duty e-bike, despite having a higher manufacturing carbon footprint than a standard bicycle (approx. 300kg CO2), will offset the emissions of a pickup truck (0.65 kg/mile) in just 32 days of commuting or 471 miles. Maintaining your tires properly ensures you don't cut this lifecycle short by retiring the bike due to "unfixable" mechanical frustrations.
Summary Checklist for the Pragmatic Rider
To ensure your fat e-bike remains a reliable workhorse, follow these technical baselines:
- Size: Stick to 26x4.0 for maximum local availability.
- Valve: Match your rim (Schrader 8.5mm vs. Presta 6.5mm).
- Thickness: Prioritize 2.0mm+ butyl for cargo and utility use.
- Installation: Use talc and perform a bead check to prevent creases.
- Compliance: Ensure your bike meets CPSC safety standards to avoid risks associated with battery or frame failure.
As the industry moves forward, we are seeing a shift toward greater accountability. For a deeper look at where the market is heading, consult the industry report on The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency.
Disclaimer: This article is for informational purposes only and does not constitute professional mechanical, legal, or financial advice. Always consult your e-bike’s owner manual and a certified bicycle mechanic before performing repairs. Riding an e-bike involves inherent risks; always wear a helmet and follow local traffic laws.
