6-Bolt vs. Centerlock: Choosing Rotors for Hub Motors

The Interface of Power: 6-Bolt vs. Centerlock in the Hub Motor Era

In the technical ecosystem of high-performance e-bikes, the method by which a brake rotor attaches to a wheel is more than a matter of convenience; it is a critical engineering choice that impacts safety, heat management, and long-term serviceability. For riders of 750W to 1000W utility and commuter bikes, the braking system must manage significantly higher kinetic energy than a traditional bicycle. A Class 3 e-bike, capable of 28 mph and often weighing over 70 lbs (32 kg) before cargo, places extreme shear stress on the rotor mounting interface.

Quick Answer: Which Rotor Standard Should You Choose?

For high-power hub motor e-bikes (750W+), the 6-bolt (IS) standard is the recommended choice due to tool clearance and structural compatibility with large motor axles.

• Recommended Torque: 4–6 Nm (always use a calibrated torque wrench).
• Best for Heavy Loads: Upgrade to 2.3mm thick rotors to increase thermal mass and reduce brake fade.
• Maintenance: Use a star-pattern tightening sequence and medium-strength thread locker to prevent loosening from motor vibration.

While the cycling industry at large is split between the 6-bolt International Standard (IS) and Shimano’s proprietary Centerlock system, the hub motor segment remains almost exclusively dedicated to the 6-bolt standard. Understanding why this standard dominates and how to maintain it is essential for any DIY-oriented rider looking to ensure their machine remains compliant with safety standards like UL 2849.

The Engineering Logic: Why 6-Bolt Dominates Hub Motors

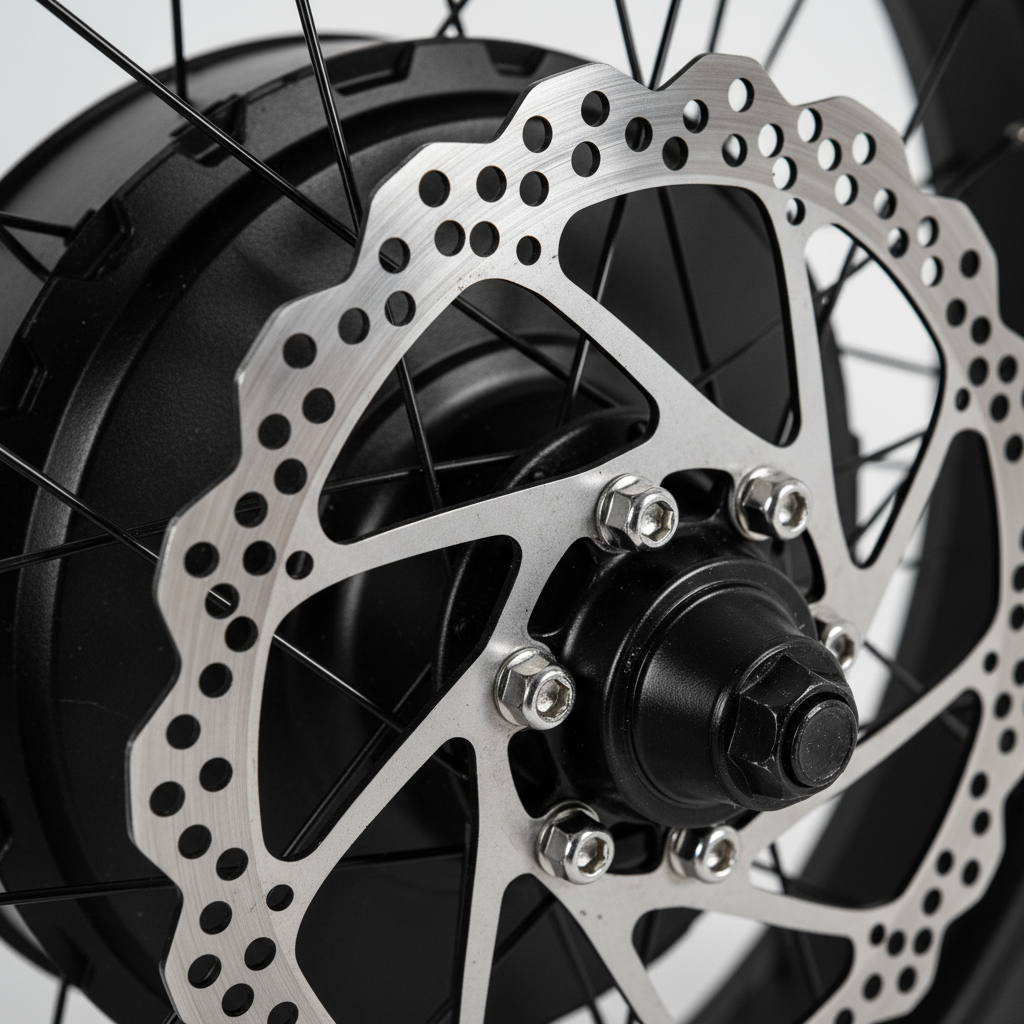

The 6-bolt standard utilizes six T25 Torx bolts arranged in a 44mm diameter circle. Based on industry patterns observed in high-torque hub motor manufacturing, this design offers several mechanical advantages that Centerlock struggles to match in a hub-drive configuration.

1. Structural Integration and Flange Geometry

Hub motors are essentially large-diameter shells containing planetary gears, copper windings, and magnets. The outer casing (flange) must provide a flat, stable surface for the rotor. Integrating a 6-bolt pattern into an aluminum motor housing is manufacturing-intensive but structurally straightforward. It allows for a wide "stance" that distributes braking torque across a larger area of the hub shell, reducing localized stress.

2. Axle and Wiring Constraints

Centerlock rotors require a splined interface and a lockring, typically tightened with a 12-notch or 16-notch tool. Most hub motors use a solid or hollow 10mm/14mm axle with a "flat" to prevent the axle from spinning in the dropouts. Furthermore, the motor's power cable often exits through the center of the axle.

A standard Centerlock lockring tool often cannot pass over the large axle nuts and wiring harnesses found on 750W+ motors. This makes the 6-bolt system—which uses standard side-access Torx keys—the most practical choice for field repairs and maintenance.

3. Torque Robustness and Redundancy

High-torque e-bikes generate massive "reverse" forces during braking. The 6-bolt system provides a redundant mechanical connection. Even if a single bolt were to lose tension, the remaining five help maintain the rotor's alignment. According to the CPSC Recalls database, mechanical failures in braking systems are a significant factor in product safety warnings; the 6-bolt standard's inherent redundancy is a key factor in mitigating these risks for heavy utility bikes.

Logic Summary: Hub Interface Selection Based on general workshop experience and hub motor architecture, 6-bolt remains the dominant standard due to:

• Tool Clearance: Side-access T25 bolts bypass axle/wire interference.
• Standardization: Estimated to be used on over 95% of current high-power hub motors, ensuring wider compatibility with aftermarket heavy-duty rotors.
• Heat Path: Direct bolting to the hub shell allows for a secondary heat sink effect into the motor casing.

Critical Maintenance: The 4-6 Nm Rule and Thread Integrity

One of the most frequent errors in DIY e-bike maintenance is the over-tightening of rotor bolts. Because hub motor shells are typically cast or machined from aluminum, the internal threads can be vulnerable to stripping if excessive force is applied.

The Importance of Torque Specs

Rotor bolts should typically be tightened to 4-6 Nm (Newton-meters). Under-tightening leads to rotor "play" and vibration, while over-tightening can permanently damage the hub motor casing, potentially necessitating a costly shell replacement.

The Cross-Pattern Tightening Sequence

To ensure the rotor sits flush against the hub, follow a cross-pattern (star pattern) tightening sequence. This helps prevent the rotor from warping during installation:

1. Lightly thread all six bolts by hand.
2. Tighten Bolt 1 to ~2 Nm.
3. Move to Bolt 4 (directly opposite).
4. Proceed to Bolt 2, then Bolt 5.
5. Finish with Bolt 3 and Bolt 6.
6. Repeat the sequence to the final 4-6 Nm specification using a calibrated torque wrench.

Thread Lockers and Hardware

Most high-quality rotor bolts come pre-coated with a blue thread-locking compound (e.g., Loctite 242). This is critical for e-bikes. The vibrations from high-speed hub motors can cause untreated bolts to back out. If you are reusing bolts, clean the threads with isopropyl alcohol and apply a single drop of medium-strength thread locker.

Performance Upgrades: Managing Heat in Heavy-Duty Systems

Standard e-bike rotors are typically 1.8mm thick. While sufficient for casual riding, these rotors are more prone to "heat soak" and warping under the loads typical of 1000W fat tire bikes. As noted in The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, there is an increasing industry move toward over-built components to handle the thermal demands of heavy-duty commuter use.

Upgrading to 2.3mm Rotors

Many utility riders are now transitioning to 2.3mm thick rotors. The 0.5mm difference significantly increases the thermal mass of the rotor.

Ice-Tech and Vented Designs

For riders in mountainous regions, "Ice-Tech" style rotors—which feature an aluminum core sandwiched between stainless steel—are designed to reduce surface temperatures. Manufacturer testing (e.g., Shimano) suggests potential reductions of up to 100°C under specific lab conditions; however, real-world performance depends heavily on ambient airflow and braking technique. Ensure these are 6-bolt compatible, as many advanced designs were originally Centerlock-only.

Bedding-In: The Critical First 10 Miles

New rotors and pads require a "bedding-in" (or burnishing) process to transfer a microscopic layer of pad material onto the rotor surface. This creates the friction necessary for high-performance braking.

The Bedding-In Procedure for E-Bikes:

1. Find a flat, safe stretch of pavement.
2. Accelerate to ~15 mph (24 km/h).
3. Apply brakes firmly and evenly until you reach walking speed. Do not come to a complete stop, as this can create an uneven "pad deposit" and lead to brake judder.
4. Repeat this 10–15 times for the front and rear independently.
5. Perform a final set of 5 stops from ~20 mph (32 km/h) with increased pressure.

Failure to bed in rotors properly on a heavy e-bike often results in "glazing," where the pads become smooth and hard, leading to a loss of stopping power and potential noise issues.

Modeling Thermal Performance: 1.8mm vs 2.3mm Rotors

To demonstrate the value of thicker rotors, we modeled a hypothetical braking event for a high-power e-bike.

Methodology and Assumptions

The model calculates the temperature rise ($\Delta T$) using the principle of conservation of energy, where kinetic energy ($E_k$) is converted into thermal energy ($Q$).

• Formula: $E_k = \frac{1}{2}mv^2$ and $\Delta T = \frac{Q}{m_{rotor} \cdot c}$
• System Weight ($m$): 180kg (Total bike + rider + cargo).
• Velocity ($v$): 12.5 m/s (~28 mph).
• Specific Heat ($c$): 460 J/kg·K (Standard stainless steel).
• Energy Distribution: Assumes 60% of total kinetic energy is absorbed by a single front rotor during an emergency stop.

Note: This is a scenario model for illustrative purposes. Actual temperatures will vary based on ambient conditions, pad compound, and cooling airflow.

Compliance and Safety Standards

Braking performance is a core pillar of e-bike safety certifications. UL 2849 covers the electrical system, but the mechanical ability to stop that power is equally vital. Organizations like the Light Electric Vehicle Association (LEVA) emphasize that as motor power increases, the "braking-to-power" ratio must remain balanced.

Using non-standard rotors or failing to maintain the 6-bolt interface can impact safety and may void manufacturer warranties. Always ensure your replacement parts meet the original equipment manufacturer's (OEM) specifications for diameter and thickness.

Summary of Actionable Advice

For the pragmatic e-bike owner, rotor choice comes down to reliability and heat management:

• Identify your Interface: The vast majority of hub motors use the 6-bolt (IS) standard. Avoid using adapters for high-torque applications.
• Invest in a Torque Wrench: Tighten bolts to 4-6 Nm in a cross-pattern to protect hub threads.
• Choose the Right Thickness: If you frequently haul heavy loads, consider 2.3mm rotors for better thermal stability.
• Bed-In Every Time: Always perform the burnishing process with new rotors or pads.
• Check Hardware Regularly: Verify bolt tightness every 500 miles, especially on rear hub motors where vibration is highest.

Disclaimer: This article is for informational purposes only and does not constitute professional mechanical advice. Braking systems are critical safety components. If you are unsure about performing maintenance, consult a certified e-bike technician. Always follow the specific torque values and safety instructions provided by your bicycle and component manufacturers.
