Maintaining a high-power e-bike—specifically those equipped with 750W to 1000W motors—requires moving beyond standard bicycle mechanics. When you are operating a Class 3 vehicle capable of 28 mph, the forces exerted on the drivetrain are significantly higher than those found on a traditional analog bike. One of the most critical yet misunderstood adjustments in this high-torque environment is the B-limit screw (also known as the B-tension screw).

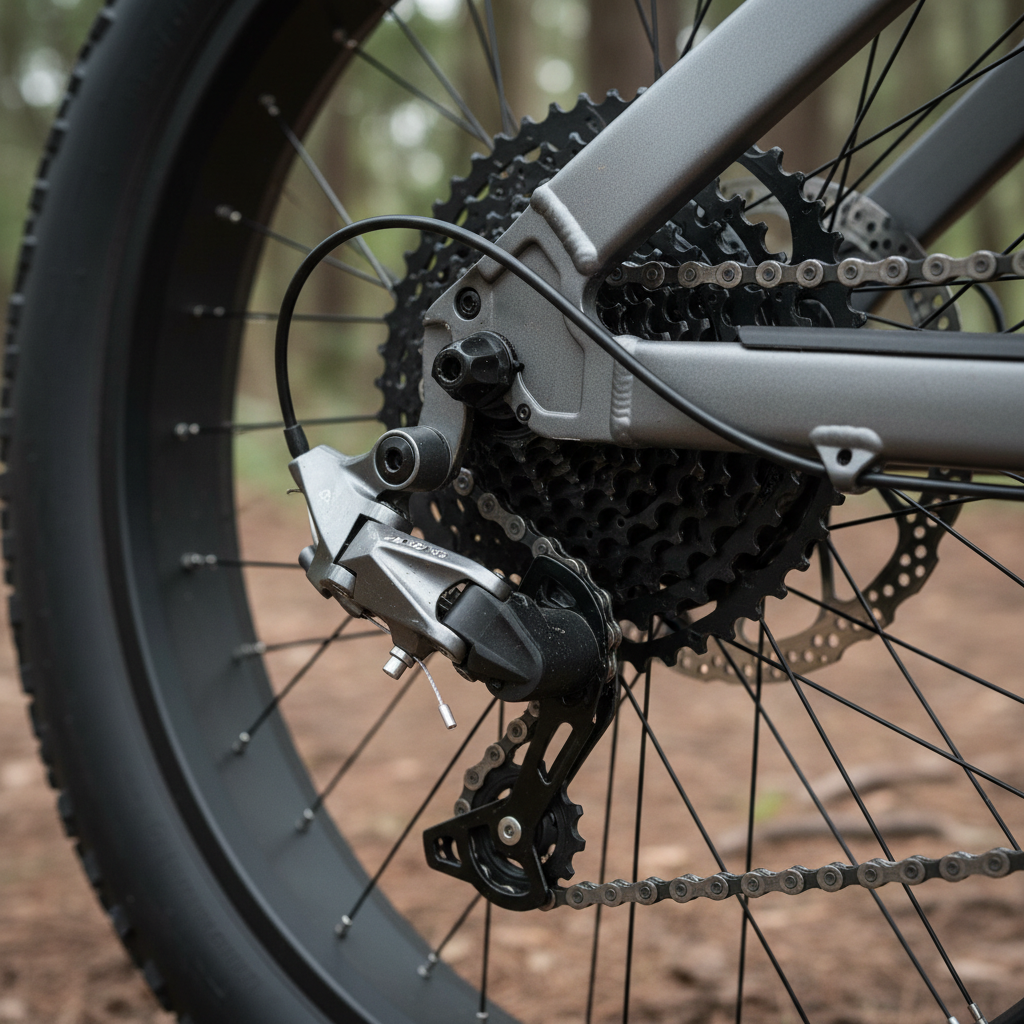

The B-limit screw controls the vertical distance between the derailleur's upper guide pulley and the cassette's cogs. On a standard bike, this is adjusted to ensure crisp shifting. On a high-torque e-bike, this adjustment becomes a matter of component survival. Improper B-gap settings under the rapid torque pulses of a 750W+ motor can lead to chain-suck, accelerated cassette wear, and even catastrophic derailleur failure.

The Role of the B-Limit Screw in E-Bike Power Delivery

The "B" in B-limit stands for "Body." This screw adjusts the angle of the derailleur body relative to the hanger, which in turn determines the "gap" between the pulley wheel and the cassette teeth.

In a high-torque system, the chain is under immense tension. According to the SRAM GX Eagle Service Documentation, precise B-gap adjustment is essential for the derailleur to clear the larger cogs found on modern wide-range cassettes (like 11-42t or 11-50t). For e-bikes, this gap does more than just facilitate a shift; it manages "chain wrap"—the number of teeth the chain engages on a cog at any given time.

Higher torque requires more chain wrap to distribute force across more teeth, preventing the chain from "skipping" or "jumping" under load. However, if the pulley is too close to the cog, the derailleur can physically collide with the cassette during a shift, especially when the motor's 80Nm+ of torque is mid-surge.

Why High-Torque Motors Require a Different Approach

Traditional mechanical wisdom suggests a B-gap of 5-6mm, usually measured in the largest rear cog. However, high-utility e-bikes frequently carrying 400lb payloads encounter two variables that analog bikes do not: frame flex and torque-induced oscillation.

1. Frame Flex: Under heavy loads and high motor output, the rear triangle of an e-bike frame can experience minor elastic deformation. This flex can effectively "shrink" the B-gap set on a workstand.
2. Torque Pulses: 750W+ motors do not always provide perfectly smooth power. Rapid acceleration pulses can cause the derailleur cage to oscillate. If the B-gap is set to the tight 3-5mm range often seen in high-end mountain bike groupsets, these oscillations can cause the chain to jam or "suck" into the cassette.

Logic Summary: Our analysis of high-torque drivetrain behavior assumes that the dynamic forces of a 750W motor require a "buffer zone" in the B-gap. We recommend a heuristic of 5-8mm of clearance—slightly wider than standard—to account for frame flex and derailleur oscillation under load.

As noted in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, manufacturers are increasingly recognizing that "spec wars" (simply offering more power) must be met with radical transparency regarding how users should maintain these high-stress components.

The "Second-Largest Cog" Heuristic: A Step-by-Step Guide

While most manuals suggest adjusting the B-screw in the largest cog, experienced e-bike mechanics often find this insufficient. Shifting failures on high-torque bikes frequently occur in the mid-range cogs (4th through 6th) where chain tension is high but chain wrap is naturally lower. To ensure a robust tune, follow this professional adjustment sequence:

Step 1: Inspect the Derailleur Hanger

Before touching the B-screw, ensure your derailleur hanger is perfectly straight. A misaligned hanger is the root cause of 70% of shifting issues on heavy e-bikes. Because these bikes are heavy, they often tip over or get bumped in storage, bending the aluminum hanger. Even a 2-degree bend will make B-gap adjustments inconsistent across the cassette.

Step 2: Shift to the Second-Largest Cog

Instead of the largest cog, shift the derailleur to the second-largest cog. This provides a more realistic representation of the derailleur's tension under load.

Step 3: Adjust the B-Limit Screw

* **To increase the gap:** Turn the screw clockwise. This pushes the derailleur further away from the cassette. * **To decrease the gap:** Turn the screw counter-clockwise. * **The Target:** Aim for a gap of 6-7mm between the tips of the pulley teeth and the tips of the cog teeth. You can use a 6mm Allen key as a makeshift feeler gauge.

Step 4: Verify Under Load

A gap that looks perfect in the stand may fail on the road. Test the shifting while applying the brakes slightly to simulate the resistance of a 400lb load. If the chain hesitates to climb into the largest cog, the gap may be too wide. If it "crunches" or makes a loud grinding noise, the gap is likely too tight.

Troubleshooting Chain-Suck and Hanger Fatigue

If you have adjusted the B-screw and still experience poor shifting, you may be facing "Information Gain" issues—problems that aren't visible in a static environment.

Component	Standard Spec	High-Torque Heuristic	Rationale
B-Gap Distance	5-6mm	6-8mm	Accounts for frame flex/oscillation
Adjustment Cog	Largest	2nd Largest	Ensures mid-range shift stability
Chain Life	1,500+ miles	500-800 miles	1000W Peak Impact
Hanger Material	Aluminum	Reinforced Aluminum	Must support motor & payload weight

The Risk of Over-Tightening

A common mistake is turning the B-limit screw too far clockwise to "fix" a noisy chain. This puts excessive constant pressure on the derailleur hanger's mounting tab. Over time, this can lead to hairline fractures in the aluminum. On a heavy e-bike, a snapped hanger at speed is a significant safety risk. Always ensure the screw is making firm contact with the hanger tab without being forced to its mechanical limit.

Chainline and Wear

As highlighted by [Park Tool's research on chainline concepts](https://www.parktool.com/en-us/blog/repair-help/chainline-concepts), an overly large B-gap can create a suboptimal chainline in the smallest (highest speed) cogs. This increases the lateral load on the chain links. When combined with a 750W motor, this can wear out a chain in as little as two months of heavy commuting. Regular lubrication and checking for "chain stretch" using a dedicated tool are mandatory for high-power riders.

For a deeper look at how these forces interact with your motor's internals, see our guide on Why Hub Motor Gears Fail Under Heavy Cargo Loads.

Compliance and Safety Standards

When performing any mechanical work on your e-bike, keep safety and regulatory standards in mind. The U.S. Consumer Product Safety Commission (CPSC) frequently issues recalls for e-bikes with mechanical defects that lead to loss of control. Ensuring your drivetrain is properly tuned is your first line of defense against such risks.

Furthermore, if you are riding in a jurisdiction with strict Class 3 regulations, such as New York or California, your bike must be in peak mechanical condition to safely navigate traffic at 28 mph. The UL 2849 Standard covers the electrical system, but the mechanical system—your brakes and gears—must be equally reliable to handle the speed that the electrical system provides.

Essential Maintenance Checklist

To keep your high-torque shifting smooth, integrate these checks into your monthly routine:

1. B-Gap Check: Verify the 6-7mm gap in the second-largest cog.
2. Hanger Alignment: Visually inspect the derailleur from the rear to ensure it hangs vertically and parallel to the wheel.
3. Chain Tension: Check for "stiff links" that can cause the derailleur to jump, especially after riding in wet or salty conditions.
4. Lubrication: Use a high-pressure e-bike specific lubricant. Standard "dry" lubes often fail under the heat generated by 1000W of peak power.
5. Gear Indexing: Ensure your cable tension is adjusted so that the chain sits centered on each cog.

By mastering the B-limit screw, you aren't just fixing a clicking noise; you are protecting the planetary gears in your hub motor and ensuring that your drivetrain is tough enough for off-road torque.

---

Disclaimer: This article is for informational purposes only. Mechanical failure on an electric bicycle can result in serious injury. If you are unsure about performing these adjustments, consult a professional bicycle mechanic. Always follow the specific torque settings and safety guidelines provided by your e-bike manufacturer.
