Inspecting Brake Caliper Mounts for Stress Under Max Payload

Quick Guide: Essential Brake Mount Safety

For high-capacity e-bikes (400 lb+ payload), brake caliper mounts are high-stress components. Failure can lead to a loss of braking control. Use this checklist for rapid assessment:

• The "Click" Test: If you hear a click when applying brakes, stop immediately. It often indicates a loose mounting bolt.
• The 100-Mile Check: New bikes "settle." Re-torque caliper bolts after the first 50–100 miles.
• Visual Inspection: Use a flashlight at a shallow angle to find "spider-web" cracks in paint/coatings near welds.
• Thread Security: Always use blue (medium-strength) thread locker when re-installing bolts to combat high-frequency vibration.
• Professional Help: If you observe any metal deformation or persistent noise, consult a certified mechanic.

Stopping a high-power e-bike loaded to its 400 lb maximum capacity is a feat of engineering that extends far beyond the brake pads. While most riders focus on hydraulic fluid or rotor size, the true "silent partner" in safety is the brake caliper mount—the physical interface where the braking system meets the frame.

When you engage the brakes on a heavy-utility e-bike, the kinetic energy must be converted into heat and mechanical force. For a Class 3 e-bike traveling at 28 mph with a total system weight of 400 lbs, the braking torque applied to the frame mounts is immense. If these mounts or their securing bolts fail, the caliper can shift, which may lead to a loss of braking power or, in severe scenarios, a wheel lock-up.

This guide provides a technical overview of inspecting these critical components, identifying early warning signs of fatigue, and maintaining structural integrity under strenuous use.

The Mechanical Reality of High-Torque Braking

In a standard bicycle, braking forces are relatively low. However, high-capacity e-bikes operate in a different physical realm. According to the Consumer Reports: Electric Bikes Test Protocol [Industry Testing], evaluating braking performance under load is essential for safety, yet the structural resilience of the mounts themselves is often overlooked by the average consumer.

The "Settling" Phenomenon

Based on common patterns observed in professional workshops, the most frequent failure point is often the interface between the mounting bolt and the frame material. During the first 50 to 100 miles of heavy use, repeated hard stops can cause mounting bolts to "settle." This is particularly prevalent in alloy frames where the bolt threads may slightly compress the softer metal of the mount. Even if properly torqued at the factory, this settling can lead to a reduction in clamp force, making a re-torque check a critical maintenance step after the initial break-in period.

Chassis Flex and Bolt Tension

A common misconception is that a universal torque specification (typically 6–8 Nm for most bicycle calipers) is sufficient for all conditions. However, technical modeling of chassis dynamics suggests that flex under maximum payload can significantly alter the stress profile.

Modeling Assumption: Based on a theoretical 400 lb total system weight and 203mm rotor, we estimate that a 2–3mm chassis deflection under heavy load could increase bolt tension by 30–40% beyond static torque values. These figures serve as a heuristic to illustrate how transient loads can potentially approach material yield strengths over thousands of cycles.

The Invisible Threat: Subsurface Material Fatigue

One of the most concerning aspects of brake mount failure is that it often begins where it cannot be seen. Conventional visual inspection may miss early-stage issues that non-destructive testing (NDT) is designed to find.

The Micro-Crack Propagation

According to industrial insights on Non-Destructive Testing for Defects [Industry Tutorial], a high percentage of fatigue failures in structural metals originate from subsurface micro-cracks invisible to the naked eye. Under the cyclic loading of daily commuting with heavy cargo, these cracks can propagate internally. By the time a crack is visible on the surface, the structural integrity of the mount may be significantly compromised.

Thermal Expansion and Yield Strength

Braking generates significant heat. While the rotor and pads bear the brunt of this, heat transfers through the caliper to the mounts. While lithium-ion battery safety is often the focus of thermal studies, such as the SAE/IEEE Study on Thermal Runaway Factors [Technical Research], the mechanical impact of heat on frame materials is also a factor.

In extreme, repeated heavy braking scenarios (such as long downhill descents at max payload), local temperatures have been known to rise significantly. For certain aluminum or magnesium alloys, sustained high heat can temporarily reduce yield strength. In this weakened state, an emergency stop could cause damage that would not occur under cooler, lighter conditions.

Professional Inspection Protocol

Given the limitations of basic visual checks, a more rigorous inspection protocol is recommended for riders who consistently operate near the 400 lb payload limit.

1. The Auditory Diagnostic: "The Clicking Sound"

Before you pull out the tools, listen to your bike. A telltale sign of potential trouble is a faint "clicking" or "knocking" sound that occurs specifically when you first apply the brakes. This is often the sound of a slightly loose mounting bolt allowing the caliper to shift a fraction of a millimeter under load. If you hear this, stop riding and check the mounting hardware immediately.

2. The Shallow-Angle Flashlight Technique

For magnesium alloy frames—popular for their weight-to-strength ratio—stress manifests differently than in steel. On these frames, look for very fine, spider-web-like cracks in the paint or coating around the weld zones near the mounts.

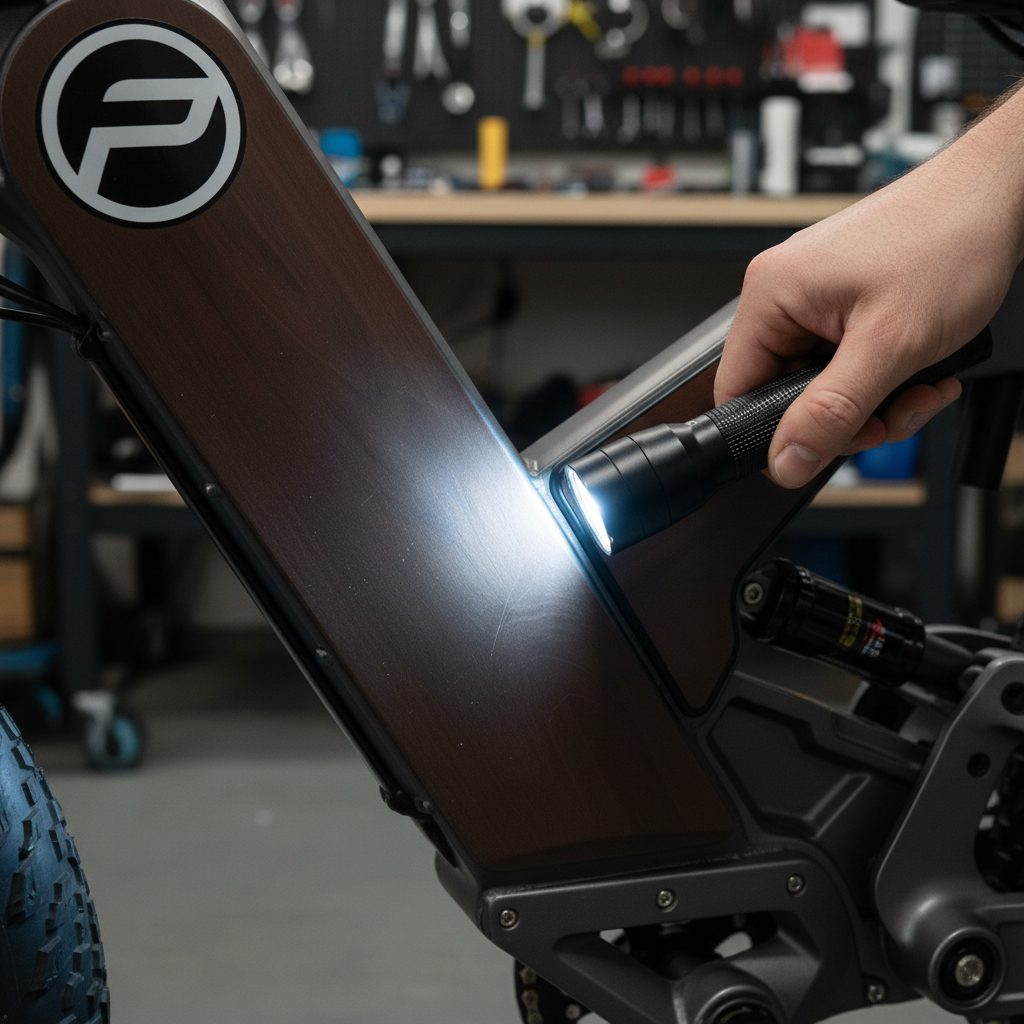

Expert Tip: Use a high-lumen flashlight at a shallow (oblique) angle to the frame surface. This creates shadows in the tiny ridges of a crack that might be invisible under direct, overhead light.

3. Verification of Mounting Integrity

When inspecting the bolts, look beyond just "tightness":

• Remove and Inspect: Periodically remove the bolts to check for "galling" (material transfer) on the threads.
• Thread Locker Application: To combat high-frequency vibration, the use of a medium-strength (blue) thread locker is a standard industry practice. General technical guides, such as those found at Brake Caliper Torque Specs [Technical Blog], indicate that thread lockers significantly reduce the risk of bolt loosening compared to dry threads in high-vibration environments.
• Mount Alignment: Ensure the mount is perfectly "faced" (flat). If the caliper sits at even a slight angle, it introduces a twisting force (torsion) into the mount that it was not designed to handle.

Regulatory Context and Safety Standards

As the industry moves toward more robust safety requirements, standards like UL 2849 Standard for Electrical Systems [Safety Certification] have become the benchmark for electrical safety. Mechanical safety is often governed by standards such as 16 CFR Part 1512 in the United States.

The CPSC Recalls & Product Safety Warnings [Regulatory Agency] database occasionally lists e-bike recalls related to structural failures, often involving components designed for traditional bicycles being used on high-weight e-bikes. Understanding your vehicle's class is vital; for instance, California DMV Class 3 E-bike Laws [Regulatory] and New York DMV Class Definitions [Regulatory] set the speed limits that dictate the kinetic energy your brakes must manage.

As noted in The 2026 E-Bike Market Shift [Industry Analysis], manufacturers are increasingly prioritizing verifiable mechanical reliability. This shift is critical for riders using e-bikes as genuine car replacements.

Maintenance Schedule for Heavy-Duty Use

For utility riders, we recommend the following specialized schedule for brake mount maintenance:

Post-Purchase (Miles 50–100)

• Initial Re-torque: Perform a full torque check of all caliper mounting bolts to account for initial "settling."
• Visual Baseline: Use the shallow-angle flashlight technique to establish a "clean" baseline of the paint and weld areas.

Monthly or Every 250 Miles

• Sound Check: Listen for the "clicking" diagnostic during hard stops.
• Hand Check: Feel for any play in the caliper (ensure the system is cool before touching).

Bi-Annually or Every 1,000 Miles

• Deep Inspection: Remove the caliper entirely. Clean the mounting surfaces and inspect the threads for wear.
• Re-apply Thread Locker: Clean old residue and apply fresh blue thread locker.
• Weld Inspection: Pay extra attention to the rear triangle weld zones, as these are high-stress areas for cargo-carrying bikes.

Advanced Maintenance: The NDT Gap

While professional-grade Non-Destructive Testing (NDT) using dye penetrants is the gold standard for detecting subsurface cracks, it is often impractical for individual riders due to cost. Because of this, the diligent use of auditory cues and specialized visual techniques is your most effective defense. If you are a fleet operator, consider an annual dye penetrant test during a major overhaul.

Summary of Actionable Steps

1. Respect the Payload: Understand that operating near the 400 lb limit significantly increases the stress on your frame mounts.
2. Verify Torque Regularly: Do not assume "set and forget." Bolt settling is a known physical factor in alloy frames.
3. Use Chemical Security: Always use blue thread locker to mitigate vibrations inherent in heavy-duty e-biking.
4. Listen to the Bike: A click is a warning. Treat it with the same urgency as a "Check Engine" light.
5. Look for "Spider Webs": Use the flashlight technique to spot paint stress before the metal fails.

Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or safety advice. Braking systems are critical safety components. If you are unsure about your bike's structural integrity, consult a certified e-bike mechanic or the manufacturer immediately. Always follow local traffic laws as defined by your state's DMV.
