Cargo Drag: How Pannier Positioning Hits Your Battery Life

Aerodynamic Efficiency: The Unseen Range Extender for Utility Riders

In the world of utility e-bikes, weight is often the primary focus of performance discussions. Riders hauling groceries, delivery packages, or commuting gear naturally worry about how many pounds they are adding to the frame. However, for those operating Class 3 e-bikes at speeds up to 28 mph, weight is only half the story. The most significant thief of battery range isn't gravity—it is aerodynamic drag.

As speed increases, the energy required to push through the air grows exponentially. For a utility rider, how you position your cargo—specifically your panniers and baskets—can determine whether you finish your route with 20% battery remaining or find yourself pedaling a heavy, unassisted bike for the last three miles. This article breaks down the physics of "cargo drag," the impact of pannier positioning on efficiency, and the safety standards that govern these high-performance workhorses.

The Physics of Drag: Why Speed Changes Everything

To understand why pannier placement matters, we must look at the fundamental equation for aerodynamic power. Aerodynamic drag ($P_{\text{aero}}$) is defined as:

$$P_{\text{aero}} = \frac{1}{2}\rho C_d A v_{\text{air}}^3$$

In this formula, $\rho$ represents air density, $C_d$ is the drag coefficient (how "slippery" the object is), $A$ is the frontal area, and $v$ is the velocity. The most critical factor for a commuter is that velocity is cubed ($v^3$).

This means that if you double your speed from 14 mph to 28 mph, the power required to overcome air resistance increases by eight times. At 20 mph, aerodynamic drag typically accounts for 30–50% of the total resistive power for an upright rider. By the time you reach Class 3 speeds of 28 mph, drag becomes the dominant force, often consuming more energy than rolling resistance and mechanical friction combined.

Logic Summary: Our aerodynamic analysis assumes a standard upright riding posture on a fat-tire e-bike. The cubic relationship between speed and drag means that even small increases in frontal area ($A$) or turbulence ($C_d$) from poorly placed cargo result in significant battery drain at higher speeds.

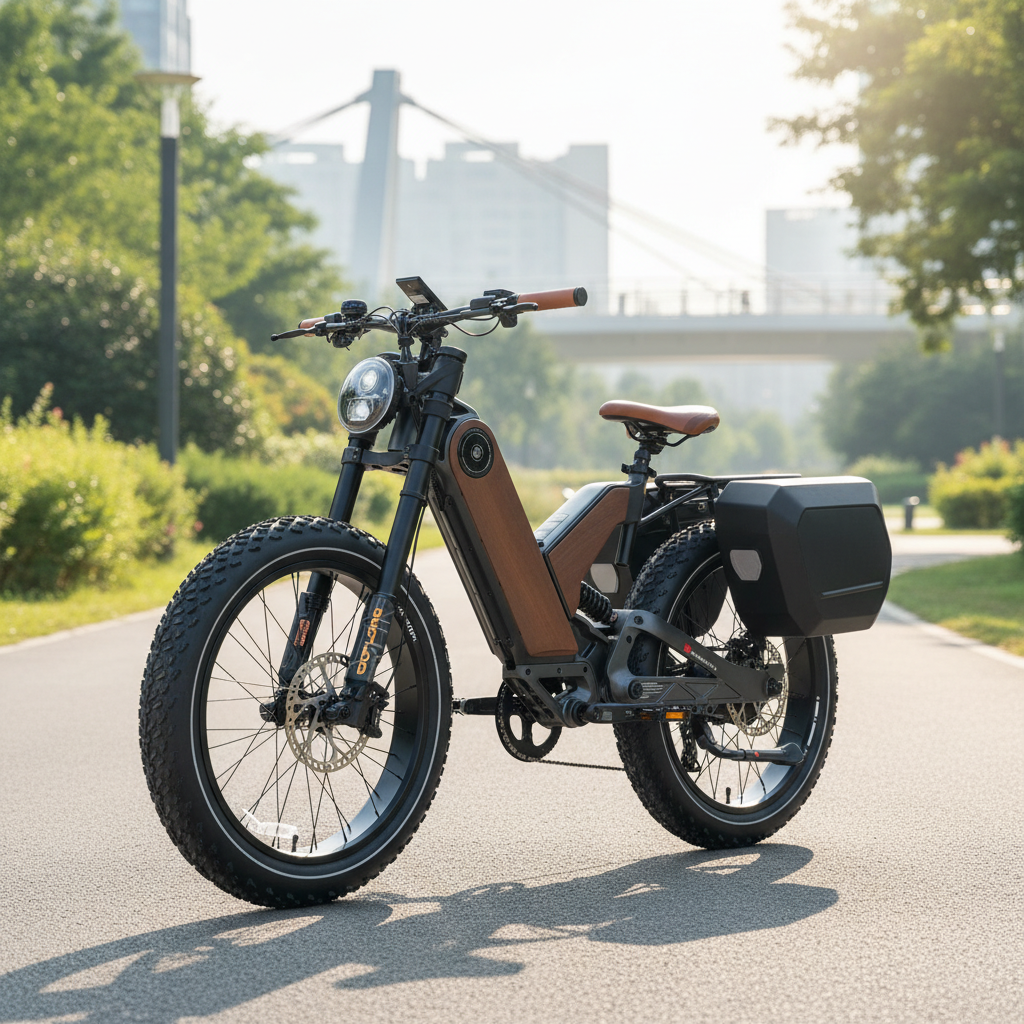

Pannier Positioning: High Mount vs. Low Mount

A common mistake among utility riders is mounting panniers as high as possible on a rear rack. While this may feel more accessible, it creates a substantial aerodynamic penalty. Practitioners and researchers have noted that panniers mounted high on a rear rack can increase power consumption by 15–20% at 25 mph compared to low-mounted panniers.

This efficiency loss occurs because high-mounted bags increase the total frontal area and create turbulence that disrupts the rider's "slipstream"—the pocket of lower-pressure air trailing behind the rider. When bags are tucked low and tight to the frame, they "hide" more effectively behind the rider's legs and the bike's drivetrain.

The "Low and Tight" Heuristic

For maximum efficiency, riders should follow the "Low and Tight" rule:

1. Lower the Center of Mass: Keeping cargo low improves handling and reduces the aerodynamic profile.
2. Minimize Protrusion: Use panniers with a tapered or slim profile. Wide, boxy bags that extend past the width of the rider's hips act like small parachutes.
3. Secure the Load: Flapping fabric or loose straps create "parasitic drag." Ensure all cargo is tightly secured to prevent wind-induced vibration and turbulence.

Front Baskets and Steering Stability

While rear panniers are the standard for heavy hauling, front baskets are popular for quick-access items. However, from an engineering standpoint, front-loading is the least efficient and most hazardous method for high-speed riding.

Overloading a front basket creates massive frontal drag because the cargo is the first thing to hit the oncoming air. Unlike rear panniers, which can benefit from the rider's slipstream, front cargo is fully exposed. Furthermore, heavy front loads adversely affect steering stability. On fat-tire bikes with front suspension, such as the 24 Inch Fat Tire All Terrain Removable Battery Electric Bike Ant5-E2, a heavy, high-mounted front load can lead to "wheel flop," where the front wheel resists returning to center during a turn.

For utility riders, a practical heuristic is to keep the cargo's center of mass within the wheelbase and below the rider's waistline. If you must use front storage, prioritize lightweight, aerodynamic items and keep the bulk of your weight in low-mounted rear panniers.

Range Modeling: The Impact of Cargo Configuration

To demonstrate the real-world impact of these choices, we have modeled a typical 20-mile commute at a sustained speed of 22 mph. This model compares a "Clean" setup (no bags) against a "High-Drag" setup (high-mounted, boxy panniers) and an "Optimized" setup (low-mounted, streamlined panniers).

Method & Assumptions (Scenario Model)

• Modeling Type: Deterministic parameterized model based on standard industry drag coefficients.
• Total System Weight: 280 lbs (Rider + Bike + 20 lbs Cargo).
• Motor Efficiency: 85%.
• Battery Capacity: 48V 15Ah (720 Wh).

Logic Summary: This model demonstrates that while weight remains constant (20 lbs of cargo in all scenarios), the placement of that weight can swing the range by nearly 7 miles. This is a critical insight for delivery workers who may be operating on thin margins of battery capacity.

Safety Standards and High-Load Performance

When optimizing for efficiency, safety must remain the baseline. High-speed, high-load riding puts extreme stress on an e-bike's electrical and mechanical systems. The industry is currently moving toward higher standards to address these risks.

As noted in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the era of unregulated "spec wars" is ending. Riders should prioritize bikes that meet the UL 2849 Standard for Electrical Systems for eBikes. This certification ensures that the battery, motor, and charger have been tested as a unified system to prevent fire hazards and electrical failure under the high-current demands of utility riding.

Furthermore, the CPSC Recalls & Product Safety Warnings database frequently highlights the risks associated with lithium-ion batteries in e-bikes that lack proper thermal management. When you increase drag, your motor must pull more current (Amps) from the battery to maintain speed. This increased load generates heat. According to the SAE/IEEE Study on Thermal Runaway Factors (2023), the state of charge (SoC) and sustained high-power heating are primary drivers of battery degradation and thermal runaway. Efficient cargo placement isn't just about range; it's about reducing the thermal stress on your battery.

Navigating Local Regulations (NYC and California)

Utility riders must also be aware of how their speed and cargo affect their legal status. In major markets like New York and California, the rules are specific:

• California DMV: Class 3 e-bikes (up to 28 mph) require riders to be at least 16 years old and wear a helmet. They are often restricted from certain multi-use paths. For more details, consult the California DMV Two-Wheeled Vehicle Operation Handbook.
• New York DMV: In NYC, Class 3 e-bikes are limited to 25 mph. The city has recently stepped up enforcement regarding UL 2849 compliance for any e-bike used for commercial purposes (delivery). You can find the official class definitions on the New York DMV Electric Scooters and Bicycles page.

Operating a bike with excessive drag at these legal speed limits forces the motor to work harder, which can lead to premature wear. Maintaining an aerodynamic profile helps you stay within legal speed limits more efficiently, preserving both your battery and your motor's lifespan.

Strategic Takeaways for Utility Riders

To maximize the utility of a workhorse vehicle like the Long Range 20 Inch *4 Fat Tire Pedal Assist Ebike Ant6, riders should adopt a technical approach to cargo management.

1. Prioritize the Rear: Always load the rear rack before considering front storage.
2. Mount Low: Use rack extenders or low-rider racks to keep panniers near the axle level.
3. Streamline the Profile: Choose panniers with smooth, aerodynamic covers. Avoid "floppy" bags that catch the wind.
4. Balance the Load: Ensure weight is distributed evenly between left and right panniers. An unbalanced load not only affects handling but can cause the rider to make constant steering corrections, which increases drag.
5. Check Your Tires: Aerodynamics matter at high speeds, but rolling resistance matters at all speeds. Ensure your fat tires are inflated to the recommended PSI for your total load. Under-inflated tires combined with high-drag cargo is a "worst-case scenario" for battery life.

By treating the e-bike as a precision tool rather than just a bicycle, utility riders can significantly extend their operational range and improve the safety of their daily routes. Efficiency is a "free" upgrade—it requires no extra battery cells, just smarter positioning.

Disclaimer: This article is for informational purposes only and does not constitute professional legal, safety, or mechanical advice. Always consult your e-bike's manufacturer manual and local traffic laws before making modifications to your vehicle or cargo setup. E-bike batteries contain significant energy; always use chargers and accessories that meet recognized safety standards such as UL 2849.
