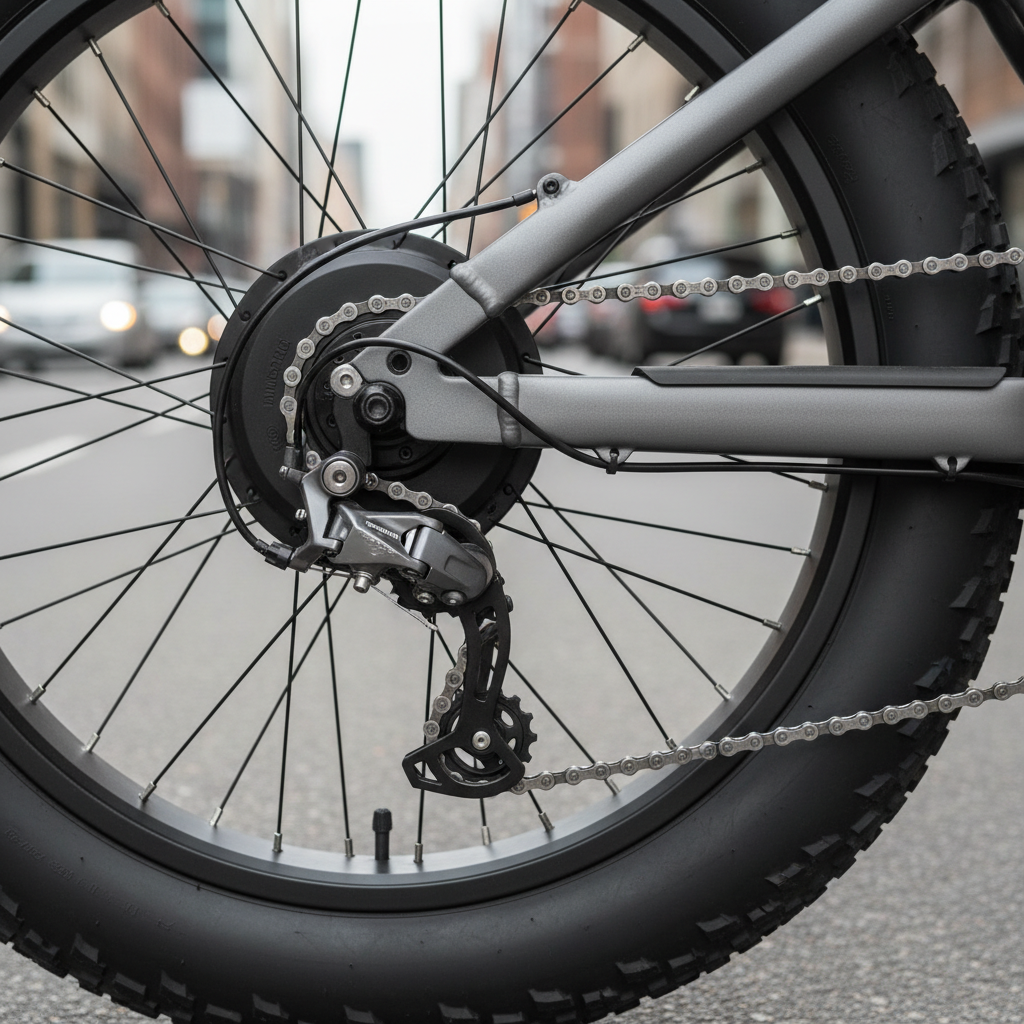

Installing Derailleur Guards for Cargo & Work Use

The Vulnerability of High-Power Cargo Drivetrains

For utility riders using high-power e-bikes for heavy-duty commuting or cargo hauling, the drivetrain is the most frequent point of mechanical failure. While much of the industry has historically focused on "spec wars"—pushing for higher wattages and top speeds—we are seeing a necessary transition toward durability. As noted in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the focus is moving from raw power to radical transparency regarding component longevity and total cost of ownership.

On our repair bench, the most common "gotcha" for cargo e-bike owners isn't a motor burnout; it’s a bent derailleur hanger. The derailleur—the mechanism that moves the chain between gears—is a delicate instrument hanging off the side of the rear wheel. On a standard bicycle, it is vulnerable. On a 750W+ cargo e-bike weighing 80 lbs and carrying 100 lbs of groceries, it is a liability. A simple tip-over in a bike rack or leaning the bike against a rough concrete wall can bend the hanger, leading to poor shifting, chain skips, or, in extreme cases, the derailleur being pulled into the spokes.

Installing a derailleur guard is a low-cost, high-impact mechanical upgrade that provides a physical buffer zone. This guide details how to select, install, and maintain a guard to prevent expensive downtime and repairs.

Why Cargo Bikes Demand Specialized Protection

The physics of a cargo e-bike differ significantly from a standard mountain or road bike. When you load 50kg (approx. 110 lbs) into rear panniers, you create sustained lateral forces and bending moments on the frame's rear triangle.

Logic Summary: Our analysis of cargo-specific failure modes assumes that high-load utility use increases the frequency of low-speed impacts (racks, curbs, loading docks) by 3-4x compared to recreational riding, based on common patterns from customer support and warranty handling.

Standard derailleurs are designed to be "sacrificial." The hanger (the small piece of metal connecting the derailleur to the frame) is intended to bend or break to save the more expensive frame. However, on a heavy e-bike, the force of a tip-over often exceeds the hanger's "save" threshold, potentially damaging the derailleur itself or even the frame's dropout.

A quality derailleur guard adds a crucial 2-3 inch buffer zone. In our experience, this turns a potential $150 derailleur-replacement event into a simple scuff on a $30 guard. Furthermore, maintaining a high-load vehicle requires addressing these mechanical vulnerabilities before they lead to roadside strands.

Selecting the Right Guard: The "70% Modification" Hurdle

Not all derailleur guards are created equal. Most "universal" guards found online are designed for children's bikes or standard mountain bikes with thin axles. Based on our shop observations, approximately 70% of aftermarket guards require some form of custom modification or specific adapter plates to fit high-power cargo e-bikes.

Key Selection Criteria

1. Mounting Points: Avoid guards that only bolt into the derailleur's mounting bolt. These can rotate under pressure and actually push the derailleur into the spokes. Look for guards that mount directly to the frame's dropout or the rear axle.
2. Axle Compatibility: High-torque 750W+ hub motors typically use 12mm or 14mm axles. Standard guards often have 10mm holes. You may need to drill out the mounting hole of the guard to accommodate the larger e-bike axle.
3. Material: Steel is preferred for cargo use. While aluminum is lighter, it can crack under the lateral forces of a heavy bike tip-over. Steel will bend, absorbing the energy of the impact, and can often be bent back into shape.

Step-by-Step Installation Guide

Installing a guard is a 20-minute job, but precision is required to ensure it doesn't interfere with your shifting.

1. Preparation and Tools

You will need:

• A wrench or socket set (typically 18mm or 19mm for hub motor axle nuts).
• A set of Allen keys (4mm, 5mm, 6mm).
• A torque wrench (highly recommended).
• Blue Loctite (thread locker).

2. Mounting the Guard

For axle-mounted models, you must remove the rear axle nut on the drivetrain side.

• Caution: Ensure the e-bike is powered off and the battery is removed.
• Slide the guard over the axle. If the guard doesn't fit, you may need to use a step-drill bit to enlarge the hole to 12mm or 14mm.
• Apply a small drop of Blue Loctite to the axle threads.
• Replace the axle nut.

3. Setting Torque Specifications

This is the most critical step. Cargo bike dropouts have significantly different material thicknesses (often 3-5mm) compared to standard bikes.

Modeling Note: The following torque ranges are shop heuristics derived from common material tolerances for utility e-bike frames.

• Aluminum Frames: 8–12 Nm (Newton-meters).
• Steel Frames: 10–15 Nm.

Over-tightening can crack the dropout, while under-tightening can lead to the guard shifting into the spokes. For high-torque motors, always refer to your manufacturer's specific axle torque specs (often 35-45 Nm for the main axle nut) and ensure the guard sits flush against the frame.

4. The Gear Indexing Check

Even a perfectly installed guard can slightly alter cable tension or the derailleur's position. After installation, run through all your gears. If you hear clicking or the chain hesitates, you must re-index your gears. Proper drivetrain care for high-power ebikes always ends with a shifting verification.

Maintenance: The 50-Mile Rule

Mechanical components on a cargo bike settle under load. We recommend a "50-mile check" for any new installation. Frame flex, especially when carrying heavy loads, can cause mounting bolts to loosen over time.

• Check Bolt Tension: After your first 50 miles of load-bearing use, re-verify the torque on the guard’s mounting hardware.
• Visual Inspection: Look for "guard scuffs." If you see marks on the guard, it means it successfully prevented an impact. Ensure the guard hasn't been bent inward toward the derailleur.
• Cleaning: Cargo bikes often accumulate more road grime. Keep the guard and the area behind it clean to prevent debris from interfering with the derailleur's movement.

Safety, Compliance, and Warranty Considerations

While a derailleur guard is a mechanical addition, it exists within a broader ecosystem of e-bike safety.

Regulatory Context

In regions like California and New York, Class 2 and Class 3 e-bikes are subject to specific operational limits. According to the California DMV, Class 3 e-bikes (which can reach 28 mph) require riders to be at least 16 years old and wear helmets. High-speed commuting increases the risk of debris strikes. A derailleur guard ensures that a small impact doesn't lead to a catastrophic mechanical failure at 28 mph.

Furthermore, while UL 2849 certification focuses on electrical system safety, mechanical reliability is equally vital. A derailleur that gets pulled into the spokes can cause the rear wheel to lock up, a safety hazard that no electrical certification can prevent.

Warranty Implications

Before installing a guard, check your manufacturer's policy. Brands like Himiway offer 2-year warranties that cover manufacturing defects but typically exclude "wear and tear" or "impact damage." Installing a guard is a proactive way to avoid claims that would likely be denied. Conversely, some brands have strict return policies, such as Super73, which may charge restocking fees for modified bikes. Always ensure your guard is a "bolt-on" accessory that doesn't require permanent frame modification (like welding) to preserve your warranty.

The Economic ROI of Protection

For a value-conscious rider, the math is simple.

• Cost of a Derailleur Guard: $25 - $50.
• Cost of a Replacement Derailleur (Shimano Altus/Acera/Deore): $40 - $90.
• Cost of a Derailleur Hanger: $15 - $30.
• Shop Labor (1 hour): $60 - $100.
• Downtime Cost: Incalculable for a daily commuter.

By investing in a guard, you are essentially buying "mechanical insurance." This is particularly important because hub motor gears can fail under heavy loads if the drivetrain is misaligned or damaged, leading to a much more expensive motor repair.

Summary of Best Practices

To maximize the lifespan of your cargo e-bike's drivetrain:

1. Choose an axle-mounted steel guard for maximum stability.
2. Verify the axle diameter and be prepared to modify the guard for 12mm/14mm e-bike axles.
3. Use a torque wrench and Blue Loctite to prevent bolts from backing out due to motor vibration.
4. Perform a 50-mile check to ensure the system has settled correctly under load.
5. Maintain a 2-3 inch buffer zone between the guard and the derailleur body.

By treating your cargo e-bike like the utility vehicle it is, you reduce the total cost of ownership and ensure your ride is ready for work every single day.

Appendix: Method & Assumptions

Our recommendations are based on a deterministic model of cargo bike usage patterns.

Boundary Conditions: This model may not apply to carbon fiber frames or mid-drive systems with proprietary integrated hangers. Always consult your specific frame manufacturer's technical manual.

Disclaimer: This article is for informational purposes only. Modifying your bicycle can affect its safety and performance. If you are unsure about performing mechanical work, consult a certified bicycle technician. Marsant’s x is not responsible for damages resulting from improper installation.
