Intermittent power loss, "stuttering" motor performance, or a complete system shutdown under heavy load are often symptoms of a critical electrical failure: burnt phase wire pins within the motor connector. For riders using high-power 750W or 1000W peak systems for utility work or heavy commuting, this issue represents a significant maintenance hurdle. When a motor is pushed to its 400lb payload limit or forced up steep inclines, the electrical demand can exceed the thermal capacity of the connector pins, leading to arcing and melting.
Understanding how to identify, diagnose, and prevent this failure is essential for maintaining the reliability of your primary transportation. This guide provides a technical protocol for inspecting the hub motor plug and explains the underlying mechanisms that cause these high-current connections to fail.
The Anatomy of a High-Power Hub Motor Connection
To troubleshoot effectively, one must first understand the role of phase wires. In a brushless DC (BLDC) hub motor, three heavy-gauge "phase" wires carry the high-current electricity required to generate torque. These wires are typically color-coded (often green, yellow, and blue) and are housed within a multi-pin connector—frequently a 9-pin "Julet" or "Higo" style plug—that connects the motor to the controller.
In high-performance utility e-bikes, these pins are the bottleneck. While the wires themselves may be rated for high current, the contact point where the male and female pins meet is where resistance is highest. According to the UL 2849 Standard for Electrical Systems for eBikes, electrical systems must undergo rigorous testing to ensure they can handle thermal loads without posing a fire risk. However, real-world wear, oxidation, and vibration can degrade these connections over time, moving them out of their "as-certified" safety window.
The Mechanism of Localized Resistance Heating
The failure of a phase wire pin is rarely instantaneous. It is a progressive process driven by I²R heating (Power = Current² × Resistance). If a pin is slightly loose or oxidized, its resistance (R) increases. Because the heat generated is proportional to the square of the current (I), even a small increase in resistance at 20–25 amps of current can generate enough heat to melt the surrounding plastic housing.
Logic Summary: Our analysis assumes a 48V system drawing 21A (approx. 1000W peak). If pin resistance increases from a nominal 0.01 ohms to 0.05 ohms due to oxidation, the heat output at that single pin jumps from 4.4 watts to 22 watts. In a confined plastic housing, 22 watts of localized heat is sufficient to reach the glass transition temperature of common connector plastics (approx. 150°C) within minutes of high-load operation.
Scenario Modeling: The Heavy-Duty Utility Commuter
To demonstrate how these failures manifest, we modeled a high-stress scenario based on common patterns from customer support and repair bench observations (not a controlled lab study).
| Parameter | Value | Unit | Rationale / Source |
|---|---|---|---|
| Total Payload | 400 | lbs | Maximum rated capacity for utility fat-tire e-bikes |
| Incline Grade | 8 | % | Steep urban bridge or job site access ramp |
| Peak Motor Output | 1000 | W | Maximum draw during low-speed, high-torque climbing |
| Ambient Temperature | 35 | °C | Typical summer commuting conditions |
| Connector State | 0.05 | Ohms | Assumed resistance due to minor pin oxidation |
In this model, the combination of high payload and steep grade forces the motor to operate at low RPM where efficiency is lowest and current draw is highest. This creates a "perfect storm" for connector failure. The sustained 1000W draw causes the 0.05-ohm pin to overheat, softening the plastic. As the plastic softens, the pin may shift slightly, reducing the contact surface area and further increasing resistance—a vicious cycle that ends in a "burnt" or "arced" connection.
Diagnostic Protocol: Inspecting the Motor Plug
If you experience "Error 08" (Motor Hall Sensor abnormality) or "Error 07" (Overvoltage/Overcurrent) on common controllers, or if the motor cuts out specifically when you hit a hill, follow this diagnostic sequence.
1. Visual Inspection for Thermal Damage

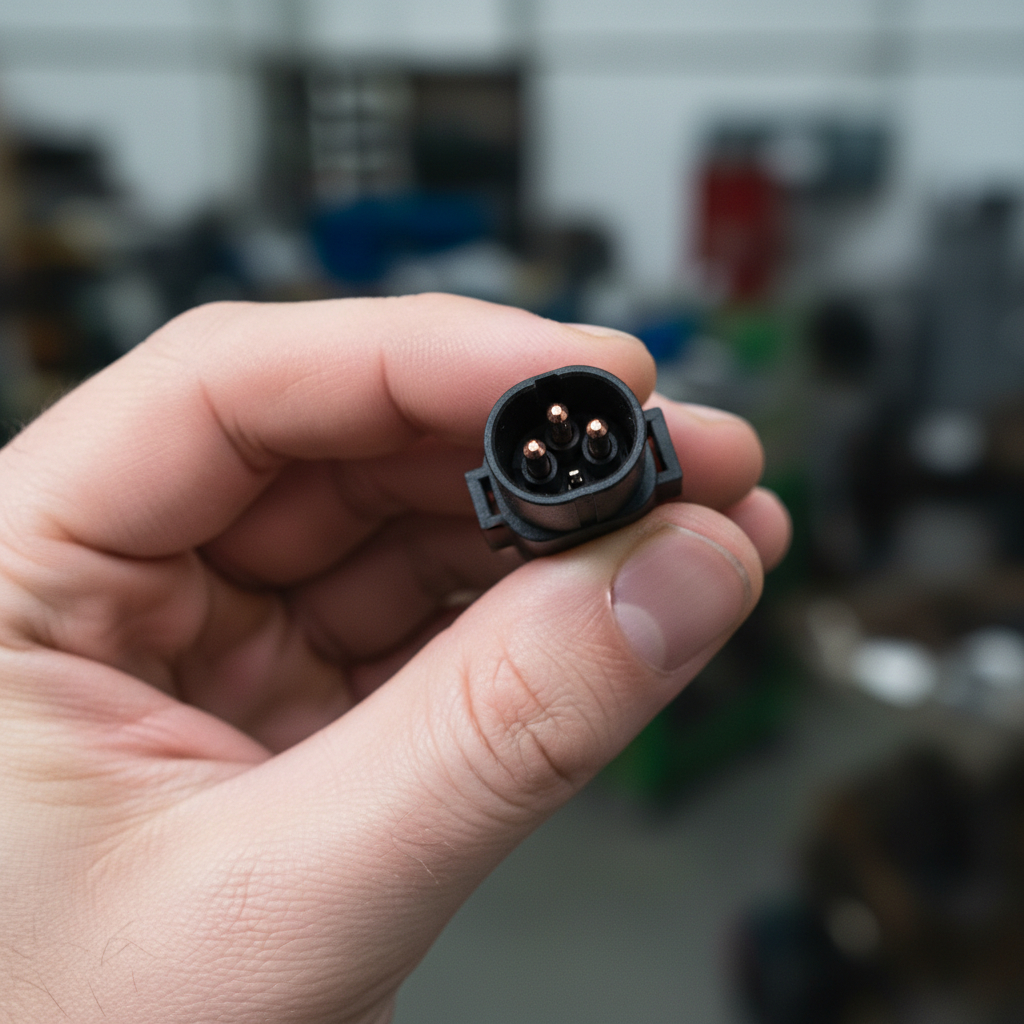

The first and most critical step is a visual check. Unplug the motor connector (usually located on the chainstay or near the rear axle). You are looking for:
- Discoloration: Look for browning or blackening of the plastic housing around the three larger phase wire pins.
- Melting: Check if the circular openings for the pins have become oval-shaped or if the plastic has "flowed."
- Charring: Any soot or carbon buildup indicates that arcing has occurred.
2. The Continuity and Resistance Test
If visual signs are subtle, use a digital multimeter to check the integrity of the phases.
- Continuity Check: Set the multimeter to the continuity setting (the "beep" mode). Check for continuity between the controller-side phase wires and the motor-side pins.
- Phase-to-Phase Short Test: Ensure there is no continuity between the three phase pins themselves. If the plastic has melted, the pins may touch, causing a short circuit that can destroy the controller.
- Resistance Measurement: Set the meter to the lowest Ohms (Ω) setting. Measure the resistance of each phase. They should be nearly identical (typically < 1.0 ohm). A significant deviation in one phase indicates a damaged internal winding or a compromised pin connection.
Professional Insight: Technicians often find that phase wire pin failures occur after repeated high-load use, such as hauling heavy loads near the 400lb limit. A visual inspection for discoloration is critical because localized resistance heating can reach hundreds of degrees, which may not be immediately detectable by the system's software until a complete failure occurs.
Repair vs. Replacement: Why Individual Pin Repair Fails
When a burnt pin is discovered, the common "DIY" instinct is to scrape away the carbon and attempt to bend the pin back into place. From a safety and engineering standpoint, this is highly discouraged.
As noted in the CPSC Recalls & Product Safety Warnings, electrical failures in micromobility devices are a leading cause of fire hazards. Heat damage often compromises the structural integrity of the plastic housing. Even if the pin is cleaned, the softened plastic can no longer hold the pin in the precise alignment required for a low-resistance connection.
If damaged, the entire motor extension cable or the motor-side lead must be replaced. Reusing a heat-damaged connector invites a future failure that could lead to a "thermal runaway" event in the wiring harness. For more on how sustained heat affects motor components, see our guide on how constant overheating shortens your hub motor’s life.
Prevention Strategies for High-Load Riding
For commuters and utility riders, preventing pin failure is more cost-effective than repairing it.
1. Application of Dielectric Grease
During initial assembly or after cleaning a healthy connector, apply a small amount of non-conductive dielectric grease to the pins.
- How it works: Dielectric grease does not conduct electricity, but it seals the connection from oxygen and moisture.
- The Benefit: It prevents the oxidation (rust/corrosion) that creates high resistance in the first place. This is a standard practice in automotive high-current applications.
2. Managing Thermal Stress
Avoid "lugging" the motor. If you are carrying a heavy load up a steep hill, use a higher level of pedal assist to keep the motor RPMs up. Hub motors are most efficient at higher speeds; at very low speeds under high load, they convert a larger percentage of electricity into heat rather than motion. This is particularly relevant when dealing with heavy cargo loads.
3. Periodic Connector Checks
Every 500 miles, or after any particularly strenuous ride, unplug the motor connector and inspect it. Look for the "rainbow" effect on the metal pins, which indicates they have reached high temperatures. Early detection allows you to replace a $20 extension cable before it melts the $500 motor lead.
Regulatory Context and the Future of Safety
The industry is moving toward higher standards to combat these types of failures. According to the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, there is an increasing push for manufacturers to move beyond simple "spec-sheet" performance and focus on the durability of the electrical "backbone." This includes more robust connector designs and better thermal management protocols.
Furthermore, jurisdictions like New York City have implemented strict requirements for e-bike batteries and electrical systems to meet standards like UL 2849. While these regulations often focus on the battery, the entire electrical path—including the phase wire pins—is subject to scrutiny. Ensuring your bike's connections are healthy is not just about performance; it is about staying compliant with evolving safety standards.
Summary of Maintenance Heuristics
To keep your high-power system running safely, follow these rules of thumb:
- The 500-Mile Rule: Inspect connectors every 500 miles or quarterly, whichever comes first.
- The "Smell Test": If you smell "burnt electronics" after a climb, stop immediately and check the motor plug.
- The Replacement Rule: If the plastic is deformed, replace the cable. Never attempt to "re-form" melted plastic housings.
- Load Awareness: When riding near the 400lb capacity, monitor your motor's behavior. Intermittent "juddering" is a sign that one phase is losing connection due to heat expansion.
By maintaining the integrity of your phase wire pins, you protect the motor's internal gears from thermal stress and ensure that your utility e-bike remains a reliable tool for your daily needs.
Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or electrical advice. Always consult your manufacturer's manual or a certified e-bike technician before performing electrical repairs. Improper handling of lithium-ion systems and high-current wiring can result in fire, injury, or death.
