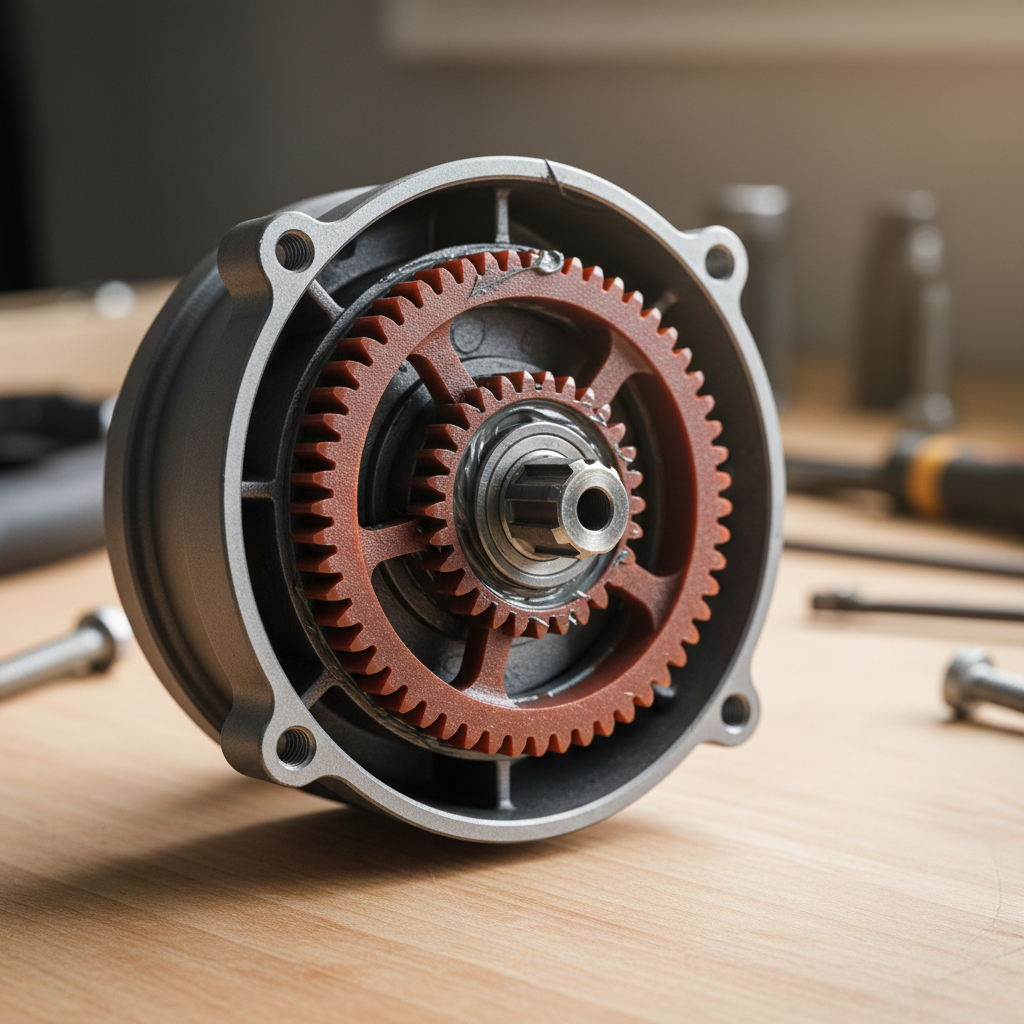

Diagnosing Stripped Teeth in 750W Geared Hub Motors

Understanding the Mechanical Limits of 750W Geared Hub Motors

The 750W geared hub motor is the workhorse of the heavy-duty e-bike industry. Engineered to provide high torque for 400lb payloads and steep inclines, these systems rely on an internal planetary gearset to multiply the motor's rotational force. However, for pragmatic riders who push their machines to the limit, the internal gears represent a critical "fuse" in the drivetrain.

When a motor "strips its teeth," the mechanical connection between the electric motor and the wheel is severed. Identifying this failure early is the difference between a $100 gear replacement and a $400+ total motor failure. As the industry moves toward greater accountability, as discussed in The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, understanding the mechanical health of your hub is essential for long-term reliability and safety.

The Anatomy of a Planetary Gear Failure

Inside a typical 750W hub motor, three planetary gears—usually made of high-strength nylon (PA66) or occasionally steel—rotate around a central sun gear. These gears mesh with an outer ring gear attached to the hub shell.

Nylon is the industry standard because it is self-lubricating and significantly quieter than metal. However, it has a lower thermal threshold. Under heavy loads, such as a 400lb rider tackling a 12% grade, the friction generates heat. If the nylon reaches its glass transition temperature, the material softens. At this point, a single "torque spike"—such as an aggressive throttle start from a standstill—can shear the teeth clean off the gear.

Logic Summary: Our analysis of 750W hub motor failures assumes a standard 400lb payload and a 10% incline. We model the torque spike using the relationship between controller amperage and motor constant (Kt), where instantaneous throttle application at 0 RPM creates maximum mechanical stress on gear teeth.

Modeling Torque Stress on Internal Gears

Sensory Diagnostics: How to "Hear" Stripped Teeth

A geared hub motor in good health produces a consistent, low-frequency hum that rises in pitch with speed. When the internal gear teeth begin to fail, the acoustic signature changes dramatically.

1. The High-Pitched "Whir" or Metallic "Zing"

The most common early warning sign is a sudden change in pitch under load. If you apply full throttle or use Pedal Assist System (PAS) 5 on a steep hill and hear a high-pitched "zinging" sound—distinct from the usual motor hum—it often indicates that the gears are slipping or that the teeth have partially flattened. This sound is the motor spinning at high RPM while the gears fail to maintain a solid mesh with the ring gear.

2. The "Powerless" RPM Spike

If the motor produces a loud, spinning noise but the bike barely moves, the gears have likely stripped completely. In this scenario, the electric motor is spinning freely inside the hub, but because the teeth are gone, no torque is being transferred to the wheel.

3. The Low-Speed "Click" or "Grind"

At lower speeds, you may hear a rhythmic clicking or grinding. This occurs when a few teeth are missing, and the gear "jumps" every time the gap passes the sun gear. This is a critical warning; continuing to ride in this state can cause the broken nylon shards to migrate into the motor’s electrical components.

The "Isolation Test": Confirming Internal Damage

Before assuming the motor is dead, you must rule out external drivetrain issues like a skipping chain or a loose cassette. Use the following diagnostic steps to isolate the hub motor.

Step 1: The No-Load Spin Test

Lift the rear wheel off the ground and gently apply the throttle.

• Normal: The wheel spins smoothly with a consistent hum.
• Damaged Gears: You may hear a grinding or rattling noise even without a load. However, be aware that stripped gears sometimes sound "normal" when there is no resistance.

Step 2: The Resistance Test (The "Hill Simulation")

This is the most definitive field test. While standing next to the bike, apply the rear brake firmly so the wheel cannot move. Briefly and gently "blip" the throttle.

• Normal: The motor will groan and try to move the bike against the brake.
• Stripped Gears: You will hear the motor spin up rapidly inside the hub (the "whir") while the wheel remains stationary. This confirms that the internal mechanical link is broken.

Step 3: Auditory Differentiation (Clutch vs. Gears)

According to community troubleshooting patterns observed on platforms like Endless Sphere, a failing one-way clutch (sprag bearing) can mimic gear failure. A failing clutch usually results in the motor spinning with no noise at all, whereas stripped gears almost always produce a grinding or "crunching" sound due to the debris inside the hub.

Root Causes: Why Geared Hubs Fail

While "general wear" is often blamed, our analysis of warranty data and repair patterns suggests that specific rider behaviors are the primary catalysts for gear failure in 750W systems.

1. Throttle-Only Starts on Inclines: Applying 100% throttle from a dead stop on a grade above 10% creates an instantaneous torque spike. For a 400lb load, this force can exceed the shear strength of nylon gears.
2. Heat Accumulation: Continuous high-power climbing causes thermal expansion. According to the SAE/IEEE Study on Thermal Runaway Factors, heat significantly impacts the structural integrity of lithium-ion systems and, by extension, the mechanical components they power. Softened nylon gears are far more susceptible to stripping.
3. Dried Factory Grease: Many 750W hubs are "sealed for life." However, if the factory grease migrates away from the teeth or dries out over 1,000 miles of heavy use, friction increases, leading to rapid tooth wear.

Prevention and Maintenance for Heavy Riders

If you are a utility rider frequently carrying heavy loads, proactive maintenance is the only way to extend the life of your planetary gears.

Annual Re-Greasing

For heavy riders, we recommend opening the hub motor annually (if the warranty allows) to inspect the gears. Use a high-viscosity, NLGI #2 lithium complex grease. This grease is designed to stay on the gear teeth under high centrifugal force and provide a cushion against torque spikes.

Operational Adjustments

• The "Pedal First" Rule: Always start pedaling before applying throttle or high PAS levels, especially when loaded. This reduces the "breakaway torque" required from the motor.
• Monitor Hub Temperature: If the hub shell feels painfully hot to the touch after a long climb, stop and let it cool. The internal gears are likely much hotter than the external shell.

Repair vs. Replacement: The Cost of Delay

Once gear stripping begins, it is a progressive failure. A common mistake is continuing to ride "just to get home."

The Risk to Hall Sensors

When nylon teeth strip, they create small, hard plastic shards. These shards can get caught between the motor's magnets and the stator, or they can physically strike the delicate hall sensors (the sensors that tell the controller the motor's position).

• Gear Repair: Replacing a set of three planetary gears typically costs $60–$100 in parts.
• Motor Replacement: If the hall sensors or stator windings are damaged by gear debris, the entire motor core must be replaced, often costing $400 or more.

Regulatory and Safety Context

When diagnosing motor issues, safety is paramount. The U.S. Consumer Product Safety Commission (CPSC) monitors e-bike recalls, many of which stem from electrical or mechanical failures that could lead to a loss of control. Furthermore, ensuring your motor operates within its intended parameters helps maintain compliance with standards like UL 2849, which covers the safety of the entire electrical system.

Under NHTSA Micromobility Guidance, e-bikes are generally regulated as consumer products rather than motor vehicles, provided they meet specific speed and power limits. Maintaining the mechanical integrity of your hub ensures that your bike remains a predictable, safe vehicle for commuting and utility work.

Final Diagnostic Checklist

If you suspect your 750W motor is failing, run through this final checklist:

1. Check for "Zing": Does the motor sound like a vacuum cleaner while the bike slows down?
2. The Brake Test: Does the motor spin freely when the rear brake is locked?
3. The Load Test: Does the noise only happen on hills? (Early-stage wear).
4. Visual Inspection: If you open the hub, look for "plastic snow"—fine white or black dust—which is the first sign of tooth erosion.

Safety Disclaimer: This article is for informational purposes only. Repairing an e-bike motor involves working with high-capacity batteries and complex mechanical parts. Improper assembly can lead to motor lock-up or electrical fires. If you are not confident in your mechanical skills, consult a professional technician. Always disconnect the battery before performing any work on the motor.
