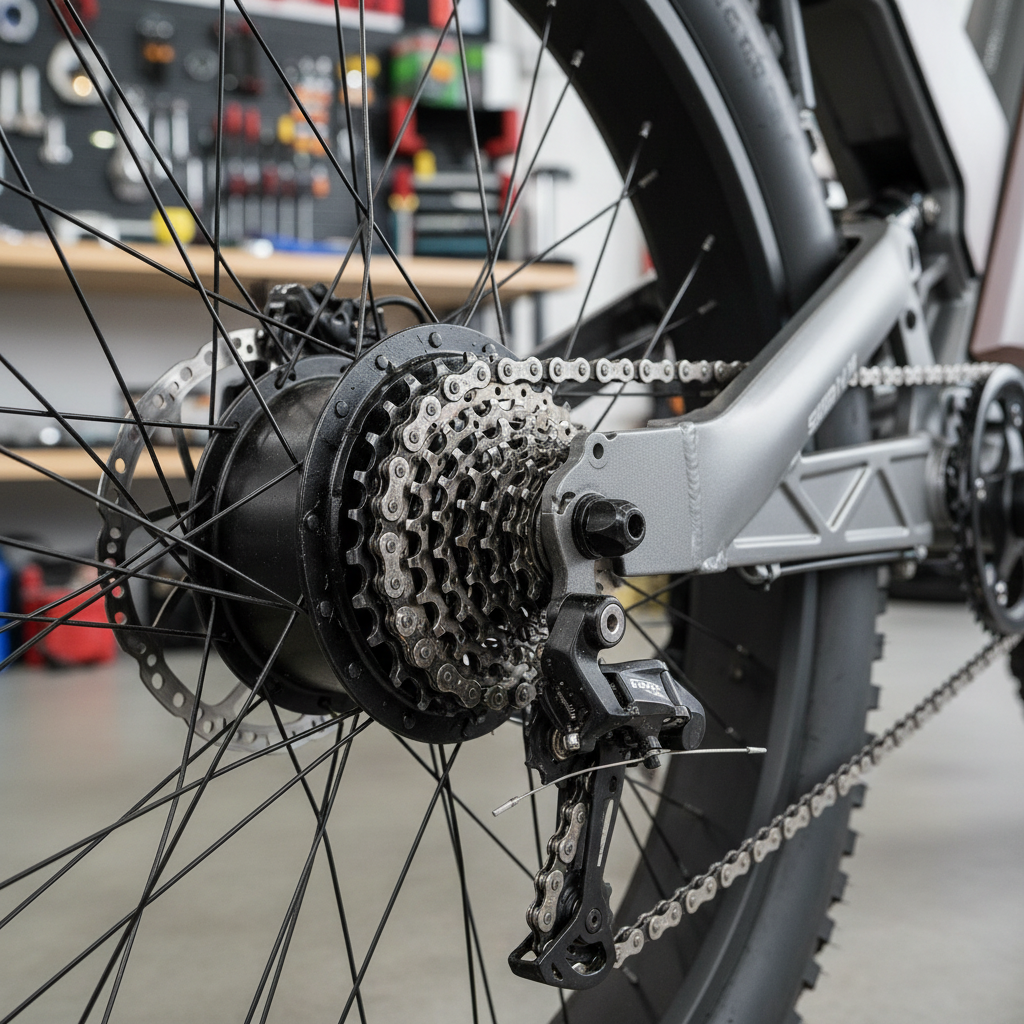

Isolating Drivetrain Clicks from Internal Motor Noise

The Cost of Misdiagnosis: Why Your E-Bike Is Clicking

For the pragmatic e-bike owner, a new mechanical sound is rarely just an annoyance; it is a potential drain on the wallet. On a high-performance utility e-bike—specifically those equipped with 750W (750-watt) hub motors and rated for 400lb (400-pound) payloads—the stakes are higher. These machines operate under significant mechanical stress. When a rhythmic "click" or "grind" emerges from the rear of the bike, the immediate instinct is often to fear the worst: internal motor failure.

Replacing a 750W geared hub motor can cost hundreds of dollars in parts and labor. However, based on patterns observed in repair environments and warranty handling, a significant percentage of these "motor issues" are actually external drivetrain failures accelerated by high torque. This guide provides a technical protocol to isolate whether that noise is coming from your chain and gears or the internal planetary system of the motor.

The Physics of High-Torque Wear

To understand why your e-bike makes noise, you must first understand the load it carries. A standard analog bicycle might see peak torque of 40-50 Nm (Newton-meters) from a human rider. A 750W hub motor can consistently output 80 Nm or more, often while carrying a total system weight of 400lbs.

This high torque places the drivetrain—the chain, cassette, and derailleur—under "accelerated wear" conditions. While a lightweight analog bike chain might last 1,500 to 2,000 miles, a heavy-duty commuter e-bike often reaches the 0.75% wear mark in under 500 miles. At 0.75% elongation, the chain no longer sits perfectly in the teeth of the cassette, leading to rhythmic clicking that mimics the sound of a failing internal gear.

Methodology Note: Wear Rate Modeling

• Modeling Type: Scenario-based wear analysis derived from common shop repair patterns.
• Assumptions: 750W rear hub motor, 400lb total load, frequent stop-and-go commuting.
• Logic: The 0.75% wear threshold is the industry standard for chain replacement to prevent cassette damage. High torque increases the friction and "stretch" (pin wear) at every link pivot.

Phase 1: The Sensory Diagnosis (Cadence and Rhythm)

The first step in troubleshooting is identifying the "cadence" of the noise. The rhythm of a sound is a diagnostic fingerprint.

1. The Single "Tick" (Pedal-Synced)

If the noise occurs exactly once per full rotation of the pedals, the issue is almost certainly external to the motor. Common culprits include:

• A loose pedal thread.
• A "stiff link" in the chain that clicks as it passes through the derailleur pulleys.
• A loose crank arm.

2. The Rapid "Chatter" (Load-Synced)

If the noise sounds like a metallic rattling or "searching" sound that gets worse when you pedal harder or go uphill, it is likely a misaligned derailleur. On heavy-duty bikes, the derailleur hanger (the small metal piece connecting the derailleur to the frame) can bend slightly under the weight of the bike or from a minor bump. According to the 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the industry is moving toward more robust, standardized components to mitigate these frequent alignment issues.

3. The Gritty "Grind" (Motor-Synced)

If the noise is a constant, low-frequency vibration or a "dry" grinding sound that persists even when you stop pedaling (but keep the throttle on), the focus shifts to the hub.

Phase 2: The Definitive "Free-Spin" Test

To remove the drivetrain from the equation entirely, you must perform a free-spin test. This isolates the motor's internal mechanics from the chain, pedals, and cassette.

The Procedure:

1. Safety First: Ensure the bike is powered off initially. Place the bike on a heavy-duty repair stand or carefully prop it up so the rear wheel is off the ground.
2. The Manual Spin: Spin the rear wheel by hand without using the pedals or the motor. Listen for clicks. If you hear a noise here, it is likely a wheel bearing or a brake rotor rubbing against the pads.
3. The Powered Spin: Power on the bike. Gently apply the throttle while keeping the pedals stationary.
4. Analyze the Result:
   • Noise Gone: If the clicking disappears when the motor spins the wheel but the pedals don't move, the fault is in your drivetrain (chain, pedals, or cassette).
   • Noise Present: If the grinding or knocking persists when the motor is running under no load, the fault is internal (planetary gears or motor bearings).

Logic Summary: The Free-Spin Heuristic This test relies on the mechanical separation of the "freewheel" or "freehub" mechanism. When the motor drives the wheel via the throttle, the cassette and chain remain stationary. If the noise remains, the chain cannot be the cause, as it isn't moving.

Phase 3: Troubleshooting the Internal Motor Noise

If the free-spin test confirms the noise is internal, you are likely dealing with one of three issues.

1. Stripped Planetary Gears

Most 750W hub motors use a reduction gear system. These are typically three nylon gears that sit between the motor's rotor and the outer shell. Under extreme heat or excessive "jackrabbit" starts with a 400lb load, the teeth on these gears can shear off. This results in a loud, rhythmic "thumping" or a high-pitched "whirring" as the motor spins but the bike fails to move efficiently.

2. Bearing Failure

Wheel bearings allow the hub to spin smoothly on the axle. If water ingress occurs—often from high-pressure washing—the grease can wash out, leading to pitting. This creates a "gritty" feel and a constant low-frequency growl. According to research on bearing faults in electric induction motors, these faults have distinct acoustic signatures that are often misinterpreted as gear damage.

3. Thermal Expansion Issues

In rare cases, high-power usage can cause the internal components to expand. If you notice the noise only after 10–15 minutes of heavy climbing, it may be related to thermal stress. The SAE/IEEE Study on Thermal Runaway Factors emphasizes that while thermal runaway usually refers to batteries, the heating of motor windings can also affect the structural integrity of internal nylon gears.

Phase 4: The "Ghost" Click (Electrical Interference)

Sometimes, the "click" isn't mechanical at all.

Modern e-bike controllers use Pulse Width Modulation (PWM) to control motor speed. This involves switching the power on and off thousands of times per second. In some cases, poor grounding or a loose phase wire connector can create an audible "arc" or a solenoid-like click that is perfectly synchronized with the motor's rotation.

The Dielectric Fix: Before committing to a motor tear-down, check your motor's main quick-connect cable (usually located near the chainstay). Unplug it, inspect for burnt pins or moisture, and apply a small amount of dielectric grease. This non-conductive grease seals out moisture and prevents "micro-arcing" that can cause clicking sounds.

Safety, Standards, and Compliance

When performing any repair or diagnostic, safety is paramount. The CPSC Recalls & Product Safety Warnings database frequently lists e-bikes with mechanical or electrical defects. If your motor noise is accompanied by excessive heat at the hub or a "burnt" smell, stop riding immediately.

Furthermore, ensure your bike remains compliant with local regulations. In California, Class 3 e-bikes have specific operation limits, and in New York, Class 2 and 3 definitions are strictly enforced. Modifying a motor to "fix" a noise by bypassing internal limiters can void your UL 2849 certification, which is now a requirement for many insurance policies and residential storage laws in cities like NYC.

Maintenance Checklist for Heavy-Duty Users

To prevent these noises from occurring in the first place, follow this preventative maintenance schedule designed for high-torque utility ebikes.

Summary of Findings

Isolating a noise on a 750W e-bike requires a systematic approach. By utilizing the free-spin test, you can immediately determine if you are facing a $50 drivetrain fix or a $300 motor replacement.

• Drivetrain clicks are usually rhythmic, pedal-synced, and caused by the high-torque wear of carrying 400lb loads.
• Internal motor noises are constant during throttle application and often indicate gear or bearing failure.
• Electrical clicks are intermittent and often solved with simple connector maintenance.

By staying ahead of the 0.75% chain wear mark and performing regular alignment checks, you can significantly extend the life of your hub motor and avoid the high costs of unnecessary replacements.

Disclaimer: This article is for informational purposes only. E-bike maintenance involves electrical and mechanical components that can cause injury if handled incorrectly. Always consult your manufacturer's manual and consider professional service for internal motor repairs or electrical issues. Ensure your e-bike complies with all local NHTSA and state-level regulations.
