The Role of a BMS in E-Bike Battery Protection
November 17, 2025
The Unseen Guardian: Understanding Your E-Bike's Battery Management System
Inside every high-quality e-bike lithium-ion battery pack, an intelligent circuit board works silently to keep you safe and maximize the life of your investment. This is the Battery Management System, or BMS. While you may never see it, the BMS is arguably one of the most critical components for the safety, reliability, and longevity of your electric bike. Its role goes far beyond a simple on/off switch; it is the brain of the battery, constantly monitoring, balancing, and protecting the cells within.
Think of it as a diligent supervisor for the dozens of individual battery cells that make up your pack. Without it, the battery would be vulnerable to dangerous conditions like overcharging and overheating, and its usable lifespan would be drastically shorter. This article demystifies the crucial role of the BMS, explaining how it protects against common failures and what you need to know to get the most out of your e-bike battery.
What is a Battery Management System (BMS)?

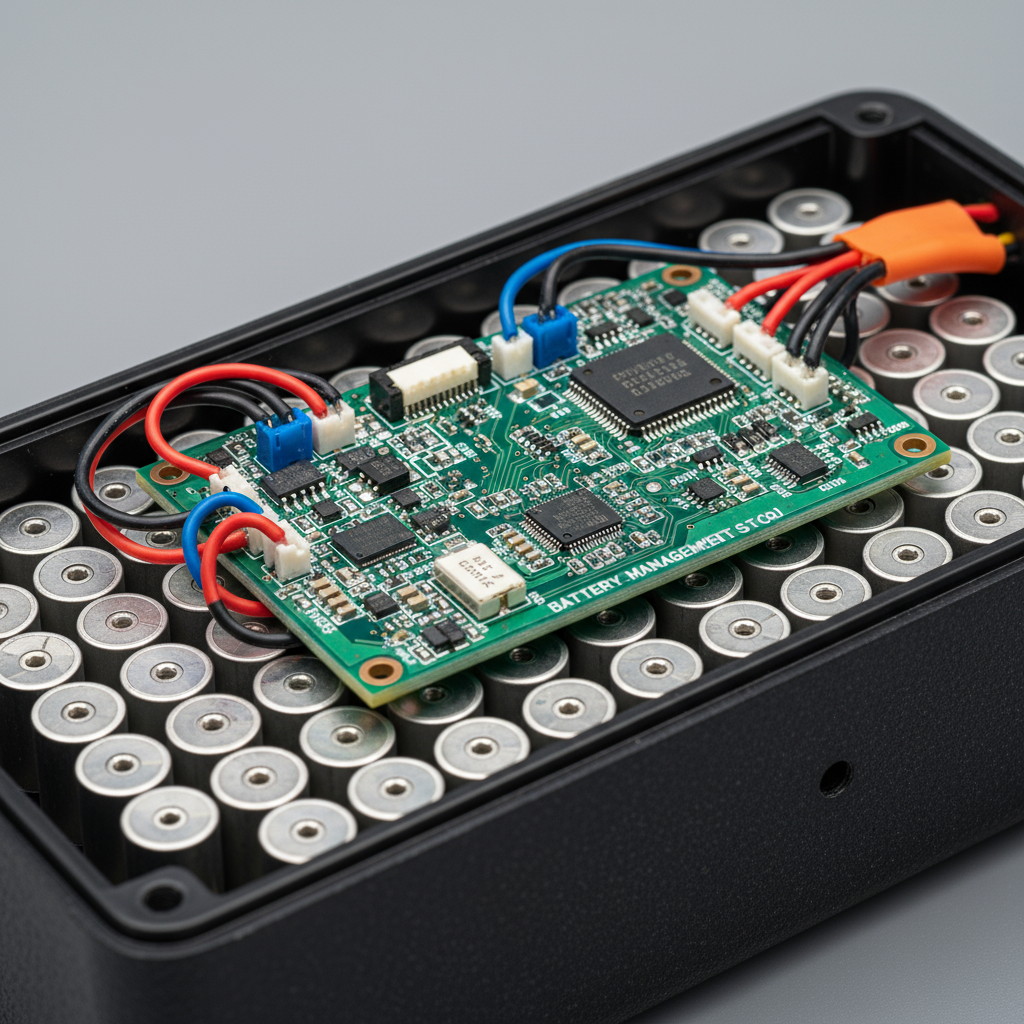

A Battery Management System is an electronic circuit board physically connected to the individual cells and cell groups within your e-bike's battery pack. Its primary job is to ensure the battery operates within its safe envelope—a specific range of voltage, current, and temperature. By managing these parameters, the BMS serves three core functions: protection, performance optimization, and monitoring.
- Protection: It acts as a fail-safe, disconnecting the battery to prevent events that could lead to damage or, in worst-case scenarios, a fire.
- Performance Optimization: It actively manages the cells to ensure they work together efficiently, which preserves the pack's total capacity and extends its service life.
- Monitoring: It calculates and reports crucial data, like the battery's state of charge (the percentage you see on your display).
Essentially, the BMS is the foundation of a trustworthy battery system. It’s a key differentiator between a professionally engineered power source and a low-quality, potentially hazardous one.
The Critical Safety Functions of a BMS
The most important job of a BMS is safety. Lithium-ion cells are energy-dense and require careful management to operate safely. The BMS provides several layers of non-negotiable protection.
Overcharge Protection
When you plug your e-bike in, the BMS is in constant communication with the charger. A lithium-ion cell’s voltage should not exceed a specific limit (typically 4.2 volts). Attempting to force more energy into a full cell can cause a dangerous chemical reaction called lithium plating, which permanently damages the cell and can lead to overheating and thermal runaway. The BMS prevents this by stopping the flow of current from the charger the moment the pack reaches its designated maximum voltage.
Over-Discharge Protection
Just as overcharging is dangerous, so is over-discharging. Draining a lithium-ion cell below its minimum safe voltage (around 2.5 to 3.0 volts) can cause internal damage to the cell’s structure, leading to a permanent loss of capacity. If you’ve ever noticed your e-bike cutting off power when the battery display still shows 5-10% charge, you’ve seen the BMS in action. It preserves a small buffer of energy to prevent the cells from dropping into a damaging low-voltage state, effectively sacrificing a little bit of range to protect the battery’s long-term health.
Thermal Management (Overheating Protection)
Heat is the enemy of a healthy battery. Both charging and discharging (riding the bike, especially up hills) generate heat. As noted in research on lithium-ion cell behavior, such as studies presented by the SAE International, excessive heat dramatically increases the risk of thermal runaway. The BMS uses temperature sensors (thermistors) placed inside the pack to monitor the core temperature. If it exceeds a preset limit (e.g., 60-70°C or 140-158°F), the BMS will cut power to prevent a dangerous situation. This is a crucial safety feature, especially for high-power e-bikes or for riders in hot climates.
Short-Circuit Protection
If a short circuit occurs—for instance, due to a damaged wire or water ingress—an immense amount of current can flow in an instant, creating a severe fire risk. The BMS can detect this sudden surge of current and instantly disconnect the battery circuit, acting like a fast-acting, intelligent fuse.
The consequences of batteries lacking these fundamental protections are evident in the numerous product recalls tracked by agencies like the U.S. Consumer Product Safety Commission (CPSC), which frequently cite fire hazards from poorly designed lithium-ion battery packs.
How the BMS Maximizes Battery Lifespan and Performance
Beyond its role as a safety guardian, the BMS is essential for maximizing the battery’s performance and ensuring it delivers reliable power for hundreds of charge cycles.
The Importance of Cell Balancing
An e-bike battery pack isn't a single unit; it's a chain of many individual cells connected in series and parallel. Due to tiny manufacturing variations, no two cells are perfectly identical. Over time, as you charge and discharge the pack, tiny imbalances in voltage begin to appear between different cell groups.
This is where the BMS performs its most elegant function: cell balancing. During the charging process, once most cells are nearing their full charge, the BMS can use a tiny "bleeder" resistor to drain a small amount of energy from the highest-voltage cells. This allows the lower-voltage cells to catch up, ensuring every cell in the pack reaches the same state of charge. Without balancing, the pack’s overall performance is dictated by its weakest link.
To illustrate, consider what happens in an unbalanced pack:
- During Charging: The highest-voltage cell hits its limit first. The BMS, to prevent overcharging, stops the entire charging process, leaving the other cells partially undercharged. The pack never reaches its true full capacity.
- During Discharging: The lowest-voltage cell hits its minimum limit first. The BMS cuts power to the motor, even though the other cells still have energy left to give.
This imbalance, known as "voltage drift," is a primary cause of premature range loss. A well-functioning BMS with effective balancing is critical for a long-lasting battery. From my experience in the field, a failing balancer is often the culprit when a pack suddenly loses a significant portion of its range or fails to charge fully. Advanced diagnostics often reveal voltage mismatches of 0.1V to 0.3V between cell groups just before a pack fails.
State of Charge (SoC) Calculation
That battery percentage on your handlebar display is not a simple measurement; it's a calculation performed by the BMS. By tracking the energy flowing in and out of the battery pack (a process called coulomb counting) and correlating it with cell voltage, the BMS provides a reasonably accurate estimate of the remaining capacity. This allows you to manage your trip and avoid unexpectedly running out of power.
Practitioner's Guide to Battery Health and BMS Interaction
Understanding how the BMS works allows you to adopt practices that extend your battery’s life. Much of the advice that circulates among riders is directly related to keeping the BMS and the cells it protects within their ideal operating conditions.
Debunking the "100% Charge" Myth
A common misconception is that an e-bike battery should always be charged to 100% after every ride. In reality, leaving a lithium-ion battery at a very high state of charge (above 80-90%) for extended periods accelerates capacity degradation. The cells are under the most stress when they are completely full.
Best Practice: For daily commuting or regular use, consider charging your battery to only 80% or 90%. If you need the full range for a long trip, charging to 100% right before you leave is perfectly fine. The key is to avoid letting the battery sit at 100% for days on end. Likewise, avoid storing the battery for long periods (a month or more) when it is completely empty. The ideal storage charge is around 40-60%.
Structured Asset: Monthly Battery & BMS Health Checklist
Proactive inspection can help you spot issues before they become serious problems. If you notice any of these signs, and especially if your battery won't charge properly, it may be time to consult a professional. For more details on charging issues, our guide on troubleshooting a battery that won't charge can provide further insight.
| Check Area | What to Look For | Why It Matters |
|---|---|---|
| Connectors | Check the charging and discharge ports for dirt, debris, or corrosion (green/white buildup). | Poor connections create resistance, generating heat and potentially interrupting charging or power delivery. |
| Casing | Visually inspect the battery case for any signs of swelling, cracking, or deformation. | Swelling (bloating) is a critical warning sign that internal cells may be failing and producing gas. Stop using the battery immediately. |
| Charging Behavior | Note if the battery consistently fails to reach a full 100% charge or if the charger shuts off much sooner than usual. | This can indicate a significant cell imbalance that the BMS is struggling to correct, or a failing cell group. |
| Performance | Be aware of any sudden, dramatic drops in your typical range or if the bike cuts out unexpectedly on hills. | This is a classic symptom of a failing BMS or unbalanced cells, where the system cuts power prematurely. |
The Critical Importance of System Certification
Perhaps the single most important factor for ensuring you have a safe, high-quality BMS and battery system is third-party certification. Standards like UL 2849 are designed to evaluate the e-bike's entire electrical system—the battery pack, BMS, charger, and motor controller—as a complete unit. This holistic approach is vital because it tests how the components interact under stress, including fault conditions.
A UL 2849 certification signifies that the BMS has been rigorously tested to perform its safety functions correctly when paired with its specific charger and battery. For a deeper dive into what this certification entails, you can read our E-Bike Battery Safety Explained guide. Choosing a certified e-bike is the most reliable way to ensure the battery system was designed and built with safety as the top priority. It also provides peace of mind regarding your e-bike battery warranty, as failures due to uncertified components are often not covered.
Wrapping Up: Your Battery’s Silent Partner
The Battery Management System is a sophisticated and non-negotiable component in any modern e-bike. It is the core technology that makes high-capacity lithium-ion batteries both safe and practical for daily use. By protecting against overcharging, overheating, and over-discharging, the BMS directly prevents the most common causes of battery failure and fire risk. Furthermore, through its meticulous cell balancing function, it works to maximize your battery’s capacity and extend its useful life, protecting your investment.
As a rider, you don’t need to be an electrical engineer, but understanding the why behind your battery’s operation enables you to make smarter choices. By following proper charging habits, performing basic inspections, and prioritizing products with system-level safety certifications, you partner with your BMS to ensure many years of safe, reliable performance.
Frequently Asked Questions (FAQ)
Can I replace or bypass my e-bike's BMS?
It is strongly recommended that you do not attempt to replace or bypass the BMS yourself. A BMS is specifically calibrated for the cell chemistry, capacity, and layout of the pack it was designed for. Installing an incorrect BMS or bypassing it entirely removes all safety protections and creates a significant risk of fire. This is a job for qualified technicians with the proper equipment.
Why does my battery cut off when I still have charge left?
This is the BMS performing its over-discharge protection function. To prevent irreversible damage to the cells from draining them completely, the BMS is programmed to cut power to the motor while retaining a small reserve charge. This is normal behavior designed to protect the long-term health of your battery.
Is a faster charger always better for my battery?
A faster charger can be convenient, but it may not be better for battery longevity. The speed of a charge is measured by its "C-rate." Charging at a very high C-rate (e.g., above 1C, or charging the full battery in less than one hour) generates more internal heat and puts more stress on the cells. For routine charging, using a standard charger with a rate of 0.5C or less (taking 2+ hours for a full charge) is a gentler approach that can contribute to a longer overall battery lifespan.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or safety advice. Always follow the manufacturer's instructions for your specific e-bike and battery. If you suspect your battery is damaged or malfunctioning, discontinue use immediately and consult a qualified technician or the manufacturer.
