Your Battery's Brain: How the BMS Prevents Failure
Inside every lithium-ion battery pack is a hidden guardian: the Battery Management System (BMS). While most riders focus on Watt-hours (Wh) for range or Newton-meters (Nm) of torque for hill climbing, the BMS is the most critical component for long-term reliability and safety. It acts as the "brain," constantly monitoring voltage, current, and temperature to ensure the cells operate within safe limits.
Understanding how a BMS works isn't just for engineers—it is essential for any pragmatic owner who wants to maximize their investment and ensure their home remains safe. In an era where CPSC Recalls & Product Safety Warnings frequently highlight fire risks from substandard battery packs, the BMS is your primary line of defense against catastrophic failure.
The Anatomy of a BMS: Hardware and Logic

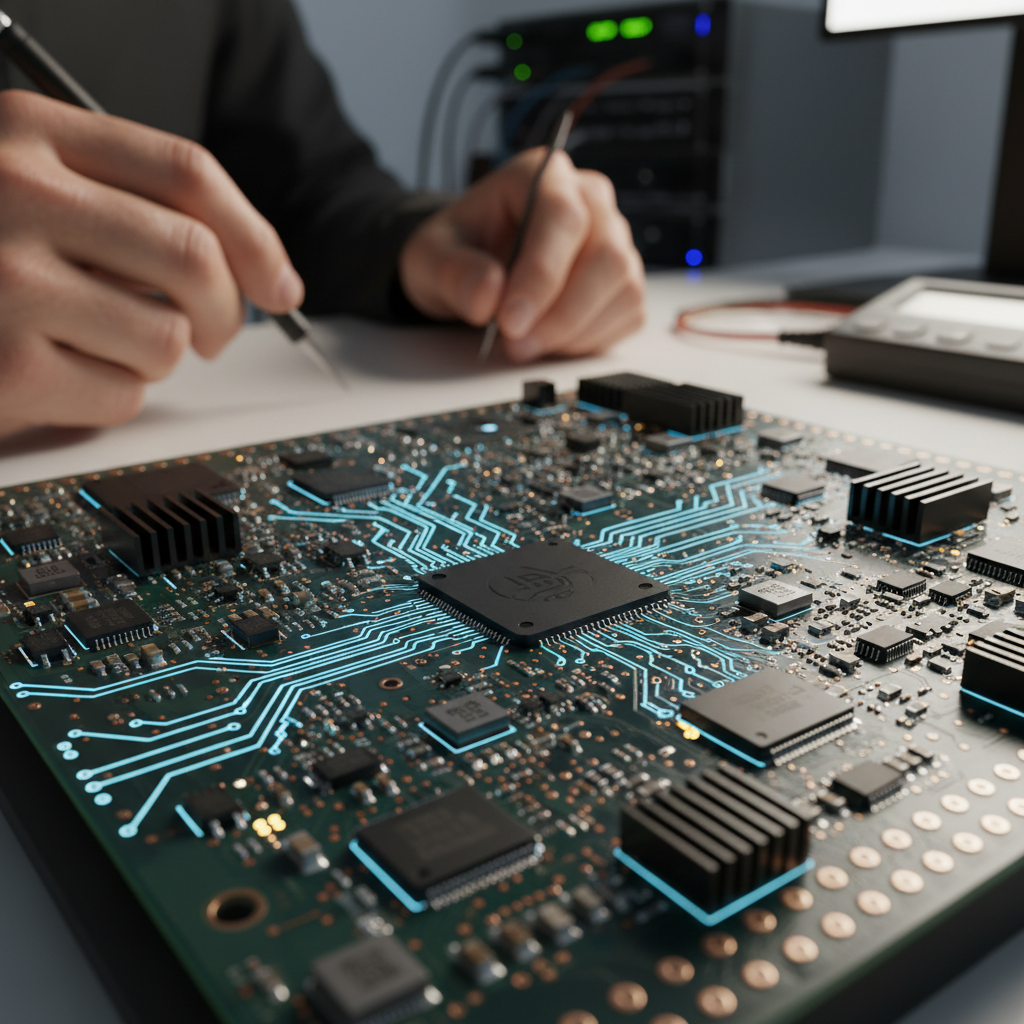

A BMS is a specialized circuit board integrated into the battery pack. It is composed of several key components that work in unison to manage the chemical energy stored in the lithium cells.
The Integrated Circuit (IC) and MOSFETs
The "processor" of the BMS is the monitoring IC, which measures the voltage of individual cell groups. If any group exceeds or falls below safety thresholds, the IC signals the MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors). These act as high-speed electronic switches that can instantly disconnect the battery from the motor or charger.
For high-performance ebikes, such as the Long Range 20 Inch *4 Fat Tire Pedal Assist Ebike Ant6, the BMS must be sized to handle significant current. Our technical analysis suggests that a robust BMS should have a continuous current rating of at least 1.25× the motor's expected continuous draw. Furthermore, to prevent "nuisance tripping" during steep climbs or heavy acceleration, the peak surge capacity should be ≥1.5× the motor’s peak current.
Temperature Sensors (Thermistors)
Safety isn't just about voltage; it’s about heat. A professional-grade BMS uses multiple thermistors. Based on practitioner insights, at least one sensor should be placed near the highest-current cell group (the "hot spot") and another on the pack surface. If temperatures exceed ~45°C (113°F) during charging or discharge, the BMS should throttle performance or shut down entirely to prevent thermal stress.
Critical Safety Functions: Preventing Thermal Runaway
The ultimate goal of a BMS is to prevent thermal runaway—a self-sustaining chemical reaction where a battery generates heat faster than it can dissipate it. This is the root cause of e-bike fires.
Overcharge and Over-Voltage Protection
According to the UL 2849 Standard for Electrical Systems for eBikes, electrical systems must undergo rigorous testing to ensure they cannot be overcharged. A standard BMS is typically programmed with a hard cutoff near 4.20V per cell. However, a conservative design might set this slightly lower to increase the battery's cycle life.
Deep Discharge Protection (Under-Voltage)
Repeatedly draining a battery to "zero" is the fastest way to kill it. While some BMS units allow cells to drop to 2.5V, industry experience shows that failures often start with repeated deep discharges below 3.0V. Setting an under-voltage cutoff (UVLO) at 2.8V–3.0V per cell provides a safety buffer that prevents internal copper shunting, which can lead to shorts during the next charge cycle.
Compliance and Certifications
Safety is now a regulatory requirement in many regions. For instance, Amazon’s Seller Central mandates compliance with UL 2849 and UN 38.3 for all e-bikes listed on their platform. Similarly, the New York DMV has strict definitions for Class 2 and Class 3 e-bikes, often requiring certified battery systems for legal operation on city streets.
Cell Balancing: The Key to Longevity
A battery pack is only as strong as its weakest cell group. Over time, individual groups of cells can drift in voltage. A group with a lower capacity will hit the "empty" threshold sooner, forcing the BMS to shut down the entire pack even if other cells have 20% energy remaining.
Passive vs. Active Balancing
Most e-bike batteries use passive balancing. When a cell group reaches its top-off voltage, the BMS activates a small resistor to "bleed off" excess energy as heat, allowing the trailing groups to catch up.
- Balancing Currents: Typically range from 50–300mA.
- Correction Rate: Balancing usually corrects a cell spread of ~10–50mV over several charge cycles.
Expert Warning: If a voltage spread persists despite several long charging sessions, it is often a sign of a "weak" or damaged cell group rather than a BMS fault. In such cases, the pack should be professionally inspected or replaced. You can learn more about managing these nuances in our guide on E-Bike Battery Care: Extend Your Commuter's Lifespan.
Common Failure Modes and "Gotchas"
Even the best BMS cannot overcome poor user habits or mechanical issues. Understanding these "gotchas" can save you from a costly replacement.
User Errors to Avoid
- Unregulated Chargers: Using a charger with the wrong voltage or a lack of proper communication with the BMS can bypass safety checks. Always use the manufacturer-supplied charger.
- Heat Exposure: Leaving a pack at 100% State of Charge (SoC) in a hot car accelerates chemical degradation and cell imbalance.
- Mixing Chemistries: Never attempt to "upgrade" a pack by mixing cells of different ages or chemistries. This creates massive imbalances that the BMS cannot correct.
Mechanical Factors
Intermittent "cut-outs" are often misdiagnosed as BMS failures when they are actually mechanical. Poor connector crimps, excessive vibration, or inadequate "potting" (the protective compound inside the battery) can cause high-resistance joints. These joints create voltage drops under load, tricking the BMS into thinking a cell group has failed.
Industry Case Study: High-Load Performance
In typical high-load deployments—such as using an All Terrain Fat Tire Electric Hybrid Mountain Bike for off-road climbing—the BMS is under constant thermal pressure. Standard tests indicate that packs without adequate spacing between cells can reach internal temperatures 15-20% higher than ventilated designs, leading to premature BMS shutdowns.
Maintenance and Diagnostic Framework
To ensure your battery remains healthy, follow this structured diagnostic approach.
The 70% Rule
Our analysis shows that you should consider replacing a battery pack when its usable capacity drops below 70% of its original rating. At this point, the internal resistance has usually increased to a level where voltage sag becomes significant, and the BMS may struggle to maintain balance.
| Metric | Healthy Range | Warning Sign | Action Required |
|---|---|---|---|
| Cell Voltage Spread | 10–50mV | >100mV | Perform 3 full balance cycles |
| Operating Temp | <45°C | >55°C | Stop use; check for shorts |
| Capacity (Ah) | 80–100% | <70% | Plan for pack replacement |
| Charge Cycles | 0–500 | >800 | Monitor for rapid voltage drop |
Storage Best Practices
If you aren't riding for an extended period, the BMS itself consumes a tiny amount of power (parasitic drain). According to research on E-Bike Battery Storage, you should:
- Store the pack at 40–60% SoC.
- Keep it in a cool, dry place (ideally 10°C–20°C).
- Check the voltage every 2–3 months to ensure the BMS hasn't drained the cells below the 2.8V safety floor.
Pro Tip: Logging Your Data
For the tech-savvy rider, logging amp-hours and pack voltage curves can provide early warning signs. A sudden drop in delivered Ah or a rapidly increasing cell spread during the last 20% of discharge signals imminent pack failure. Catching this early prevents you from being stranded on a long commute.
Frequently Asked Questions
Why does my e-bike shut off when I still have two bars of battery? This is usually caused by "voltage sag." Under high load (like a hill), the voltage drops. If one cell group is weaker than the others, its voltage may hit the BMS cutoff threshold (e.g., 3.0V) even though the overall pack average looks fine.
Is it safe to leave my e-bike charging overnight? While a UL-certified BMS will stop the charge once the cells are full, it is best practice to unplug it once charged. According to the SAE/IEEE Study on Thermal Runaway Factors, keeping a battery at maximum State of Charge (SoC) for prolonged periods increases the risk of cell degradation and potential instability if there is an undetected defect.
Can a BMS be repaired? Generally, no. The BMS is a safety-critical component. If the MOSFETs or the IC fail, the entire board must be replaced by a qualified technician. Attempting to bypass a BMS is extremely dangerous and a leading cause of battery fires.
Key Takeaways for E-Bike Owners
- Prioritize Certification: Always look for batteries with system-level UL 2849 certification to ensure the BMS has been independently tested.
- Respect the Thresholds: Avoid discharging below 3.0V per cell and avoid charging in temperatures above 45°C.
- Monitor Health: Use the "balance cycle" method (leaving the charger on for an extra hour after the light turns green) occasionally to help the BMS correct cell spread.
- Replace Proactively: When capacity falls below 70%, the risk of imbalance and failure increases significantly.
By understanding the "brain" of your battery, you can ride with the confidence that your system is protected, efficient, and built to last.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or safety advice. Lithium-ion batteries carry inherent risks of fire and explosion if mishandled. Always consult your manufacturer's manual and a qualified technician for battery service.
