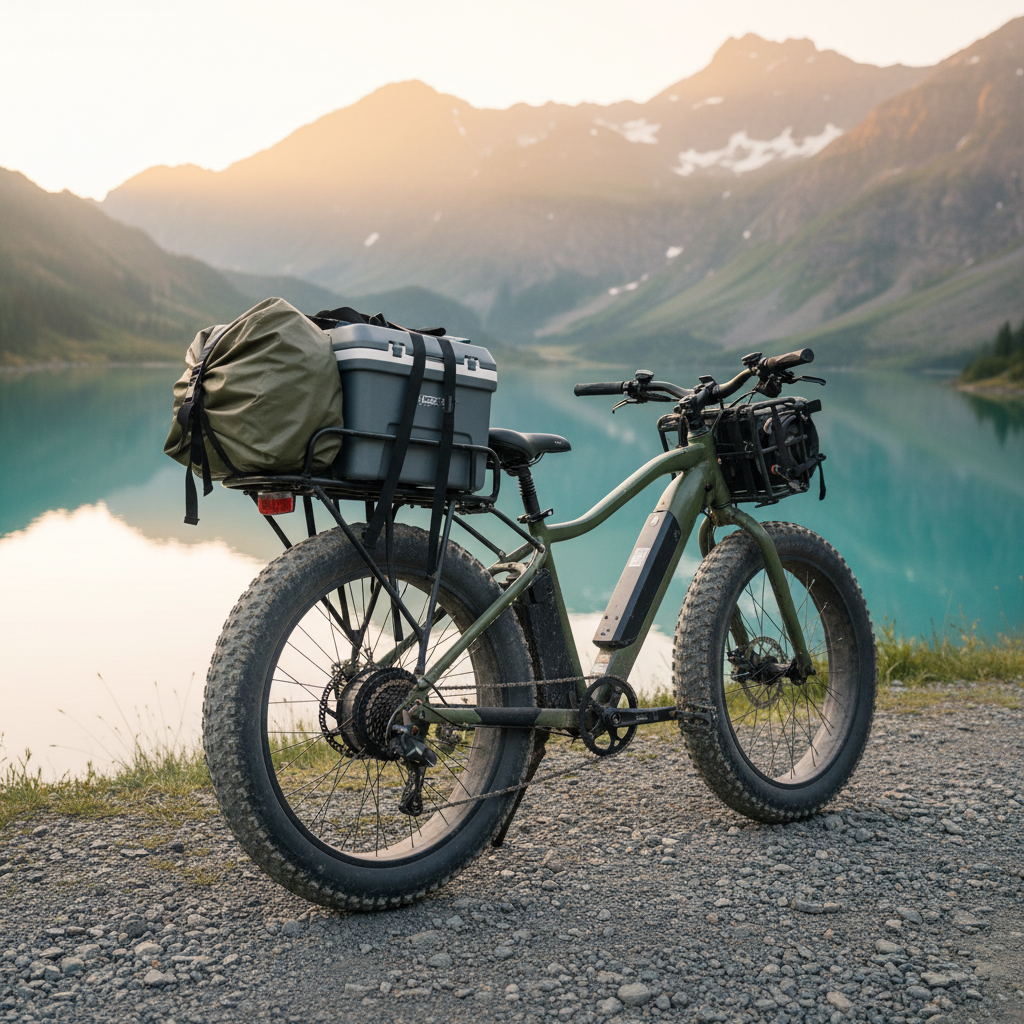

E-Bike Cargo Racks for Bulky Camping Equipment

Your E-Bike Can Haul 400 Pounds, But How Do You Use It?

That impressive payload capacity on your fat-tire e-bike is a promise of utility. It means you can carry more than just yourself. But capacity on paper and capability in the real world are two different things. The real question isn't if your bike can handle the weight, but how you can safely and securely attach bulky items like a tent, a heavy cooler, or a week's worth of camping gear.

Loading an e-bike incorrectly is a common mistake that can lead to poor handling, instability, and even accidents. A top-heavy bike is difficult to control, and a load that shifts mid-turn can have serious consequences. This guide moves beyond the spec sheet to provide a practical, field-tested framework for choosing the right cargo system and mastering the techniques to haul heavy, awkward loads. We'll cover the hardware you need, the principles of safe loading, and the pre-ride checks that ensure your adventure is both ambitious and safe.

The Foundation: Choosing the Right Cargo Rack System

Before you can think about strapping gear down, you need a solid platform. The cargo rack is the most critical piece of hardware in your hauling setup, and not all racks are created equal. A rack designed for a lightweight commuter bike will fail under the demands of heavy, off-road bikepacking. Understanding the different types is the first step toward building a reliable system.

Rack Types: A Comparative Breakdown

The most common mistake is choosing a rack based on price or ease of installation rather than its structural integrity and load rating. Here’s a breakdown of your options and their intended uses.

Rack Type	Typical Load Capacity	Best For	Key Limitation
Seatpost-Mounted	15–25 lbs (7–11 kg)	Very light items; a small bag or jacket.	Unstable, low capacity, raises center of gravity. Not suitable for camping gear.
Frame-Mounted (Standard)	40–75 lbs (18–34 kg)	Panniers, moderate grocery runs, lighter bikepacking setups.	Limited by the strength of frame eyelets; can be overloaded with bulky items.
Bolt-On / Chassis-Integrated	100+ lbs (45+ kg)	Heavy cargo, bulky camping equipment, passenger seats.	Requires a compatible frame; often specific to high-capacity e-bike models.

For hauling bulky camping equipment, a Bolt-On or Chassis-Integrated Rack is the only reliable choice. These are engineered to handle significant weight and transfer the load directly to the bike's frame, providing maximum stability. Bikes like the All Terrain Fat Tire Electric Hybrid Mountain Bikes are built with high-capacity frames that are ideal platforms for these heavy-duty rack systems.

Key Specifications to Scrutinize

• Load Capacity: This is non-negotiable. Your rack's certified load capacity should comfortably exceed the weight of the gear you plan to carry. Always check the manufacturer's specification.
• Material & Construction: Heavy-duty racks are typically made from steel or thick-gauge aluminum. Steel offers excellent durability and is easier to repair in the field, while aluminum is lighter. Look for clean welds and a robust design.
• Deck Design: A larger deck provides more surface area to support bulky items like tents and coolers. Look for racks with integrated side rails or multiple attachment points, which offer more flexibility for strapping gear down.

The Science of Safe Loading: Weight Distribution Principles

Once you have the right rack, the next step is loading it correctly. How you distribute weight on your e-bike has a greater impact on handling and safety than the total weight itself. The goal is to maintain a low and balanced center of gravity.

The Golden Rule: Keep It Low and Centered

I used to struggle with a wobbly, unpredictable ride on long trips until I learned this lesson: heavy items must be placed as low and as close to the bike's centerline as possible. Mounting a 40-pound cooler high up on a rear rack is a recipe for instability. That same cooler, if placed on a low-profile rack or split between two low-slung panniers, will have a minimal effect on your bike's handling.

The 30-40% Guideline

A practical rule of thumb is to keep your total cargo weight at or below 30–40% of the combined weight of you and your bike. For example, if you weigh 180 lbs and your e-bike weighs 70 lbs, your total system weight is 250 lbs. Your target cargo weight should ideally be under 75-100 lbs. While bikes like the All Terrain Fat Tire Electric Hybrid Mountain Bikes can handle more, this guideline helps ensure predictable, safe handling, especially on uneven terrain.

Debunking a Myth: The Danger of Bungie Cords

A common myth is that a few bungie cords are all you need to secure gear. This is a critical mistake. Bungie cords are designed to stretch, which means your load is never truly static. As you ride over bumps, the cords will flex, allowing the load to shift and sway. This constant movement can unbalance the bike at the worst possible moment. For securing anything heavier than a rain jacket, bungie cords are not a safe tool.

The Art of Attachment: A Layered Strategy for Securing Gear

Professional guides and experienced bikepackers use a systematic, layered approach to fastening. This ensures that even on rough trails, the load remains locked in place. Relying on a single strap is a common failure point.

Here is a step-by-step checklist for securing a bulky item like a dry bag containing your tent and sleeping bag:

1. Solid Base: Place the item directly on the rack's deck. If possible, use a rack with side rails to prevent lateral sliding.
2. Primary Compression Straps: Use two high-quality, non-stretch compression straps (with cam buckles, not plastic clips). Run them in a criss-cross "X" pattern over the top of the load. This applies downward and inward pressure, locking the item onto the deck.
3. Secondary Securing Strap: Add a third strap running perpendicular to the first two. This acts as a backup and prevents the load from shifting forward or backward.
4. Check for Movement: With the bike on its kickstand, grab the load and try to aggressively twist and pull it. It should feel like part of the bike frame. If there is any play, tighten your straps and reassess.

Pre-Ride Checks and On-Trail Adjustments

Your job isn't done once the gear is strapped on. A heavily loaded bike behaves differently, and you must account for these changes.

The 50-Foot Parking Lot Test

Before heading out on a major trip, I always perform a low-speed test in a safe area. After loading up, ride slowly for about 50 feet and pay close attention to:

• Steering: Does the front wheel feel light or want to wobble? This can be a sign of too much weight in the rear.
• Tracking: Does the bike want to pull to one side? Your load may be unbalanced.
• Braking: Test both brakes. Your stopping distance will be longer with more weight. Get a feel for the new modulation required.

Tire Pressure is Not Optional

One of the most overlooked adjustments is tire pressure. On 4-inch fat tires, I typically add 3–6 PSI above my normal solo-riding pressure when carrying a heavy load. This simple change is crucial for preventing pinch flats, where the inner tube gets squeezed against the rim on a hard impact. It also provides a more stable contact patch and prevents the sidewalls from flexing excessively in turns.

Safety, Legality, and Certified Components

Remember that a heavy load puts more strain on every component, including the motor and battery. This makes electrical safety paramount. Always choose e-bikes that have been certified to the UL 2849 Standard for Electrical Systems for eBikes. This certification is a critical trust signal that the battery, charger, and controller have undergone rigorous testing to prevent thermal runaway and other electrical hazards, a risk that increases with the higher power demands of hauling heavy cargo. This standard is so important it has become a mandatory requirement for sale on platforms like Amazon and in jurisdictions like New York City.

Furthermore, be aware of how your bike is classified. The added weight doesn't change your e-bike's legal class (e.g., Class 2 or Class 3), but it does affect handling, which is a key consideration when following local regulations like those in California that govern where and how you can ride.

Maintenance for a Hard-Working Machine

Heavy loads accelerate wear and tear. After your first 25-50 miles with a new rack setup, re-torque every bolt on the rack and its mounting points. Things settle and loosen under an initial load. After that, make it a monthly habit to check these fasteners, along with your brake pads and spoke tension, which are also under greater stress.

Wrapping Up: Key Takeaways for Safe Hauling

Turning your powerful e-bike into a capable cargo hauler is about more than just its 400-pound capacity. True utility comes from a systematic approach to hardware, loading, and safety.

Here are the core principles for success:

• Invest in the Right Foundation: Skip the seatpost rack. A frame-mounted or, ideally, a chassis-integrated bolt-on rack is the only safe option for heavy gear.
• Load Like a Pro: Keep heavy items as low and centered as possible. Use panniers to counterbalance top-deck loads and respect the 30-40% weight distribution guideline.
• Secure with a System: Ditch the bungie cords. Use a layered system of non-stretch compression straps to create a stable, unmovable load.
• Check, Adjust, and Re-Check: Always perform a pre-ride stability test. Adjust your tire pressure for the load and remember to re-torque all fasteners after the initial break-in period.

Following these guidelines will transform your e-bike from a simple vehicle into a reliable partner for your biggest adventures. For a deeper dive into trip preparation, see our guide on Planning Your First E-Bike Bikepacking Trip. And if you're maximizing your bike's payload, our insights on E-Bikes for Heavy Riders offer additional advice on performance and handling.

Frequently Asked Questions (FAQ)

Can I use a front rack for bulky camping gear?

While front racks are great, they are best suited for lighter, more compact items. Placing a heavy, bulky load on the front can interfere with steering and visibility. A good strategy is to place dense, smaller items like water or food on a front rack and bulkier, lighter items like sleeping bags on the rear.

How often should I inspect my rack and bolts?

After installing a new rack, you must re-torque all bolts after the first 25-50 miles of riding with a load. After that, a monthly check is a good practice. Always inspect them before a long, multi-day trip.

How much does a heavy load affect my e-bike's battery range?

A heavy load will significantly reduce your e-bike's range. The motor must work harder to accelerate and climb hills, drawing more power from the battery. There is no exact formula, but it's wise to plan for a 30-50% reduction in your expected range, especially if your route includes hills or rough terrain.

---

Disclaimer: This article is for informational purposes only. Always consult your e-bike and rack manufacturer's specifications for load limits and installation instructions. Loading a bicycle with cargo requires practice and care. Always ride within your abilities and be aware of how cargo affects your bike's handling, especially braking and turning.
