Amps and Volts Explained: Understanding E-Bike Charger Specs
Understanding the Technical Pulse of Your E-Bike: Amps and Volts
For the pragmatic commuter using an e-bike as a primary vehicle, the battery and charger represent the most critical components of the machine. We often see riders focused on motor wattage or top speed, but the true longevity of your investment is dictated by how you manage the electricity flowing into the cells. Understanding the technical specifications on your charger label—specifically Volts (V) and Amps (A)—is not just about knowing how fast you can get back on the road; it is about fire safety, battery health, and long-term cost avoidance.
In our experience handling technical support and repair diagnostics, the most common source of battery failure isn't high mileage; it is improper charging habits and the use of incompatible hardware. This guide demystifies the physics of e-bike charging to help you make informed decisions that protect both your wallet and your home.
The Voltage Variable: Why 48V Isn't Always 48V
The most fundamental spec on your charger is Voltage. In simple terms, voltage is electrical pressure. If the pressure from the charger doesn't match the requirements of the battery, the system will either fail to charge or, in dangerous scenarios, cause a thermal event.
A common point of confusion we encounter is the "nominal" vs. "maximum" voltage. Most e-bikes are marketed as 36V, 48V, or 52V. However, these are nominal averages. A standard 48V lithium-ion battery is actually composed of 13 series of cells (13S). Each cell has a nominal voltage of 3.7V (13 x 3.7 = 48.1V), but when fully charged, each cell reaches 4.2V.
Logic Summary: The Voltage Gap
- Nominal Battery Rating: 48V
- Actual Full Charge Target: 54.6V (13 cells x 4.2V)
- Charger Requirement: A "48V charger" must output exactly 54.6V to achieve a 100% state of charge (SoC).
- Source: This calculation is based on standard 18650/21700 lithium-ion cell chemistry parameters commonly used in the industry.
According to research on Voltage Matching for 48V Batteries, using a charger with a "sloppy" voltage regulation (more than ±0.2V tolerance) can lead to two outcomes: undercharging, which reduces your daily range, or overcharging, which can lead to cell degradation or fire. We recommend checking the fine print on your charger label. If you have a 48V system and the "Output" line doesn't say 54.6V, it is the wrong charger.
Amperage and the C-Rate: The Speed vs. Life Trade-off
If Voltage is pressure, Amperage is the volume of flow. This is what dictates your charging speed. A 2A charger is standard for most entry-level e-bikes, while 4A or 5A chargers are marketed as "fast chargers."
However, "fast" is a relative term. To understand the impact on your battery, we must look at the C-rate. The C-rate is the ratio of charging current (Amps) to the battery's total capacity (Amp-hours, or Ah).
Modeling: C-Rate Impact on Battery Health
Parameter Scenario A (Small Battery) Scenario B (Large Battery) Unit Rationale Battery Capacity 10 20 Ah Common commuter vs. long-range packs Charger Output 5 5 A Typical "Fast Charger" Calculated C-Rate 0.5C 0.25C Ratio (Amps / Ah) Estimated Heat Generation High Low - Higher C-rate increases internal resistance Cycle Life Impact Significant Reduction Minimal Reduction - Based on standard Li-ion degradation curves
As noted in industry studies on C-rate Definition and Application, a 5A charger on a small 10Ah pack represents a 0.5C charge rate. While this is generally within safe limits for modern cells, consistently charging at this rate generates more internal heat. In contrast, that same 5A charger on a large 20Ah pack is only 0.25C, which is very gentle.
The Pro Tip: We suggest a "hybrid" charging strategy. Use your standard 2A charger for overnight sessions to maximize the battery's cycle life. Reserve the 5A fast charger for mid-day top-ups when you need to get back on the road quickly. Data from Nenpower suggests that charging to a slightly lower termination voltage (e.g., 80-90% instead of 100%) can potentially extend battery life from 500 cycles to over 1,000 cycles.
Safety Standards: UL 2849 and the Cost of Non-Compliance
For users in cities like New York, or those shopping on major platforms like Amazon, safety certification is no longer optional. The UL 2849 Standard for Electrical Systems in eBikes is the gold standard. It doesn't just test the charger; it tests how the charger, battery, and motor controller interact as a complete system.
Why does this matter to the value-driven rider? Cheap, uncertified chargers are the primary cause of the lithium-ion fires reported by the CPSC Recalls database. These generic chargers often lack "overcharge protection" circuits. If the charger fails to stop providing current once the battery is full, the cells can enter "thermal runaway"—a self-sustaining fire that cannot be extinguished with standard water-based fire extinguishers.
A professional insight we often share: A quality charger should feel warm to the touch during the bulk charging phase, but never "hot." If you cannot comfortably hold your hand on the charger casing, it indicates poor efficiency or internal component strain. This is often a precursor to failure.
Furthermore, the 2026 E-Bike Market Shift white paper highlights that radical transparency regarding safety specs is becoming the industry baseline. Riders who prioritize UL-listed hardware are not just buying safety; they are buying components with higher-quality capacitors and transformers that offer better "Power Factor" efficiency, reducing wasted electricity and heat.
Practical Maintenance: Heat, Connectors, and Efficiency
Beyond the numbers on the label, the physical condition of your charging hardware dictates performance. We have observed that many "battery issues" reported by customers are actually charger-side failures or connector degradations.
1. The "Loose Fit" Hazard

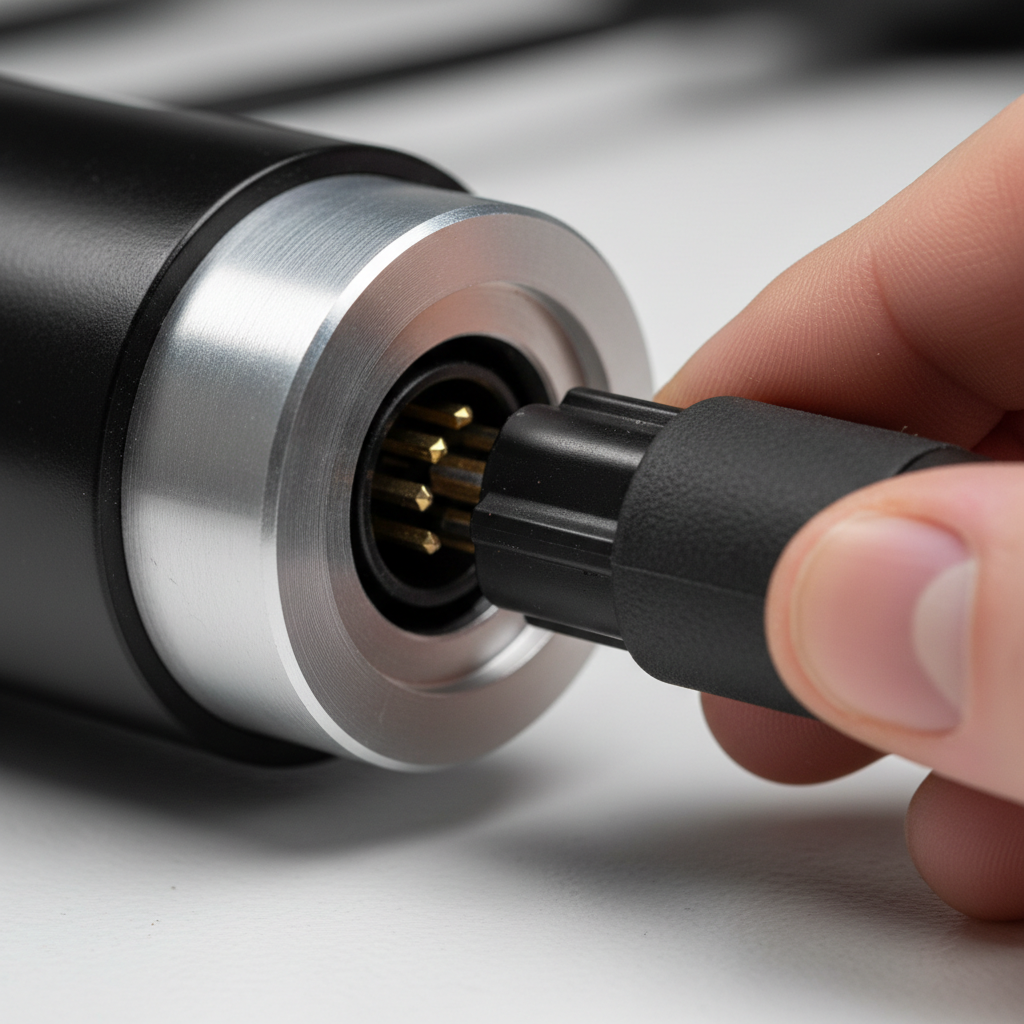

A loose connection between the charger plug and the battery port creates electrical resistance. This resistance generates heat at the point of contact, which can melt the plastic housing or cause "arcing." Arcing leaves small carbon deposits on the metal pins, which further reduces conductivity.
- Action: If your charger plug feels "wobbly" or sparks when you plug it in, stop using it. Clean the terminals with electronic contact cleaner as described in our guide on Cleaning Battery Terminals.
2. Efficiency and the "Hidden Cost"
Not all chargers are created equal in how they pull power from your wall. A "dumb" charger with low efficiency (<85%) converts a significant amount of electricity into wasted heat rather than battery energy. High-efficiency chargers, often found in UL-certified systems, use active cooling or better-rated internal components to ensure that ~90% of the power from the outlet reaches your cells. For a daily commuter, this efficiency can save a small but measurable amount on annual utility bills.
3. Environmental Considerations
Charging in extreme temperatures is a leading cause of premature cell death. According to California DMV E-bike safety guidelines, batteries should never be charged in freezing temperatures (below 32°F) or in direct sunlight during summer.
- The Science: Charging in the cold causes "lithium plating," where lithium ions coat the anode in metallic form rather than intercalating into it. This permanently reduces capacity and creates internal short-circuit risks. Always bring your battery to room temperature before plugging it in.
Summary Checklist for Value-Driven Riders
To maximize the utility and safety of your e-bike, we recommend following this technical checklist derived from our analysis of current safety standards and battery chemistry:
- Verify the Output Voltage: Ensure the charger's output matches your battery's maximum charge voltage (e.g., 54.6V for a 48V pack).
- Check for UL Certification: Look for the UL 2849 or UL 2271 mark on the label. This is your primary defense against fire risk.
- Monitor the C-Rate: If you use a charger higher than 2A, ensure your battery capacity is large enough (typically 14Ah or higher) to handle the flow without excessive heat.
- Inspect Connectors Weekly: Look for signs of "pitting," melting, or loose fits. A secure connection is a safe connection.
- Prioritize Slow Charging: Use your 2A charger for daily charging habits and keep the fast charger in your commuter bag for emergencies only.
- Manage Termination: If your charger allows it, or if you are monitoring the charge, stopping at 80-90% for daily commutes can significantly extend your commuter's lifespan.
By treating your charger as a precision instrument rather than a "black box" power cord, you ensure that your e-bike remains a reliable, cost-effective tool for years to come.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or safety advice. Lithium-ion batteries carry inherent risks of fire and explosion if mishandled. Always follow the specific manufacturer instructions for your e-bike model. If you notice a battery swelling, emitting a strange odor, or becoming excessively hot, disconnect it immediately (if safe to do so) and move it away from flammable materials.
