Decoding Charger Lights: What Red and Green LEDs Really Mean

For a utilitarian rider, an e-bike is not just a piece of recreational equipment; it is a vital tool for daily survival. Whether you are commuting to a job or hauling heavy cargo, your bike’s reliability depends entirely on its power source. When you plug in your charger and see a light you don’t recognize, it is more than a minor annoyance—it is a potential disruption to your livelihood.

Understanding the "language" of your charger’s LED (Light Emitting Diode) indicators is the first step in maintaining a healthy electrical system. These small lights are the only communication channel between the internal Battery Management System (BMS) and the external power grid. Misinterpreting these signals can lead to unnecessary expenses or, worse, safety hazards. In this guide, we will decode the standard LED patterns found on most modern chargers and provide a technical framework for troubleshooting faults before they become failures.

The Universal Language of E-Bike Charger LEDs

Most standard chargers use a simple bi-color LED system. While specific manufacturers may vary slightly, the industry has largely converged on a set of standard signals.

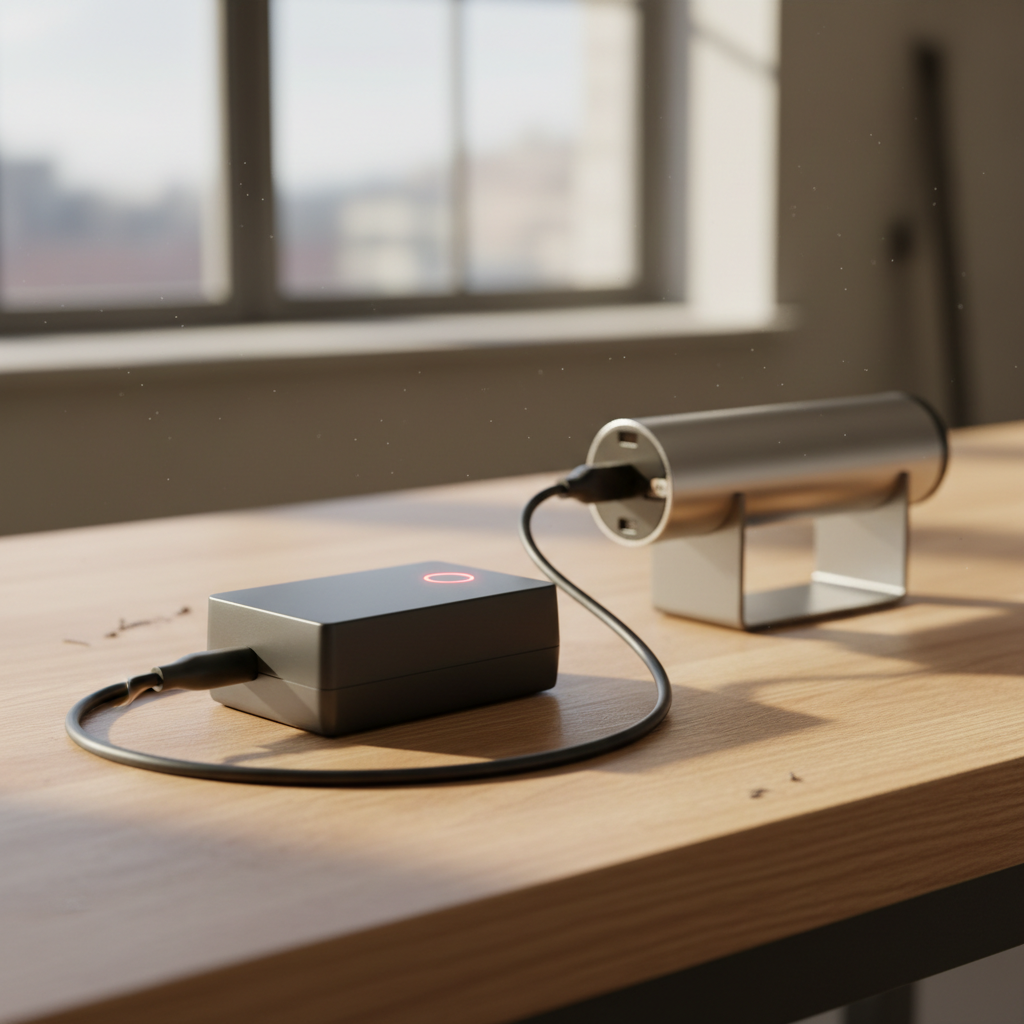

Solid Red: The Charging Phase

A solid red light indicates that the charger is actively pushing current into the battery. During this stage, the charger operates in a Constant Current (CC) mode. It provides a steady flow of electricity to the lithium-ion cells. If your battery is significantly depleted, this phase will last the longest.

Solid Green: The Completion Phase

A solid green light typically means the battery has reached its target voltage (usually 42V for a 36V system or 54.6V for a 48V system). At this point, the charger has switched to Constant Voltage (CV) mode, where the current tapers off until the battery is full.

The "Float" Mode: Flashing Green

A common point of confusion for many riders is a slow, flashing green light. On many smart chargers, this is not an error. Instead, it represents a "float" or maintenance mode. According to technical standards often discussed by the Light Electric Vehicle Association (LEVA), this mode keeps the battery at 100% capacity by providing a tiny trickle of current to offset natural self-discharge.

Expert Insight: If you see a slow green pulse, do not panic. However, you should avoid leaving the charger in this state for days at a time. Repeatedly interrupting this maintenance cycle can occasionally confuse the BMS's state-of-charge (SoC) calculations, leading to inaccurate battery bar readings on your display.

Identifying Critical Faults and Errors

When the LED behavior deviates from solid red or green, it usually signals a problem in the circuit. Here is how to diagnose the most common "red flags."

Flashing Red: The Connection Fault

A flashing red light is almost always an indication of a connection break. Before assuming the charger is broken, follow this priority-based troubleshooting sequence:

1. Check the Wall Outlet: Ensure the AC plug is seated firmly.
2. Inspect the DC Connector: For bikes like the 24 Inch Fat Tire All Terrain Removable Battery Electric Bike Ant5-E2, ensure the barrel or XLR connector is pushed all the world into the charging port. A loose connection here is the #1 cause of intermittent flashing red faults.
3. Voltage Mismatch: If you are using a non-original charger, a flashing red light may indicate that the charger's output voltage does not match the battery's requirements. Using a 52V charger on a 48V battery can trigger an over-voltage protection fault in the BMS, potentially causing permanent damage.

No Light at All: The Power Failure

If the charger is plugged in but the LED remains dark, the issue is likely upstream.

• Blown Fuse: Some chargers have an internal glass fuse that can pop during a power surge.
• Cable Fatigue: Utilitarian users who wrap their cables tightly every day may experience internal copper wire breakage near the "strain relief" (the rubber boot where the wire enters the charger box).

Safety Standards: Why UL 2849 is Non-Negotiable

For users in high-density areas like New York City, charger safety is now a matter of law. The New York DMV and city ordinances now strictly regulate e-bike batteries and chargers due to fire risks.

The benchmark for safety is UL 2849. This standard doesn't just test the battery; it tests the entire electrical system—motor, controller, battery, and charger—as a single unit. A UL-certified charger has passed rigorous testing for overcharging, short circuits, and thermal stability.

If you are buying a replacement, ensure it meets these standards. Major platforms have tightened their rules; for instance, the Amazon Seller Central compliance requirements now mandate UL 2849 or UL 2272 certification for any e-mobility device sold on their site. Using an uncertified, "cheap" aftermarket charger is one of the highest-risk decisions a rider can make.

Sensory Troubleshooting: Listen and Feel

Beyond the lights, your senses are powerful diagnostic tools. Expert troubleshooters look for these three sensory warnings:

1. Excessive Heat: It is normal for a charger to feel warm (like a warm cup of coffee). However, if it is too hot to hold or if you smell "toasted" plastic, unplug it immediately. This indicates a failing capacitor or transformer.
2. Audible Noise: A faint hum is normal. A high-pitched whining, clicking, or buzzing sound is a sign of an internal component struggling to regulate voltage. This often precedes a total failure or a "thermal event."
3. The "Scent" of Trouble: Any ozone or acrid smoke smell is an emergency. According to the CPSC Recalls database, many lithium-ion related fires start with a faulty charging peripheral.

The Science of Thermal Runaway

Why are we so focused on charger accuracy? The answer lies in the chemistry of the battery. A SAE/IEEE study on thermal runaway factors highlights that the State of Charge (SoC) and heating power are critical variables in battery stability.

If a charger fails to stop at the correct voltage (overcharging), it increases the internal pressure of the lithium cells. This can lead to "thermal runaway"—a self-sustaining chemical fire that cannot be easily extinguished with water. This is why matching the charger's output voltage exactly is vital. A 2V discrepancy might seem small, but in the world of lithium chemistry, it is the difference between a reliable commute and a hazardous fire.

Choosing a Reliable Commuter Setup

When your livelihood depends on your bike, you need hardware that is built for durability rather than just a low price point. For those who need a rugged, all-weather solution, the All Terrain Fat Tire Electric Hybrid Mountain Bikes provide a magnesium alloy frame that protects internal wiring better than traditional welded frames.

If you are a multi-modal commuter who needs to bring their bike into an office or apartment, the 16 Inch Lightweight Folding Electric Commuter Bike is an excellent choice. Smaller bikes often use more compact chargers, which can be more sensitive to heat. Always ensure your charging area is well-ventilated and away from flammable materials like carpets or curtains.

Warranty and Support: What to Look For

When a charger fails, your first move should be checking your warranty. Different brands have vastly different approaches to support. For example:

• Himiway: Offers a 2-year manufacturer's warranty that covers manufacturing defects in the electrical system.
• SUPER73: Maintains a stricter Return and Cancellation Policy, often charging a 15% restocking fee for unseal products and not accepting returns on used items.

Before you buy, understand that the "value" of a bike includes the cost of replacement parts. A brand that offers a robust 2-year warranty on the electrical system can save a low-income rider hundreds of dollars in repair costs over the life of the vehicle.

Summary Checklist for Daily Charging

To maximize the lifespan of your battery and ensure your charger remains functional, follow this daily routine:

1. Plug into the bike first, then the wall. This prevents a "spark" at the charging port which can degrade the metal pins over time.
2. Charge in a room-temperature environment. Charging in a freezing garage or a hot shed stresses the chemical balance of the cells.
3. Monitor the first 15 minutes. Most charger failures happen shortly after the "inrush" of current begins.
4. Disconnect once green. While "float" mode exists, it is best practice to unplug the system once the battery is full to prevent long-term voltage stress.

By treating your charger with the same respect as the bike itself, you ensure that your transportation remains as reliable as the day you bought it.

YMYL Disclaimer: This article is for informational purposes only and does not constitute professional mechanical, electrical, or safety advice. E-bike batteries and chargers involve high-voltage electricity and flammable chemicals. Always consult your owner's manual and a certified technician for repairs. If you notice signs of a fire (smoke, intense heat, hissing), evacuate the area and call emergency services immediately.
