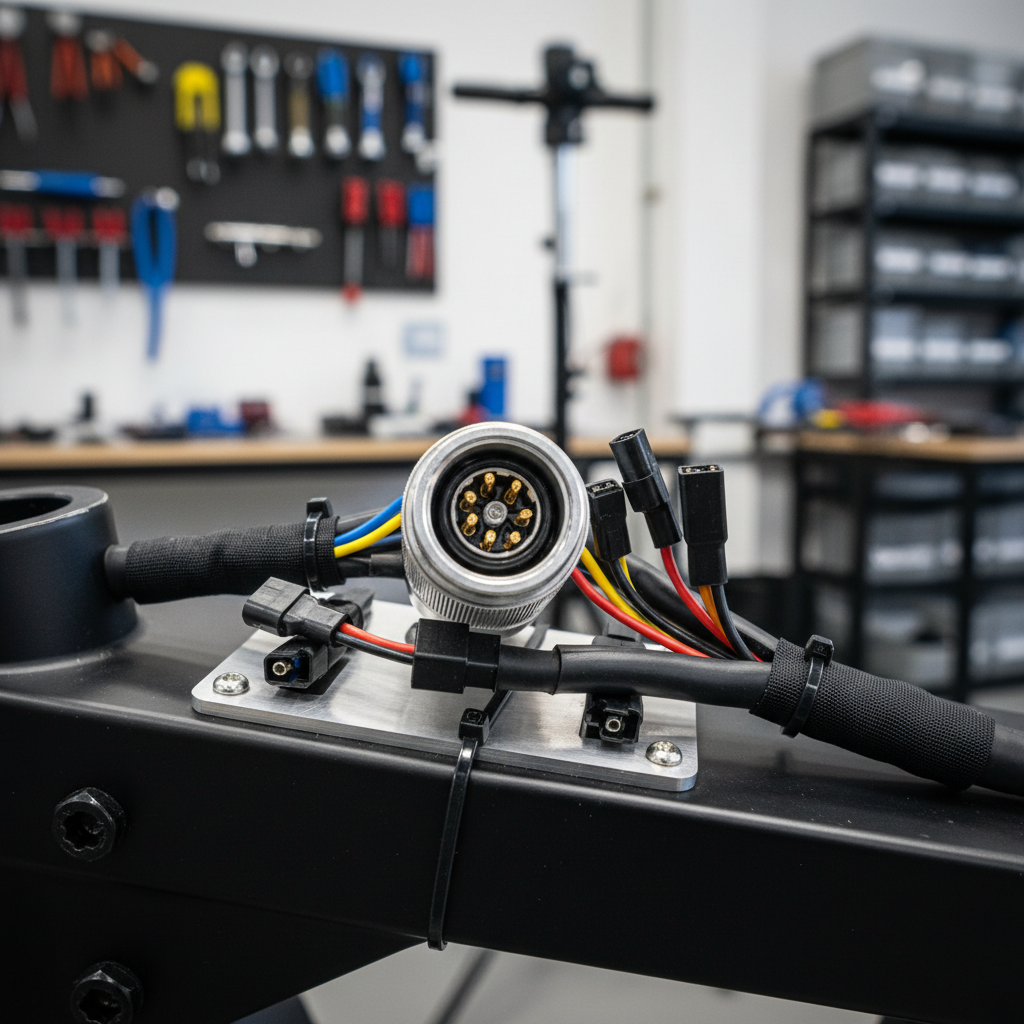

A Visual Guide to Your E-Bike's Electrical Connectors

Safety First: Preparing for Electrical Work

Before you touch a single wire, safety is the absolute priority. An e-bike's battery holds a significant amount of energy, and treating it with respect is non-negotiable. Mishandling these systems can lead to component damage or personal injury.

Disconnect the Power Source

The first and most critical step is to disconnect the main battery from the bike. This isolates the high-voltage circuit, preventing accidental shorts. Never attempt to inspect or disconnect other connectors while the battery is engaged. Once the battery is removed, it's a good practice to press and hold the power button on your display for a few seconds. This helps drain any residual charge stored in the system's capacitors.

Capacitors are electronic components that store energy, and even with the battery removed, they can hold a charge for a short time. Waiting 30-60 seconds after disconnecting the battery allows them to discharge fully, creating a safer working environment. Always use insulated tools and treat every circuit as potentially live.

The Essential Toolkit

You don’t need a full mechanic's workshop, but a few key tools will make any inspection or repair manageable:

• Multimeter: Essential for checking voltage and continuity.
• Insulated Pliers and Screwdrivers: For safe handling of components.
• Contact Cleaner: To remove corrosion or debris from pins.
• Dielectric Grease: A non-conductive grease used to seal connectors from moisture and prevent corrosion on low-voltage signal pins.
• Zip Ties and Wire Cutters: For tidy cable management and securing harnesses.

A Visual Tour of Your E-Bike's Connectors

An e-bike's wiring harness can look complex, but it's organized into logical groups. We'll start at the power source and work our way through the system.

The Main Power Connectors: Battery to Controller

This is the highest-current part of your e-bike's electrical system.

• Battery Connector: This is the plug that connects your battery to the bike's main wiring harness. It's typically a robust, high-amperage connector like an XT60 (yellow) or XT90 (larger yellow), designed to handle the full power output of the battery.
  • What to Look For: Check for signs of melting, blackening (arcing), or corrosion on the metal contacts. The connection should be snug and secure. A loose fit here can cause intermittent power loss, especially over bumps. In my experience, this connection is a common culprit for power-cutting-out issues.
• Controller Input: The battery line runs directly to the motor controller—the brain of your e-bike. The connector here should be just as robust as the battery connector.

The Motor Connector: Power and Data

This is often the largest and most complex connector on the bike, usually located near the rear wheel hub or mid-drive motor. It contains two sets of wires within one housing:

• Three Phase Wires: These are thicker wires (often green, yellow, and blue) that deliver power to the motor.
• Hall Sensor Wires: These are smaller wires that send motor position data back to the controller, allowing for smooth power delivery.
  • What to Look For: This connector is vulnerable to water and physical damage due to its location. Ensure the locking ring or clip is tight. The pins inside should be perfectly straight. A bent or corroded Hall sensor pin can lead to jerky motor operation or a complete failure to start.

The Control Network: Handlebar Components

The connectors running to your handlebars are for low-voltage components that act as inputs to the controller. They are typically smaller, color-coded, and have multiple pins.

• Display Connector: Connects your handlebar display to the main harness. A loose connection here can cause the bike to fail its startup check and not power on.
• Throttle Connector: Usually a three-pin connector. If this connection is faulty, your throttle will be unresponsive.
• Brake Sensor Connectors: These connectors have a crucial safety function: they cut power to the motor the instant you pull the brake levers. They are often two-pin connectors. If your motor doesn't cut off when braking, check these connections immediately. The importance of properly functioning electrical systems is underscored by safety standards like UL 2849, which provides a comprehensive framework for e-bike electrical system safety, including the battery, charger, and controller.

Proactive Maintenance and Troubleshooting

Most connector-related failures are mechanical or environmental, not purely electrical. Corrosion from water and salt or strain from improperly routed cables causes the vast majority of problems. A visual inspection catches around 70% of the issues I fix without needing to replace parts.

Expert Warning: Debunking the "Dead Controller" Myth

A common misconception is that if an e-bike won't start, the battery or controller must be dead. In reality, the issue is often a temporary safety lockout from the Battery Management System (BMS). A transient short, perhaps from a loose or wet connector, can trigger the BMS to protect the battery. The fix is often simple: perform a full charge cycle on the battery and then carefully reconnect it. This can reset the BMS. If it doesn't reset after one attempt, don't keep trying, as this could damage the BMS. Instead, seek professional service.

The Connector Inspection Checklist

Perform this check every three months, or more often if you ride in wet conditions.

Pro Tip: Diagnosing Hidden Issues with a Multimeter

For intermittent problems that aren't visually obvious, a multimeter is your best tool.

1. Baseline Voltage Test: With the battery fully charged, disconnect it from the bike and measure the voltage across its main terminals. A nominal 48V pack should read around 54-55V when fully charged and about 52V at rest.
2. Voltage Drop Test: This is the key test for finding a bad connection. Reconnect the battery and carefully probe the controller's main power input terminals. With the bike's rear wheel off the ground, apply a small amount of throttle. The voltage should remain very close to your baseline reading. A persistent voltage drop of more than 0.5V to 1.0V under this light load indicates high resistance in the wiring or a connector between the battery and controller. This resistance creates heat and wastes power, often leading to intermittent cutouts under heavy loads like climbing a hill.
3. Continuity Test: To find a micro-fracture in a wire, set your multimeter to the continuity setting (it will beep when a circuit is complete). Probe each end of a suspect wire. Wiggle the wire and connector; if the beeping cuts in and out, you've found an intermittent connection.

When performing repairs, it's almost always better to replace the entire connector assembly or a "pigtail" (a short wire with a pre-crimped connector) rather than trying to re-crimp individual pins in the field. A poor crimp is a high risk for a repeat failure. For anyone seeking deeper technical knowledge on battery behavior, studies from organizations like the SAE and IEEE provide professional-level research into the factors affecting lithium-ion battery safety and performance.

Key Takeaways

Troubleshooting e-bike electrical connectors doesn't have to be a black box. By adopting a methodical and safety-first approach, you can identify and resolve the most common issues yourself.

• Safety is Paramount: Always disconnect the battery and allow capacitors to discharge before starting work.
• Inspect Regularly: Proactive visual checks of your connectors can prevent the majority of failures, especially those caused by water, vibration, and strain.
• Document Your Work: Before disconnecting a complex connector like the one for the motor, take a clear photo with your phone. This simple step can save hours of frustration during reassembly.
• Trust the Data: A multimeter provides the objective data needed to find hidden issues. Learning to perform a simple voltage drop test is one of the most powerful diagnostic skills an e-bike owner can have.

Regularly checking these connections is a core part of any good maintenance routine. For a complete overview, you can explore our guide on Maintaining Your High-Power E-Bike for Peak Performance.

Frequently Asked Questions (FAQ)

1. Is it safe to use dielectric grease on all e-bike connectors? Use it sparingly on the mating surfaces of low-voltage signal connectors (throttle, brakes, display) to seal out moisture. Avoid applying it to the high-current contacts of your main battery and motor connectors unless the grease is specifically rated for that use, as it can increase resistance if improperly applied.

2. My e-bike turned off after hitting a large bump. What should I check first? The most likely culprit is a loose main battery connection. Ensure your battery is securely locked into its cradle and that the main power connector is fully seated. Vibration can cause momentary power interruptions that reset the system.

3. Why are there so many different types of connectors on one bike? Connectors are chosen based on their function. High-current pathways like the battery and motor require robust, high-amperage connectors. Low-voltage data signals for components like throttles and brake sensors can use smaller, multi-pin connectors that are designed to be waterproof and secure, but not for high power. This specialization ensures reliability and safety across the system, a major focus for consumer protection agencies like the CPSC.

Disclaimer

This article is for informational purposes only. Working on electrical systems carries inherent risks. Always prioritize safety, disconnect the battery before starting work, and use appropriate tools. If you are not comfortable performing these checks, please consult a qualified e-bike technician.
