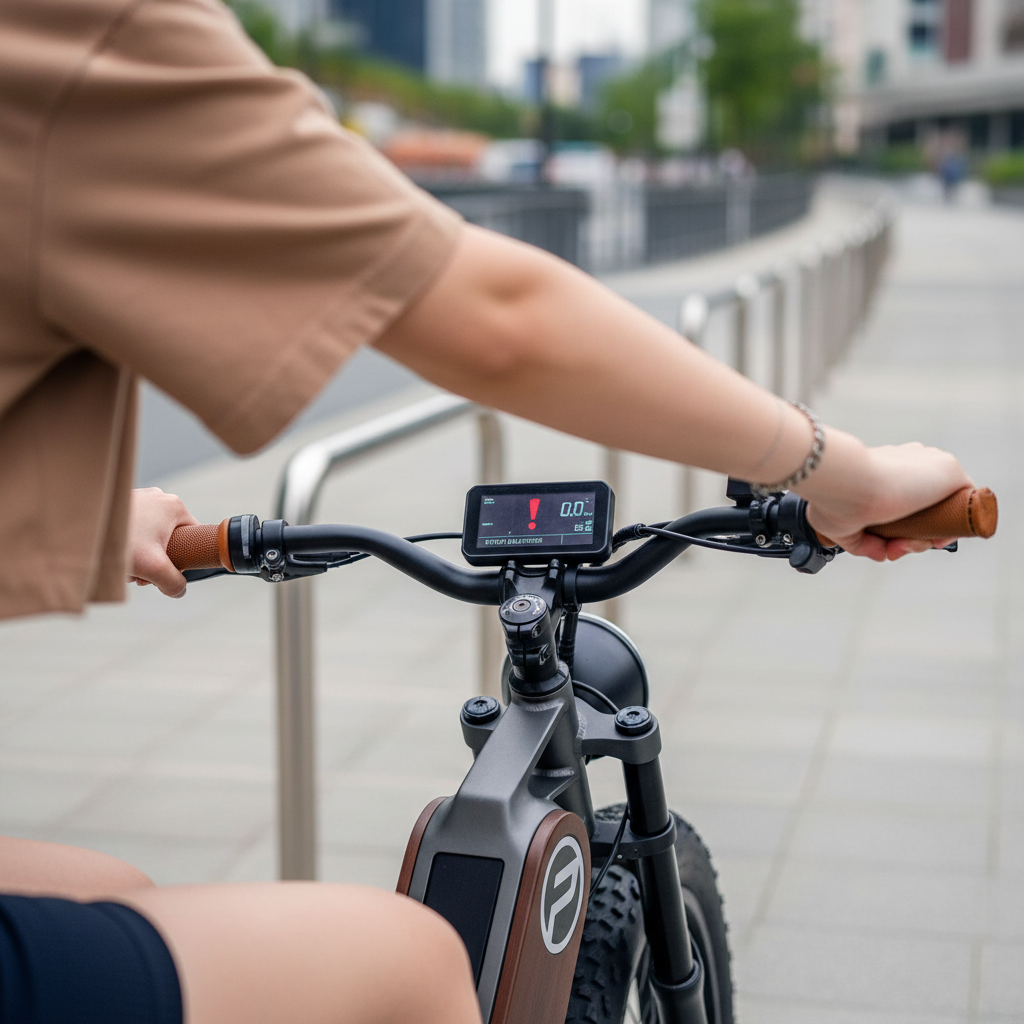

Decoding Your E-Bike Display's Error Codes

First Response: What to Do the Moment an Error Appears

An unexpected error code on your e-bike display can bring a great ride to a sudden stop. It’s a frustrating experience, but your first actions can make troubleshooting much easier. Instead of trying random fixes, a methodical approach is key.

Don't Panic, Document

Before you do anything else, stop in a safe location away from traffic. The information on your screen is the single most important clue to solving the problem.

1. Take a Clear Photo: Use your phone to take a well-lit, focused picture of the display. Make sure the error code itself, the battery level indicator (State of Charge or SOC), and any other symbols or numbers are clearly visible.
2. Note the Context: Think about what was happening right before the error appeared. Were you accelerating hard? Riding up a steep hill? Did you just hit a significant bump or pothole? This context is incredibly valuable for diagnosis.
3. Record the Code: Write down the exact error number or message. Sometimes, a code might flash briefly before the system shuts down, so having a record is essential.

The Universal First Step: A System Reboot

Once you have documented the error, the simplest and often most effective first step is to power the system down completely. Wait for about 30 seconds before turning it back on. This allows the controller's internal capacitors to discharge and can clear temporary glitches caused by a momentary signal loss or power fluctuation.

If the error disappears and does not return, it was likely a transient fault. However, if the error code reappears immediately or during your next ride, it indicates a persistent hardware or connection issue that needs further investigation.

The Technician's Triage: A Step-by-Step Diagnostic Checklist

Based on years of field experience, our technicians find that 40-60% of all electronic errors are not due to a failed component but something much simpler: a loose or compromised electrical connection. By following a logical diagnostic sequence, you can identify and often fix the most common issues yourself, saving time and avoiding a trip to the shop.

Always perform these checks with the battery turned OFF.

Step 1: The "Wiggle Test" — Inspecting Physical Connections

Vibrations from the road, moisture, and dirt can all conspire to weaken the critical connections in your e-bike's nervous system. A thorough visual and physical inspection is the most important diagnostic step.

• Handlebar Connections: Start at the front. Check the connectors running from the display, throttle, and brake levers. Gently push them together to ensure they are fully seated. Look for any signs of corrosion (green or white powder) on the pins.
• Main Harness: Trace the main cable loom from the handlebars down to the controller. Pay close attention to the primary connector that joins them. This is a common point of failure, especially if cables are pulled taut when turning the handlebars.
• Motor Connector: Inspect the thick cable running to the hub motor. This connection is often located near the rear axle. Ensure it is tight and has not been damaged by debris.
• Battery Terminals: Remove the battery from its cradle. Inspect the metal terminals on both the battery and the bike frame. They should be clean, shiny, and free of dirt or damage. A poor connection here can cause the system to shut down under load. On a robust all-terrain model like the All Terrain Fat Tire Electric Hybrid Mountain Bikes, these connections are designed for durability, but they still require regular checks, especially after riding in rough conditions.

Step 2: Battery Health Check — More Than Just Bars on a Screen

The battery level indicator on your display provides an estimate, but it doesn't tell the whole story. A battery with internal issues can show a full charge at rest but fail the moment you ask for power.

Common Misconception Debunked: A common myth is that if the display shows full bars, the battery must be fine. In reality, a battery with a high internal resistance or an imbalanced cell group can hold a high "surface charge" voltage at rest. However, when you engage the motor to climb a hill, the voltage can sag dramatically, falling below the controller's low-voltage cutoff threshold and triggering an error.

For a typical 48V e-bike system, a fully charged battery should read between 54.0V and 54.6V with a multimeter. If the system cuts out under load, and the resting voltage is below 42V, it's a strong indicator that the battery is either depleted or unable to deliver the required current. Proper battery care is a core part of maintaining your high-power e-bike for peak performance.

Step 3: Sensor Sanity Check — Brakes and Throttle

Your e-bike has safety sensors that cut motor power the instant you touch the brake levers. If one of these sensors is faulty or misaligned, it can permanently tell the controller not to activate the motor, sometimes generating an error code.

• Inspect Brake Levers: Look for the small sensor and magnet on each brake lever assembly. Ensure the magnet hasn't fallen off and that the sensor is securely in place.
• Check the Throttle: Make sure your throttle moves smoothly and returns to its starting position properly. A throttle that is physically stuck or has an internal fault can cause errors.

Decoding Common Error Code Families

While specific error codes can vary between display and controller manufacturers, they generally follow a standardized pattern. Understanding these categories can help you narrow down the source of the problem.

Here is a table of common error code families and their likely causes:

When to Call for Help: Escalating to Technical Support

If you've run through the diagnostic checklist and the problem persists, it's time to contact customer support. Providing them with high-quality information from the start will dramatically speed up the resolution process.

Gathering the Right Intel

Before you write an email or make a call, have the following information ready:

• The Photo of the Error: The picture you took in the first step is the most crucial piece of evidence.
• Bike & Component Details: Note your bike's serial number and any model or firmware versions visible on the display's startup screen.
• Voltage Reading: If you were able to measure the battery's voltage with a multimeter, provide that number.
• Context: Briefly describe what you were doing when the error occurred and what troubleshooting steps you have already taken.
• A Short Video: If possible, a short video showing you turning the bike on and reproducing the error is extremely helpful for technicians.

The Critical Importance of Certified Safety

Error codes, especially those related to the battery (BMS) or controller, can sometimes be early warnings of a serious safety issue. This is why it is essential to use e-bikes and components that have been independently tested and certified.

The premier standard in North America is the UL 2849 Standard for Electrical Systems for eBikes. This certification evaluates the entire electrical system—including the battery pack, charger, and controller—for fire and electrical safety. Reputable brands invest in this certification to ensure their products are safe. You can always check the CPSC Recalls & Product Safety Warnings database to see if any products have been flagged for safety risks. Advanced technical papers, such as the SAE/IEEE Study on Thermal Runaway Factors, highlight how factors like internal cell defects or damage can lead to dangerous battery failures. A UL 2849 certification is your best assurance that the system has been designed to mitigate these risks.

Expert Warning: If you ever see an error accompanied by a burning smell, smoke, or the battery pack becoming unusually hot, stop using the bike immediately. Disconnect the battery if it is safe to do so and move it outdoors, away from any flammable materials. Do not attempt to charge or use the battery again.

Wrapping Up: Key Takeaways for a Smooth Ride

Dealing with an e-bike error code doesn't have to be an ordeal. By following a logical process, you can solve the majority of common issues right at home.

• Document First: Always photograph the error code before doing anything else.
• Check the Basics: A simple power cycle and a thorough inspection of all electrical connectors will fix a surprising number of problems.
• Understand the Clues: Use the error code family to narrow down the potential source of the issue, paying close attention to the battery's health.
• Prioritize Safety: Never compromise on safety. Trust certified systems and never use a battery that shows signs of damage or overheating.

By arming yourself with this knowledge, you can approach electronic issues with confidence, ensuring you spend less time troubleshooting and more time riding.

Disclaimer: This article is for informational purposes only and does not constitute professional technical advice. Always consult your e-bike's user manual and contact the manufacturer's support team for issues you are not comfortable diagnosing yourself. Prioritize your safety at all times and wear appropriate protective gear. If you suspect a serious electrical or battery fault, stop using the vehicle immediately and consult a qualified technician.
