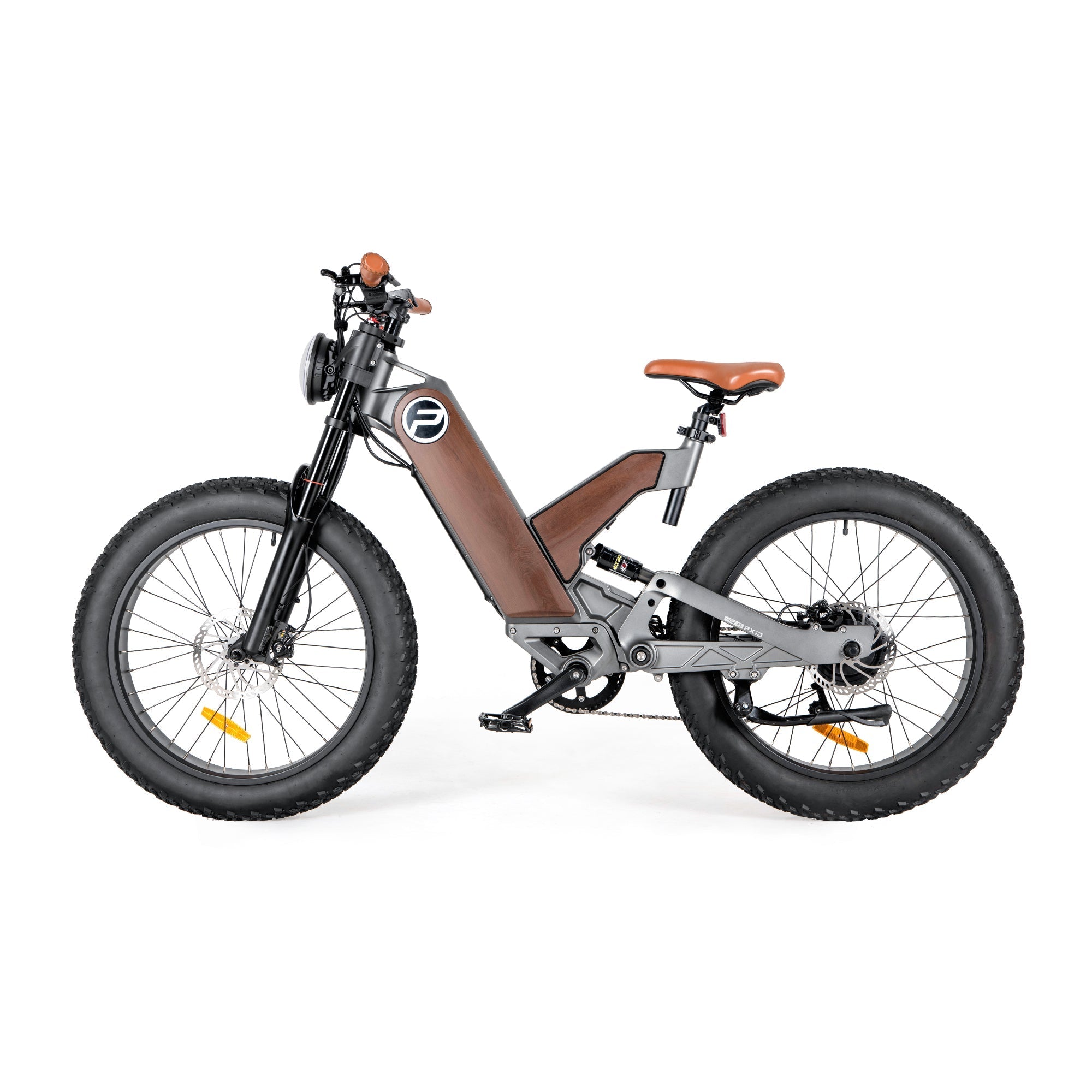

Setting Up Your E-Bike's Suspension for Trail Riding

The Foundation of Control: Why Your E-Bike Suspension Matters

Proper suspension setup is not a "set it and forget it" affair—it is the single most important adjustment you can make to define your e-bike's off-road performance, comfort, and safety. For riders of high-power, dual-suspension fat-tire e-bikes, this process is even more critical. The combination of a heavier chassis, powerful motor, and large-volume tires creates unique forces that a generic factory setting simply cannot manage effectively. An untuned suspension can lead to a harsh, chattery ride, poor traction in corners, and a lack of control when you need it most. I've seen many riders frustrated by neck and back strain, mistakenly blaming their chair or posture, when the real culprit was a suspension that wasn't absorbing impacts correctly.

This guide provides a systematic, experience-based approach to setting up your front and rear suspension. We will move beyond generic advice and focus on the practical steps for dialing in sag, rebound, and compression to match your specific weight, cargo, and the trails you ride. Mastering this process is the key to unlocking the full potential of your all-terrain machine, giving you the confidence to tackle everything from technical singletrack to rugged fire roads. A well-tuned bike feels less like a machine and more like an extension of your body, a benefit explored in how Dual Suspension: Ride Farther, Not Harder on Trails can transform your experience.

Understanding the Core Suspension Adjustments

Before you start turning dials, it’s essential to understand what you're adjusting. Three key settings work together to manage how your bike handles bumps: sag, rebound, and compression.

• Sag: This is the starting point for all suspension tuning. Sag is the amount your suspension compresses under your static weight—you, your gear, and any cargo. Setting it correctly ensures your wheels stay in contact with the ground over uneven terrain, providing consistent traction. Too little sag makes the ride harsh and skittish; too much causes the bike to wallow and bottom out on big hits.
• Rebound Damping: Rebound controls the speed at which your suspension extends back to its original position after compressing. A correct rebound setting prevents the bike from feeling like a pogo stick and keeps the tire tracking the ground on successive bumps. It's the secret to maintaining control through rock gardens or over roots.
• Compression Damping: Compression controls the speed at which your suspension compresses when it hits a bump. Many forks and shocks offer adjustments for low-speed and high-speed compression. Low-speed affects how the suspension handles body weight shifts (like braking or cornering), while high-speed manages its reaction to sharp, sudden impacts.

Pre-Setup Checklist: Your Path to a Perfect Tune

Consistency is key to a good setup. Rushing this process or measuring under the wrong conditions will lead to poor results on the trail. Before you touch any dials, follow this checklist.

1. Gather Your Tools: You will need a shock pump (for air-sprung suspension), a metric ruler or measuring tape, and a notebook or phone to record your settings. A friend to help you balance can also be very useful.
2. Gear Up (Measure "Wet"): Always set your suspension with the full weight you'll have on a typical ride. This means wearing your helmet, shoes, hydration pack, and any other gear. If you do a lot of All-Terrain Bikepacking with Fat Tires & Suspension, you should also add your typical cargo weight. Measuring without this gear is a common mistake that results in an under-sprung and unresponsive setup.
3. Check Your Tire Pressure: This step is non-negotiable. Fat tires are a core part of your bike's suspension system. Low tire pressures allow the tire to absorb small bumps but also increase rolling resistance and the frequency of suspension compression. High pressures reduce traction. Set your tire pressure before you set your suspension, as any changes here will alter your sag measurements.

Step-by-Step Guide: Setting Your Sag

Setting sag correctly positions your suspension in the optimal part of its travel. Our goal is to achieve a specific percentage of compression under your "wet" weight. For mixed trail and commute use on a dual-suspension fat-tire bike, a good starting point is 20–30% sag for the front fork and 25–30% for the rear shock. Heavier riders (200+ lbs) or those carrying significant cargo should aim for the lower end of that travel percentage (e.g., 25% front, 30% rear) to prevent bottoming out. This means you will use less sag (a firmer spring).

Bikes like the All Terrain Fat Tire Electric Hybrid Mountain Bikes provide the dual-suspension platform where this setup makes a world of difference.

Sag Setup Table

Rider Weight & Style	Front Fork Sag	Rear Shock Sag	Recommended Action
Lighter Rider (<200 lbs) / Trail	20-25%	25-30%	Start with manufacturer recommendations and adjust for comfort.
Heavier Rider (200+ lbs) / Trail	25-30%	30%	Increase air pressure or preload; avoid sacrificing sag.
Heavy Cargo / Bikepacking	25-30%	30%	Use the upper end of the pressure range for your weight.

Setting Front Fork Sag (Air & Coil)

1. For Air Forks: Add air pressure using your shock pump based on the manufacturer's chart (often printed on a sticker on the fork leg). This is just a starting point. For fat tires, I often add 10–20 psi over the recommendation to counteract the tire's inherent damping.
2. For Coil Forks: If you have a preload dial, turn it fully counter-clockwise to the minimum setting.
3. Push the rubber O-ring on the fork stanchion down against the dust seal.
4. Carefully mount the bike in your full riding gear, trying not to bounce. Stand on the pedals in your attack position (level pedals, bent knees and elbows).
5. Have a friend hold the bike steady, or gently lean against a wall.
6. Carefully dismount without compressing the fork further.
7. Measure the distance in millimeters from the dust seal to the O-ring. This is your sag.
8. Calculate your sag percentage: (Sag Measurement [mm] / Total Fork Travel [mm]) * 100.
9. Adjust and repeat. For air forks, add pressure to decrease sag or remove pressure to increase it. For coil forks, turn the preload collar clockwise (one full turn at a time) to decrease sag.

Setting Rear Shock Sag

The process for the rear shock is similar.

1. For Air Shocks: Set the pressure according to the manufacturer's guide for your body weight.
2. For Coil Shocks: Ensure the preload collar is at its minimum setting.
3. Push the O-ring on the shock shaft against the seal.
4. Sit on the saddle with your full gear on and feet on the pedals. It's crucial to be seated, as this is how your weight is distributed when riding over most terrain.
5. Gently dismount.
6. Measure the distance the O-ring has moved.
7. Calculate your sag percentage: (Sag Measurement [mm] / Total Shock Stroke [mm]) * 100.
8. Adjust and repeat. Add air to decrease sag, or release air to increase it. For coils, tighten the preload collar to decrease sag.

Dialing In Rebound and Compression

With sag set, you can now fine-tune how your suspension behaves on the move. Always test your settings on a familiar piece of trail, making one adjustment at a time.

Rebound: Controlling the Bounce

Rebound is arguably more critical for control than compression. A good starting point is to turn the rebound dial (often red) fully clockwise (slowest setting), then back it out 3–6 clicks.

• Too Fast (Too Little Damping): If you backed the dial out too far, the bike will feel like it's trying to buck you off after a hit. The front end may feel chattery and lose traction over small, rapid bumps. This is because the wheel is bouncing off the ground instead of tracking it.
• Too Slow (Too Much Damping): If the rebound is too slow, the suspension won't have time to extend fully before the next bump. This is called "packing," and it causes the suspension to sink deeper into its travel with each successive hit, resulting in a harsh ride and poor traction.

Compression: Managing the Hit

Compression damping (often a blue dial) controls the fork or shock’s resistance to being compressed. For initial setup, set it to the middle of its range.

• Firm Up (More Compression): Increase compression damping for high-speed descents, heavy cargo loads, or long climbs on smooth surfaces. This prevents the bike from diving under braking and feeling wallowy.
• Soften Up (Less Compression): Decrease compression for slow, technical trails with lots of roots and rocks. This allows the suspension to move more freely and absorb impacts, improving comfort and traction.

Debunking a Common Myth: Preload vs. Compression

A mistake I see constantly is riders tightening the preload collar on a coil shock to try and make the suspension feel firmer over bumps. This is incorrect. Preload is not compression damping. The preload collar only adjusts your sag (ride height). Cranking it down does not make the spring stiffer; it only raises the bike in its travel, reducing negative travel and making the ride harsher. If your suspension feels too soft and is bottoming out after sag is set correctly, you need a firmer spring or more compression damping, not more preload.

Test, Tune, and Repeat: The Final Polish

Your baseline setup is complete, but the real magic happens on the trail. Use a short, 3-5 minute loop that includes a mix of bumps, turns, and a small climb.

1. Ride the Loop: Pay attention to stability, traction, and comfort.
2. Adjust One Thing: Change only one setting at a time—a few clicks of rebound, or one turn of a compression dial.
3. Record and Ride Again: Write down the change you made. Ride the loop again and evaluate the difference.
4. Repeat: Continue this process until the bike feels stable, predictable, and responsive.

Remember that the higher speeds achievable on a Class 3 e-bike generate significantly more kinetic energy. As defined by agencies like the New York DMV, these bikes can reach 25 mph or more. This makes a slightly firmer compression setting and perfectly tuned rebound essential for safety. Always ensure your brakes are properly adjusted before any aggressive testing. The regulations around e-bike use vary, so always check local laws, such as those outlined in the California DMV handbook, which may have specific requirements for helmet use and trail access.

Finally, remember that a safe e-bike is a well-maintained one. This extends to the electrical system. Reputable manufacturers certify their bikes to standards like UL 2849 Standard for Electrical Systems for eBikes, which covers the battery, charger, and motor controller. Proper mechanical setup and certified electrical safety are two sides of the same coin for a trustworthy ride.

Key Takeaways

Perfect suspension tuning is an iterative process, not a destination. It transforms your ride from simply getting by to flowing with the trail.

• Always Start with Sag: Set your sag with your full riding gear and typical cargo. This is the foundation of your entire setup.
• Tune Rebound for Control: After setting sag, dial in your rebound to keep your tires glued to the trail. This is your key to traction and stability.
• Use Compression for Support: Adjust compression last to manage brake dive, wallowing, and bottom-out resistance based on the terrain.
• One Change at a Time: The golden rule of tuning. Isolate variables to understand what each adjustment does.
• Maintain Your Equipment: Regularly inspect your suspension seals and torque bolts, especially after hard rides. For tips on this, see our guide to Post-Adventure E-Bike Care for Off-Road Riders.

Frequently Asked Questions (FAQ)

How often should I check my suspension settings?

Check your sag and tire pressure before every ride. Air springs can lose pressure over time. You should also re-evaluate your settings if you add or remove significant weight (like a full bikepacking load) or if you move to a very different type of trail.

What is the difference between an air spring and a coil spring?

An air spring uses pressurized air to support the rider's weight. It is lightweight and highly adjustable by simply changing the air pressure with a shock pump. A coil spring is a piece of steel wound into a coil. It offers a very plush, linear feel but is heavier and can only be adjusted for different rider weights by physically swapping the coil for one with a different spring rate.

Why is tire pressure so important for suspension setup?

On a fat-tire bike, the tires act as a high-volume, undamped air spring. They are the first line of defense against bumps. If your tire pressure is too high, the bike will feel harsh regardless of your suspension settings. If it's too low, the bike will feel sluggish and the suspension will compress more frequently. Setting your tire pressure first establishes a consistent baseline for the rest of your suspension tune.

YMYL Disclaimer

This article is for informational purposes only and does not constitute professional mechanical advice. E-bike suspension and braking systems are critical safety components. If you are unsure about any adjustment procedures, consult a qualified bicycle mechanic. Always wear a helmet and appropriate safety gear when riding.

References

• UL 2849 Standard for Electrical Systems for eBikes
• California DMV: Two-Wheeled Vehicle Operation (E-bike Law)
• New York DMV: Electric Scooters and Bicycles (Class Definitions)
