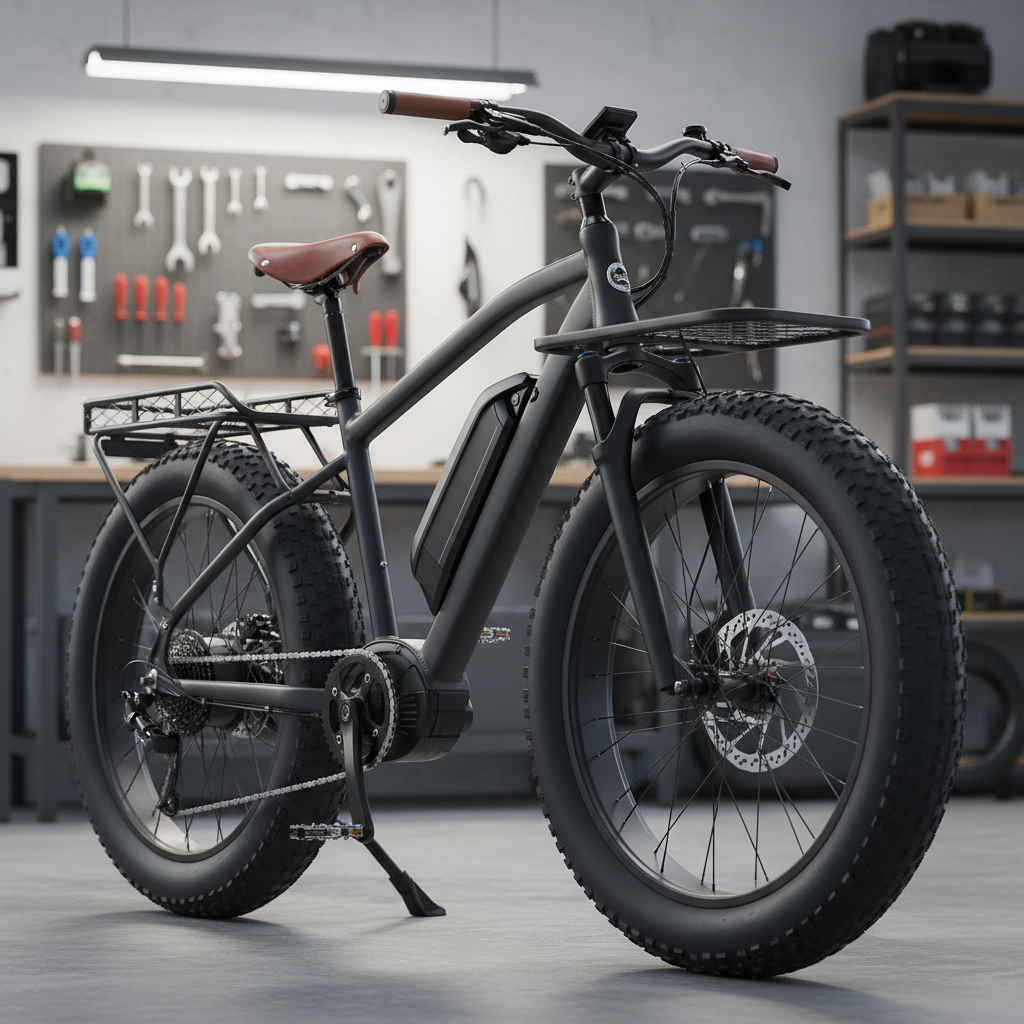

E-Bikes for Heavy Riders: What to Look For (400 lb+)
November 11, 2025
The Frame: Your Foundation of Safety
When you weigh over 400 pounds, an e-bike's advertised "maximum payload" is just the starting point of your investigation. Many manufacturers calculate this number based on a static load, which doesn't account for the immense dynamic forces generated during riding—especially when hitting a pothole or navigating a steep incline. For a heavy rider, these forces can expose weaknesses in a standard frame, leading to cracks and catastrophic failure.
I used to think that any bike with a high payload number was good to go. I learned the hard way that a number on a website means very little when you're dealing with the real-world stress of a heavy rider. The culprit is often a lack of reinforcement at key stress points. A frame failure isn't just an inconvenience; it's a serious safety hazard.
What Defines a Heavy-Duty Frame?
A robust frame isn't about just using more metal; it's about smarter engineering. Look for visible signs of reinforcement.
- Gussets: These are small, welded pieces of metal that brace critical joints, typically around the head tube (where the fork connects to the frame) and the bottom bracket (where the pedal cranks attach). They are a clear indicator that the manufacturer has anticipated high-stress use.
- Material and Weld Quality: While materials like aluminum are common, pay close attention to the welds. They should be clean, consistent, and uniform. Messy, uneven welds are a major red flag for poor quality control.
- Frame Geometry: Don't automatically discount a step-through frame. While traditional diamond frames are inherently strong, a well-engineered step-through with a heavily reinforced downtube can offer comparable strength with the added benefit of being easier to mount and dismount.
Suspension Forks: A Point of Failure or a Path to Comfort?
A front suspension fork can absorb jarring impacts, but for a heavy rider, a cheap, under-sprung fork is often more dangerous than a quality rigid one. These forks can "bottom out" easily—compressing fully with a harsh jolt—which can cause a loss of control. Furthermore, their internal components are often not designed for the sustained load, leading to premature failure.
If you opt for suspension, it must be adjustable and rated for your weight. The key is setting the "sag" correctly. Sag is how much the suspension compresses under your static weight. For a heavy rider with full gear, this should be in the 25-30% range of the fork's total travel. This ensures the suspension has enough remaining travel to absorb bumps without bottoming out, providing both comfort and control.
Wheels and Tires: Where the Rubber Meets the Reality
After the frame, the wheels are the most common failure point for heavy riders. Standard e-bike wheels are simply not designed to handle the combined forces of a 400+ pound rider, cargo, and a powerful motor. This leads to frustrating and dangerous issues like broken spokes, cracked rims, and damaged hubs.
One of the first things I noticed when I started pushing the weight limits on e-bikes was the pinging sound of spokes loosening or breaking on climbs. It's a clear sign the wheel is under immense strain and approaching its breaking point.
Heavy-Duty Wheel Checklist
Not all wheels are created equal. Use this checklist to evaluate if a bike's wheels are up to the task. A manufacturer that invests in these components understands the demands of heavy-duty use.
| Component | Standard Specification | Heavy-Duty Requirement | Why It Matters |
|---|---|---|---|
| Rims | Single-Wall Aluminum | Double-Wall Aluminum | Provides significantly more structural integrity to resist cracking and bending from hard impacts. |
| Spokes | 32-36 spokes, 14-15 gauge | 36-48 spokes, 13-14 gauge | A higher spoke count distributes the load more evenly. A lower gauge number (e.g., 13ga) means a thicker, stronger spoke. |
| Hubs | Unbranded, loose bearings | Reputable Brand, Sealed Bearings | Quality hubs with sealed bearings can withstand higher torque and resist contamination, ensuring a longer lifespan. |
Tire Selection and Pressure Management
Fat tires (4 inches or wider) are an excellent choice for heavy riders. Their large air volume acts as additional suspension, smoothing out the ride. However, running the correct tire pressure is critical.
Lighter riders might run 15 PSI for a soft ride, but a heavy rider doing so will almost certainly experience "pinch flats," where the tire compresses fully and the inner tube is pinched against the rim. For a rider over 400 lbs, a starting pressure of 25-35 PSI is more realistic. Start in the middle of this range and adjust. If the ride feels harsh, lower it by 2-3 PSI. If the tire feels squirmy in corners or you get a pinch flat, increase it.
Powertrain and Brakes: Controlling Your Momentum
Power and speed are useless without control and reliability. For a heavy rider, the powertrain and braking system are not just performance components; they are critical safety systems that must be overbuilt to handle the increased load.
The Torque Arm: A Non-Negotiable Safety Part
Many e-bikes for utility use powerful hub motors due to their simplicity and affordability. However, a high-torque motor puts immense rotational force on the axle. Without proper reinforcement, this can cause the axle to spin loose in the frame dropouts, severing the motor wires and causing a complete loss of power. This is a common and dangerous failure mode.
A torque arm is a small, inexpensive metal bracket that braces the motor axle against the bike frame, preventing it from spinning. If you are considering an e-bike with a hub motor producing over 50 Newton-meters (Nm) of torque, a torque arm is an essential safety component. Many manufacturers don't include them to cut costs, but they are a must-have for any heavy rider.
Battery & Range: The Truth About Watt-Hours
Ignore the manufacturer's claimed range. It's almost always based on ideal conditions with a lightweight rider. The single most important metric for understanding an e-bike's range is its battery capacity, measured in Watt-hours (Wh).
A heavy rider on mixed, hilly terrain will typically consume between 40 and 70 Watt-hours per mile (Wh/mi). This is a huge jump from the 15-25 Wh/mi a lighter rider might see. This means a standard 500Wh battery that gives a light rider 25 miles of range might only give a heavy rider 7-12 miles.
Common Misconception: "A bigger battery is always better."
Reality: A bigger, uncertified battery is a significant fire hazard. Due to the high number of cells, a large battery pack must have a sophisticated Battery Management System (BMS) to prevent overcharging, overheating, and short-circuits. Always confirm that the bike's entire electrical system—including the battery and charger—is certified to the UL 2849 Standard for Electrical Systems for eBikes. This is your single best assurance of safety and is becoming a mandatory requirement on platforms like Amazon and in major cities.
For a practical range of 20-25 miles, a heavy rider should look for a battery with at least 1,000Wh.
Braking Systems: Stopping Power is Paramount
Bringing over 400 pounds to a safe, controlled stop requires serious braking power. Standard mechanical or two-piston hydraulic disc brakes are often inadequate, suffering from "brake fade" on long descents. This is where the system overheats, and braking power diminishes dramatically.
- Calipers: Insist on 4-piston hydraulic disc brakes. They offer significantly more clamping force and better heat management than 2-piston models.
- Rotors: Look for large-diameter rotors, ideally 203mm front and rear. Larger rotors have more surface area, which allows them to dissipate heat more effectively and provide more stopping leverage.
Pre-Purchase Inspection: Your Final Checklist
Before you buy, you need to perform a few tests that go beyond a simple ride around the block. These steps can reveal hidden weaknesses that won't show up on a spec sheet.
- The Static Load Test: With the bike stationary, put your full weight on the pedals and handlebars. Look for excessive frame flex, particularly around the bottom bracket. Check clearances to ensure the frame or components don't rub against the tires under load.
- The Hill Climb Test: Find a moderately steep hill and ride up it several times. Listen for any creaking from the frame or wheels. Note if the motor feels strained or if you sense any power drop-off, which could indicate overheating.
- The Brake Test: On a safe, clear downhill slope, apply the brakes firmly but intermittently. Do they feel strong and consistent, or do you feel them start to lose power? This is a direct test for brake fade.
- Check for After-Sales Support: How easy is it to get spare parts? Look at the company's warranty policy. A brand that offers a comprehensive, multi-year warranty, like the 2-year warranty offered by Himiway, shows confidence in its product's durability. This is far more valuable than a flashy website.
Key Takeaways for a Confident Ride
Choosing the right e-bike when you're a heavy rider is not about finding the most expensive model, but the most robustly engineered one. It requires looking past marketing claims and focusing on the components that deliver safety and reliability under load. Prioritize a reinforced frame, heavy-duty wheels with thick spokes, and a UL-certified electrical system. Insist on 4-piston hydraulic brakes with large rotors and, if you choose a hub motor, ensure a torque arm is installed.
By using this guide as your checklist, you can move beyond the anxiety of potential equipment failure. You can invest in a machine that is genuinely built to handle the demands of your ride, providing a safe, reliable, and powerful form of transportation for years to come.
Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or safety advice. E-bike specifications and capabilities can vary widely. Always consult with the manufacturer to confirm weight limits and suitability for your specific needs. Given the safety-critical nature of these components, especially for heavy riders, we recommend having your e-bike assembled and inspected by a qualified professional mechanic.
