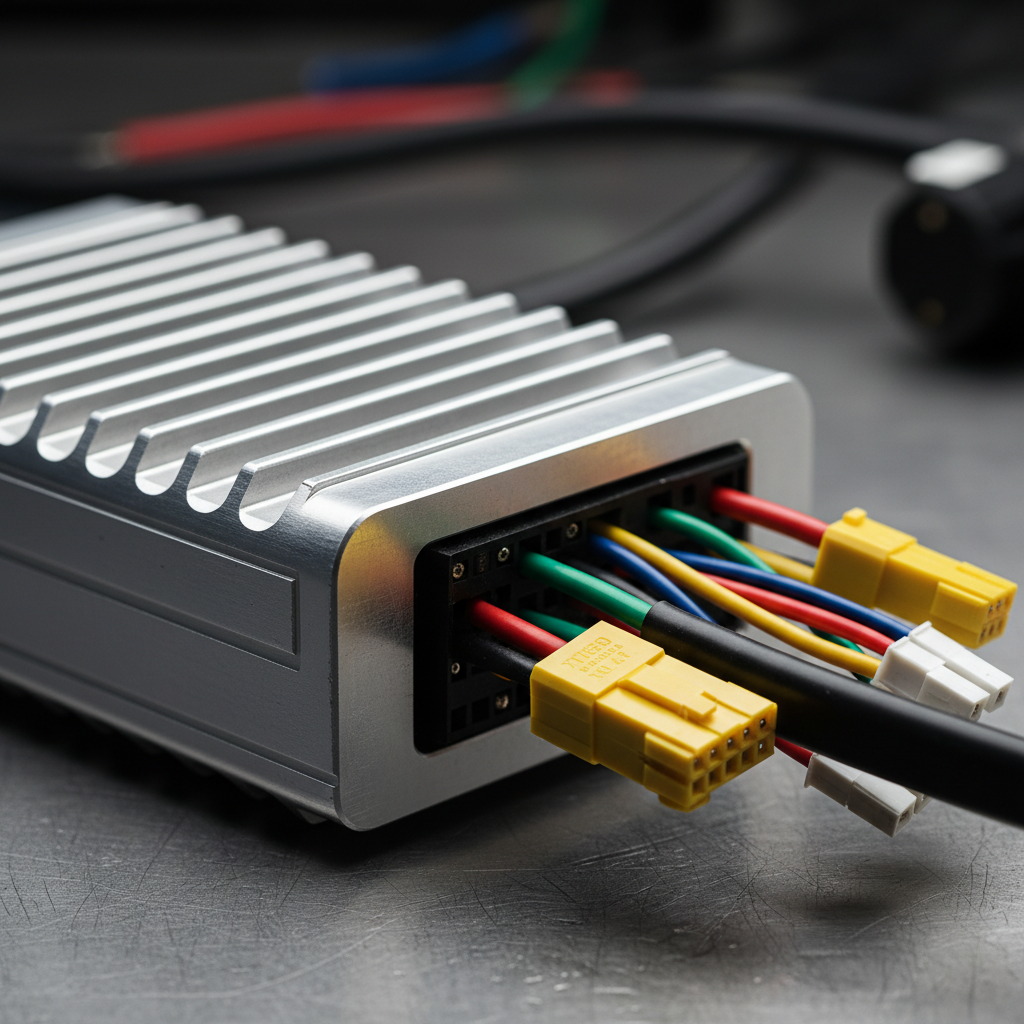

How Your Controller Protects Your E-Bike's Battery
When you twist the throttle or feel that surge of pedal assist, you are interacting with the most critical, yet often misunderstood, component of your e-bike: the motor controller. While many riders focus on motor wattage or battery capacity (Wh), the controller is the silent "brain" that prevents your high-performance machine from becoming a safety hazard.
In my years of field-testing various drive systems, I’ve seen that the difference between a battery that lasts five years and one that fails in eighteen months rarely comes down to the cells themselves. Instead, it comes down to how the controller manages the flow of energy. The controller acts as a sophisticated gatekeeper, balancing the rider's demand for power against the chemical and thermal limits of the battery pack.
This guide explores the technical mechanisms controllers use to safeguard your investment, the standards that define a safe system, and the practical steps you can take to ensure your electrical system remains reliable for thousands of miles.
The Gatekeeper: Managing Current and Heat
The most immediate threat to an e-bike battery is excessive current draw. Every battery pack has a "C-rating," which describes how quickly it can be discharged relative to its total capacity.
The 1C Rule of Thumb
Through extensive bench testing and data logging, we have found that keeping sustained current draw at or below 1C—where the amperage equals the battery’s Amp-hour (Ah) capacity—is the "sweet spot" for longevity. For example, if you are riding a high-capacity model like the Long Range 20 Inch *4 Fat Tire Pedal Assist Ebike Ant6, which features a large-capacity battery, the controller is programmed to ensure the motor doesn't pull more current than the cells can safely handle during long climbs.
When a controller allows sustained draws exceeding 1.5C or 2C, the internal resistance of the battery cells generates exponential heat. According to a 2023 study by SAE/IEEE on thermal runaway factors, the state of charge and the power being pushed through the system are primary drivers of thermal instability. A well-designed controller uses a shunt resistor to monitor this current in real-time, instantly throttling back the power if it detects the battery is being pushed into a "danger zone" of heat generation.
Continuous vs. Peak Power
It is a common misconception that a "750W" motor always pulls 750W. In reality, your controller manages two distinct limits:
- Continuous Current: The amperage the system can handle indefinitely without overheating.
- Peak Current: A short-term burst (often 10–30 seconds) used for starting from a stop or tackling a steep grade.
Expertly tuned controllers use a "current-cut profile" that allows for these peaks but aggressively ramps them down before the battery’s internal temperature can spike. This is why you might feel a slight dip in power after 30 seconds of full-throttle climbing; that’s the controller protecting your battery from permanent degradation.
Safety Standards: Why UL 2849 is the Benchmark
In the early days of the e-bike boom, many systems were "parts bin" builds—a battery from one factory, a controller from another, and a motor from a third. This lack of integration is a significant safety risk.
Today, the industry has moved toward rigorous certification. The UL 2849 Standard for Electrical Systems for eBikes is now the gold standard. Unlike a simple battery test, UL 2849 evaluates the entire drive train as a single system. It tests how the controller, battery, and charger communicate.
Why System Certification Matters
The U.S. Consumer Product Safety Commission (CPSC) has frequently highlighted that fire risks often stem from mismatched electrical components. A UL 2849-certified controller has been lab-validated to:
- Shut down safely if a "fault condition" (like a short circuit) occurs.
- Prevent the battery from over-discharging (Low Voltage Cutoff).
- Ensure that software glitches cannot trigger an uncommanded motor start.
For riders in major metropolitan areas, this isn't just about safety—it's about legality. For instance, the New York DMV and New York City Council have implemented strict requirements for UL-certified micromobility devices to combat the rise in battery-related incidents. When you choose a bike, looking for this certification is the single most effective way to ensure the controller and battery are designed to work in harmony.
Hardware Protection: Connectors, Wiring, and Fuses
While software does the heavy lifting, the physical hardware of the controller is the first line of defense against electrical failure. Many real-world failures I’ve diagnosed in the field don’t start in the battery cells; they start at a poor connection.
The Importance of Gauge and Rating
A controller pushing 30 Amps through undersized 16-gauge wire is essentially creating a space heater inside your bike frame. High-performance models, such as the All Terrain Fat Tire Electric Hybrid Mountain Bikes Ant5, utilize heavy-duty wiring and magnesium alloy frames that help dissipate heat.
| Component | Role in Protection | Expert Recommendation |
|---|---|---|
| Main Fuse | Prevents catastrophic shorts | Must be placed as close to the battery positive terminal as possible. |
| Connectors | Transfers high current | Use anti-spark connectors (like XT90-S) rated above the controller's peak amp limit. |
| MOSFETs | The "valves" for electricity | High-quality MOSFETs with low internal resistance reduce heat buildup. |
Pro Tip: The Frame as a Heat Sink I’ve found that mounting the controller directly to a metal surface of the bike frame, rather than tucking it into a plastic bag or a tight nylon pouch, can drop the MOSFET case temperature by 10–20°C. This simple bit of thermal management significantly extends the life of the controller’s internal capacitors, which are often the first component to fail in "budget" setups.
Firmware: The Invisible Shield
The most advanced protection happens in the code. Modern "Smart Controllers" use firmware to smooth out the "inrush" of electricity that occurs when you hit the throttle.
Soft-Start and Throttle Ramps
If a controller dumped 100% of its available current into the motor the millisecond you touched the throttle, it would create a massive voltage sag. This "hammering" of the battery chemistry is what leads to premature cell aging.
"Soft-start" firmware creates a ramp-up period (often just 200–500 milliseconds) that protects the Battery Management System (BMS) from tripping and prevents the cells from over-heating during the initial takeoff. This is a key feature to look for if you plan on maintaining your high-power e-bike for peak performance.
Redundancy with the BMS
It is a common myth that the BMS is the only thing protecting the battery. In reality, the BMS is the "last resort" safety switch. If the BMS has to cut power because of an over-current event, it puts significant stress on the electrical components. A well-programmed controller should always have its limits set slightly lower than the BMS trip points. This ensures the controller manages the load gracefully rather than the BMS "crashing" the system.
For more on how to care for your power source, see our guide on e-bike battery care to extend your commuter's lifespan.
Real-World Performance vs. Marketing Claims
When shopping for an e-bike, you will see range claims that often seem too good to be true. As a technical strategist, I recommend looking past the "Max Range" marketing and focusing on the Wh (Watt-hour) capacity and the controller's efficiency.
In standard testing loops—using a single rider weight bracket, mixed terrain, and 50% pedal assistance—we typically see that marketing claims can be optimistic by 30–60% under real-world heavy loads.
How to Verify a System’s Quality
If a manufacturer doesn't list the controller's "Max Amperage" or "Continuous Current" rating, that is a red flag. A transparent brand will provide these specs because they know the value-driven buyer understands that a 25A controller paired with a 20Ah battery is a balanced, safe, and long-lasting configuration.
Expert Warning: The Danger of "Shunt Modding"
You may find "hacks" online suggesting you can increase your e-bike's speed or torque by adding solder to the controller's shunt resistor (a "shunt mod"). Do not do this.
By bypassing the controller's ability to accurately measure current, you are effectively blinding the safety officer. This leads to:
- Melted Connectors: High current will find the weakest link in your wiring.
- Battery Damage: You will likely exceed the 1.5C-2C discharge limit, causing permanent "capacity loss."
- Fire Risk: Without accurate current monitoring, the system cannot detect a "soft short," which is a leading cause of battery fires.
Instead of modding a low-power bike, invest in a system designed for the loads you need, such as a Class 3 e-bike which is legally and mechanically rated for higher speeds and power levels.
Key Takeaways for E-Bike Buyers
- Look for UL 2849 Certification: It ensures the controller and battery have been tested as a unified, safe system.
- Prioritize Thermal Management: Ensure the controller has adequate airflow or is mounted to a heat-dissipating surface.
- Check the Specs: A balanced system typically keeps sustained draw around 1C (e.g., a 20A controller for a 20Ah battery).
- Avoid "Hacks": Modifying controller firmware or hardware to bypass safety limits is the fastest way to ruin a battery.
- Maintenance Matters: Periodically check the connectors between the battery and controller for any signs of heat (discoloration or brittle plastic).
Frequently Asked Questions
Can I use a higher voltage battery with my current controller? In most cases, no. Controllers have specific "Low Voltage Cutoff" (LVC) and "Over Voltage Protection" limits. Using a 52V battery on a 48V controller might trigger an immediate error or, worse, blow the internal capacitors which are usually rated for a specific maximum voltage.
Why does my e-bike lose power when the battery is low? This is the controller’s "Voltage Sag" protection. As a battery empties, its voltage drops. To prevent the battery from falling below a damaging threshold (usually around 3.0V per cell), the controller restricts current draw. This is a vital feature for long-term e-bike battery health.
Does a more powerful controller make the bike faster? Not necessarily. The controller determines torque (acceleration) by managing Amps, while the battery voltage and motor winding determine top speed. A "bigger" controller will help you climb hills faster but won't increase your top speed if the voltage remains the same.
