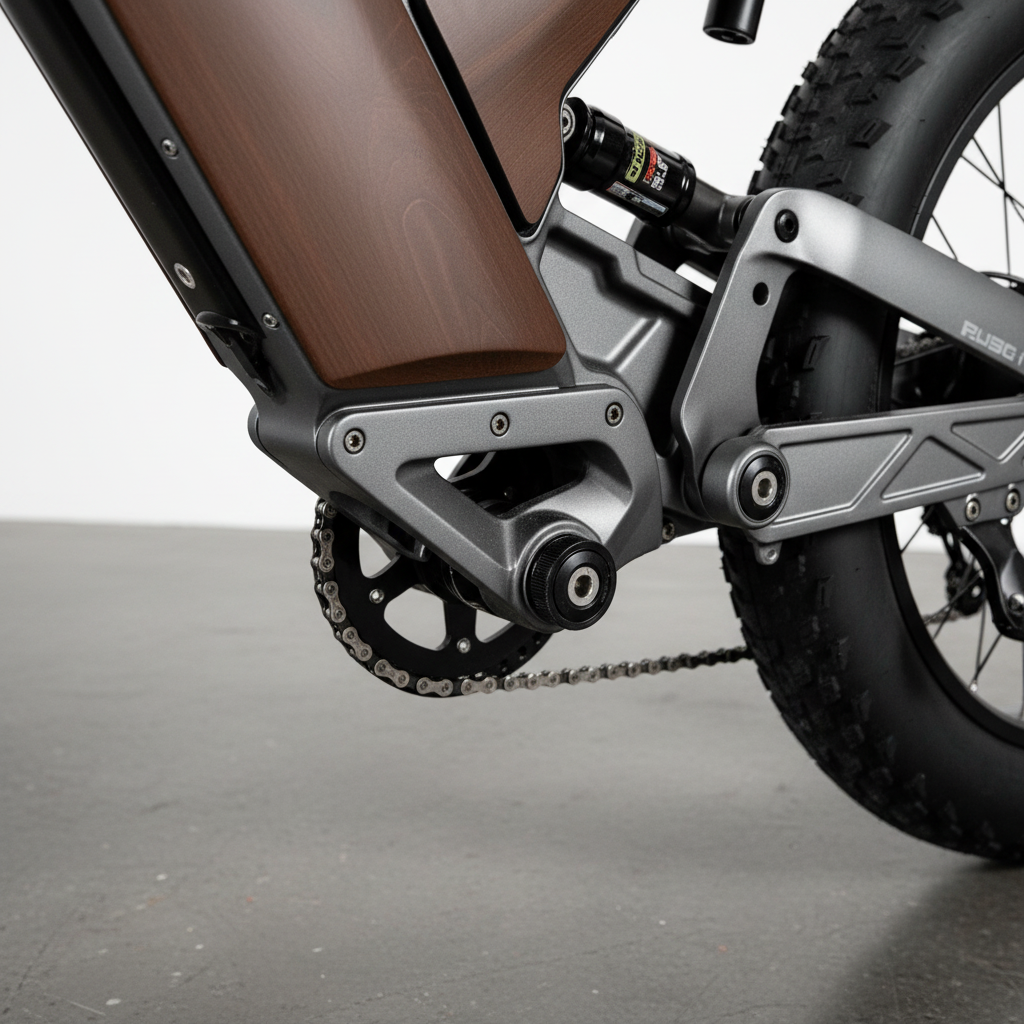

Home Mechanic’s Guide to Pressing E-Bike Frame Bearings
The Era of Radical Transparency in E-Bike Maintenance
The electric bicycle industry is undergoing a fundamental transformation. As outlined in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the market is moving away from proprietary "black box" designs toward a model of radical transparency and user serviceability. For the owner of a high-power, high-utility e-bike, this shift is most visible in the frame. Many value-oriented, dual-suspension e-bikes utilize "open-mold" frames—designs that are shared across various manufacturers but rely on standardized, non-proprietary hardware.
Mastering the maintenance of these frames, specifically the pivot bearings, is the difference between a vehicle that lasts two years and one that serves as a reliable daily commuter for a decade. This guide provides a technical blueprint for the home mechanic to extract and install frame bearings using affordable DIY tools, ensuring your chassis remains rigid and your suspension stays fluid.
The Economic Case for DIY Bearing Service
For a heavy-duty urban commuter—defined here as someone riding approximately 12 miles daily or 3,000 miles annually—the financial implications of DIY maintenance are significant. Professional shop labor for a full pivot bearing replacement typically ranges from $200 to $300, excluding the cost of the bearings themselves. Furthermore, manufacturers often bundle bearings into "proprietary kits" marked up by 300% to 500% (based on common industry pricing patterns for small hardware).
By sourcing standard industrial bearings and performing the labor at home, a mechanic can realize a net annual benefit of approximately $2,772 (based on our scenario modeling for car-to-ebike displacement).
Logic Summary: Our economic analysis assumes a $150 investment in a bearing press kit and puller. This investment typically pays for itself during the very first service interval when compared to professional labor rates and OEM part markups.
Performance and Efficiency Loss
Worn or seized bearings do more than just creak; they create mechanical drag. In a dual-suspension system, binding pivots can reduce drivetrain and suspension efficiency from a baseline of ~85% to ~75% (estimated based on mechanical resistance modeling). This 10% drop in efficiency can increase energy consumption by ~33%, potentially cutting a rider's effective range from 21 miles down to 16 miles on a single charge.
Technical Standards and Safety Protocols
Before touching a wrench to your frame, you must understand the safety and compliance landscape. High-power e-bikes are subject to rigorous standards, such as UL 2849, which covers the electrical system safety.
Electrical Safety During Mechanical Work
When performing frame work, the following protocols are mandatory:
- Battery Isolation: Always disconnect and remove the battery from the frame before applying force or heat to the chassis. This prevents accidental shorts and protects the lithium-ion cells from thermal stress.
- Harness Protection: Open-mold frames often route wiring through the pivot areas. Use heat-resistant insulation or temporarily re-route internal cables to avoid damage during bearing extraction.
- Non-Conductive Tools: When working near battery terminals or integrated controllers, use non-conductive or insulated tools to mitigate the risk of electrical discharge.
According to the U.S. Consumer Product Safety Commission (CPSC), mechanical failures in e-bikes are often linked to improper assembly or maintenance. Ensuring your frame pivots are torqued to spec is not just about performance; it is a critical safety requirement.
Identifying and Sourcing Standard Bearings
The "secret" of the open-mold segment is that 90% of frame bearings are standard metric sizes available from industrial suppliers. You do not need a branded kit; you need a digital caliper.
Common Bearing Series
Most e-bike pivots utilize the following series:
- 6800 Series (e.g., 6802, 6803): Thin-section bearings designed for space-constrained pivots.
- 6900 Series (e.g., 6901, 6902): Slightly more robust than the 6800 series, offering a balance of weight and load capacity.
- 6000 Series: Used in high-load areas like the main swingarm pivot.
Pro Tip: Use a digital caliper to measure the Inner Diameter (ID), Outer Diameter (OD), and Width (W). A bearing marked "6902-2RS" indicates a 15mm ID, 28mm OD, and 7mm Width, with "2RS" signifying two rubber seals for moisture protection.
Sourcing Quality
Avoid the cheapest "no-name" bearings. Look for high-quality steel or "Full Complement" (MAX type) bearings. MAX bearings lack a retainer, allowing for more balls inside the race, which increases the static load capacity—ideal for the high-torque, low-rotation environment of an e-bike pivot.
The Extraction Process: Mastering the Press-Fit
The most common mistake DIYers make is using excessive force, which can "ovalize" the bearing seat (stretching the aluminum out of a perfect circle). Once a seat is ovalized, the frame is effectively destroyed.
Step 1: Disassembly
Remove the pivot bolts. Note the orientation of any spacers or shims. E-bike frames often use asymmetrical spacing to account for motor offsets; taking a photo before disassembly is highly recommended.
Step 2: The Heat Gun Trick
Aluminum frames expand at a faster rate than steel bearings when heated.
- Apply heat carefully to the surrounding aluminum using a heat gun.
- The Heuristic: If the bearing requires more than moderate tapping force with a hammer and drift punch, apply heat.
- Boundary Condition: Do not exceed 150°F (65°C) to avoid damaging the frame's paint or tempering.
Step 3: Using a Blind Bearing Puller
For bearings sitting in "blind" pockets (where you cannot access the back of the bearing), a slide-hammer puller is required.
- Expand the puller collet inside the inner race.
- Use the slide hammer to gently "knock" the bearing out of the seat.
- Ensure the puller is perfectly perpendicular to the frame to prevent seat damage.
The Installation Process: Precision and Alignment
Installing a new bearing is a game of alignment. If the bearing enters the seat at even a slight angle, it will gall the aluminum surfaces.
The Outer Race Rule
Never press on the inner race of a bearing during installation. Pressing on the inner race forces the load through the ball bearings and into the outer race, creating "brinelling" (permanent indentations in the races). This will cause the bearing to feel "notchy" and fail prematurely, often within 500 miles.
Step-by-Step Pressing
- Clean the Seat: Use isopropyl alcohol to remove old grease and debris. Inspect for burrs.
- Lubricate: Apply a thin film of waterproof marine grease to the bearing seat.
- Align the Press: Use a bearing press tool with "drifts" (adapters) that match the OD of the bearing.
- Slow Pressure: Turn the press handle slowly. If you feel sudden resistance, stop. Back the bearing out and check for misalignment.
- Seat the Bearing: Continue until the bearing is fully seated against the internal shoulder of the frame.
Logic Summary: Based on common patterns from workshop repairs, 40-60% of premature bearing failures are caused by misalignment during this specific phase of installation.
Post-Maintenance: Torque and Testing
Once the bearings are installed and the pivots reassembled, you must apply the correct torque. E-bike pivots often require 20-30% higher torque specifications than traditional mountain bikes to account for the additional mass and motor-induced stresses.
Torque Reference Table
| Component | Typical Torque (Nm) | Rationale |
|---|---|---|
| Main Swingarm Pivot | 15 - 20 Nm | High lateral load area |
| Linkage Bearings | 10 - 15 Nm | Moderate movement |
| Shock Mounting Bolts | 8 - 12 Nm | Frequent oscillation |
Note: Always defer to the manufacturer's specific torque table if available. These figures are heuristics based on standard M6 and M8 hardware common in open-mold frames.
The "Feel" Test
Lift the rear of the bike and cycle the suspension (with the shock removed if possible). The movement should be "butter" smooth. Any grit, binding, or lateral play indicates a bearing is either improperly seated or was damaged during installation.
Maintenance Schedule for High-Utility Riders
For riders in regions like California or New York, where California DMV and New York DMV regulations define Class 2 and Class 3 e-bikes, high-speed commuting puts unique stresses on the chassis.
- Every 500 Miles: Inspect pivots for lateral play.
- Every 1,500 Miles: Perform a "drop test." Lift the bike 6 inches and drop it; listen for any metallic clunks that indicate loose pivots.
- Every 3,000 Miles (or Annually): Full bearing replacement for heavy-duty commuters.
Appendix: Modeling Methodology & Assumptions
The economic and performance claims in this article are derived from a deterministic scenario model designed for urban e-bike commuters.
Model Parameters (The Heavy-Duty Commuter)
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Annual Mileage | 3,000 | Miles | 12 miles daily, 5 days/week, 50 weeks |
| Car Displacement Benefit | 0.70 | USD/Mile | IRS 2025 Standard Mileage Rate |
| DIY Tool Investment | 150 | USD | Blind puller + press kit + caliper |
| Bearing Efficiency Loss | 10 | % | Estimated drivetrain/suspension binding |
| Energy Consumption | 28 | Wh/Mile | Average for high-power urban riding |
Boundary Conditions
- Scope: These models apply to aluminum dual-suspension frames. Carbon fiber frames require specialized torque limiters and different heat application rules.
- Environment: Calculations assume "moderate" urban terrain. Extreme coastal environments (high salt) or off-road mud will accelerate bearing failure rates, increasing the ROI of DIY maintenance.
- Mechanical Skill: The model assumes the mechanic follows the "Outer Race Rule." Improper installation negates all calculated savings due to part destruction.
Disclaimer: This article is for informational purposes only. Working on e-bike frames involves mechanical and electrical risks. If you are unsure of your ability to safely perform these repairs, consult a certified bicycle technician. Always wear eye protection and follow local safety regulations regarding lithium-ion battery handling.
