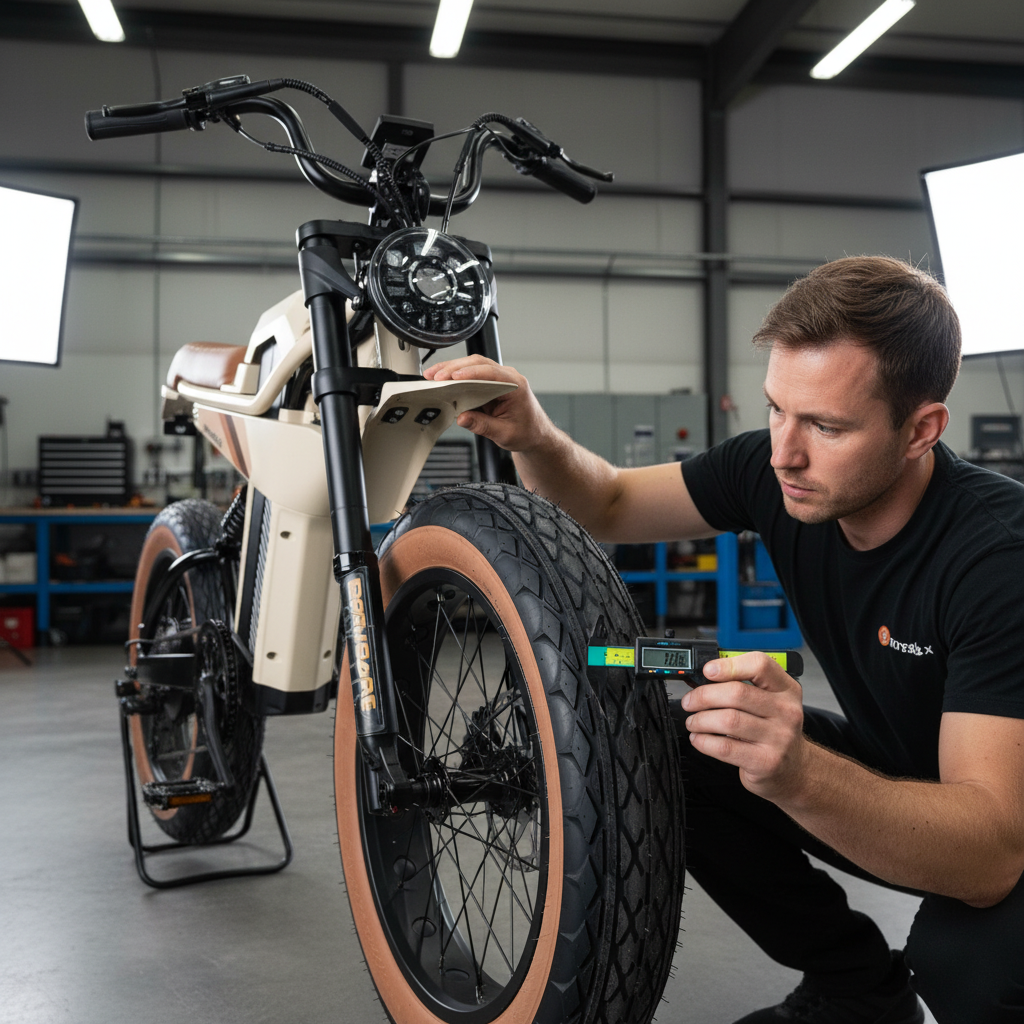

Fork Clearance Check: Will a 4.8" Fat Tire Fit Your Bike?
Fork Clearance Check: Will a 4.8" Fat Tire Fit Your Bike?
Upgrading to 4.8-inch "super-fat" tires is a common goal for riders seeking maximum flotation on snow, sand, or loose gravel. For those operating high-power 750W-1000W e-bikes, the extra rubber promises better traction and a more cushioned ride. However, in the world of utilitarian e-bikes, "bigger" is not always "better" if it compromises mechanical safety or electrical efficiency.
Before you invest in new rubber, you must move beyond the nominal size printed on the sidewall. A tire labeled 4.8 inches rarely measures exactly that once mounted and pressurized. Fitment is a game of millimeters where frame flex, rim width, and even tire pressure determine whether you have a high-performance upgrade or a dangerous mechanical failure. Based on our observations from technical support and repair benches, the most common mistake is assuming that a fork designed for 4.0-inch tires can automatically accommodate the 20% increase in width and the significant increase in diameter that comes with a 4.8-inch tire.
The Physics of "Fat" – Why 4.8" Isn't Just 0.8" More
When upgrading from a standard 4.0-inch tire to a 4.8-inch tire, the change is three-dimensional. You are not just adding width; you are increasing the tire's volume and its overall diameter.
Nominal vs. Actual Width
Tire manufacturers provide a "nominal" width, but the actual width is heavily influenced by your rim's internal width. According to technical data on rim and tire width relationships, a tire's width typically increases by approximately 0.275mm for every 1mm increase in internal rim width. However, for fat tires, this is a conservative estimate. On wider rims (80mm to 100mm), the tire casing expands significantly, often pushing a 4.8-inch tire past the 5.0-inch mark.
The Impact of Tire Pressure (PSI)
Tire width is a dynamic measurement. We have observed that fat tires grow significantly as pressure drops. While it sounds counterintuitive, a tire rated at 4.8 inches at its maximum 20 PSI might only measure 4.8 inches. However, at a typical riding pressure of 10-15 PSI—used for comfort and grip—the sidewalls bulge. Under these lower pressures, the tire can swell to 5.2 inches or more.
Expert Insight: Always measure your clearance at your intended riding pressure, not the maximum PSI listed on the sidewall. If you plan to ride at 8 PSI for snow, that is where you must check for frame rub.
The Critical Measurement Protocol: A DIY Guide
Measuring for tire clearance requires more than a quick glance with a ruler. To ensure safety and prevent frame damage, we recommend a standardized measurement protocol used by professional mechanics.
The 8mm Rule of Thumb
In the fat-tire industry, the "rule of thumb" is to maintain a minimum of 8mm of clearance on all sides of the tire (top, left, and right). This 8mm buffer is not arbitrary; it accounts for:
- Frame and Fork Flex: Under heavy loads or cornering forces, the frame and fork can flex by 2-3mm.
- Wheel Wobble: No wheel is perfectly true. A minor "hop" or "wobble" in the rim can cause a tire with tight clearance to strike the frame.
- Debris Buildup: If you ride in mud or snow, debris will cling to the tire. Insufficient clearance leads to "packing," where snow or mud wedges between the tire and the fork crown, potentially causing a sudden wheel lock-up.
The Weighted Spacer Test
A common mistake is measuring clearance with the bike on a repair stand. When a rider sits on the bike, the frame compresses and flexes.
Steps for the Spacer Test:
- Cut a piece of wood or plastic to exactly 6mm or 8mm thick.
- With the new tire mounted and inflated to riding pressure, slide the spacer between the tire and the tightest points of the fork and chainstays.
- Have a second person assist you while you sit on the bike in a full riding position (including your typical cargo load).
- If the spacer binds or cannot pass through the gaps while the bike is weighted, your clearance is insufficient.
The Geometric Traps: Diameter and Alignment
Width is the most visible hurdle, but diameter and component alignment often present "hidden" problems that can ruin a DIY upgrade.
The 3% Diameter Rule
A 4.8-inch tire has a significantly larger outer diameter than a 4.0-inch tire. According to the Tire 3% Rule, exceeding a 3% change in total tire diameter can negatively impact vehicle handling. For e-bikes, a much taller tire raises the bottom bracket height, which raises your center of gravity and can make the bike feel "tippy" or unstable at low speeds. It also slackens the head tube angle, which slows down steering response. If your upgrade exceeds this 3% threshold, you may find the bike's handling characteristics significantly altered.
The 135mm Hub and Brake Rotor Trap
Many fat-tire forks use a 135mm front hub spacing. However, there are two different standards for 135mm front hubs: Front Disc Spacing (FDS) and Rear Disc Spacing (RDS).
- FDS: The brake rotor is positioned closer to the fork leg.
- RDS: The rotor is positioned further inboard, similar to a rear wheel.
If you purchase a new wheelset to accommodate a 4.8-inch tire and mismatch these standards, your brake rotor will not align with the caliper. While brake adapters can solve some height issues (e.g., moving from a 160mm to 180mm rotor), they cannot fix a lateral misalignment caused by the wrong hub flange spacing.
Performance Trade-offs: A Modeling Deep Dive
Beyond the physical fit, you must consider the electrical and mechanical toll of a wider tire. To understand the real-world impact, we modeled a scenario involving a high-power e-bike upgraded to 4.8-inch tires for winter commuting.
Scenario Modeling: The 4.8" Winter Upgrade
We analyzed a 1000W e-bike system carrying a 220lb rider and 60lbs of cargo in soft snow conditions. The results highlight a severe "range penalty" that many DIYers overlook.
| Parameter | 4.0" Pavement (Baseline) | 4.8" Soft Snow (Upgrade) | Rationale / Source |
|---|---|---|---|
| Speed | 25 mph | 22 mph | Safety-adjusted winter speed |
| Energy Consumption | ~81 Wh/mile | ~127 Wh/mile | Physics-based power model |
| Total Power Demand | 1,619 W | 2,088 W | Sum of drag, rolling, & grade |
| Estimated Range | ~10 miles | ~6 miles | Based on 960Wh battery |
| Rolling Resistance | Baseline (Crr 0.008) | 3.5x Increase (Crr 0.04) | Zwiftinsider Crr Presets |
Logic Summary: Our analysis assumes a 1000W motor system operating in -10°F to 20°F temperatures. The 40% reduction in range is a direct result of the massive increase in rolling resistance from the wider contact patch and the energy required to "plow" through soft snow.
Thermal Stress on the Motor
A 1000W motor is powerful, but sustained operation at over 2,000W (as seen in the winter 4.8" model) pushes the system toward its thermal limits. When a motor works harder to turn a heavier, wider tire against high resistance, it generates excess heat. This can lead to "thermal throttling," where the controller reduces power to protect the motor, or in extreme cases, permanent damage to the motor windings.
Safety and Compliance Standards
When modifying an e-bike, safety isn't just a personal concern—it’s a regulatory one. The U.S. Consumer Product Safety Commission (CPSC) frequently issues recalls for e-bikes due to fire risks and mechanical failures. Many of these risks are exacerbated by aftermarket modifications that stress the electrical system beyond its certified limits.
UL 2849 and Electrical Integrity
The UL 2849 Standard evaluates the safety of the entire electrical system. When you install a tire that significantly increases the load on the motor (as shown in our 127 Wh/mile model), you are operating outside the parameters used during safety certification. This is particularly relevant in cities like New York, where compliance with UL standards is increasingly mandated for e-bike operation and storage.
Legal Classifications
In California, Class 3 e-bikes are restricted to 28 mph and have specific age and helmet requirements according to the California DMV. Changing your tire size can affect your speedometer's accuracy. Because a 4.8-inch tire has a larger circumference, your bike will actually be traveling faster than the display indicates. This could inadvertently push a Class 2 or Class 3 bike into an "unregulated" or "moped" category, leading to legal complications if you are involved in an accident.
Decision Framework: Should You Upgrade?
Before purchasing 4.8-inch tires, use this checklist to determine if the upgrade is practical for your specific needs.
- Does the 8mm rule apply? Use the weighted spacer test. If you have less than 8mm of clearance, the risk of frame damage or wheel lock-up is high.
- Can your battery handle the 40% range drop? If your commute is 8 miles and your modeled range drops to 6 miles, the upgrade is not utilitarian.
- Is your hub compatible? Verify FDS vs. RDS spacing for your front fork to avoid brake misalignment.
- Are you prepared for handling changes? The 3% diameter increase will make the bike feel taller and slower to steer.
As noted in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the future of e-biking is moving toward transparency in performance and safety. DIY modifications must be grounded in these same principles. While 4.8-inch tires offer undeniable aesthetic appeal and specialized traction, they require a disciplined approach to measurement and an honest assessment of performance trade-offs.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or legal advice. E-bike modifications can void warranties and may impact the safety and legal classification of your vehicle. Always consult a certified bicycle mechanic before making significant structural or electrical changes. For specific regional laws, refer to your local Department of Motor Vehicles.
