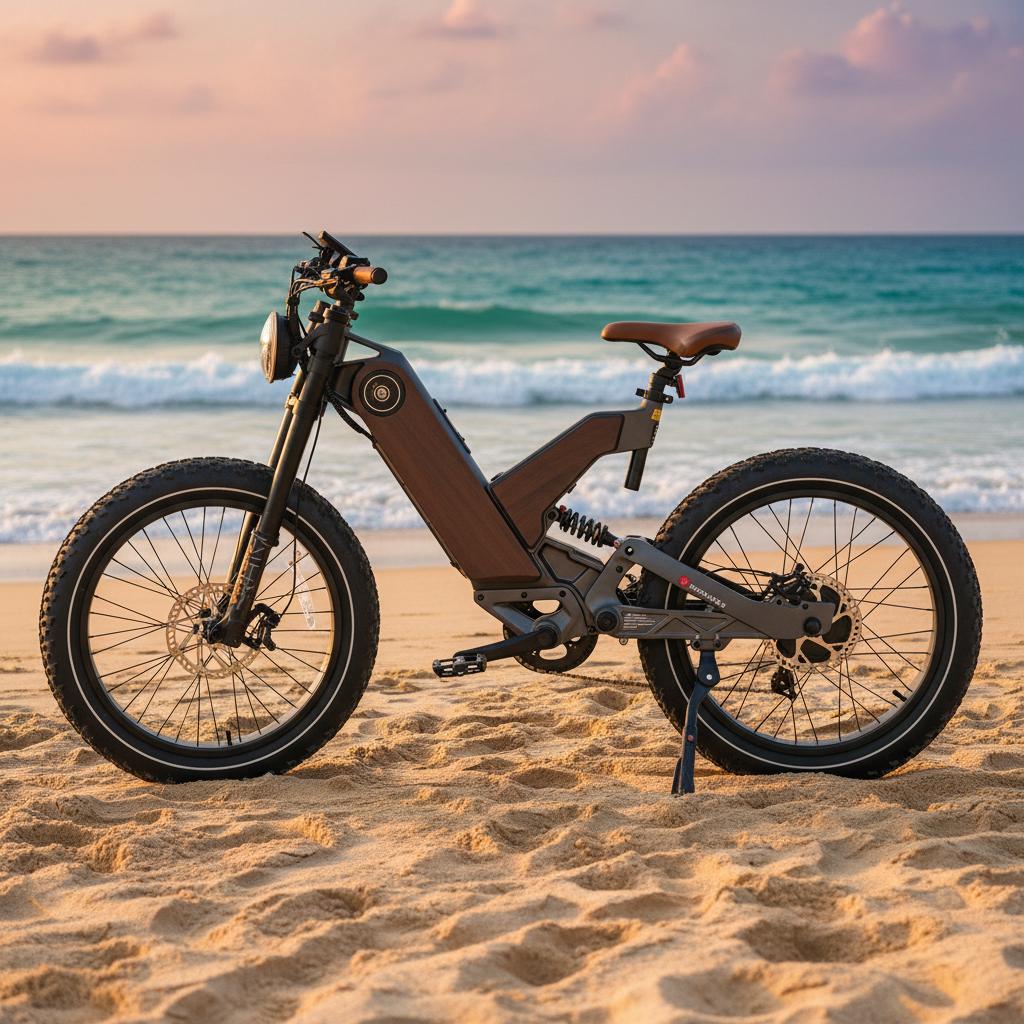

Why Fat Tire E-Bikes Excel on Sandy Shorelines
Riding a bicycle on a sandy shoreline is traditionally an exercise in frustration. Narrow tires slice through the surface, sinking into the soft grains and bringing momentum to a grinding halt. However, the advent of fat tire electric bikes has fundamentally changed the physics of coastal exploration. By leveraging increased surface area and high-torque electric motors, these machines transform soft sand from a barrier into a playground.
Understanding why fat tire e-bikes excel on sand requires a dive into the principles of flotation, the nuances of pneumatic pressure, and the rigorous safety standards that govern high-performance electrical systems. This guide provides a technical breakdown for the practical rider who demands performance and reliability in challenging environments.
The Physics of Flotation: Width vs. Depth
The primary reason fat tires—typically defined as tires with a width of 4.0 inches or greater—succeed on sand is the principle of flotation. In mechanical terms, flotation is the ability of a surface to support a load without the load sinking into the medium.
When you ride a standard mountain bike with 2.1-inch tires, the weight of the bike and rider is concentrated over a small contact patch. This creates high ground pressure, causing the tire to displace sand (digging in) until it reaches a depth where the sand is compact enough to support the weight. On a beach, this often means digging until you hit the frame.
In contrast, a fat tire, such as the 24 x 4.0-inch tires found on the All Terrain Fat Tire Electric Hybrid Mountain Bikes Ant5, significantly increases the square inches of the contact patch. By doubling the width, you more than double the surface area because the tire also elongates as it deforms under load. This distributes the weight over a larger area, reducing the pressure (PSI) exerted on the sand. Instead of cutting through the grains, the tire "floats" on top of them.
Mastering Tire Pressure: The 5-8 PSI Rule
While tire width provides the potential for flotation, tire pressure is the variable that unlocks it. Most riders are accustomed to road pressures (60-100 PSI) or standard mountain bike pressures (25-35 PSI). On soft sand, these pressures are dangerously high.
Field testing indicates that for dry, loose sand, dropping tire pressure to 5-8 PSI is often necessary. At this ultra-low pressure, the tire carcass becomes extremely supple, allowing it to "pancake" out. This maximizes the contact patch and allows the tire to mold itself over the sand's surface rather than pushing against it.
The Tire Pressure Matrix for Coastal Terrain
| Terrain Type | Recommended PSI | Traction Level | Motor Demand |
|---|---|---|---|
| Wet Hardpack (Near Water) | 12–15 PSI | High | Low |
| Dry, Loose Sand | 5–8 PSI | Moderate | High |
| Deep, Soft Dunes | 4–6 PSI | Low | Extreme |
| Transition (Pavement to Sand) | 10–12 PSI | Balanced | Moderate |
Note: Values are estimated based on common practice for a 200lb rider/bike combo.
The "Friction Point" of Low Pressure: Dropping to 5 PSI is not without risks. Low pressure drastically increases rolling resistance, making the motor work harder. It also increases the risk of a "pinch flat," where the inner tube is pinched between the tire and the rim upon hitting a hard object. Furthermore, if the pressure is too low, the tire bead may unseat from the rim.
A practical heuristic for the field: If your front wheel starts to "wash out" (slide sideways) or the bike feels like it is struggling to stay on top of the sand, drop another 2 PSI. We strongly recommend carrying a high-quality digital pressure gauge; analog gauges are notoriously unreliable at the sub-10 PSI range where a 1-2 PSI difference is critical.
Power, Torque, and Thermal Management
Flotation only solves half the problem. The other half is overcoming the massive rolling resistance generated by soft sand and low-pressure tires. This is where the "brute force" specs of a power-commuter e-bike become essential.
To maintain momentum in deep sand, a motor with high torque (measured in Newton-meters, or Nm) is required. A 750W (nominal) motor is generally considered the baseline for reliable beach performance. High-torque motors allow the rider to power through "pockets" of soft sand that would stall a weaker drive system.
However, high power demand leads to heat. According to a study on battery thermal runaway factors published via SAE/IEEE, factors such as the State of Charge (SoC) and heating power significantly impact battery stability. In a beach context, a full-throttle start in deep sand creates a massive current surge. This surge, coupled with the ambient heat of a sunny beach, can cause the battery and controller to reach high temperatures quickly.
Expert Insight: To preserve battery longevity and range, avoid "whiskey throttling" from a dead stop in soft sand. Use the pedal assist to get the bike moving before applying heavy throttle. Continuous high-current draw in these conditions can reduce your expected range by 30-40% compared to riding on hardpack or pavement.
Compliance and Safety Standards: The UL 2849 Benchmark
When operating an e-bike in extreme conditions like salt spray and high heat, electrical integrity is paramount. For the value-conscious rider, "reliability" isn't just a marketing term—it's a safety requirement.
The industry gold standard for electrical safety is the UL 2849 Standard for Electrical Systems for eBikes. This certification evaluates the entire electrical powertrain, including the battery, charger, and motor, to mitigate risks of fire and electrical shock. In many jurisdictions, including New York City, UL certification is becoming a mandatory requirement for e-bike sales and operation.
Furthermore, the U.S. Consumer Product Safety Commission (CPSC) monitors recalls related to lithium battery fires and mechanical failures. Choosing a bike that adheres to these standards ensures that the high-capacity batteries required for long beach rides—like the one found in the Long Range 20 Inch *4 Fat Tire Pedal Assist Ebike Ant6—are engineered to handle the stress.
Navigating the Legal Landscape of Beach Riding
Before heading to the shoreline, riders must understand the classification of their e-bike. Regulations vary significantly by state and local municipality.
- Class 2 E-Bikes: These are limited to a top speed of 20 mph and include a throttle.
- Class 3 E-Bikes: These can reach speeds up to 28 mph via pedal assist but may have restrictions on where they can be operated.
According to the California DMV Handbook, Class 3 e-bike riders must be at least 16 years old and wear a helmet. In New York, the New York DMV provides specific definitions for Class 2 and Class 3 vehicles, particularly regarding their use within NYC limits.
Many beaches classify e-bikes as "motorized vehicles" and may restrict them to specific trails or off-limit them entirely. Always check local ordinances. A useful resource for finding e-bike-friendly locations is the PeopleForBikes City Ratings, which highlights urban areas with robust cycling infrastructure and clear regulatory frameworks.
Maintenance: The Silent Killer of Coastal E-Bikes
The beach is a hostile environment for machinery. Saltwater is highly corrosive, and sand is an abrasive that can destroy a drivetrain in a single season if left unchecked.
The Post-Ride Protocol:
- Fresh Water Rinse: Immediately after your ride, rinse the entire bike with fresh water. Focus on the drivetrain, brake calipers, and electrical connectors.
- Neutralize Salt: Salt acts as an electrolyte that accelerates rust. A common oversight is rinsing the bike but leaving it wet.
- Dry and Lubricate: Thoroughly dry the chain with a clean rag. Apply a high-quality "dry" lubricant. Avoid "wet" lubes on the beach, as they act as a magnet for sand, creating a grinding paste that wears down gears.
- Battery Care: Never charge a battery that is damp or has salt residue on the terminals. Wipe the battery casing and the mounting cradle with a damp cloth and dry completely.
Failure to dry the chain thoroughly is the most frequent cause of rapid rust. Even a magnesium alloy frame, like that on the 24 Inch Fat Tire All Terrain Removable Battery Electric Bike Ant5-E2, requires care to ensure the longevity of the components attached to it.
Scenario Analysis: Choosing Your Beach Setup
To maximize your investment, consider which riding scenario best fits your needs.
Scenario A: The Hardpack Cruiser
- User: Rides primarily on the wet sand near the waterline during low tide.
- Requirement: Moderate torque, 10-15 PSI.
- Recommended Gear: A bike like the Ant5 offers the 24-inch wheel diameter necessary for a smooth, rolling gait on firmer surfaces.
Scenario B: The Soft Sand Explorer
- User: Ventures into deep, loose sand or dunes.
- Requirement: High-torque 750W+ motor, 5-8 PSI, high-capacity battery.
- Recommended Gear: The Ant6 is better suited here due to its smaller 20-inch wheels, which provide a mechanical advantage for torque, and its larger battery capacity to handle the increased power draw of low-pressure riding.
Expert Safety Notes and Actionable Steps
Riding on the shoreline is an elite experience, but it demands respect for the equipment and the environment.
- Check the Tides: Always ride during a falling tide. Getting trapped against a sea wall by an incoming tide with a 70lb e-bike is a significant safety risk.
- Carry a Tool Kit: Sand can cause chain drops or derailleur misalignments. Carry a multi-tool and a small pump.
- Battery Management: If your battery level drops below 20%, exit the soft sand immediately. The high current needed for sand riding can cause a "voltage sag," potentially triggering the Battery Management System (BMS) to shut down the bike prematurely.
By understanding the technical interplay between tire width, pressure, and motor torque, you can master the shoreline. For more in-depth guides on tackling diverse environments, see our articles on riding in sand, mud, and snow or how fat tires enhance beach fishing expeditions.
Disclaimer: This article is for informational purposes only. Riding e-bikes on beaches may be subject to local laws and environmental regulations. Always wear a helmet and consult with local authorities regarding motorized vehicle access. Lithium-ion batteries carry inherent risks; always use the manufacturer-provided charger and follow CPSC safety guidelines.
