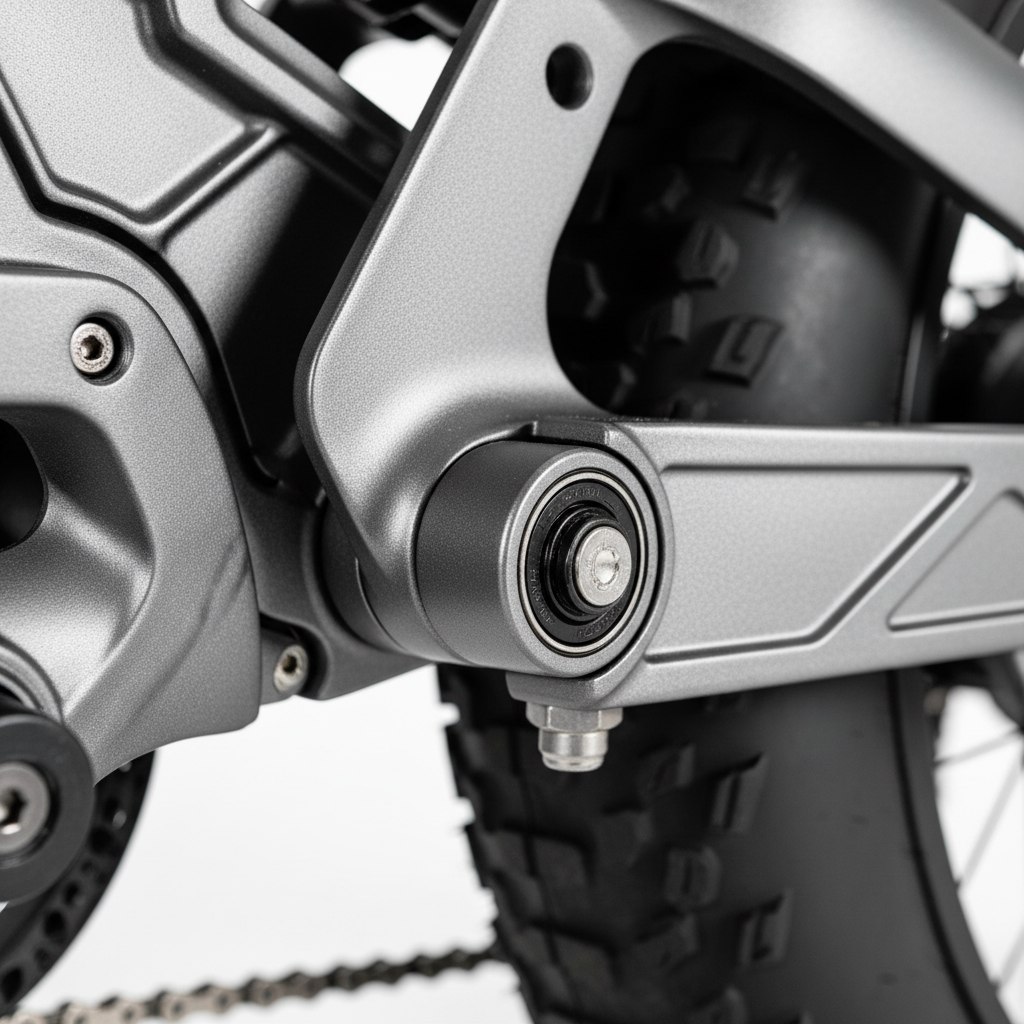

Diagnosing Pivot Creaks: Dry Bearings vs. Loose Hardware

Diagnosing Pivot Creaks: Dry Bearings vs. Loose Hardware

For the high-utility rider, a dual-suspension e-bike is more than a recreational toy; it is a primary vehicle. When a frame begins to creak under a 400lb payload, the noise is rarely just an annoyance—it is an early warning signal of mechanical inefficiency or impending hardware failure. On our repair bench, we have observed that most riders mistake the rhythmic "click" or "groan" of a pivot for a failing shock, when the reality is often found in the interface of standard metric hardware or contaminated bearing seals.

Silencing a dual-suspension frame requires a systematic approach to distinguish between dry pivot points and internal bearing degradation. This guide provides the technical framework necessary to diagnose, source, and repair these issues, ensuring your vehicle remains operational and safe.

The Physics of the Pivot: Why Heavy Loads Create Noise

Standard bicycles are designed for dynamic loads of 180–220lbs. Heavy-duty e-bikes, however, frequently operate at the upper limits of their 400lb+ capacity. This creates significantly higher lateral and vertical stress on pivot points. According to our scenario modeling of urban delivery conditions, a 220lb cargo load can create pivot forces approximately three times higher than recreational use.

Under these loads, the frame experiences "micro-flex." If the hardware is not perfectly secured or the bearings are not rotating smoothly, this flex manifests as a creak. Most open-mold frames utilize standard metric hardware, typically M6x1.0 and M8x1.25 bolts. While these are robust, they are subject to fatigue cycles that occur much faster in commercial or heavy-utility environments.

Methodology Note: Heavy-Duty Operational Modeling Our analysis of professional delivery riders assumes a deterministic parameterized model based on the following urban commercial usage:

Parameter	Value/Range	Unit	Rationale
Daily Mileage	80	Miles	Standard urban delivery shift
Payload	300 - 400	lbs	Rider + heavy cargo/delivery rack
Road Grade	3	%	Average urban topography
Pivot Torque Check	500	Miles	Weekly maintenance interval
Bearing Inspection	2,000	Miles	Monthly deep-service interval

Boundary Conditions: This model applies to urban pavement conditions. Extreme temperatures or coastal salt exposure will accelerate bearing contamination beyond these estimates.

Hardware Integrity: The Threadlocker vs. Grease Debate

One of the most common mistakes we see in DIY maintenance is the application of grease to pivot bolts. While grease is essential for the outside of a bearing or a seatpost, it is detrimental to pivot hardware. Under dynamic loading, grease acts as a lubricant that encourages bolts to back out.

For swingarm pivots and linkage bolts, blue thread-locking compound (such as Loctite 242/243) is non-negotiable. Research on swingarm pivot bolts indicates that proper threadlocker application can provide up to 50% higher retention force compared to dry or greased threads.

Torque Specifications for Common Hardware

Torque values are not suggestions; they are engineering requirements to ensure the bearing inner race is properly preloaded without crushing the hardware. According to the TideaceBike Rear Suspension Guide, torque specs vary by manufacturer but generally follow these metric standards:

1. M6 Pivot Bolts: 8–12 Nm.
2. M8 Pivot Bolts: 15–20 Nm.

If a bolt is undertorqued, it allows the pivot axle to "walk" inside the frame, creating a metal-on-metal creak. If overtorqued, you risk stripping the aluminum threads or sideloading the bearing, leading to premature failure.

Bearing Health: Identifying Contamination and Wear

When a creak persists despite properly torqued hardware, the culprit is likely the internal bearings. Most modern e-bikes use "sealed" cartridge bearings (e.g., 6802-2RS or 6901-2RS). However, "sealed" does not mean "waterproof."

The Gritty Test

The telltale sign of bearing failure isn't always "play" (side-to-side movement). Instead, it is a "gritty" feel. To diagnose this:

1. Remove the pivot bolt.
2. Rotate the inner race of the bearing with your finger.
3. If you feel any notches, resistance, or a sand-like texture, the seal has been breached.

While some riders attempt to "service" these bearings by popping the seal and adding grease, this is often a temporary fix. As noted by Deviate Cycles, modern high-quality bearings are often designed as lifetime components; once the internal race is pitted by contamination, the bearing must be replaced to restore lateral stability.

Economic Impact: The Cost of Neglect

For professional riders or daily commuters, pivot maintenance is an economic decision. Our modeling shows that energy waste from worn bearings can reduce drivetrain efficiency significantly. When bearings are seized or gritty, the motor must work harder to overcome the internal friction of the suspension movement.

In our "Terrain Mastery" range simulation, we found that severe bearing friction under a 220lb cargo load can increase energy consumption to ~84 Wh/mile. This represents a roughly 40% range reduction compared to a well-maintained system. For a delivery rider, this could mean the difference between finishing a shift or being forced to stop for a mid-day charge, costing upwards of $50–$100 in lost revenue.

Furthermore, a rider who can distinguish between a $5 tube of threadlocker and a $100 bearing replacement kit saves significant shop time. Proper preventive maintenance offers a 10:1 ROI against reactive repairs.

Systematic Troubleshooting: A Step-by-Step Guide

Follow this sequence to isolate and silence your frame:

1. Clean the Bike: Dirt can hide loose bolts and mimic creaks. Wash the frame but avoid high-pressure water near pivot points, as this can force water past the bearing seals.
2. The Static Test: With the bike on the ground, hold the rear brake and rock the bike back and forth. Then, lift the bike by the seatpost and feel for any "clunk" as the suspension extends. This helps identify frame flex and steering issues.
3. Torque Verification: Use a calibrated torque wrench. Do not "feel" it out by hand. Check every pivot bolt against the 8–12Nm (M6) or 15–20Nm (M8) standard. If a bolt moves easily, remove it entirely, clean the threads, apply blue threadlocker, and re-torque.
4. Linkage Isolation: If the noise remains, remove the rear shock. Move the swingarm through its full range of motion by hand. It should feel buttery smooth. Any resistance or "crunching" points directly to the bearings.
5. Hardware Inspection: Check for axle thread wear. Heavy loads can sometimes "ovalize" the mounting holes in the frame if the bolts were left loose for too long.

Compliance, Safety, and the "Radical Transparency" Shift

Maintaining frame integrity is not just about noise; it is a safety requirement. The U.S. Consumer Product Safety Commission (CPSC) frequently issues recalls for e-bikes due to frame failures or hardware defects that lead to loss of control. Ensuring your pivots are torqued and your bearings are functional is a critical part of safe operation.

Furthermore, as the industry moves toward higher standards like UL 2849, the focus on the "system" includes the mechanical durability of the chassis. As highlighted in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, manufacturers are increasingly prioritizing serviceability and standard industrial parts over proprietary hardware. This shift empowers riders to source high-quality replacement bearings from local industrial suppliers rather than waiting for branded spares.

Summary Checklist for Heavy-Duty Maintenance

To keep a high-utility vehicle in peak condition, implement the following routine:

• Every 500 Miles: Perform a pre-trail bolt and torque check. Focus on the main swingarm pivot and shock mounting hardware.
• Every 2,000 Miles: Perform a full bearing rotation test. If the bike is used in rain or snow, increase this frequency.
• Hardware Sourcing: Maintain a small stock of M6 and M8 high-tensile (Grade 10.9 or 12.9) bolts. Avoid low-grade stainless steel for high-stress pivot applications.
• Tooling: Invest in a quality torque wrench (2–24Nm range) and a set of hex bit sockets.

By understanding the difference between a simple loose bolt and a failing bearing, you ensure that your e-bike remains a reliable tool for work and transport. Consistent maintenance prevents small creaks from becoming expensive frame failures.

Disclaimer: This article is for informational purposes only. Mechanical work on electric bicycles involves risks to safety and vehicle integrity. If you are unsure of your ability to perform these repairs, consult a professional mechanic. Always follow the manufacturer's specific torque values and safety guidelines.
