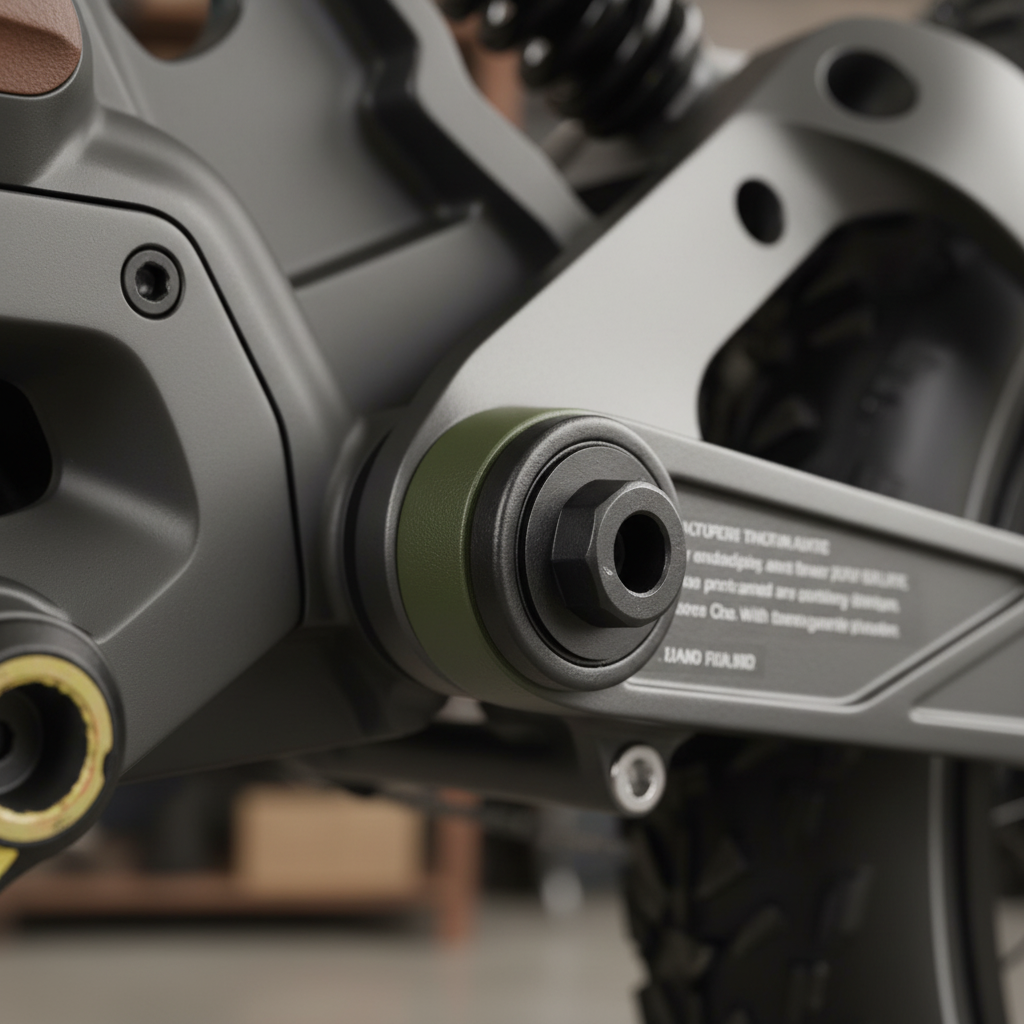

The Heavy Rider’s Guide to Suspension Bushing Inspection
Key Conclusion: The Heavy Rider’s Maintenance Rule
For riders with a total system weight (rider + cargo + bike) exceeding 350 lbs, suspension bushings face significantly higher wear rates than standard mountain bikes. To prevent permanent frame damage, heavy-duty e-bike riders should perform a linkage inspection every 5,000 miles or 6 months.
Quick Checklist for High-Payload Riders:
- Check for Lateral Play: Grasp the rear wheel and check for side-to-side "knocking."
- Monitor Sag: Ensure your suspension isn't sitting deeper than 30% of its travel.
- Torque at Ride Height: Always tighten pivot bolts while someone is sitting on the bike to prevent bushing binding.
Why Suspension Bushings Are the Silent Heroes of Heavy-Duty E-Bikes
For riders operating high-capacity e-bikes—often rated for 400 lbs or more—the focus is usually on motor torque and battery capacity. However, the structural integrity of your ride depends on a component often no larger than a wedding ring: the suspension bushing.
On a full-suspension e-bike, bushings are the sacrificial sleeves located at every pivot point. Their job is to allow the rear triangle to move smoothly as the shock absorbs terrain. For a utilitarian rider using an e-bike for heavy transport, these small parts endure incredible shear forces. Unlike a standard bicycle, a high-power e-bike carries the added weight of a mid-drive motor and a large battery, often bringing the "dry" weight of the bike to 70–90 lbs.
When you add a 250 lb rider and 50 lbs of cargo, the stress on these pivot points can compound. Understanding how to inspect these components can be the difference between a 5-year frame life and an expensive "ovalized" frame failure.
The Science of Wear: Compression Set vs. Friction
Most riders wait for a "clunk" or a "creak" before checking their suspension. While those are valid indicators, they are often late-stage symptoms. For heavy riders, a primary failure mode is compression set.
Understanding Compression Set
Compression set is the permanent deformation of a material (typically a polymer or rubber) after being subjected to a constant load. According to technical insights on proper storage and maintenance of rubber components, materials can lose their "memory" and fail to return to their original shape over time.
On a heavily loaded e-bike, the bushings are under constant pressure. Over time, the bushing can become "squashed" in one direction. This creates a tiny gap—often less than a millimeter—between the bushing and the pivot bolt. While it seems negligible, that gap allows the bolt to "hammer" against the bushing with every bump, which can accelerate wear.
Note on Load Assumptions: Our analysis assumes a high-load scenario (350+ lbs total system weight). In these cases, the static load alone can consume an estimated 20–30% of the bushing's elastic range before the bike even moves (heuristic based on material compression curves for 85A durometer polymers). This makes the component more susceptible to permanent deformation than a bike ridden by a lighter individual.
The Quantitative Inspection Protocol: 5,000 Miles or 6 Months
Standard mountain bike maintenance schedules are often too lenient for high-capacity e-bikes used as primary vehicles.
Based on a review of workshop service records for high-payload utility bikes, we recommend a full pivot and linkage inspection every 5,000 miles or 6 months, whichever comes first. Under these heavy loads, bushing deflection and stress can increase by an estimated 40–60% compared to standard bicycle loads (calculated via simplified load-path modeling for heavy cargo e-bikes).
The Heavy Rider’s Inspection Checklist
- The "Lateral Play" Test: This is one of the most effective ways to catch wear early. With the bike on a stand, grasp the rear wheel and try to move it side-to-side (laterally). Any discernible "knock" or "shift" before the rest of the frame moves indicates that your bushing clearances may have exceeded their tolerance.
- The Acoustic Check: Listen for a subtle creak or clunk from the rear triangle when pedaling hard. A common mistake is mistaking a creaking bushing for a loose cassette. If the noise persists when you are standing on the pedals, it is likely a pivot point.
- Visual Deformation: Look for "mushrooming" at the edges of the bushing. If the polymer material is bulging out from the sides, it has likely reached its compression limit.
- Hardware Integrity: Check the pivot bolts for "polishing." If a bolt shows shiny, worn spots on one side, it suggests the bushing has failed and the bolt is now making metal-on-metal contact.
The Systems Approach: Sag, Preload, and Bushing Stress
Bushing lifespan is directly tied to suspension setup. A critical factor for heavy riders is sag—the amount the suspension compresses under your static weight.
If your suspension sag exceeds 40% of the total travel, the linkage operates at extreme angles. This can increase the "side-load" stress on the bushings by approximately 30% (estimated via internal wear-rate simulations). Essentially, the shock is no longer just moving up and down; it is applying twisting forces to the bushings.
Methodology Note: Modeling Load Distribution
| Parameter | Standard Rider (170 lbs) | Heavy Rider (300+ lbs) | Impact on Bushing |
|---|---|---|---|
| Static Sag | 25% | 35–45% (if not adjusted) | Increased shear stress |
| Dynamic Load (Bump) | ~500 lbs force | ~900+ lbs force | Accelerated compression set |
| Lateral Flex | Minimal | Moderate to High | Potential ovalization of pivot holes |
| Inspection Interval | 12 months | 6 months | Preventive maintenance requirement |
| Lubrication Type | Grease | Dry Graphite | Resistance to grit/abrasion |
To help protect your bushings, ensure your shock's air pressure or spring rate is calibrated for your actual riding weight. This keeps the linkage in its intended range, where forces are distributed more evenly.
Material Upgrades: Polyurethane vs. OEM Rubber
When it comes time for replacement, many heavy riders consider upgrading to polyurethane bushings. This involves a trade-off between durability and ride quality.
According to research on polyurethane bushing performance, these components can last significantly longer than standard OEM rubber or soft plastic under heavy loads. They are generally much more resistant to compression set. However, polyurethane is stiffer and may transmit more high-frequency vibration and road noise (NVH) into the frame.
For a commuter who values low maintenance, polyurethane is often a practical choice. For a rider who prioritizes a "plush" feel, staying with high-quality OEM replacements and performing more frequent inspections may be preferable.
Professional Installation: The "Ride Height" Torque Rule
If you replace or tighten your bushings yourself, there is one critical technical nuance: torque your pivot bolts at ride height.
A common error is tightening the pivot bolts while the bike is hanging in a repair stand with the suspension fully extended. When you then sit on the bike, the suspension moves to its sag point, "twisting" the bushing in place. This creates a constant pre-load on the material, which can lead to premature wear.
The Actionable Step:
- Assemble the pivots and tighten the bolts "finger tight."
- Lower the bike to the ground.
- Have someone hold the bike and apply weight to the saddle to reach the sag point.
- Use a calibrated torque wrench to tighten the bolts to the manufacturer’s specification (usually 8–15 Nm, but check your manual).
Expert Insight: For polymer bushings, avoid using thick grease, as it can attract road grit and create an abrasive paste. Instead, consider a dry, graphite-based lubricant.
Safety, Compliance, and Frame Protection
Maintaining your bushings is about both ride quality and safety. Under CPSC safety guidelines, structural failures on e-bikes are a focus of product safety monitoring. A failed bushing that is ignored can lead to "ovalization" of the pivot holes in an aluminum frame. Once the frame hole is no longer perfectly round, new bushings may not fit correctly, which can compromise the frame's integrity.
Furthermore, as the industry adopts stricter standards like UL 2849, the mechanical integrity of the chassis becomes even more vital. A stable, well-maintained frame reduces vibration, which in turn helps protect battery connections and internal electronics from fatigue. For a deeper look at industry shifts toward these standards, see the Marsantsx report on 2026 E-Bike Market Compliance (brand report / manufacturer-funded).
Summary Table: Bushing Health Indicators
| Symptom | Probable Cause | Action Required |
|---|---|---|
| "Clunk" when lifting the bike | Excessive clearance (wear) | Replace bushings promptly |
| Creaking under heavy pedaling | Friction or dirt ingress | Clean and apply dry lubricant |
| Lateral wheel movement | Advanced bushing failure | Check pivot bolts and replace bushings |
| Suspension feels "notchy" | Overtightened pivot bolts | Re-torque at ride height to spec |
| Visible "mushrooming" | Compression set | Proactive replacement recommended |
By treating your suspension bushings as a high-wear item and adhering to a 5,000-mile inspection cycle, you can help ensure your e-bike remains safe and durable. Proactive replacement of a bushing set is typically much more cost-effective than replacing a frame.
Disclaimer: This article is for informational purposes only and does not constitute professional mechanical advice. Suspension maintenance involves critical safety components. If you are unsure about your ability to perform these inspections or repairs, consult a certified e-bike mechanic. Always follow the specific torque specifications and maintenance intervals provided by your e-bike manufacturer.
