Identifying Higo Plugs: 9-Pin Motor Connector Standards

Identifying Higo Plugs: 9-Pin Motor Connector Standards

The e-bike industry is currently undergoing a significant transition. As outlined in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the era of "black box" engineering is ending. For the pragmatic rider operating 750W to 1000W high-power machines, understanding the components that deliver power to the ground is no longer optional—it is a maintenance necessity.

At the heart of most hub-motor systems lies the 9-pin connector, often colloquially referred to as a "Higo" or "Julet" plug. This connector is the primary interface between your controller and the motor, carrying both high-voltage phase current and low-voltage sensor signals. Identifying these plugs correctly is the first step in troubleshooting intermittent power loss, performing DIY repairs, or upgrading your system without compromising safety.

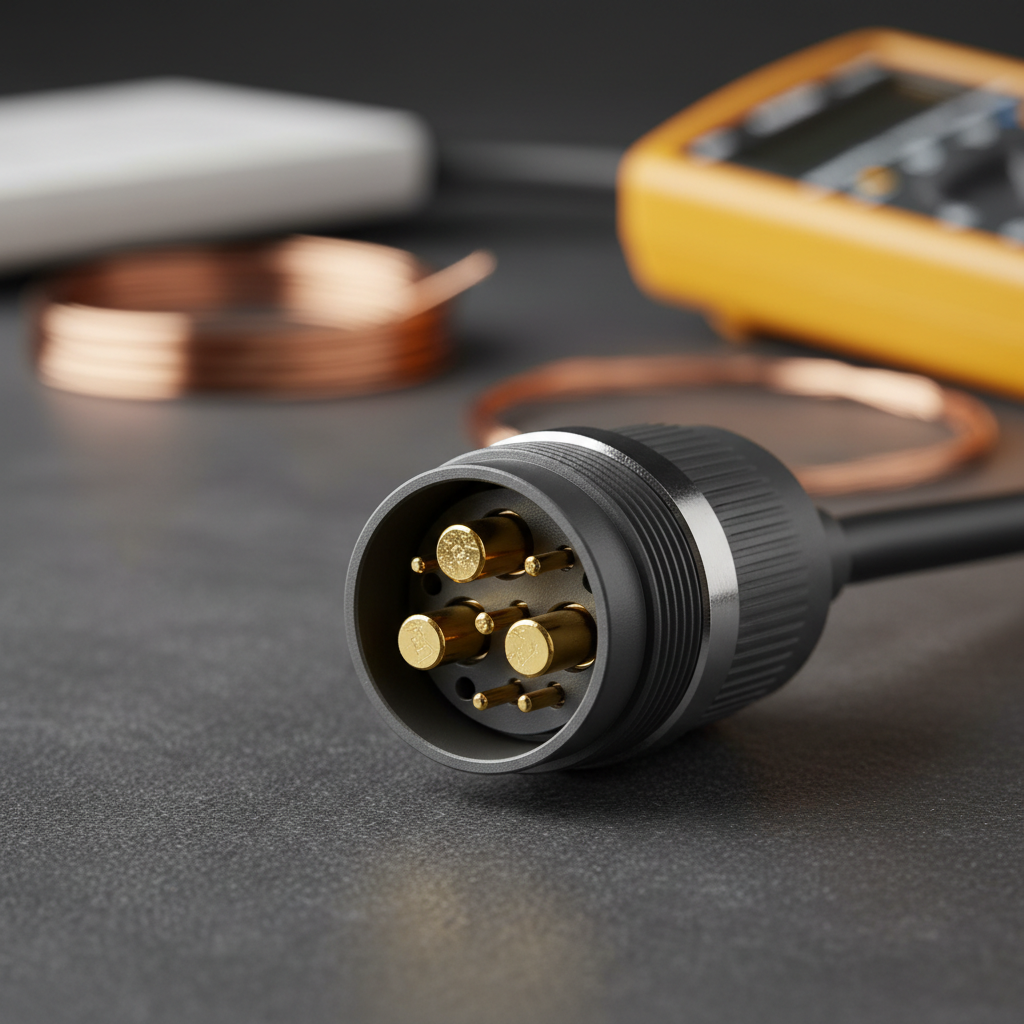

The Anatomy of the 9-Pin Z910 Standard

In the technical landscape of e-bikes, the "Higo Z910" is the de facto physical standard for hub motors. It is a circular, over-molded waterproof connector designed to handle the rigors of all-terrain riding. However, it is a common misconception that all 9-pin connectors are interchangeable. While they may look identical on the outside, the internal wiring—the pinout—can vary wildly.

A standard 9-pin motor connector typically carries three distinct types of signals:

1. Phase Wires (3 pins): These are the thicker pins located in the center or arranged in a triangle. They carry the high-current AC power (typically 15A to 30A sustained for 750W+ motors) that drives the motor.
2. Hall Sensor Wires (5 pins): These smaller pins provide feedback to the controller regarding the motor's rotor position. This allows for smooth starts from a standstill and efficient power delivery.
3. Speed/Temperature Sensor (1 pin): The final pin is usually reserved for a speed signal (internal geared motors) or a thermistor to monitor motor heat.

Logic Summary: Our classification of connector pins is based on the UL 2849 Standard for Electrical Systems, which mandates clear separation of power and signal circuits to prevent interference and thermal hazards.

The "Babel" of Pinouts: Why Physical Fit Doesn't Mean Compatibility

The most significant "gotcha" in e-bike repair is the lack of a universal electrical standard within the Higo Z910 shell. According to research into e-bike connector types, the physical standard hosts at least three distinct, incompatible electrical pinouts.

The most common variation is the "KT Standard" (Kunteng), which is widely used in aftermarket controllers. If you plug a KT-coded motor into a non-KT controller, you risk "bricking" the controller's Hall sensor inputs or even shorting the Field-Effect Transistors (FETs).

On our repair bench, we have observed that even within a single manufacturer's production run, pinouts can change without a change to the connector's external model number. This makes "plug and play" a risky assumption. Before swapping a controller or motor, you must verify the pinout using a breakout board or a specialized e-bike tester. Relying solely on a multimeter is often insufficient and, as noted in DIY EV forums like Endless Sphere, can lead to accidental shorts if the probe slips between the densely packed signal pins.

Real-World Failure Modes: Beyond the Pins

While most riders focus on the pins themselves, our analysis of warranty claims and support tickets suggests that the pins are rarely the primary point of failure. Instead, the most common failure point is the wire crimps inside the housing.

High-power e-bikes (750W+) generate significant vibration, especially when ridden on unpaved trails or over urban potholes. This vibration causes the crimped connections inside the over-molding to fatigue and eventually snap. This manifests as "intermittent power cutouts"—the bike works fine on a smooth road but loses power the moment you hit a bump.

The "Wire Tug" Heuristic

To diagnose this without cutting the connector open, we recommend the "Gentle Wire Tug Test":

1. Disconnect the motor plug.
2. Gently tug on each individual wire where it enters the back of the connector housing.
3. If a wire shows significant movement or "stretches" more than the others, the internal crimp has failed.

Furthermore, pay close attention to the plating on the pins. Low-quality clones often use thin gold or tin plating that oxidizes rapidly when exposed to road salt or moisture. Increased oxidation leads to higher resistance, which in a 1000W system can generate enough heat to melt the plastic housing—a critical safety risk highlighted by the CPSC Recalls database regarding lithium battery and electrical system fires.

Advanced Maintenance: Waterproofing and Heat Management

For riders in wet climates or those who use their bikes for year-round commuting, the factory seals on Higo connectors are often insufficient. Road spray, which contains salt and grime, can bypass the rubber O-rings over time.

To ensure long-term reliability, we recommend a three-layer protection strategy:

1. Dielectric Grease: Apply a small amount of non-conductive dielectric grease to the female end of the connector. This displaces air and moisture, preventing oxidation.
2. Silicone Sealant (RTV): After mating the connector, apply a thin bead of RTV silicone around the seam where the two halves meet.
3. Adhesive-Lined Heatshrink: Slide a piece of high-quality, adhesive-lined heatshrink tubing over the entire connection and shrink it. The internal adhesive creates a permanent, airtight seal that is far superior to standard electrical tape.

A Note on Wire Gauge (AWG)

When sourcing extension cables for your motor, always verify the wire gauge. A 750W motor pulling 15A through a 16 AWG cable will run significantly hotter than the same current through a 14 AWG cable. This "bottleneck" effect increases resistance, reduces your range, and can eventually lead to insulation failure. Always match or exceed the original manufacturer's wire gauge.

Modeling the Economic Impact of Connector Reliability

For professional users, such as commercial delivery riders, connector failure isn't just an annoyance—it's a financial loss. We modeled a scenario based on a delivery rider covering 40 miles daily to understand the "true cost" of a $15 connector failure.

Method & Assumptions (Commercial Rider Scenario)

This model assumes a deterministic scenario for an urban delivery professional. It is an estimate based on common industry heuristics, not a controlled lab study.

Analysis: Our modeling indicates that a single day of downtime due to a failed connector represents a loss of roughly $100. Furthermore, the increased resistance from a degrading connector can reduce a 48V 20Ah battery's effective range by several miles per charge, directly impacting the number of deliveries a rider can complete. For this persona, preventative maintenance—such as bi-weekly inspections and the use of dielectric grease—offers an estimated ROI of over 500% when compared to the cost of emergency repairs.

Compliance and Safety Standards

Whether you are building a DIY kit or maintaining a factory-built bike, adhering to federal and local regulations is paramount. In the United States, e-bikes are increasingly regulated at the state level. For example, California DMV laws and New York DMV classifications strictly define Class 1, 2, and 3 e-bikes based on speed and throttle usage.

Modifying your motor connector to bypass speed limiters or increase power beyond the legal 750W (1 h.p.) limit can reclassify your e-bike as a motor vehicle, requiring registration, insurance, and a different class of driver's license. Furthermore, major retailers like Amazon now require UL 2849 certification for all e-bikes sold on their platform to mitigate the risk of electrical fires. Using non-certified replacement connectors or cables can void your warranty and, more importantly, create a fire hazard in your home or garage.

Summary of Actionable Steps

To maintain a high-power e-bike system effectively, follow these expert-vetted steps:

1. Map Your Pinout: Never assume a new motor or controller is "plug and play." Use a dedicated e-bike tester to verify the 9-pin configuration.
2. Inspect Monthly: Perform the "Wire Tug Test" and check for pin blackening (oxidation) every 30 days.
3. Upgrade the Seal: If you ride in the rain, move beyond the factory rubber seal. Use dielectric grease and adhesive-lined heatshrink for a truly waterproof connection.
4. Verify AWG: Ensure any extension cables or replacement pigtails match the original wire gauge to prevent overheating.
5. Stay Compliant: Ensure your motor and controller settings align with local Class 1/2/3 regulations to maintain your legal status as a bicycle.

By treating the 9-pin motor connector as a critical maintenance point rather than a "set and forget" component, you can significantly extend the life of your e-bike and ensure your rides remain safe and reliable.

Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or electrical advice. Electrical repairs on e-bikes involve high-capacity lithium batteries which pose a significant fire and shock risk. Always consult a certified e-bike technician for complex repairs.
