For the heavy utility commuter, an e-bike is more than a leisure vehicle; it is a tool for overcoming the physical limitations of the landscape. However, many riders find that their 750W or 1000W machines, which feel invincible on flat pavement, suddenly "bog down" or consume battery at an alarming rate when faced with a 10% grade.

This phenomenon is rarely a lack of raw power. Instead, it is a mismatch between the motor’s rotational speed and the demand of the terrain—a state known in mechanical engineering as "lugging." Understanding how to find the climbing "sweet spot" is the difference between a reliable commute and being stranded with a depleted battery.

The Physics of the Climb: Why Hub Motors Struggle

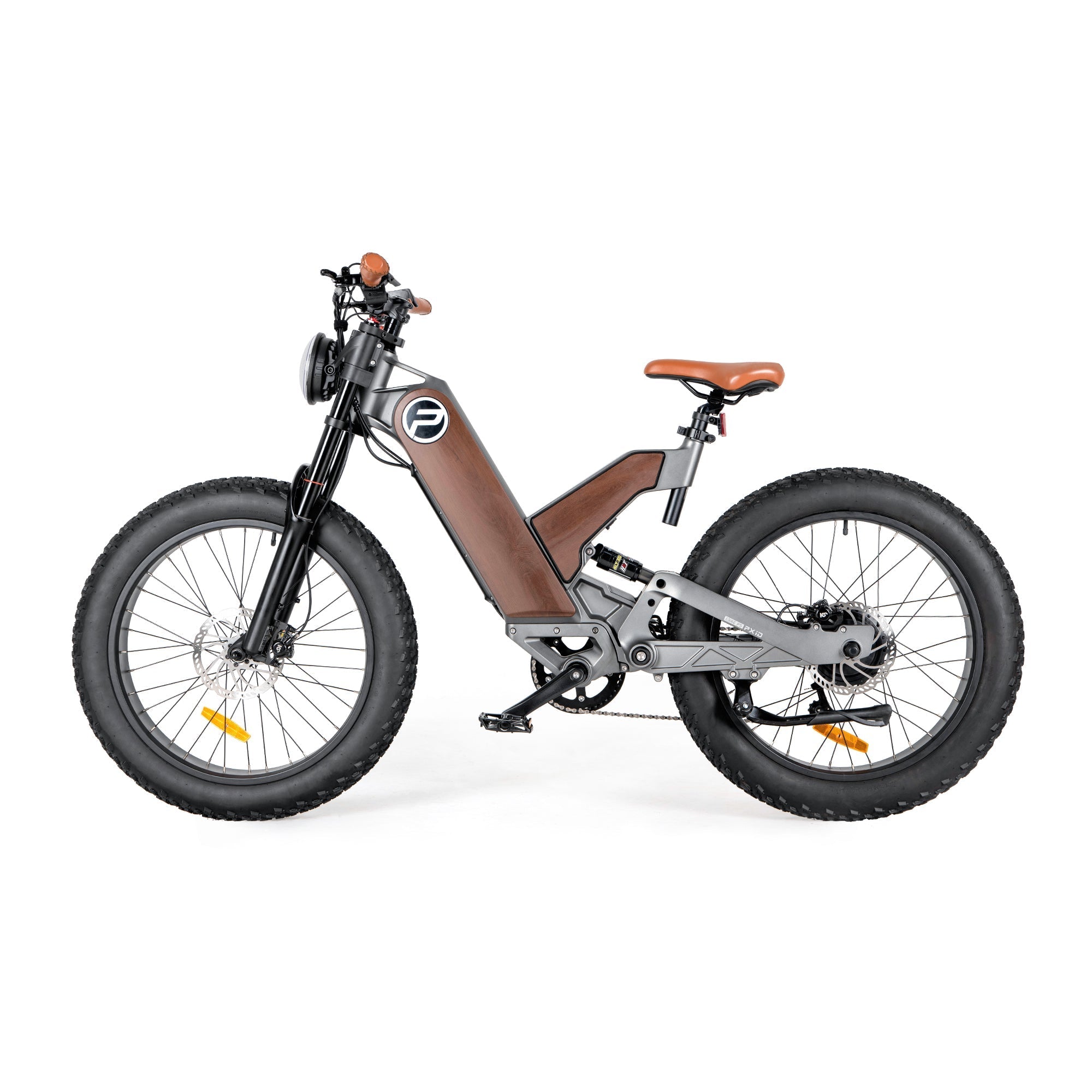

Most high-power e-bikes, such as the All Terrain Fat Tire Electric Hybrid Mountain Bikes Ant5, utilize geared hub motors. These systems are prized for their reliability and simplicity. Unlike mid-drive motors that leverage the bike's drivetrain, a hub motor’s "gearing" is fixed internally.

When you encounter a steep hill, the motor must work against gravity. If your speed drops significantly while you maintain high throttle or pedal assist (PAS) levels, the motor enters a low-RPM, high-current state. In this state, the electrical energy is not being converted efficiently into motion; instead, a large portion of it is converted into waste heat. This is governed by I²R losses (copper losses), where the heat generated increases with the square of the current.

The "Lugging" Trap

Lugging occurs when the motor is forced to operate far below its intended efficiency curve. For most hub motors, the "sweet spot" for efficiency and heat management lies between 200 and 350 RPM. When you lug the motor at 4 or 5 mph on a steep incline, you are forcing the controller to dump maximum current into a motor that cannot spin fast enough to use it.

Logic Summary: Our analysis of the "Heavy Utility Commuter" persona (280lb total load) assumes that lugging occurs when the wheel speed falls below the motor's optimal back-EMF (Electromotive Force) production range, causing the controller to increase amperage to maintain torque, which spikes thermal output.

Quantitative Impact: Lugging vs. Optimal RPM

To demonstrate the real-world cost of inefficient climbing, we modeled a scenario involving a 250lb rider carrying 30lb of cargo on a 12% grade. This represents a typical "worst-case" scenario for urban or trail commuting.

Note: Estimates based on scenario modeling for a 960Wh battery system. Actual results vary by temperature and tire pressure.

As the data shows, climbing at 8 mph—even though it requires more total power—is significantly more efficient than struggling at 4 mph. By maintaining a higher speed, the motor operates in a higher efficiency band (85% vs 65%), ensuring that more of your battery’s energy goes into climbing the hill rather than heating up the motor casing.

The Role of Voltage Sag and Thermal Management

A critical factor that riders often overlook is Voltage Sag. Under high loads, such as sustained steep climbs, the battery's voltage can temporarily drop by 10-15%. Because Power = Voltage × Current, a drop in voltage requires the controller to pull even more current to maintain the same power output.

This creates a feedback loop: high current causes voltage sag, which demands more current, which generates more heat. According to a SAE/IEEE Study on Thermal Runaway Factors, excessive heat is the primary catalyst for lithium-ion degradation. While modern controllers have "thermal rollback" features to prevent a fire, the repeated stress of lugging can permanently reduce your battery’s total cycle life.

For those using their e-bike as a Car Replacement, this has a direct financial impact. Our modeling suggests that consistent lugging can increase the battery amortization cost from $0.12 per mile to over $0.24 per mile due to premature capacity loss.

Practical Strategies: Finding Your Sweet Spot

To maximize the utility of a high-power machine like the Long Range 20 Inch *4 Fat Tire Pedal Assist Ebike Ant6, riders should adopt a "performance-first" climbing strategy.

1. The Auditory Heuristic

Listen to your motor. A hub motor in its sweet spot produces a smooth, high-pitched whine. If the sound transitions into a labored, low-frequency grumble or "growl," you are lugging. This is the mechanical equivalent of a car engine knocking; it is a signal to either increase your physical effort or reduce the load.

2. Maintain a Cadence of 60-80 RPM

While the motor is in the hub, your pedaling cadence matters. By maintaining a steady 60-80 RPM cadence in a lower gear, you provide the "base torque" that allows the motor to stay in its higher RPM range. Relying solely on the throttle at low speeds is the fastest way to trigger a thermal cut-off.

3. Build Pre-Climb Momentum

Because of voltage sag, it is much harder to "start" a climb than it is to "sustain" one. When Route Planning, identify steep sections early and increase your speed before the grade hits. This momentum keeps the motor RPMs high, preventing the initial high-current draw that causes the most significant energy waste.

4. Check Your Hardware

Rough terrain and high-torque climbing can vibrate components loose. Regularly check your motor axle nuts for tightness. A loose axle nut can lead to "axle spin," which can sever the motor phase wires—a catastrophic failure that is often not covered under standard warranties if caused by neglect. For more on securing your bike, see our guide on Anti-Vibration Tactics.

Compliance and Safety Standards

As the industry moves toward higher standards, understanding the regulatory landscape is vital for long-term ownership. The UL 2849 Standard for electrical systems has become a benchmark for safety, particularly in preventing the thermal issues discussed above.

Furthermore, riders should be aware of local restrictions. In California, Class 3 e-bikes (capable of 28 mph) are subject to specific DMV helmet and age requirements. Similarly, New York DMV Class definitions restrict Class 3 speeds within NYC limits. Operating your bike within its intended speed and power limits not only keeps you legal but also ensures the motor stays within its designed efficiency parameters.

As noted in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the future of e-biking is not just about "more watts," but about how those watts are managed through intelligent riding and robust engineering.

Summary of Climbing Optimization

Modeling Transparency: Method & Assumptions

The data presented in this article is derived from deterministic scenario modeling designed to simulate heavy-duty utility use. This is not a controlled lab study, but a physics-based estimation of performance variables.

Parameter Table (Heavy Utility Commuter Model)

Boundary Conditions:

1. Assumes constant grade and steady-state speed.
2. Does not account for wind resistance (negligible at climbing speeds <10mph).
3. Assumes ambient temperature of 70°F; efficiency drops significantly in extreme cold or heat.

YMYL Disclaimer: This article is for informational purposes only. E-bike maintenance and operation involve electrical and mechanical systems that can be hazardous if mishandled. Always consult your owner's manual and a certified e-bike technician for repairs. Riding on steep terrain requires advanced skill; always wear a helmet and follow local traffic laws.
