Waterproofing the Hub: Inspecting Geared Motor Seals

The Critical Vulnerability of Geared Hub Motors

For riders utilizing high-power 750W or 1000W peak e-bikes for daily utility and commuting, the geared hub motor represents the heart of their investment. While these motors are engineered to handle heavy 400lb payloads and challenging terrain, they possess a specific mechanical vulnerability: the internal planetary gear system. Unlike direct-drive motors, geared hubs rely on a series of nylon or composite gears to multiply torque. If water breaches the motor casing, it does not just threaten the electrical windings; it introduces moisture to the lubrication of these gears, leading to rapid emulsification, internal rust, and eventual mechanical seizure.

Waterproofing in the e-bike industry is often discussed through the lens of Ingress Protection (IP) ratings. However, an IP65 rating—indicating protection against low-pressure water jets—is a measurement of a product in its factory-new condition. In real-world applications, particularly in coastal or high-precipitation environments, the integrity of the rubber seals protecting the motor axle is the primary line of defense. According to the SAE/IEEE Study on Thermal Runaway Factors (2023), environmental stressors such as humidity and moisture ingress are significant contributors to the degradation of electrical systems over time.

This guide provides a technical framework for inspecting and maintaining hub motor seals, grounding recommendations in scenario modeling and mechanical heuristics to ensure long-term durability for high-utility users.

The Economic Impact of Seal Failure: A Scenario Analysis

To understand why seal maintenance is critical, we must look at the economic consequences of failure for high-usage riders. We modeled a scenario involving a coastal delivery rider (Persona: "Coastal Courier") operating a 750W fat-tire e-bike in a high-humidity, salt-air environment like Miami or Seattle.

Modeling Note: Economic and Performance Impact

Method & Assumptions: This is a deterministic scenario model, not a controlled lab study. We used the Freedom Dividend TCO Calculator and Terrain Mastery Range Predictor to estimate the impact of mechanical degradation caused by failed seals.

Parameter	Value	Unit	Rationale
Annual Mileage	36,400	Miles	100 miles/day, 7 days/week
Energy Consumption (Clean)	~25	Wh/mile	Standard efficiency for 750W motor
Energy Consumption (Contaminated)	~95	Wh/mile	Simulated 3.8x increase due to sand/grit
Battery Cycle Life (High DoD)	400	Cycles	Reduced due to 100% daily discharge
Repair Downtime Cost	~1,790	USD/month	Potential lost income during major repairs

Based on this modeling, a single seal failure that allows salt and sand to enter the motor casing creates a "cascade failure" effect. The contamination increases rolling resistance and mechanical friction, which can reduce the effective range from a nominal 80 miles to just under 9 miles—a 90% reduction. For a professional user, the cost of professional resealing (typically $150–$300) represents a negligible fraction of the potential $21,000+ annual net benefit of e-bike operation compared to a car.

The "Dry Abrasion" Paradox and Seal Degradation

A common misconception is that seals fail primarily during deep water submersion. While Water Crossings pose an immediate threat, practitioners observe that the most common cause of seal failure in geared hubs is "dry abrasion."

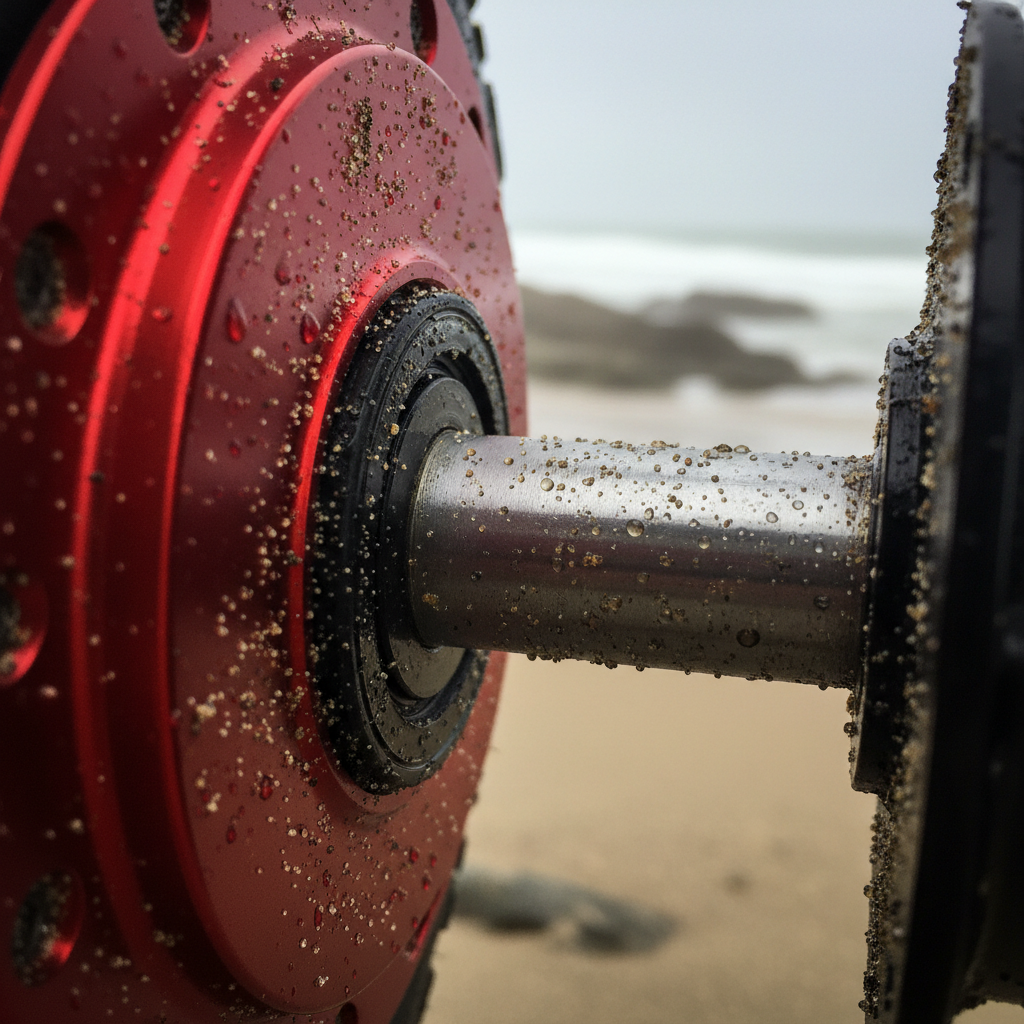

In coastal or dusty environments, fine grit and salt crystals accumulate on the axle. As the wheel rotates, these abrasives act like sandpaper against the sealing lip of the rubber O-ring or gasket. Over time, this abrades the rubber, compromising its ability to shed water during the next rain event.

Key Heuristics for Visual Inspection:

1. The "Set" Test: Inspect where the rubber seal contacts the axle. If the rubber appears permanently flattened or has a "set" (a visible groove where it no longer springs back), its effectiveness is severely reduced, even if no cracks are visible.
2. Stiffness Check: Gently press the seal with a non-marring tool. Rubber that feels brittle or stiff has lost its plasticizers and will likely leak under the pressure of a puddle crossing.
3. Grit Accumulation: Look for a "grinding paste"—a mixture of old grease and road salt—around the axle entrance. This is a leading indicator that abrasive wear is occurring.

For riders in these environments, Cleaning Your E-Bike After Wet Rides is not just about aesthetics; it is about removing the abrasives that destroy seals.

Technical Inspection: Axle Flex and Pressure Ingress

High-torque 750W and 1000W peak motors exert significant force on the motor axle. Under heavy loads—such as climbing a steep grade with a 400lb total weight—the axle can experience subtle "flex." This flex can create a temporary, microscopic gap between the axle and the seal.

If this flex occurs while riding through standing water, the resulting pressure differential can force water into the motor casing. This is why inspecting for "play" in the axle bearings is a critical part of a waterproofing check. If the bearings are worn, the axle will move more than intended, making it impossible for even a new seal to maintain a watertight interface.

The Silicone Lubricant Debate

There is ongoing debate regarding the use of lubricants on seal lips. According to technical data on Fluorosilicone Oil, high-quality silicone-based lubricants are generally compatible with most rubber and plastic seals, preventing swelling or embrittlement. However, using petroleum-based greases on certain rubber compounds (like non-nitrile seals) can cause the rubber to swell and degrade rapidly.

Recommendation: Use only manufacturer-recommended grease or a minimal amount of pure silicone paste specifically designed for rubber seals. This reduces the friction that causes dry abrasion without compromising the material integrity of the seal.

Standards and Compliance: UL 2849 and Beyond

As the industry shifts toward higher safety standards, the UL 2849 Standard for Electrical Systems for eBikes has become the benchmark for reliability. This standard evaluates the entire electrical system, including how the motor handles environmental stress.

When purchasing a high-power utility e-bike, riders should look for compliance with these standards, as they often dictate the quality of the seals and gaskets used. Furthermore, retailers like Amazon now require Mandatory Compliance with UL 2849 for all e-bike listings, ensuring that the "sealed" units sold on their platform meet a baseline of ingress protection.

Warranty Considerations

The durability of your motor is often reflected in the manufacturer's warranty. For instance, the Himiway Warranty Policy provides a 2-year manufacturer's warranty covering manufacturing defects, which can include premature seal failure. In contrast, brands like Super73 maintain more restrictive Return and Cancellation Policies, often charging restocking fees for opened products, which places a higher burden of preventive maintenance on the owner.

For a deeper dive into how the industry is moving toward better standards, refer to the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency.

Step-by-Step Seal Maintenance Protocol

To maximize the lifespan of your geared hub motor, follow this inspection protocol every 500 miles, or more frequently if riding in coastal regions.

1. Clean the Axle Area: Use a soft brush and a damp cloth to remove all visible grit and salt from the axle where it enters the motor hub. Do not use high-pressure water, as this can force contaminants past the seal.
2. Inspect Seal Elasticity: Check for the "set" or stiffness mentioned earlier. If the seal is cracked, it must be replaced immediately to prevent Internal Gear Damage.
3. Check for Axle Play: With the bike in a repair stand, attempt to wiggle the rear wheel laterally. Any perceptible "clunk" or movement suggests worn bearings that will compromise seal integrity.
4. Verify IP Rating Status: Check for any missing port covers or damaged gaskets on the motor's wiring harness. Moisture often enters through the cable entry point if the "drip loop" is not properly maintained.
5. Apply Protective Silicone: If the seal is dry but intact, apply a tiny amount of pure silicone grease to the interface between the seal and the axle to reduce abrasive wear.

Local Regulations and Safety

Riders should also be aware of how their local jurisdiction classifies high-power e-bikes. For example, the California DMV and New York DMV have specific definitions for Class 2 and Class 3 e-bikes. Maintaining your motor's integrity ensures that you remain compliant with speed and power regulations, as a malfunctioning motor can sometimes exhibit erratic power delivery.

Furthermore, the CPSC Recalls & Product Safety Warnings database frequently lists e-bikes with fire risks often associated with water ingress into battery or motor systems. Regular seal inspection is a proactive step in preventing the types of internal shorts that lead to these safety hazards.

Summary of Maintenance Actions

By treating the hub motor as a precision mechanical system rather than a "black box," riders can avoid the most common causes of Hub Motor Gear Failure and ensure their investment continues to provide reliable daily utility for years to come.

Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or legal advice. E-bike maintenance involves high-torque components and electrical systems; if you are unsure of your ability to perform these checks safely, consult a certified e-bike technician. Always follow the specific maintenance intervals provided by your vehicle manufacturer.
