Measuring Chain Stretch on High-Torque E-Bikes

The 1000W Reality: Why Your Drivetrain is Under Siege

Quick Maintenance Summary: For high-torque e-bikes (750W–1000W+), traditional maintenance schedules often fall short. Based on workshop experience and component wear modeling, the core recommendations are:

• Replacement Threshold: Replace the chain at 0.5% stretch (rather than the standard 0.75%) to protect expensive cassettes.
• Initial Check: Inspect every 250 miles during the first 500-mile "settling phase."
• Routine: Monthly inspections are recommended for heavy-duty urban commuters.

For the high-power e-bike commuter, the drivetrain is a high-stress transmission system handling loads that can strain standard road bike components. When operating a motor with 750W nominal and 1000W peak output—common in heavy-duty utility bikes—you are effectively applying the power of a professional cyclist's sprint during every acceleration.

This guide focuses on a critical maintenance task: measuring chain stretch. In systems with high payload capacities, the chain is often the primary wear point. Proactive replacement can prevent the need to replace a $200 cassette or a chainring prematurely. This maintenance discipline supports the long-term cost-efficiency of e-bike commuting, which some estimates, such as those comparing e-bike maintenance to AAA’s average car ownership costs, suggest can save users significantly over time.

The Physics of Accelerated Wear: A Calculated Example

Standard bicycle chains are typically engineered for human power outputs averaging 100W to 250W. High-torque e-bikes operate in a different stratosphere.

To illustrate the stress involved, consider a "heavy-load" scenario: a 300lb total weight (rider + cargo) maintaining 20 mph on a modest 3% grade. Using a deterministic physics model ($P_{total} = P_{gravity} + P_{rolling} + P_{drag}$), we can estimate the power demand:

• Assumptions: Aerodynamic drag (CdA 0.65), Rolling resistance (Crr 0.007), and 90% drivetrain efficiency.
• Result: This scenario requires approximately 1,126W of total power.

When 1000W of peak power is funneled through a narrow chain, the internal friction between pins and rollers increases. "Chain stretch" is technically a misnomer; the steel plates do not stretch. Instead, the pins and bushings wear down, creating minute gaps. As these gaps accumulate, the chain's pitch increases. This causes the chain to sit higher on the gear teeth, eventually "grinding" them into a shark-fin shape.

The 500-Mile "Settling" Phase

Based on patterns observed in repair environments, high-torque hub motors often see a rapid initial wear rate in the first 500 miles. This is frequently attributed to the "settling" phase, where factory lubricants are displaced and initial mating of the chain pins to the bushings occurs under high-torque loads.

Recommendation: Check the chain every 250 miles during this initial period. Once the system stabilizes, the wear rate typically levels off, though it remains higher than that of non-electric bicycles.

The 0.5% Rule: A Conservative Threshold for High-Torque Systems

In traditional cycling, the "0.75% Rule" is the standard replacement point. However, for high-power e-bikes delivering 80Nm to 100Nm of torque, many technicians recommend a more conservative 0.5% stretch threshold.

Why the stricter limit?

The high-tension environment of an e-bike drivetrain can accelerate the "mating" of a worn chain to the cassette. If wear reaches 0.75%, the chain may have already begun deforming the cassette teeth to match its elongated pitch. In many cases, installing a new, correctly-pitched chain on a cassette worn to 0.75% results in "skipping" under load, requiring a full drivetrain replacement.

Modeling the Economic Impact

To illustrate the value of proactive replacement, we can model the estimated Total Cost of Ownership (TCO) for a high-mileage commuter:

Note: These figures are illustrative estimates based on current market prices and common usage patterns; individual results vary by terrain and maintenance habits.

By replacing the chain approximately four times a year ($180 total), you can often preserve the cassette for significantly longer. If a worn chain is allowed to damage the cassette, annual maintenance costs can increase by over 150%. This proactive approach aligns with the industry's shift toward transparency and long-term reliability.

Step-by-Step: How to Measure Chain Stretch Accurately

A common error is measuring a dirty chain. Grit between the rollers and pins can provide a "false tight" reading, masking the actual wear.

1. Preparation: Clean and Lubricate

• Clean: Use a dedicated chain degreaser to remove abrasive grit.
• Lubricate: Apply a wax-based lubricant. Dry wax is often preferred for urban environments as it is less likely to attract abrasive road dust.
• Set: Allow the lubricant to penetrate for at least one hour before measuring.

2. The Measurement Tool

While a standard ruler can be used (12 links should measure exactly 12 inches), it is prone to parallax error. A dedicated chain checker is recommended.

Technical Note: Some reinforced e-bike chains feature slightly larger rollers. This can cause some standard "drop-in" tools to show a measurement error of up to 0.1%. For the most accurate results, consider a "three-point" chain checker, which isolates pin wear from roller diameter variations.

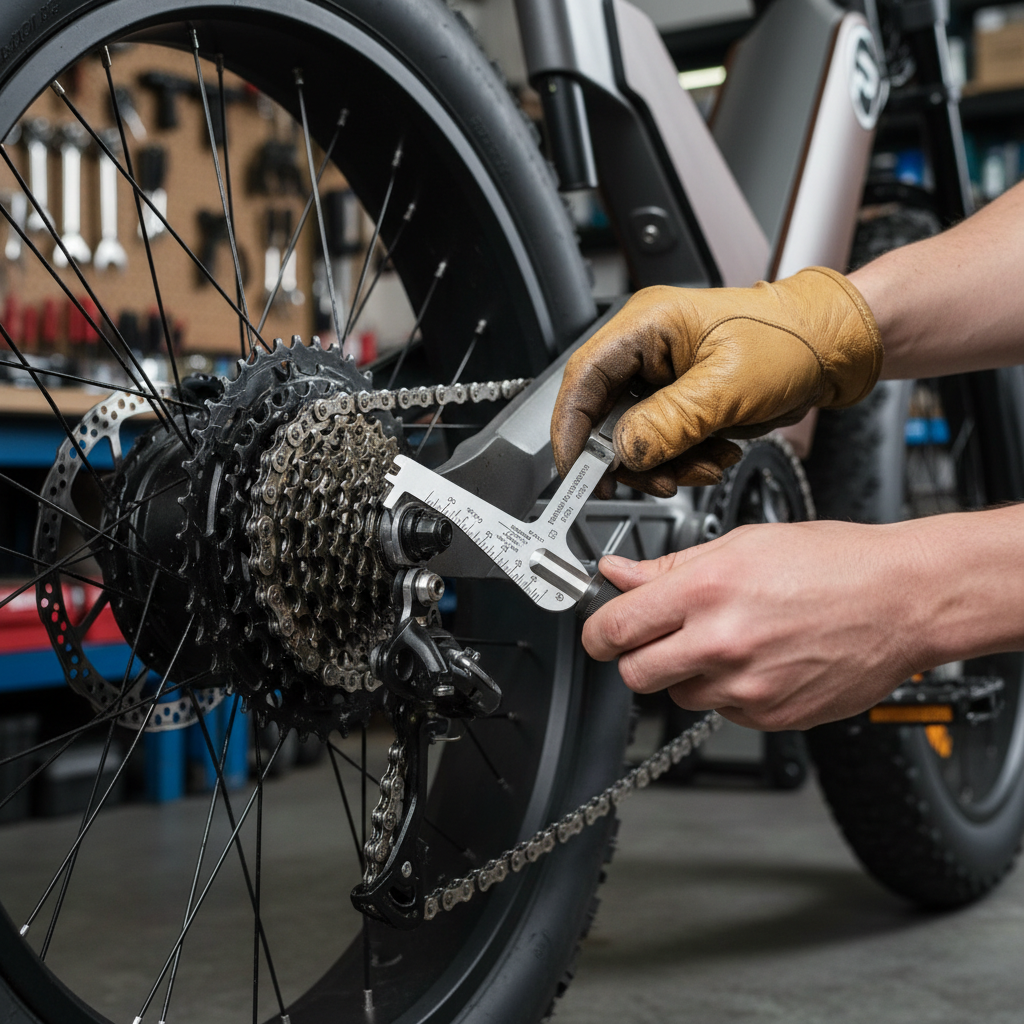

3. The Procedure

1. Shift the bike into the smallest cog (highest gear) to reduce derailleur tension.
2. Insert the chain checker into the top span of the chain.
3. Apply light pressure to the pedals by hand to tension the chain slightly, mimicking a motor load.
4. If the 0.5% gauge drops fully into the links, replacement is highly recommended to avoid cassette damage.

Maintenance Schedules and the Charging Window

High-capacity batteries (e.g., 48V 20Ah) often require 10+ hours to charge with standard equipment. This creates a natural opportunity for maintenance. We recommend aligning your chain checks with your weekly battery "deep charge." This ensures the bike is stationary and the lubricant has time to settle before your next ride.

Urban Stop-Start Cycling

Frequent stops increase chain wear significantly. Each acceleration from a standstill with a heavy payload requires high-torque bursts, creating peak torsional stress. For urban commuters, the 0.5% threshold should be viewed as a conservative but effective limit for maintaining system integrity.

Safety, Compliance, and Standards

Drivetrain maintenance is a factor in overall vehicle safety. A chain failure under high load—such as while crossing an intersection—can lead to a loss of control.

Standards and Liability

While UL 2849 focuses on electrical and battery safety, mechanical integrity is equally vital. Organizations like the CPSC monitor product safety; maintaining your mechanical components reduces the risk of failures that could be attributed to neglect. Furthermore, in jurisdictions with specific Class 2 or Class 3 regulations, such as California or New York, keeping a bike in top mechanical condition supports safer operation in traffic.

Professional Insights: Maximizing Component Life

Technicians often suggest two additional "pro tweaks" for high-power users:

1. The "Dry Wax" Advantage: In many conditions, switching to a high-quality wax-based lubricant can extend chain life by reducing the buildup of abrasive "grinding paste."
2. Shift Awareness: Avoid shifting under full motor load. Easing pedaling pressure for a fraction of a second during a shift allows the chain to move between cogs without fighting peak motor torque.

Methodology Note: These recommendations are heuristics based on scenario modeling and repair-bench observations. They are intended to help users minimize TCO and are not laboratory-guaranteed results.

Summary Checklist for High-Torque Owners

• Initial Period: Check stretch every 250 miles for the first 500 miles.
• Ongoing: Check every 500 miles or once a month.
• Threshold: Aim to replace the chain at 0.5% stretch.
• Condition: Measure only after cleaning and lubricating.
• Lubrication: Use dry wax in dusty/dry conditions to minimize abrasive wear.

By treating your chain as a high-performance component, you protect your e-bike investment and help ensure your daily commute remains efficient and reliable.

Disclaimer: This article is for informational purposes only. Mechanical failure on an electric bicycle can result in serious injury. Always consult your owner's manual and consider having a professional mechanic perform a safety inspection annually. Maintenance requirements vary based on motor type, cargo weight, and environmental conditions.
