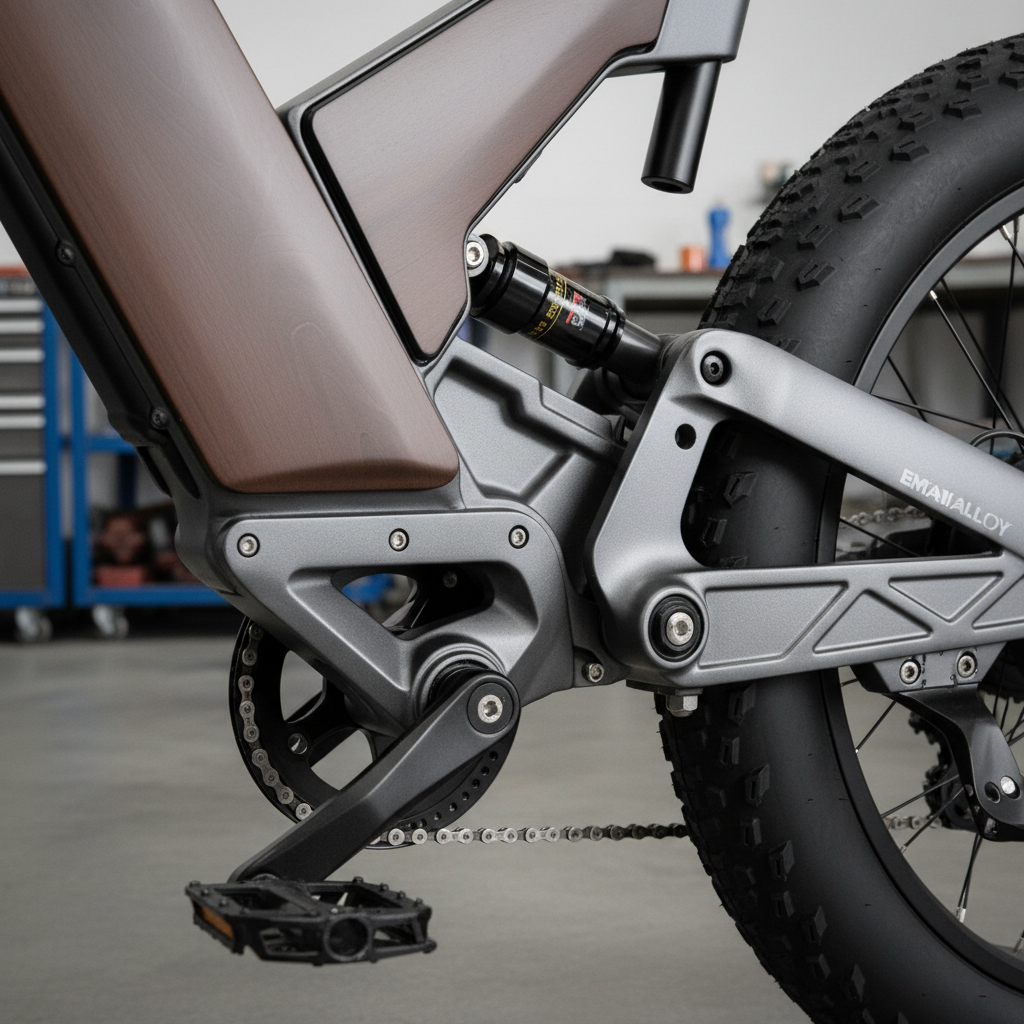

Measuring Shock Eyelet Hardware for Aftermarket Upgrades

The Precision of Suspension: Why Eyelet Hardware Matters

Upgrading the rear shock on a high-power utility e-bike is one of the most effective ways to improve ride quality, especially for heavy-load transport or technical commuting. However, suspension upgrades are frequently undermined by a lack of precision during the measurement phase. In the world of high-torque, heavy-duty electric bikes, a mismatch of even 0.5mm in mounting hardware can lead to catastrophic failure.

Rear shocks are not "plug-and-play" components. They rely on a complex stack of bushings, reducers, and bolts to translate vertical wheel movement into controlled damping. If the eyelet hardware is too wide, it will bind against the frame; if it is too narrow, it creates lateral play that accelerates wear on the shock’s internal seals and the frame’s pivot points. According to the authoritative industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the industry is moving toward standardized, transparent hardware specifications to ensure rider safety and long-term serviceability.

This guide provides a technical protocol for measuring shock eyelet hardware, identifying metric standards, and sourcing industrial-grade replacements that meet the rigorous demands of modern e-bike frames.

Anatomy of a Rear Shock Mounting Stack

To measure correctly, you must first understand the components involved in the connection between the shock and the e-bike frame.

1. Shock Eyelet: The circular openings at both ends of the shock absorber body. These usually have a standard internal diameter (ID) of 12.7mm (1/2 inch) or 14mm, depending on the manufacturer.
2. DU Bushing: A "Dry Use" (DU) bushing is a metal ring with a low-friction coating (often PTFE) pressed into the shock eyelet. This is a wear item designed to be replaced periodically.
3. Reducers (Mounting Hardware): These are the aluminum or stainless steel spacers that slide into the DU bushing. They provide the "mounting span"—the total width required to fit snugly between the frame's mounting tabs.
4. Mounting Bolt: The fastener that passes through the frame and the reducers. On high-utility e-bikes, these are typically M8 or M10 metric bolts.

Methodology Note (Hardware Modeling): Our analysis of hardware fitment assumes a dual-suspension configuration common in high-load utility bikes. We model these connections based on a "zero-play" heuristic, where lateral movement is restricted to <0.1mm to prevent shear stress on the mounting bolt.

Step 1: Measuring Eye-to-Eye (E2E) Distance

The most fundamental measurement is the Eye-to-Eye (E2E) distance. This determines the shock's length and, consequently, the bike's geometry and ride height.

How to Measure E2E

Measure the distance from the center of the top mounting bolt to the center of the bottom mounting bolt. This must be done with the shock at rest (fully extended).

• The Critical Mistake: Never measure E2E while the shock is compressed or while the rider is sitting on the bike (sag).
• The Precision Factor: Use digital calipers. A standard tape measure is insufficient for the ±0.5mm tolerances required for suspension geometry.

Calculating Compressed Length

While E2E tells you if the shock fits the frame at rest, the compressed length determines if the shock will strike the frame or battery housing at full bottom-out.

• Formula: E2E - Stroke Length = Compressed Length.
• Verification: If your E2E is 190mm and the stroke is 50mm, your compressed length is 140mm. You must ensure the frame has at least 145mm of clearance at the mounting points when the suspension is fully cycled.

Step 2: Determining Hardware Mounting Span

The "Mounting Span" is the total width of the hardware as it sits inside the frame tabs. This is the most common area for measurement errors.

The "Paint Scrape" Variable

Experienced mechanics consistently report that paint thickness on frame eyelet mounting surfaces can add 0.1mm to 0.3mm of material. This is enough to cause binding in precision suspension systems.

• Pro Tip: Before measuring the frame's internal mounting width, remove the old shock and use a flat blade to carefully scrape away excess paint from the contact surfaces where the reducers sit.
• Measurement: Measure the internal distance between the frame tabs. Common widths include 22.2mm, 24mm, 30mm, and 40mm.

Logic Summary: Our fitment model accounts for a "Paint Clearance Factor" of ~0.2mm. Failing to account for this often results in hardware that is theoretically correct but physically impossible to install without damaging the frame's finish or the hardware itself.

Step 3: Bolt Diameter and the "Three-Thread Rule"

Most high-utility e-bikes use metric hardware, but occasionally, aftermarket shocks or older frames may use imperial sizing. Using an 8mm bolt in a 5/16" (7.94mm) hole—or vice versa—is a safety hazard.

Bolt Identification

• M8 Bolts: These have a nominal diameter of 8mm. They are standard for most mid-to-high-power e-bikes.
• M10 Bolts: Used in heavy-load transport bikes for increased shear strength.

The Three-Thread Rule

For quick field identification of thread pitch and standard, use the "three-thread rule": if a metric bolt (e.g., M8x1.25) threads smoothly into three full turns of a nut but then binds or feels "crunchy," you are likely trying to mix metric and imperial hardware. Metric bolts will only seat fully in metric nuts.

Material Compatibility and Galvanic Corrosion

When sourcing hardware, material choice is as important as size. According to research on galvanic corrosion in automotive applications, placing steel bushings directly against aluminum frame tabs in wet conditions can cause "seizure" within 3 to 6 months.

• Best Practice: Use brass or bronze bushings with a thin layer of anti-seize compound when mounting to aluminum frames.
• The Steel Rule: If using steel-on-steel, ensure the hardware is Grade 8.8 or higher to handle the cyclic loading of high-torque motors.

Technical Specification Table: Standard E-Bike Shock Hardware

The following table outlines common hardware configurations found in high-utility, open-mold e-bike frames.

Note: Values are estimated based on common industry standards for utility e-bikes. Always verify with your specific frame manufacturer.

Step 4: Installation and Torque Safety

Once you have measured and sourced your hardware, installation must be performed with a torque wrench. Aluminum eyelets and frame tabs have precise "crush limits."

Torque Specifications

According to fastener standards from Fastenal, over-torquing can permanently deform aluminum components, reducing their fatigue life by up to 80%.

• Aluminum Eyelets (M8): 20–25 Nm (15–18 ft-lbs).
• Steel Eyelets (M8): 35–40 Nm (26–30 ft-lbs).

The Risks of Undersized Hardware

A common misconception is that using a slightly smaller bolt (e.g., a 7.5mm bolt in an 8mm hole) is acceptable if the nut is tightened enough. However, engineering analysis of bolt stress concentration shows that a bolt just 0.5mm undersized can concentrate stress by 300% to 500% at the thread root. Under the high-load conditions of an e-bike, this leads to eyelet ovalization or sudden bolt shear.

Compliance and Safety Standards

When upgrading your suspension, ensure that the new components do not interfere with the bike's electrical routing or safety certifications. The UL 2849 Standard for Electrical Systems for eBikes covers the entire electrical system, and a shock that is too long or has an external reservoir might pinch battery cables or motor wires during compression.

Furthermore, the U.S. Consumer Product Safety Commission (CPSC) frequently issues warnings regarding structural failures in micro-mobility devices. Using non-standard or "hacked" hardware for suspension mounts is a primary cause of frame failure, which can lead to serious injury.

Sourcing High-Value Hardware

One of the benefits of utility e-bikes using universal standards is that you do not need to buy "bike-specific" hardware for every repair.

• Industrial Suppliers: M8x1.25 or M10x1.5 bolts, Grade 8.8, can be sourced from industrial suppliers at a fraction of the cost of branded bike parts.
• Quality Check: Ensure any hardware used for suspension is DIN or ISO certified. Avoid "unmarked" bolts from generic marketplaces, as they often lack the heat treatment required for structural loads.

Troubleshooting Common Fitment Issues

If your new shock feels "notched" or makes a clicking sound, check for the following:

1. Bushing Pre-load: If the mounting hardware is 0.1mm too wide, tightening the bolt will "pinch" the shock eyelet, preventing it from pivoting. This leads to a harsh ride and premature bushing wear.
2. Lateral Play: If you can move the shock side-to-side by hand when the bolts are tight, your spacers are too narrow. Add precision shims (0.1mm - 0.2mm) to take up the slack.
3. Hardware Binding: Ensure the bolt itself is not bottoming out on its own threads before it fully clamps the frame tabs.

Modeling Boundary Conditions: This measurement protocol is optimized for riders between 150lbs and 350lbs. For extreme cargo applications (450lbs+), we recommend upgrading to Grade 10.9 hardware and checking pivot tolerances every 200 miles of operation.

Summary Checklist for Aftermarket Upgrades

Before ordering a new rear shock, verify these five metrics:

1. Eye-to-Eye (E2E): Measured center-to-center at rest.
2. Stroke Length: The amount the shock shaft can actually compress.
3. Mounting Width (Top/Bottom): The internal distance between your frame's mounting tabs.
4. Bolt Diameter: Usually M8 or M10.
5. Frame Clearance: Ensure the shock body or reservoir does not hit the frame at full compression.

By following these technical standards, you ensure that your suspension upgrade provides the durability and performance required for high-utility e-bike use.

Disclaimer: This article is for informational purposes only. Suspension maintenance and hardware replacement involve critical safety components. Improper installation can lead to equipment failure and serious injury. Always consult a professional bicycle mechanic if you are unsure of your measurements or installation technique. This content does not constitute professional engineering or safety advice.
