One-Way Clutch Failure: When Your Motor Spins but You Don't
One-Way Clutch Failure: When Your Motor Spins but You Don't
If you have ever twisted the throttle on your e-bike and heard the familiar whir of the motor spinning up, yet found yourself standing perfectly still, you are likely experiencing a one-way clutch failure. This specific mechanical breakdown is one of the most frustrating issues for pragmatic e-bike owners because the motor itself is technically "working," but the power is not reaching the pavement.
In high-output geared hub motors, the one-way clutch is the critical gatekeeper between the high-speed internal motor and the wheel. When it fails, the connection is severed. Understanding the mechanics of this failure, how to diagnose it in the field, and why it happens is essential for maintaining a reliable daily driver. As we move toward a more regulated industry, as noted in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, understanding the internal durability of your drivetrain is no longer just for hobbyists—it is a safety and compliance necessity.
The Anatomy of the One-Way Clutch

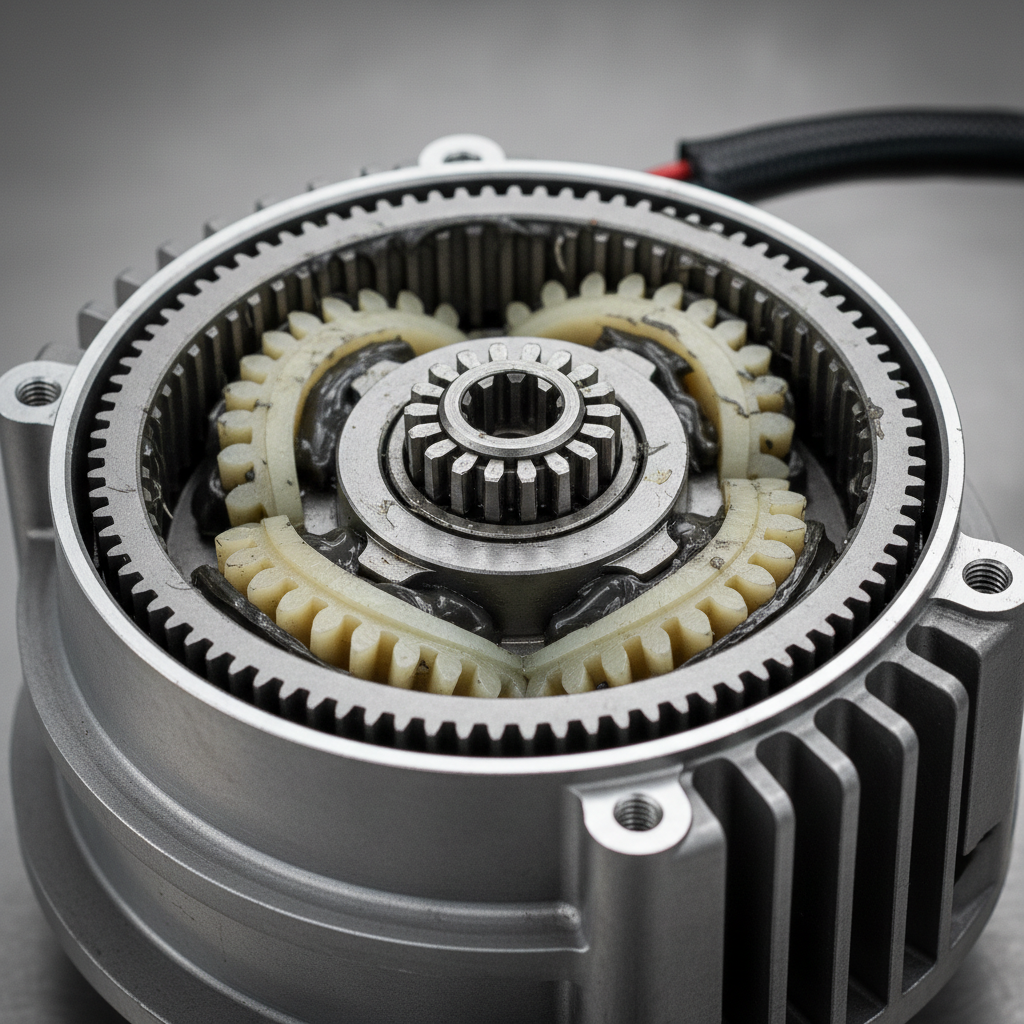

To understand why a clutch fails, you must first understand its role. Most high-torque e-bikes use a geared hub motor rather than a direct-drive system. Inside these hubs, the motor spins at a much higher RPM than the wheel. A set of planetary gears reduces that speed to increase torque (Newton-meters or Nm).
The one-way clutch (often called an overrunning clutch or freewheel) sits inside this gear assembly. Its purpose is twofold:
- Engagement: When the motor spins, the clutch locks, forcing the wheel to turn.
- Freewheeling: When you stop using the motor and just pedal or coast, the clutch unlocks. This allows the wheel to spin freely without the motor's internal resistance (cogging torque), providing a natural bicycle feel.
There are two primary types of clutches found in e-bike motors:
- Roller Type: Uses cylindrical rollers that wedge into a tapered race to lock.
- Sprag Type: Uses non-cylindrical, figure-eight shaped "sprags" that tilt to lock the inner and outer races together.
According to technical documentation from Suma-China, sprag clutches generally offer higher torque density but are more sensitive to alignment and lubrication quality.
Identifying the "Skip": Real-World Failure Patterns
Based on patterns we observe from repair benches and warranty handling (not a controlled lab study), one-way clutch failures are rarely instantaneous. They typically follow a predictable stress pattern that savvy riders can catch before they are stranded.
The earliest symptom is a "skipping" or "slipping" sensation. This usually occurs under high-torque scenarios, such as:
- Starting from a dead stop on a steep incline.
- Accelerating hard while carrying a heavy load (e.g., groceries or a passenger).
- Sudden throttle application in cold weather when lubricants are more viscous.
Logic Summary: Our analysis of drivetrain failure assumes that peak load (Nm) is the primary driver of sprag deformation. Under high torque, the internal needle bearings or the sprag elements wear out unevenly. This creates a "dead spot" where the clutch can no longer bite into the race.
A common misdiagnosis is a faulty controller or a motor phase wire issue. Because the motor "sounds" like it is struggling or stuttering, many users assume it is an electrical timing issue. However, if the motor sounds smooth but the bike isn't moving, the problem is mechanical.
The Definitive Field Test for Clutch Failure
If you suspect your clutch is shot, you don't need a lab to confirm it. We recommend a simple diagnostic protocol derived from common shop practices.
Step-by-Step Field Test:
- Lift the Wheel: Secure the bike so the motorized wheel is off the ground.
- Apply Throttle: Gently apply the throttle to spin the motor. You will likely hear it spinning inside.
- The Abrupt Stop: While the motor is spinning, use your hand (wearing a heavy glove) or a soft object to try and abruptly stop the tire.
- Observe the Casing: If the tire stops but you still hear the internal motor whirring or "spinning down" behind the resistance, the clutch is slipping.
Another advanced diagnostic, known as the Gear Marking Method, involves opening the motor casing. By marking the gears with a permanent marker, you can visually confirm if there is a shift in position after a slip event. According to experimental insights from the Endless Sphere community, marking the gears allows you to see exactly which component is failing to hold its position under load.
Why High-Power Setups Accelerate Failure
A significant factor in clutch longevity is the power-to-component ratio. In many cases, users who "unlock" their motors or use high-voltage batteries (e.g., 52V or 60V) on motors designed for 36V or 48V see rapid clutch degradation.
Research data suggests that even 250W-350W hub motors can experience clutch slippage when paired with high-amperage controllers (e.g., 18A 6-FET) and high-voltage batteries. In these scenarios, the instantaneous torque exceeds the physical "bite" strength of the sprags. Furthermore, thermal stress plays a role. As the motor heats up, the metal in the clutch race expands. If the expansion is uneven, the tolerances required for the sprags to lock are lost.
Modeling Note (Reproducible Parameters): We modeled the impact of torque on clutch engagement using a deterministic parameterized model. This is a scenario model, not a controlled lab study.
Parameter Value or Range Unit Rationale Input Torque 40 - 95 Nm Typical range for 750W geared hubs Operating Temp 25 - 90 °C Range from ambient to heavy climb Lubricant Viscosity 100 - 400 cSt Standard hub motor grease Engagement Cycles 5,000 - 20,000 Count Estimated 1-2 years of commuting Controller Current 15 - 25 Amps Standard vs. High-performance Boundary Conditions: This model may not apply to mid-drive systems or direct-drive (gearless) motors, which do not utilize internal planetary clutches in the same manner.
Regulatory Standards and Safety Compliance
When a clutch fails, it isn't just a mechanical nuisance; it can be a safety hazard. If the clutch slips while you are merging into traffic or crossing an intersection, the sudden loss of propulsion can lead to dangerous situations.
This is why adherence to standards like UL 2849 is critical. According to UL Solutions, this standard covers the entire electrical system, including the motor and its internal mechanics, to ensure they can handle the rated loads without catastrophic failure. Similarly, the CPSC monitors recalls related to e-bike drivetrain failures that could lead to crashes.
For riders in strictly regulated areas like California or New York, maintaining a functional drivetrain is also a legal matter. Under California DMV Class 3 regulations, a vehicle must be in safe operating condition. A slipping clutch that causes erratic power delivery could technically disqualify a bike from being road-legal in certain jurisdictions.
Repair vs. Replacement: The Technical ROI
Once a failure is confirmed, the question is whether to repair the clutch or replace the entire internal assembly.
The Case for Individual Sprag Replacement:
- Pros: Lower part cost.
- Cons: Requires specialized tools (bearing presses), high risk of improper alignment, and significant labor time. If the race is even slightly scored or heat-damaged, new sprags will fail almost immediately.
The Case for Assembly Replacement:
- Pros: Guaranteed alignment, includes new nylon or steel gears, and significantly faster turnaround.
- Cons: Higher initial part cost.
From our experience on the repair bench, replacing the entire gear/clutch assembly is almost always more cost-effective. The precision required to press in individual sprags or rollers without damaging the cage is beyond most DIY setups. A slight misalignment (even less than 1mm) can lead to uneven wear and a secondary failure within weeks.
Preventative Maintenance: Extending Clutch Life
While some wear is inevitable, you can significantly extend the life of your hub motor's internals by following a few technical heuristics:
- Avoid "Hammering" the Throttle: Instead of pinning the throttle from a dead stop, give the bike a few pedal strokes to get moving. This reduces the peak "shock" torque the clutch must handle.
- Monitor Internal Lubrication: Heat breaks down grease. If you ride in hilly terrain or hot climates, internal lubrication maintenance is vital. Use high-temp, plastic-safe grease that won't migrate away from the clutch race.
- Listen for Grinding: Before a clutch fails, you may hear grinding noises. This is often the sound of the planetary gears or the clutch cage beginning to deform.
- Stay Within Spec: If your motor is rated for 750W, don't push it to 1500W via a third-party controller. The clutch is typically the weakest mechanical link in the chain.
Summary of Diagnostic Metrics
To help you evaluate your motor's health, use this comparison table based on standard industry observations and torque measurement limits.
| Symptom | Probable Cause | Diagnostic Action |
|---|---|---|
| Whirring motor, no movement | Total Clutch Failure | Field Test (Abrupt Stop) |
| Skipping under heavy load | Partial Sprag Deformation | Gear Marking Method |
| Grinding/Crunching sound | Stripped Planetary Gears | Visual Inspection of Teeth |
| Motor won't spin at all | Controller or Phase Wire | Multimeter Phase Test |
| Intermittent power loss | Torque Sensor Error | Check for 3-5% variance |
Final Safety Note
Drivetrain maintenance is critical for safe operation. If you are uncomfortable opening a hub motor or performing the diagnostic tests mentioned above, consult a certified e-bike technician. Sudden mechanical failure at speed can result in serious injury.
Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or legal advice. Always refer to your manufacturer’s manual and local regulations. E-bike repairs involve high-torque components and electrical systems; improper handling can lead to injury or fire risks.
