Pivot Point Waterproofing for Year-Round Urban Commuters

The Criticality of Pivot Maintenance for High-Capacity Commuters

For the urban professional using a high-power e-bike as a primary car replacement, the vehicle is no longer a toy; it is critical infrastructure. When you are a heavy rider (220–280 lbs) navigating "concrete canyons," your dual-suspension system undergoes mechanical stresses that often exceed those of standard recreational use. Rain, road salt, and slush are corrosive agents that target the most vulnerable part of your frame: the pivot points.

Quick Action: The Waterproofing Essentials

If you are short on time, follow these three high-impact maintenance rules:

1. Interval: Inspect pivot hardware every 1,000 miles or after any period of heavy rain/snow.
2. Lubricant: Use Marine-Grade NLGI #2 Grease (e.g., Molydal or Lucas Oil Marine) for its superior water washout resistance.
3. Security: Always use Blue (Medium-Strength) Threadlocker on pivot bolts; avoid Red (High-Strength) unless specifically mandated by the manufacturer.

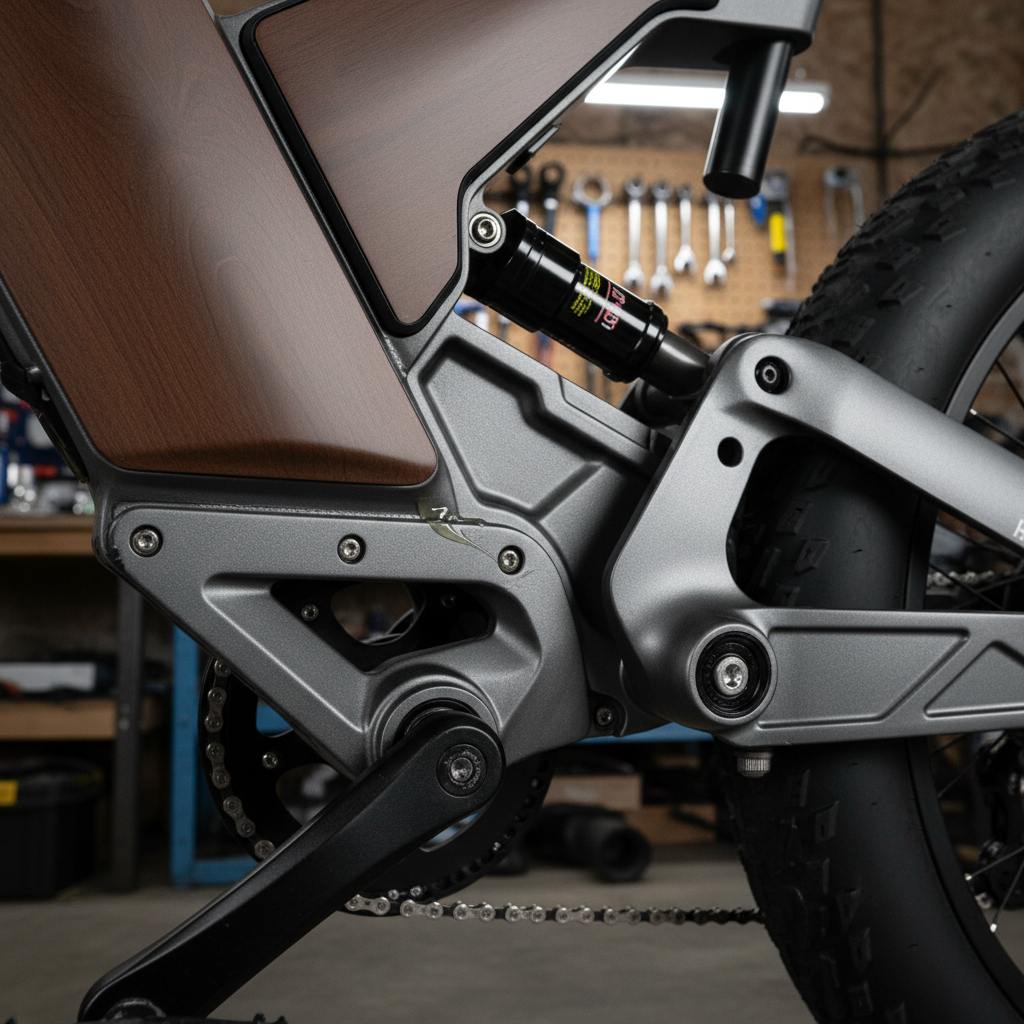

A pivot point is the articulation joint that allows your suspension to move. In high-capacity e-bikes designed for 400 lb total payloads, these joints consist of precision bearings, axles, and seals. Ignoring these components in wet climates can lead to "seizing," where corrosion bonds the moving parts together. This often degrades ride quality and may eventually lead to frame fatigue or hardware failure.

Based on common patterns observed on repair benches (though not a controlled longitudinal study), moisture penetration in pivot bearings is a primary factor in premature frame wear. This guide provides a technical blueprint for waterproofing your pivots to support year-round reliability.

The Physics of Pivot Stress: Why Heavy Riders Face Higher Risks

The mechanical load on an e-bike frame is a function of rider weight plus motor torque. For a 250 lb rider on a 750W e-bike, the forces acting on the rear suspension pivots are significantly amplified.

Modeled Stress and Bearing Load

When you accelerate a high-torque hub motor, the motor attempts to rotate the axle within the dropouts. This force transfers through the swingarm to the pivot points.

• The 2–3× Stress Heuristic: Based on our scenario modeling for heavy urban commuters, the combination of a 250 lb rider and 750W motor output can create pivot stresses 2–3× higher than factory testing assumes for a standard 160 lb rider.
• Calculation Logic: This estimate is a heuristic derived from the leverage ratio of the swingarm (typically 2.5:1 to 3:1) and the increased unsprung mass of a heavy-duty hub motor. It represents peak load potential rather than constant operating stress.

The Mechanism of Salt Corrosion

Urban roads are often treated with sodium chloride or magnesium chloride. These salts lower the freezing point of water but also increase conductivity, which can accelerate galvanic corrosion between steel bearings and alloy frames. According to the CPSC Recalls & Product Safety Warnings, structural failures can stem from undetected corrosion that weakens fasteners. When salt-laden water enters a pivot, it can create a "grinding paste" that risks destroying bearing races and distorting seals.

Waterproofing Chemistry: Selecting the Right Lubricants

A common mistake in pivot maintenance is using standard lithium grease or "all-purpose" bicycle lubes. In wet, high-load environments, these lubricants may wash out within a few hundred miles.

Technical Specifications for Pivot Protection

For year-round urban commuting, we recommend a marine-grade synthetic grease with an NLGI #2 consistency. The following table outlines the performance metrics for recommended lubricant categories:

Threadlockers: Blue vs. Red

Pivot bolts are subject to constant vibration. To help prevent them from backing out, a threadlocker is generally required.

• Medium-Strength (Blue): This is the industry standard for bicycle pivots. It provides vibration resistance while allowing for removal with standard hand tools.
• High-Strength (Red): Use caution. Removing high-strength locker typically requires localized heat (often exceeding 450°F) or specialized chemical solvents. This poses a significant risk of damaging the temper of an alloy frame or melting nearby plastic seals and wiring.

Fastener Integrity and the "Star Pattern" Protocol

Properly applying grease is only half the battle; how you tighten the hardware determines the lifespan of the bearings.

Torque Calibration (Nm)

Every pivot bolt has a specific torque rating, usually measured in Newton-meters (Nm). Overtightening can "crush" bearing seals and distort races, leading to premature roughness. Conversely, undertightening can lead to "play" or lateral movement, which accelerates wear through impact loading. Following the manufacturer's specific Nm values—often found in the service manual or on the urban adjustable dropouts forum—is strongly recommended for vehicle safety.

The Star Pattern and Load Distribution

When a pivot system uses multiple bolts, tighten them in a star or cross-pattern. This helps ensure the pivot axle is pulled into the frame squarely. Tightening one side fully before starting the other risks "cocking" the bearing, which can create a concentrated pressure point on the balls and races.

Scenario Modeling: The Economics of Maintenance for the 250lb Commuter

To understand the value of professional maintenance and high-end lubricants, we must look at the potential Total Cost of Ownership (TCO).

Illustrative Scenario: Heavy Urban Commuter Model

This model compares the estimated costs of a 250 lb professional using a high-power e-bike versus a medium SUV for a 20-mile daily commute in a city like NYC.

Estimated Modeling Results:

• Potential Annual Savings: Using an e-bike instead of an SUV could save approximately $4,750 per year in fuel, insurance, and depreciation.
• Time Efficiency: We estimate a potential savings of ~83 hours annually by reducing time spent searching for urban parking (assuming 10 mins for car parking vs. 3 mins for e-bike locking).
• Estimated Physical Impact: A 250 lb rider may burn approximately 38,000 extra calories annually on light assist.
  • Calculation: Based on a MET (Metabolic Equivalent) value of ~5.5 for moderate cycling over 250 hours of annual riding. This is equivalent to roughly 11 pounds of fat compared to sedentary driving.

Note: These figures are based on deterministic scenario modeling using standard industry rates and the INRIX 2024 Global Traffic Scorecard. Actual results will vary based on local traffic density and rider effort.

Step-by-Step Waterproofing Protocol

If you are performing this maintenance yourself, consider this sequence every 1,000 miles or at the start of the wet season.

1. Deep Clean: Use a non-corrosive degreaser to remove old grease. Avoid high-pressure water (like a car wash wand) directly on the pivots, as this can force water past the seals.
2. Inspect for "Roughness": With the shock removed, move the swingarm through its travel by hand. If you feel "notching" or "grittiness," the bearings may be pitted and require replacement. This is a standard pre-alignment inspection procedure.
3. Apply Marine Grease: Pack the exterior of the bearing seal with a layer of NLGI #2 grease. This acts as a "sacrificial barrier" that moisture must penetrate before reaching the internal bearing.
4. Prep the Bolts: Clean the threads. Apply a small drop of blue threadlocker to the threads and a thin film of grease to the unthreaded "shoulder" of the bolt to help prevent it from seizing to the inner race.
5. Torque to Spec: Use a calibrated torque wrench. Tighten in increments (e.g., 5Nm, then 10Nm, then final 15Nm) to ensure even seating.

Compliance, Safety, and the Legal Landscape

UL 2849 and Electrical Safety

While pivots are mechanical, they are often located near battery housings. The UL 2849 Standard covers the electrical system. Seized pivots can cause excessive vibration that potentially impacts internal wire harnesses. Maintaining a smooth-moving suspension helps protect the vehicle's electrical integrity.

DMV Class Definitions

In markets like California and New York, e-bikes are strictly categorized. According to the California DMV and the New York DMV, Class 3 e-bikes (up to 28 mph) have specific requirements. As these vehicles handle higher kinetic energy, the structural integrity of the frame—supported by proper pivot care—is a key safety factor.

For more on evolving standards, see the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency.

Maintaining the "Car Replacement" Standard

For the pragmatic commuter, the e-bike is a tool for liberation from traffic. By adopting a marine-grade, torque-accurate maintenance regimen, you protect your potential $4,750 annual "freedom dividend." Treat your pivot points like the critical infrastructure they are. A quiet, smooth suspension is the hallmark of a vehicle ready for another 5,000 miles of urban service.

Disclaimer: This article is for informational purposes only. E-bike maintenance involves mechanical systems that can be hazardous if handled incorrectly. Always consult your owner's manual for specific torque values and service intervals. If you are unsure of your ability to perform these tasks, seek assistance from a certified e-bike technician.
