Opening a hub motor to replace worn nylon gears or address internal bearing noise is a milestone for any serious e-bike DIYer. However, the mechanical repair is only half the battle. The moment you break the factory seal on a 750W or 1000W motor casing, you compromise the unit's Ingress Protection (IP) rating. Without a professional-grade re-sealing process, your motor faces a significant risk of water ingress, corrosion, and potential electrical failure.

In our experience on the repair bench, we have observed that many post-repair failures aren't caused by the new gears failing, but by moisture entering the casing during the first rainstorm or wash after the repair. This guide provides a technical framework for restoring a motor's environmental seal, aiming to match factory standards and ensure your high-capacity e-bike remains reliable.

Quick Specs & Essentials

• Recommended Sealant: Loctite 515 (Anaerobic) for flat flanges; RTV Ultra Black for uneven surfaces.
• Surface Prep: 99% Isopropyl Alcohol and a non-marring scraper.
• Key Heuristic: 3–4mm continuous bead, circling the inside of bolt holes.
• Torque Target: 5–8 Nm (typical for M5/M6 casing bolts).
• Minimum Cure: 48 hours before the first ride; 7 days for full chemical cross-linking.

The Physics of Ingress: Why Hub Motors "Breathe"

To understand why sealing is critical, we must look at the thermal behavior of a hub motor. A 750W motor generates significant internal heat during high-torque climbs or sustained speeds of 28 mph (45 km/h). As the air inside the motor heats up, it expands and may escape through the axle seals or cable exits.

When you stop riding, the motor cools. This creates a partial vacuum inside the casing. If your flange seal is compromised, this vacuum can draw moisture and humid air into the motor through microscopic gaps. This "breathing" effect is a primary cause of internal corrosion. According to the SAE/IEEE Study on Thermal Runaway Factors (2023), maintaining the integrity of electrical systems is paramount to preventing thermal events in high-power lithium-ion applications.

Modeling Assumption: Our analysis of the "breathing" effect assumes a 40°C temperature delta between operation and ambient rest. This creates a pressure differential that, in our workshop observations, is sufficient to draw water through gaps as small as 0.05mm.

Surface Preparation: Beyond the Simple Wipe

The most common mistake we see is a lack of rigorous surface preparation. Simply wiping the flange with a rag is often insufficient. Aluminum motor casings are porous and can absorb microscopic amounts of oil and grease over time.

The Cleaning Protocol

1. Mechanical Removal: Use a plastic scraper or a brass brush to remove traces of old factory sealant. We advise against steel scrapers, as aluminum is soft and any gouge in the flange surface creates a permanent leak path.
2. Chemical Cleaning: Research into generating porous metal surfaces suggests that aluminum surfaces benefit from specific preparation to increase bonding strength. For DIY applications, using high-purity (99%) isopropyl alcohol is a highly effective way to remove residual oils without leaving a film.
3. The Lint-Free Rule: Use only lint-free microfiber cloths. Standard paper towels or cotton rags often leave behind fibers that can act as "wicks," drawing water through the sealant bead via capillary action.

Selecting the Right Sealant: Anaerobic vs. RTV

Choosing a sealant involves a choice between two primary technologies: Room Temperature Vulcanizing (RTV) Silicone and Anaerobic Sealants.

Note on Values: Gap filling capabilities are based on standard manufacturer technical data sheets (TDS) for industrial-grade sealants.

Anaerobic Sealants

These are often preferred by professional mechanics for machined metal-to-metal joints. They cure only in the absence of air and in the presence of metal ions.

• Pros: They do not "skin over" during assembly, allowing for a more relaxed pace.
• Cons: They require relatively flat flanges with small gaps. They may not cure if the surface is contaminated with oil.

RTV Silicone (High-Temp Red or Ultra Black)

RTV is generally more forgiving of surface imperfections and larger gaps.

• Pros: Remains flexible under vibration.
• Cons: It begins to cure the moment it hits the air. If assembly takes too long, the "skin" can prevent a proper bond.

The Application Process: Precision Engineering

Once the surfaces are clean, apply the bead. For a standard 750W–1000W hub motor casing (like the Bafang or Ant5 series), we use the following workshop heuristics:

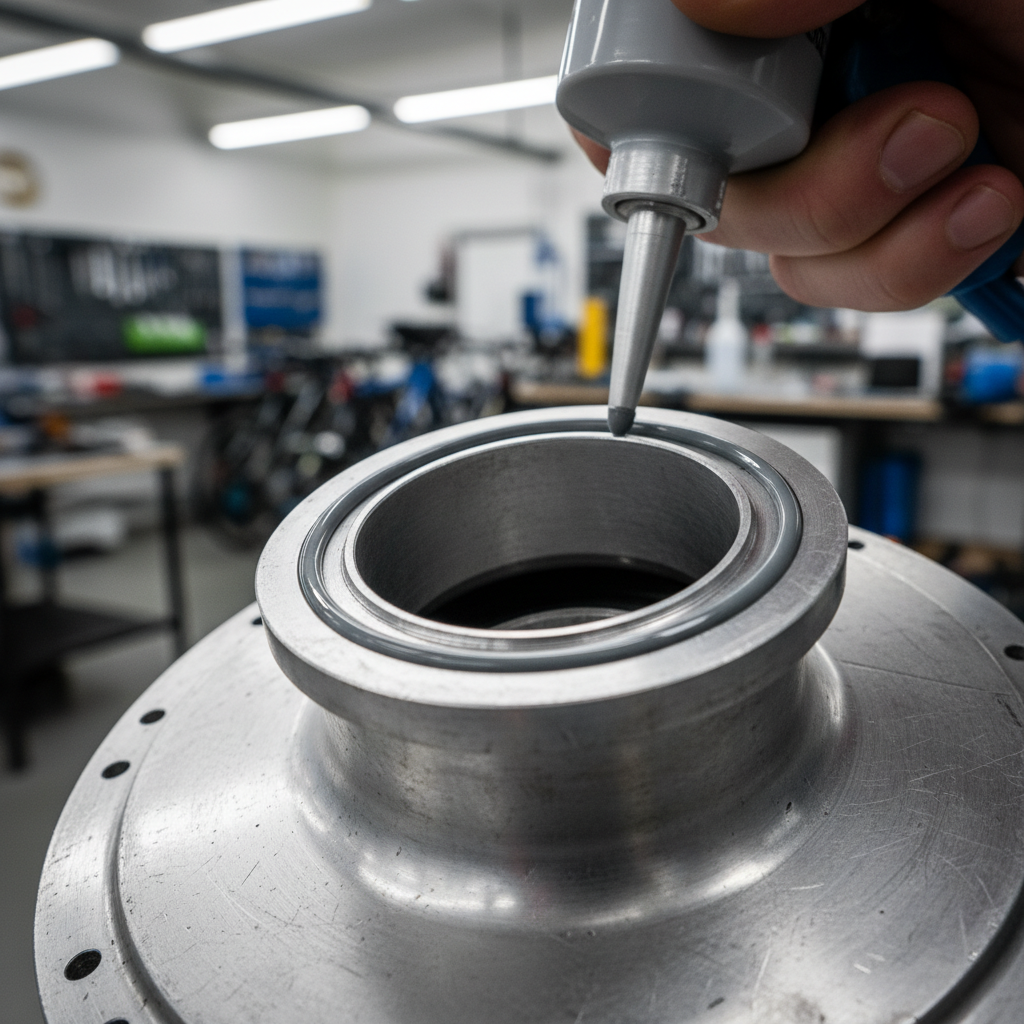

1. The Continuous Bead: Lay down a single, unbroken bead of 3mm to 4mm in diameter around the entire circumference. This volume is calculated to provide sufficient "squeeze-out" for a 5mm–8mm wide flange.
2. The Bolt Hole Loop: When you reach a bolt hole, circle the inside of the hole. This ensures that if water migrates down the bolt threads, it is blocked by the sealant before entering the motor cavity.
3. Thread Caution: We recommend applying a standard medium-strength thread locker (Blue) to the bolt threads rather than sealant. Sealant on threads can act as an unintended lubricant, leading to over-torquing.
4. The "Squeeze-Out" Check: As you tighten the bolts in a star pattern, look for a small, uniform amount of sealant "squeeze out" from the seam. This is a visual indicator of a complete seal.

Practitioner Observation: Applying too much sealant can be counterproductive. Excess sealant squeezed into the interior can break off and potentially interfere with planetary gears or hall sensors. Based on common patterns from customer support and warranty handling, a 3mm bead is generally the optimal balance.

Torque Sequences and Curing

Proper torque is vital for the seal to hold under mechanical stress.

1. Finger Tight: Tighten all bolts until the sealant just begins to squeeze out.
2. Final Torque: Wait 30–60 minutes for the sealant to "set," then perform the final torque (typically 5–8 Nm for M5/M6 casing bolts, based on general engineering standards for aluminum housings).

The Curing Timeline

While many RTV packages claim a 24-hour cure time, components undergoing extreme thermal cycling benefit from longer wait times. Mechanical field reports suggest that full chemical cross-linking for maximum resistance can take up to 7 to 14 days depending on humidity.

We recommend waiting at least 48 hours before the first ride. If the motor heats up too soon, the internal pressure can potentially blow a hole through the still-soft sealant.

Validation: DIY Testing Methods

To verify your seal without professional laboratory equipment, consider these two methods:

1. The Low-Pressure "Bubble" Test

Before re-installing the motor on the bike, you can perform a simple pressure test:

• Carefully apply a small amount of compressed air (no more than 2-3 PSI) through the cable exit or a vent hole if available.
• Brush a mixture of dish soap and water along the sealed seam.
• Success: No bubbles appear.
• Failure: Growing bubbles indicate a leak path that needs to be addressed.

2. The Hand-Axle Test (Initial Check)

Before the sealant fully cures, rotate the axle by hand. If you feel any new binding or "squishiness," it may indicate that excess sealant has entered the bearing area. In this case, it is safer to disassemble and clean again than to risk a seized motor.

Scenario Analysis: The All-Weather Commuter ROI

This model demonstrates the value of a meticulous sealing process for a user riding in wet climates (e.g., the Pacific Northwest).

Economic Impact: For this user, a failed seal resulting in a water-damaged motor can wipe out nearly 20% of their annual transportation savings. Note: This ROI model is a scenario-based estimate using 2024 AAA driving cost benchmarks for medium SUVs. Actual results vary based on local costs.

Safety and Compliance

When performing internal repairs, always keep safety at the forefront. The CPSC Recalls database lists various e-bike components that have failed due to water-induced short circuits.

Ensuring compliance with safety standards like UL 2849 is about maintaining that standard throughout the vehicle's life. As noted in industry discussions regarding E-Bike Market Compliance, the longevity of the industry relies on durable, repairable systems that users can trust.

Final Checklist for DIY Re-Sealing:

• [ ] Surfaces cleaned with 99% Isopropyl Alcohol?
• [ ] Old gasket material removed with a non-marring scraper?
• [ ] Continuous 3–4mm bead applied, circling the inside of bolt holes?
• [ ] Bolts tightened in a star pattern to 5–8 Nm?
• [ ] Minimum 48-hour cure time allowed before the first ride?

Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or electrical advice. E-bike repairs involve high-capacity batteries and complex electrical systems. Improper handling can result in fire, injury, or death. Always consult your owner's manual and consider having repairs performed by a certified technician. Ensure your e-bike complies with local regulations, such as those defined by the California DMV or New York DMV.
