Valve Stem Standards: Schrader vs. Presta for Fat Rims

The Critical Role of Valve Standards in Fat Tire E-Bikes

For the utility-focused e-bike rider, the choice between a Schrader and a Presta valve often seems like a minor detail relegated to the bicycle shop's inner tube aisle. However, when operating high-power (750W-1000W) fat tire e-bikes—vehicles that often bridge the gap between bicycles and light electric mopeds—this "minor detail" becomes a pivot point for structural integrity, maintenance costs, and operational safety.

Most factory-built fat tire e-bikes arrive with Schrader valves, the standard automotive interface found on every car tire in North America. Yet, as riders seek performance upgrades or tubeless conversions to handle rugged terrain and heavy cargo loads, they frequently encounter Presta valves. Understanding the mechanical differences between these two standards is essential for ensuring pump compatibility, preventing rim damage, and maintaining the 5–15 PSI (pounds per square inch) range critical for fat tire traction.

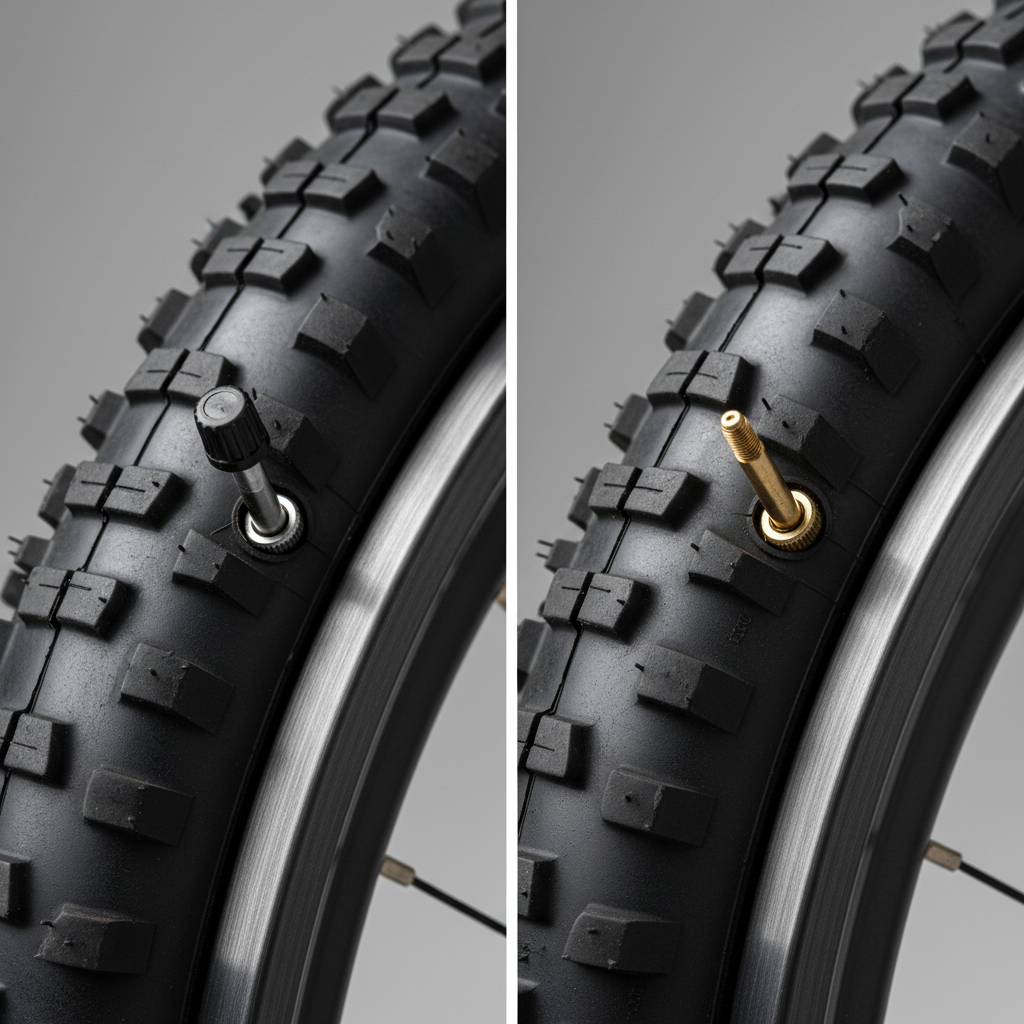

Technical Anatomy: Schrader vs. Presta

To the uninitiated, the most obvious difference is size. However, the engineering implications of these dimensions dictate how a wheelset handles the torque of a 1000W motor.

The Schrader Valve (Automotive Standard)

The Schrader valve is robust, featuring a broad diameter of approximately 8.5mm. It uses a spring-loaded internal pin that remains closed until depressed by a pump head or a pressure gauge.

• Hole Diameter: ~8.5mm.
• Mechanism: Internal spring-loaded check valve.
• Pros: Highly durable stem; universal compatibility with gas station air compressors.
• Cons: The internal spring can become a failure point in extreme cold or mud-clogged environments.

The Presta Valve (High-Performance Standard)

Commonly found on performance mountain bikes and high-end aftermarket fat rims, the Presta valve is significantly narrower, requiring only a 6.5mm hole. It lacks an internal spring, instead relying on a threaded locknut to seal the air pressure.

• Hole Diameter: ~6.5mm.
• Mechanism: Manual nut-lock system.
• Pros: Structurally superior for rims; easier to seal for tubeless setups.
• Cons: The slender stem is more prone to bending during aggressive pump attachment; requires a "Presta-to-Schrader" adapter for gas station use.

The Visual Identification Test

A quick visual check is often sufficient, but for precise compatibility, use a caliper or a drill bit as a gauge. According to common shop heuristics, a Schrader-drilled rim hole is roughly 8.5mm, while a Presta hole is about 6.5mm. If a Presta valve is installed in a Schrader-sized hole without a specialized grommet, the valve will shift under braking or acceleration, eventually causing a "shear failure" where the valve stem meets the inner tube.

Structural Integrity and Rim Engineering

A common misconception in the e-bike community is that "bigger is better" for durability. In the context of fat tire rims, which are already wide and often use thinner-walled alloys to manage weight, the size of the valve hole matters for structural longevity.

The "Smaller Hole" Advantage

Research into rim engineering suggests that a smaller Presta (6mm) hole is structurally superior because it removes less material from the bead seat area. On a 4-inch wide fat tire rim, maintaining the maximum amount of continuous metal is vital for resisting the impacts of "rim strikes"—those moments when a low-pressure tire bottoms out against a rock or curb. Removing 25% less material (the difference between 8.5mm and 6.5mm) helps preserve the rim's circular tension and impact resistance.

Manufacturing and Inventory Simplification

Why, then, do most budget-conscious e-bikes use Schrader? According to industry observations, the primary driver is manufacturing and inventory simplification. A single 8.5mm hole can accommodate both valve types if the consumer uses a rubber grommet or adapter. However, this often outsources the sealing and fit risk to the rider. As noted in The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the industry is moving toward more standardized, transparent component choices to reduce post-purchase support anxiety.

Performance in Low-Pressure Environments

Fat tire e-bikes are designed to operate at pressures that would be considered "flat" for a standard commuter bike. While a road bike might run at 80 PSI, a fat tire e-bike carrying a 220 lb rider often thrives at 10–15 PSI.

The Spring Failure Factor

Schrader valves rely on an internal spring to stay closed. In extreme utility applications—such as winter commuting in salt and slush or off-road hauling through deep mud—debris can enter the valve head. If the spring jams in the open position, the tire will lose pressure rapidly.

Conversely, the Presta valve’s lack of an internal spring eliminates this specific failure point. Because the valve is held closed by internal air pressure and a manual locknut, it is often more reliable in "dirty" environments where spring fatigue or grit ingress is a concern. This is why many practitioners prefer Presta for tubeless conversions; the integrated, threaded metal locknut provides a more adjustable and secure seal against the rim tape compared to the rubber snap-in bases often found on tubeless Schrader valves.

Maintenance, TCO, and Safety Considerations

For the value-conscious commuter, maintenance is a major component of the Total Cost of Ownership (TCO). In our scenario modeling for a heavy-duty utility user, we found that valve and tube issues are among the most frequent maintenance triggers.

The Gas Station Hazard

One of the most touted advantages of the Schrader valve is "gas station convenience." However, for fat tire users, this convenience is a significant safety hazard. Gas station air chucks are designed for high-volume automotive tires. Because fat tires have a massive air volume but a very low target pressure (typically ~10 PSI), a gas station compressor can over-inflate a tire to catastrophic levels in seconds.

According to the Consumer Reports: Electric Bikes Test Protocol, maintaining precise tire pressure is critical for braking and handling. Over-inflation can lead to tire blowouts or reduced contact patches, which are particularly dangerous on high-power Class 3 e-bikes. We recommend using a dedicated e-bike floor pump with a low-pressure gauge rather than relying on automotive equipment.

Maintenance Budgeting: A Quantitative Look

Based on our analysis of a "Heavy-Duty Utility Commuter" (220 lb rider, 50 lb cargo, 25-mile daily round trip), maintenance costs for a fat tire e-bike are typically higher than standard bicycles.

Logic Summary: These figures are derived from a scenario model of a high-power fat tire e-bike (e.g., 1000W motor) used for daily heavy-duty commuting. The $600 budget reflects the reality that utility users often face more frequent "wear and tear" issues compared to recreational riders.

Safety Standards and Compliance

When replacing tubes or rims, ensure all components meet safety benchmarks. The UL 2849 Standard for Electrical Systems for eBikes focuses on electrical safety, but the mechanical integrity of the wheelset is just as vital. Furthermore, the CPSC Recalls & Product Safety Warnings database frequently cites wheel and tire failures as a primary cause of e-bike accidents. Always inspect your valve stems for "leaning"—a sign that the tube is slipping inside the tire, which can lead to an instant flat.

Field Repairs and Tool Requirements

Self-reliance is a hallmark of the utility e-bike community. To avoid being stranded during a 25-mile commute, you must carry the correct tools for your specific valve standard.

1. Valve Core Tool: Schrader valve cores are standardized with automotive types. Carrying a small core tool allows you to tighten a leaky valve or replace a clogged core in seconds.
2. Spare Cores: These are a frequent point of failure. Keep two spare cores in your saddlebag.
3. Valve Stem Length: Fat tire rims, especially double-walled or deep-section models, require longer valve stems. If your stem is too short, the pump head will not be able to "bite" onto the valve. For most fat rims, a 40mm to 48mm stem is the baseline; anything shorter may require a valve extender.
4. Adapters: If you have Presta valves, always keep a brass Schrader adapter threaded onto one of the valves. This ensures you can use a standard pump in an emergency.

Method & Assumptions (Modeling Disclosure)

The data regarding maintenance costs and range impact in this article is based on a deterministic scenario model rather than a controlled laboratory study.

• Model Type: Utility Commuter TCO & Range Sensitivity Analysis.
• Key Assumptions:
  • Rider + Cargo Weight: 270 lb total.
  • Daily Distance: 25 miles (round trip).
  • Motor Output: 1000W peak, 750W sustained.
  • Tire Spec: 20" or 24" x 4.0" fat tires.
  • Surface: Mixed pavement and light gravel.
• Boundary Conditions: This model applies to heavy-duty utility use. Results for lightweight recreational riders (<160 lb) will show significantly lower maintenance costs and higher battery longevity.
• Battery Amortization: Based on an 80% Depth of Discharge (DoD) cycle, assuming ~700 cycles before 80% capacity retention (aligned with standard lithium-ion behavior).

Summary Checklist for Riders

To ensure your wheelset remains reliable, follow this maintenance heuristic:

• Identify: Measure your rim hole. If it’s 8.5mm, use Schrader tubes. If you must use Presta in an 8.5mm hole, use a rim nut or grommet to prevent stem shear.
• Pressure Check: Use a dedicated low-pressure gauge. For commuting on pavement with heavy loads, 20–25 PSI is often optimal for range; for off-road/snow, drop to 8–12 PSI.
• Inspect: Look for "valve creep." If the valve is not perfectly perpendicular to the rim, deflate the tire, realign the tube, and re-inflate.
• Safety First: Refer to the California DMV Two-Wheeled Vehicle Operation or your local New York DMV Class Definitions to ensure your high-power e-bike remains compliant with local path and road laws.

Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or legal advice. E-bike maintenance involves high-torque components and pressurized systems; if you are unsure of your repair skills, consult a certified bicycle mechanic. Always follow the safety guidelines provided by the manufacturer and relevant regulatory bodies like the CPSC.
