Securing Chainring Bolts Against Motor Vibration
The Mechanical Reality of High-Torque Drivetrains
For owners of high-performance utility e-bikes, particularly those equipped with 750W or 1000W peak geared hub motors, the drivetrain is subject to forces far exceeding those of traditional bicycles. While a human rider might peak at 200–400 Watts of intermittent power, a modern electric motor delivers sustained, high-frequency torque directly to the chainring. This constant mechanical stress, combined with payloads that can reach 400 lbs, creates a specific vulnerability: the loosening of chainring bolts.
Mechanical failure in this area is not merely a nuisance; it is a safety hazard. A loose bolt can lead to chainring deformation, dropped chains, or even catastrophic failure of the aluminum crankarm. Based on patterns observed in technical support and warranty repairs, the leading cause of these issues is not a lack of initial tightness, but rather the phenomenon of vibration-induced loosening.
Understanding Vibration-Induced Loosening and Fretting
The primary enemy of a secure fastener in an e-bike application is high-frequency vibration. Research into vibration monitoring sensors indicates that electric motors can generate frequencies in the range of 10 to 12,000 Hz. These micro-vibrations cause a process known as "fretting," where the small movements between the bolt head and the chainring surface gradually wear down the material, reducing the clamping force (preload).
One of the most reliable visual indicators of this process is the appearance of a black, greasy residue weeping from the bolt head. This is often mistaken for excess lubricant, but it is actually fretting corrosion—fine metallic particles mixed with moisture or oil. If you see this residue on your 750W fat tire model, it is a definitive sign that the joint is losing its integrity.
The Physics of Preload Loss
When a bolt is tightened, it acts like a stiff spring, stretching slightly to pull the components together. This "preload" creates friction between the threads that prevents them from turning. In high-torque applications, the torsional forces from the motor combined with the radial forces of a heavy payload (up to 400 lbs) can overcome this friction.
According to the Light Electric Vehicle Association (LEVA), maintaining technical standards across the drivetrain is critical as e-bikes move toward higher power outputs. Without proper securing mechanisms, the high-frequency vibration from the hub motor acts as a "liquidizer" for the friction holding the bolt in place.
The Threadlocker Controversy: Anaerobic Adhesives and Aluminum
A common recommendation in the cycling world is to use anaerobic threadlockers (such as Loctite) on every bolt. However, for e-bikes with aluminum crankarms, this requires nuance. While Loctite's own data suggests threadlockers are superior to traditional spring washers for preventing loosening, there is a technical risk of stress corrosion cracking (SCC) when certain chemicals interact with specific aluminum alloys under high vibration.
Furthermore, factory-applied threadlocker is often "one-time use." Once a bolt is loosened for maintenance, the chemical bond is shattered. Reinstalling the bolt without cleaning and reapplying a fresh compound provides a false sense of security.
The Serrated Washer Solution
For heavy-duty utility bikes, a mechanical lock is often more reliable than a chemical one alone. Many experienced mechanics prefer serrated washers or Nord-Lock systems. These create a physical wedge that increases the force required to loosen the bolt beyond the force used to tighten it. Replacing a standard $0.50 washer with a high-quality serrated version is one of the most cost-effective upgrades for a high-torque drivetrain.
Modeling the Heavy-Duty Utility Scenario
To understand the scale of the forces at play, we modeled a "Heavy-Duty Utility User" scenario. This represents the upper limit of stress on chainring hardware.
Method & Assumptions
This is a scenario model based on standard physics and manufacturer specifications, not a controlled laboratory study. We assumed a 750W motor operating at peak efficiency on a 6% incline.
| Parameter | Value or Range | Unit | Rationale / Source Category |
|---|---|---|---|
| Motor Peak Output | 750 - 1000 | W | Marsantsx Technical Specs |
| Total System Weight | 400 | lbs | Max Payload Capacity |
| Vibration Spectrum | 10 - 12,000 | Hz | Renkeer Sensor Data |
| Chainring Bolt Spec | M5 | - | Standard Componentry |
| Estimated Torque Load | 80 - 100 | Nm | Calculated drivetrain stress |
Logic Summary: Our analysis assumes that at a 400 lb payload, the drivetrain must transmit nearly 100 Nm of torque to maintain momentum on an incline. This load profile is fundamentally different from human pedaling, which is why Is Your Drivetrain Tough Enough for Off-Road Torque? is a critical question for owners to address.
Step-by-Step Guide to Securing Chainring Bolts
Proper maintenance of chainring bolts on a high-power e-bike requires more than just a hex key. Follow this professional workflow to ensure a long-term hold.
1. Inspection and Degreasing
Before tightening, you must remove the bolts entirely. Use a high-quality degreaser to clean both the bolt threads and the internal threads of the crankarm. Any residual oil or factory grease will prevent threadlocking compounds from bonding and will reduce the effective friction of the joint.
2. Inspect for Wear
Check the serrated underside of the bolt head. If the serrations are flattened, the bolt will no longer "bite" into the chainring, making it prone to loosening even if torqued correctly. In our experience with high-vibration 750W motors, replacing these bolts every 1,000 miles is a cheap insurance policy against crankarm damage.
3. Application of Threadlocker
If using a medium-strength (blue) threadlocker, apply a single drop to the leading threads. Do not coat the entire bolt. For aluminum crankarms, ensure the product is specifically rated for non-ferrous metals to avoid galvanic corrosion.

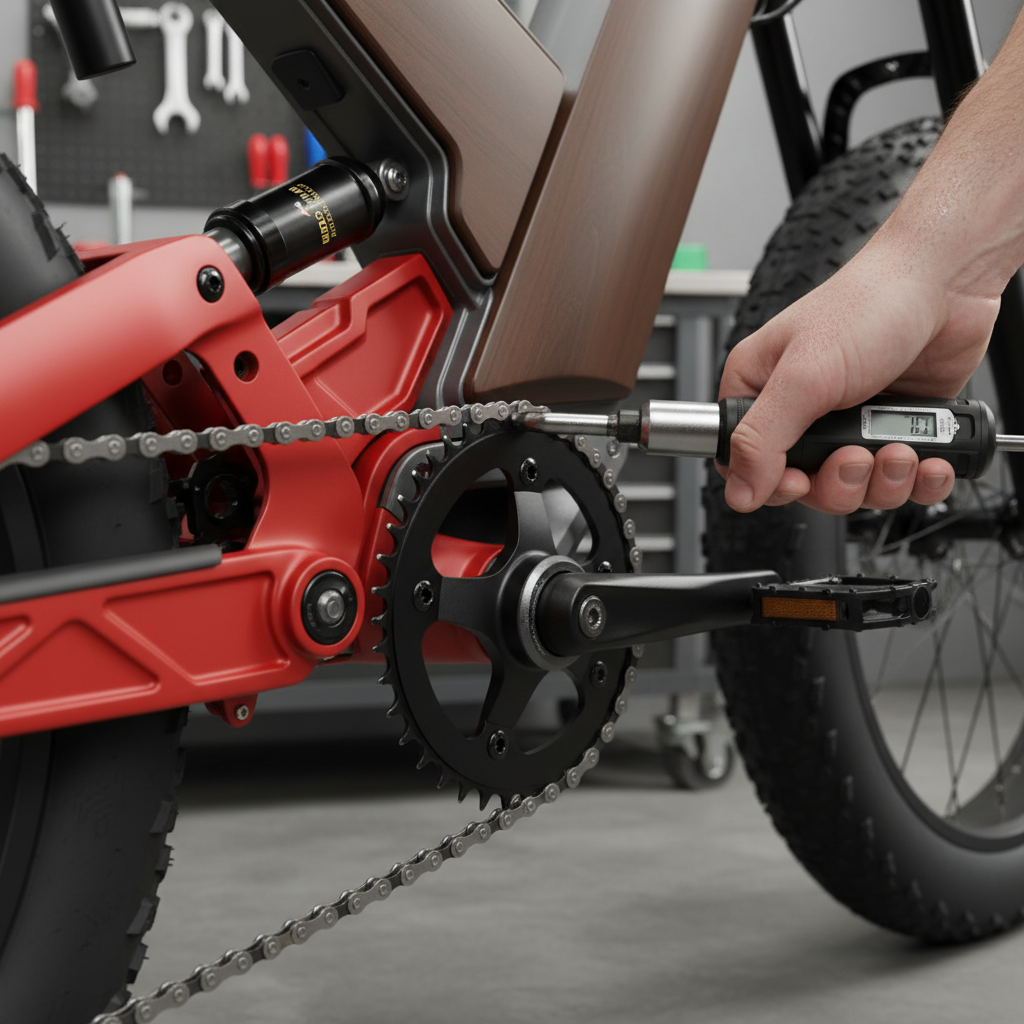

4. Precision Torquing
Using a calibrated torque wrench is non-negotiable. For M5 chainring bolts, the standard spec is typically 8–10 Nm, but always refer to the specific markings on your hardware.
- The "Feel" Trap: Do not trust your hand. Over-tightening an M5 bolt into an aluminum crankarm is the most common cause of stripped threads, which usually requires a full crankset replacement.
- The Click: Once the torque wrench clicks, stop immediately.
5. The 24-Hour Cure
This is the step most riders skip. Anaerobic threadlockers require time to cure in the absence of air. Riding the bike immediately after application allows motor vibrations to disrupt the chemical bond before it hardens. For a "non-negotiable" long-term hold, allow the bike to sit for a full 24 hours before your next commute.
Safety Standards and Compliance: Why It Matters
The importance of drivetrain integrity is reflected in international safety standards. The UL 2849 Standard for Electrical Systems for eBikes focuses heavily on the integration of electrical and mechanical systems. While UL 2849 primarily addresses battery and motor safety, a mechanical failure in the drivetrain can lead to electrical overstress if the motor attempts to compensate for a slipping chain or jammed chainring.
Furthermore, the CPSC Recalls & Product Safety Warnings database frequently lists e-bikes with structural failures. Many of these stem from fasteners that were not designed to handle the specific harmonic frequencies of electric motors. Maintaining your bolts isn't just about preventing "creaks"—it's about keeping your vehicle compliant with the safety expectations of agencies like the NHTSA.
The 100-Mile Rule
New e-bikes go through a "settling" period. As the paint and metal surfaces under the bolt heads compress, the initial preload naturally drops. We recommend a "Post-100-Mile Check" for all new 750W/1000W models. For a detailed breakdown of this process, see our guide on How to Torque E-Bike Bolts After Your First 100 Miles.
Heuristics for Long-Term Reliability
If you find that your bolts continue to loosen despite proper torque and threadlocker, consider these shop-tested heuristics:
- The "Clean and Dry" Rule: If there is any grease on the bolt face (where it touches the chainring), the bolt will likely loosen. This interface relies on dry friction.
- The Replacement Heuristic: If a bolt has loosened three times, the threads are likely stretched or the serrations are gone. Replace the bolt and the nut as a pair.
- Visual Marking: After torquing, use a "paint pen" or "witness mark" across the bolt head and the chainring. This allows for a 5-second visual pre-ride check to see if any bolt has rotated.
Industry Evolution and Radical Transparency
As the industry matures, the focus is shifting from "spec wars" to long-term reliability. According to the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, manufacturers are increasingly being held accountable for the "total cost of ownership" and mechanical durability. Ensuring that small components like chainring bolts can withstand the rigors of 400 lb payloads is a hallmark of this new era of transparency.
By treating your e-bike’s drivetrain as a high-performance machine rather than a standard bicycle, you ensure that the 750W of power at your thumb remains a tool for utility rather than a source of mechanical frustration.
Disclaimer: This article is for informational purposes only and does not constitute professional mechanical advice. Drivetrain maintenance involves safety-critical components; if you are unsure of your ability to perform these tasks, consult a certified e-bike technician. Improperly secured bolts can lead to serious injury or death.
