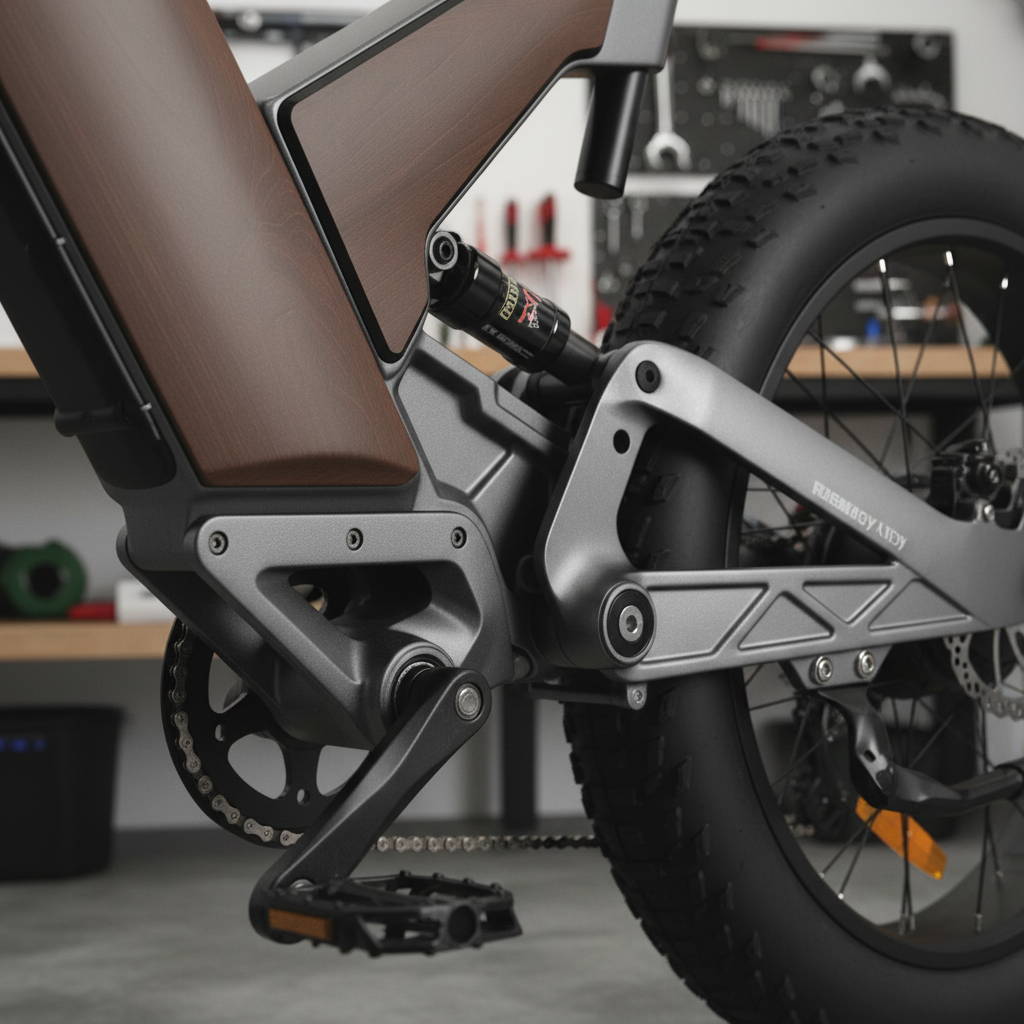

Inspecting Shock Mounting Hardware for Shear Stress Signs
The Critical Physics of a 400 lb Payload
Operating a high-capacity electric bike as a car replacement involves more than just managing battery range; it requires an understanding of the structural forces at play. When a vehicle is rated for a 400 lb (approx. 181 kg) total payload, the rear suspension system becomes the primary focal point for mechanical stress. Specifically, the shock mounting hardware—the bolts and bushings that secure the rear shock to the frame—must withstand massive shear forces.
Shear stress occurs when unaligned forces push one part of a body in one specific direction and another part of the body in the opposite direction. On an e-bike, this happens as the rear swingarm moves upward while the frame remains relatively stable, effectively trying to "slice" the mounting bolt. In our scenario modeling for a 250 lb rider carrying 150 lb of cargo on a 6% grade, we found that the system requires approximately 1,419W of total power. Notably, ~872W (61%) of that power is dedicated solely to overcoming gravity and climbing forces, which translates directly into cyclic loading on the suspension hardware.
For riders using Class 2 (throttle-assisted up to 20 mph) or Class 3 (pedal-assist up to 28 mph) e-bikes, these forces are not just theoretical. They are the leading indicators of hardware fatigue.
Why Visual Inspection Often Fails
A common misconception among pragmatic riders is that a quick visual check with a flashlight is sufficient to ensure safety. However, data from non-destructive testing (NDT) in high-stress industries suggests that visual inspection alone misses 80-90% of early-stage fatigue cracks. These microscopic fractures often initiate below the surface or within the thread interface of the bolt, becoming visible only after catastrophic propagation has already begun.
According to research on non-destructive testing of high-load structures, shear stress failures are insidious. In e-bike frames, the inner sleeve or bushing of a pivot can wear down, elongating the bolt hole. This creates a "gap" that allows the bolt to vibrate and hammer against the frame, accelerating the fatigue cycle. By the time a bolt shows visible bending (bowing), it has likely already exceeded its elastic limit and is nearing a total shear failure.
Logic Summary: Our analysis assumes that heavy-duty utility riders subject their hardware to 5x the typical energy consumption of a recreational rider (~118 Wh/mile vs. 25 Wh/mile). This intensity necessitates moving beyond visual checks to more rigorous physical diagnostics.
Field Heuristics: The "Click" Test and Straightedge Method
Since most riders do not have access to ultrasonic testing equipment, we recommend two professional field heuristics to detect hardware degradation before it leads to a frame-damaging event.
1. The Audible "Click" Test
This is a sensory diagnostic used by experienced mechanics to identify "play" in the hardware.
- Stand next to the bike and apply the rear brake firmly.
- Place your fingers lightly over the junction where the shock meets the frame.
- Gently lift the bike by the seat post and then press down.
- If you feel a metallic "thunk" or hear a sharp "click," it indicates that the mounting bolt or bushing has worn down, creating a gap. This gap allows the hardware to experience "impact loading" rather than smooth shear, which can snap a bolt instantly under a heavy load.
2. The Precision Straightedge Method
Visual parallax often makes it difficult to see if a bolt is slightly bent while it is installed.
- Remove the mounting bolt entirely during a major service interval (every 500 miles for cargo users).
- Clean the bolt shank (the unthreaded part) of all grease.
- Place a precision metal straightedge (or the edge of a steel ruler) along the length of the shank under a bright light.
- Look for "daylight" between the straightedge and the bolt. Any detectable bowing is a sign of permanent deformation. In high-capacity applications, a bent bolt must be replaced immediately; it cannot be straightened.
The Role of Torque and UL 2849 Standards
Safety in the e-bike industry is increasingly governed by rigorous standards like UL 2849, which covers the electrical system but also implies a standard of structural integrity for the entire vehicle. Proper fastener maintenance is a cornerstone of this reliability.
A common mistake is over-tightening bolts in an attempt to "make them safer." However, physics dictates that over-torquing creates high preload stresses. When these preloads combine with the operational shear stress of a 400 lb load, the material can exceed its tensile strength. Conversely, under-torqued bolts allow the joint to move, leading to "fretting fatigue"—a process where the surfaces rub together and create abrasive debris that eats away at the hardware.
Recommended Torque Protocol:
- Initial Check: Re-torque all shock and pivot hardware after the first 50 miles of riding. Fasteners often "settle" into the frame material during the initial break-in period.
- Calibration: Always use a calibrated torque wrench. For most rear shock bolts, the specification is between 10–15 Nm (Newton-meters), but you must verify the exact spec in your manufacturer’s manual.
- Pivot Focus: Do not ignore the lower pivot hardware. While the main shock bolt is easy to see, the lower pivots often see higher cyclic loading and are more susceptible to dirt ingestion.
Material Science: PREN and Stress Corrosion
For riders in coastal regions or those who commute on salted winter roads, the material of the bolt is just as important as the torque. Chloride-induced Stress Corrosion Cracking (SCC) can weaken a bolt from the inside out.
Industry standards for coastal hardware use the Pitting Resistance Equivalent Number (PREN) to determine longevity. Hardware with a PREN lower than 24.1 has been observed to have a 4.8x shorter lifespan in corrosive environments. If you reside within 5 miles of the ocean, we recommend upgrading your mounting hardware to 316-grade stainless steel or bolts with specialized anti-corrosion coatings to prevent SCC-induced shear failure.
Modeling the Maintenance Cadence
Based on our Terrain Mastery Range Predictor, a heavy cargo e-bike operating at peak capacity will likely require a battery replacement every 2,600 to 3,900 miles due to high depth-of-discharge (DoD) cycles. We suggest using this battery lifecycle as a macro-cadence for structural overhauls.
| Inspection Type | Frequency (Heavy Load) | Tool Required |
|---|---|---|
| Torque Verification | Every 500 miles | Calibrated Torque Wrench |
| Audible "Click" Test | Weekly | Hands/Ears |
| Pivot Bolt Removal/Straightedge | Every 1,000 miles | Hex Keys + Straightedge |
| Full Bushing Replacement | Every 2,500 miles | Press Tool |
As noted in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the era of "set it and forget it" maintenance is ending for utility e-bikes. Authoritative transparency regarding hardware limits is now a requirement for safe operation.
Local Regulations and Safety Compliance
Riders must also stay aware of local legal requirements that impact how these heavy vehicles are operated. For instance, the California DMV and the New York DMV have specific definitions for Class 3 e-bikes, often requiring helmets and prohibiting use on certain multi-use paths. Operating a vehicle with compromised shock hardware at Class 3 speeds (28 mph) significantly increases the risk of a high-speed wobble or frame failure, which could lead to legal liability if the vehicle was not maintained according to professional standards.
Furthermore, the CPSC Recalls database frequently lists e-bikes for structural failures. Regularly checking your model against these federal safety warnings is a critical step in a professional maintenance routine.
Methodology and Assumptions
To provide these recommendations, we utilized scenario modeling to simulate the stresses on a high-capacity utility e-bike. This is a deterministic model, not a controlled lab study, intended to provide a "worst-case" safety baseline.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Total Payload | 400 | lb | Maximum rated capacity for heavy-duty ebikes |
| Speed | 15 | mph | Steady-state cargo transit speed |
| Terrain | Gravel | N/A | High vibration environment for shock loading |
| Climbing Grade | 6 | % | Standard urban hill stress test |
| Climbing Power | 872 | W | Calculated force acting on suspension pivots |
Boundary Conditions:
- This model assumes steady-state operation; impact loads (hitting potholes) can spike shear forces by 300-500% momentarily.
- Calculations are based on fat-tire rolling resistance coefficients (Crr) consistent with all-terrain hybrid mountain bikes.
- Fatigue life estimates (S-N curve) assume standard 8.8 or 10.9 grade steel fasteners.
Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or legal advice. Always consult your e-bike’s manufacturer manual for specific torque values and maintenance intervals. If you are unsure of your ability to perform these inspections, take your vehicle to a certified e-bike mechanic. Riding a vehicle with damaged structural hardware can lead to serious injury or death.
