Solar Charging for E-Bikes: An Off-Grid Power Guide

Is Solar Charging for E-Bikes Realistic?

For the ultimate in backcountry autonomy, solar power is the answer. This guide explores the feasibility, equipment, and techniques for charging your e-bike battery using portable solar panels on a multi-day expedition. But first, it's crucial to set realistic expectations.

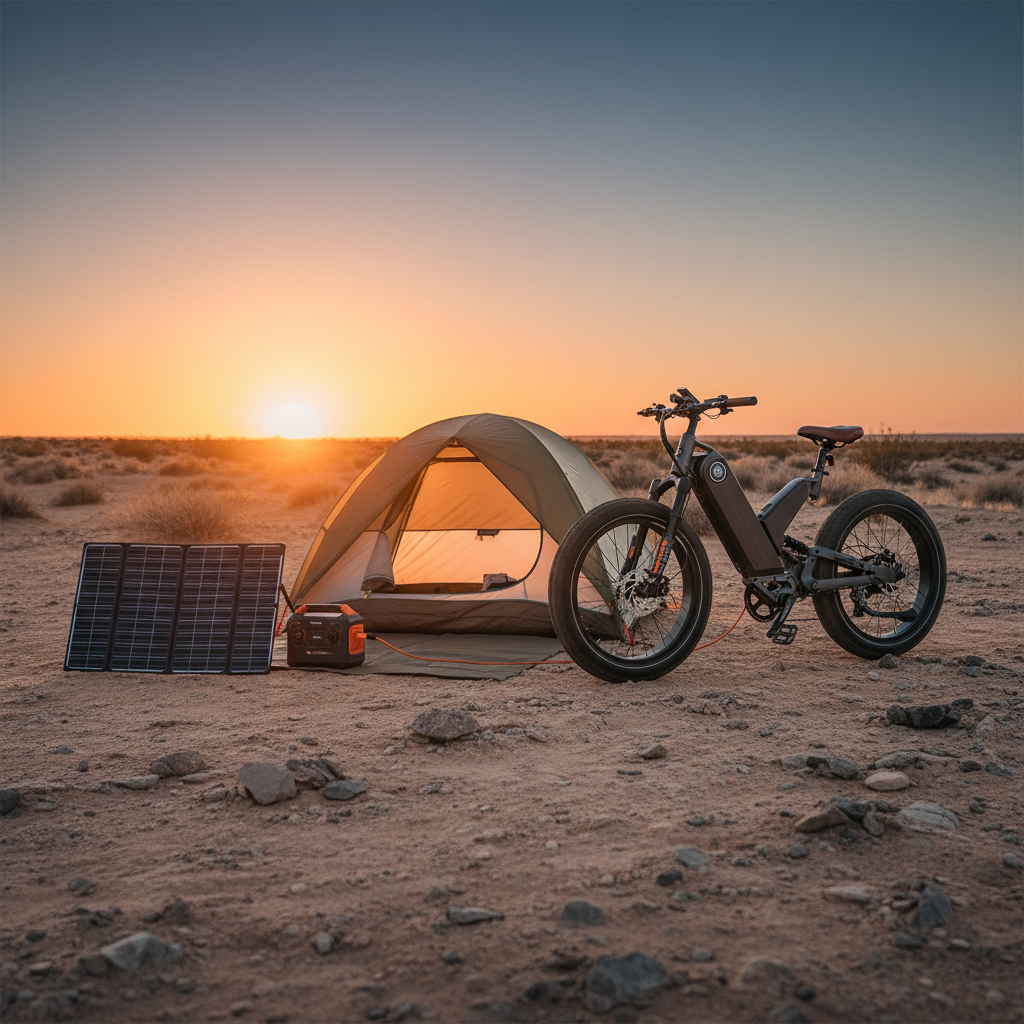

A common misconception is the idea of charging your e-bike while riding with panels mounted on a rack. The power output from portable panels is simply too low to offset the energy consumption of a moving e-bike motor. The practical and effective approach is to use solar panels as a campsite charging solution—a way to replenish your battery over several hours of stationary sunlight.

The key to understanding solar charging is to stop thinking in Watts and start thinking in Watt-hours (Wh). A Watt is a measure of instantaneous power, while a Watt-hour measures energy over time. Your e-bike battery has a capacity measured in Wh (e.g., 720 Wh), and your goal is to use solar panels to generate enough Watt-hours to refill it.

Sizing Your Solar System: A Step-by-Step Calculation

Properly sizing your system is the most critical step. Undersizing your setup will leave you with a partially charged battery and frustration, while oversizing it means carrying unnecessary weight. Here’s how to calculate your needs based on real-world conditions.

Step 1: Determine Your Daily Energy Need (Wh)

First, determine how many Watt-hours you consume on a typical day of riding. You can find this by checking your battery's specifications (Voltage x Amp-hours = Watt-hours) and estimating your daily usage.

For example, if you have a 48V 15Ah battery, its total capacity is 720 Wh. If a long day of riding in the backcountry consumes 75% of your battery, your daily energy need is:

• 720 Wh (Total Capacity) x 0.75 (Usage) = 540 Wh

This 540 Wh is the target amount of energy you need your solar panels to generate each day.

Step 2: Account for Real-World Inefficiencies

This is where many calculations go wrong. A 100-watt solar panel does not deliver 100 watts of power to your battery. You must account for significant energy loss from various factors. Field testing consistently shows an end-to-end efficiency loss of 25-35%.

These losses come from:

• Panel Angle & Dust: A panel laid flat on the ground can lose 10-20% of its potential output compared to one perfectly angled at the sun. Dust and dirt also block light.
• Heat: Solar panels become less efficient as they get hotter. A hot panel in direct desert sun can lose another 10-15% of its output.
• Charge Controller: The MPPT charge controller that regulates power is not 100% efficient.
• Battery Chemistry: The battery itself loses some energy as heat during charging.

To be safe, add a 1.5x multiplier to your daily energy need to create a buffer for these inefficiencies and the occasional cloudy day.

• 540 Wh (Energy Need) x 1.5 (Loss Factor) = 810 Wh

This is your realistic daily generation target.

Step 3: Calculate Required Panel Wattage

Finally, divide your realistic target by the number of "peak sun hours" you expect to get per day. A peak sun hour is an hour during which the sun's intensity averages 1,000 watts per square meter. In most of the U.S. during summer, you can realistically expect 4-5 peak sun hours per day.

• 810 Wh (Adjusted Target) / 5 Peak Sun Hours = 162 Watts

This means you would need approximately 160-200W of solar panels to reliably recharge 75% of a 720 Wh battery each day. This calculation is a fundamental part of planning your first e-bike bikepacking trip.

Essential Components of an Off-Grid Charging System

A reliable off-grid charging setup involves more than just a solar panel. Each component plays a critical role in safety and efficiency.

Solar Panels

Choose high-efficiency monocrystalline panels, as they offer the best performance-to-weight ratio, which is crucial for bikepacking. Look for foldable, portable models designed for camping. Remember that panel placement is key; always angle them directly towards the sun and ensure they have some airflow underneath to help dissipate heat.

The Charge Controller: The Brains of the Operation

This is the most important safety component. You must never connect a solar panel directly to your e-bike battery. A panel's voltage fluctuates wildly with sunlight, and connecting it directly can destroy your battery's sensitive Battery Management System (BMS) and create a significant fire hazard.

An MPPT (Maximum Power Point Tracking) charge controller is essential. It sits between the panels and the battery, regulating the voltage and current to ensure a safe, efficient charge. It intelligently matches the panel's output to the battery's needs, maximizing the energy harvested.

Power Station vs. Direct DC Setup

You have two primary options for structuring your system. For the vast majority of users, a portable power station is the simpler and safer choice.

If you choose a power station, ensure it has a continuous AC output of at least 500W to handle your e-bike charger and a capacity large enough to hold a significant charge.

Cables, Connectors, and Fuses

Your system is only as strong as its weakest link. Connectors and wiring are common failure points in the field. Use heavy-gauge wires to minimize power loss and invest in high-quality, waterproof connectors with at least an IP65 rating. Every system must also have an inline fuse on the positive wire between the charge controller and the battery, sized to protect against short circuits.

Field-Tested Best Practices and Safety

Building a solar charging system requires a commitment to safety. The energy stored in an e-bike battery is substantial, and mishandling it can have serious consequences.

The Golden Rule: Never Bypass the BMS

The Battery Management System (BMS) is the circuit board inside your battery pack that protects the lithium-ion cells from overcharging, over-discharging, and short circuits. Any charging method that bypasses the BMS is extremely dangerous and drastically increases the risk of thermal runaway—a catastrophic battery fire. Using your bike's original charger, powered by a quality power station, is the surest way to respect the BMS. This is why safety standards like UL 2849 for eBike Electrical Systems are so critical; they ensure the entire system—battery, charger, and controller—works together safely.

Pre-Trip System Testing

Never take an untested solar setup on a multi-day trip. Assemble your entire system at home and test it for at least two full days.

1. Drain your e-bike battery to the level you'd expect after a day's ride.
2. Set up your panels and charging system.
3. Measure the time it takes to recharge the battery fully.
4. Track the Watt-hours delivered using a power meter.
5. Practice setting it up and taking it down under different conditions, like partial sun, to understand its limitations.

This process helps you identify any weak points and gives you a realistic understanding of your system's performance before you have to depend on it. Proper testing is a core part of maintaining your high-power e-bike for peak performance.

Battery Safety and Thermal Runaway

Lithium-ion battery safety should always be a priority. As detailed in studies on thermal runaway by organizations like the SAE and IEEE, factors like overcharging and external heat can lead to catastrophic failure. Always charge your battery in a shaded, ventilated area away from flammable materials. If a battery ever shows signs of swelling, damage, or overheating, disconnect it immediately and isolate it in a safe place.

Wrapping Up: Key Takeaways for Off-Grid Power

Successfully harnessing solar power for your e-bike unlocks a new level of freedom for backcountry adventures. It transforms your bike from a vehicle with a limited range into a truly sustainable exploration tool.

Remember these key principles:

• Plan with Watt-Hours: Base all your calculations on the Watt-hour capacity of your battery and your daily energy consumption.
• Oversize for Reality: Always factor in a significant buffer (at least 1.5x) to account for real-world inefficiencies like heat, panel angle, and weather.
• Prioritize Safety: Never connect a panel directly to a battery. Use a quality MPPT charge controller or, for most users, a portable power station with your bike's original charger.
• Test Everything: A thorough test run at home is not optional. It is the only way to verify your system's performance and reliability before you venture off-grid.

Frequently Asked Questions (FAQ)

Can I charge my e-bike directly from a solar panel?

No. This is unsafe and ineffective. You must use a charge controller (preferably MPPT) or a portable power station to regulate the voltage and current delivered to your e-bike's battery.

How long will it take to charge my battery with solar?

This depends entirely on your battery's size (in Wh), the wattage of your solar panels, and the amount of direct sunlight. A typical setup (e.g., 160W of panels charging a 720 Wh battery) will likely take a full day of strong, consistent sunlight (5-6 hours) to go from nearly empty to full.

What is a BMS and why is it important?

BMS stands for Battery Management System. It's an electronic circuit built into your battery pack that protects the lithium-ion cells from damage by preventing over-charging, over-discharging, overheating, and short-circuiting. It is a critical safety feature that should never be bypassed.

Disclaimer: This article is for informational purposes only. Working with electricity and lithium-ion batteries carries inherent risks. Always consult with a qualified professional if you are unsure about any aspect of designing or building an electrical system. Follow all manufacturer safety guidelines for your e-bike, battery, and charging components.
