Heat and Plastic: Preventing Gear Deformation in Summer

The Hidden Vulnerability of High-Power Hub Motors

For the pragmatic e-bike owner, a high-output hub motor is the heart of daily utility. Whether you are hauling groceries, commuting to a job site, or navigating steep urban inclines, you rely on that motor to provide consistent torque (Nm, or Newton-meters, a measure of rotational force). However, as summer temperatures soar, a hidden mechanical vulnerability comes into play: the internal planetary gears.

Most geared hub motors used in Class 2 (throttle-assisted up to 20 mph) and Class 3 (pedal-assist up to 28 mph) e-bikes utilize nylon planetary gears. These components are chosen for their lightweight properties, low noise, and ability to handle moderate shock loads without the need for heavy oil baths. While efficient, these thermoplastics have a specific thermal threshold. When internal temperatures exceed 80°C (176°F), the material properties of the nylon begin to shift.

In this guide, we examine the mechanics of heat deformation, the specific risks of heavy utility use in summer, and the practical steps you can take to ensure your motor survives the season.

The Science of Softening: Why Nylon Fails in Heat

To understand why your motor might "slip" or fail during a heatwave, we must look at the material science of the gears. Most manufacturers use Nylon 6/6 or Polyoxymethylene (POM, also known as Acetal). According to technical data from Professional Plastics, Nylon 6/6 has a continuous use temperature of approximately 100°C (212°F). However, this is for the material in a static state.

The critical metric for e-bike riders is the Heat Deflection Temperature (HDT). This is the temperature at which a plastic material deforms under a specific load. For unfilled Nylon 6/6, the HDT at 1.8 MPa (megapascals of pressure) typically ranges between 75°C and 90°C (167°F to 194°F).

The Glass Transition Phase

Before nylon reaches its melting point, it passes through a glass transition range—typically between 50°C and 80°C (122°F to 176°F). In this range, the polymer chains gain mobility, and the material transitions from a rigid, "glassy" state to a more compliant, "rubbery" state. As noted in research by TA Instruments, mechanical load and temperature act synergistically. A gear that can easily handle 80 Nm of torque at room temperature may suffer "creep deformation" (slow, permanent shape change) under the same load at 70°C.

When the gear teeth soften, the extreme pressure of the motor's sun gear causes the nylon teeth to "round off" or deform. Once the teeth lose their precise involute profile, they can no longer mesh correctly, leading to skipping, chattering, or a total "stripped" gear failure where the motor spins but the wheel does not move.

Modeling Thermal Stress: The Heavy Utility Scenario

To demonstrate how easily a motor can reach these critical temperatures, we modeled a common real-world scenario. This analysis represents a "heavy utility" user—someone who depends on their e-bike for practical transportation rather than leisure.

Scenario: The 8% Grade Climb

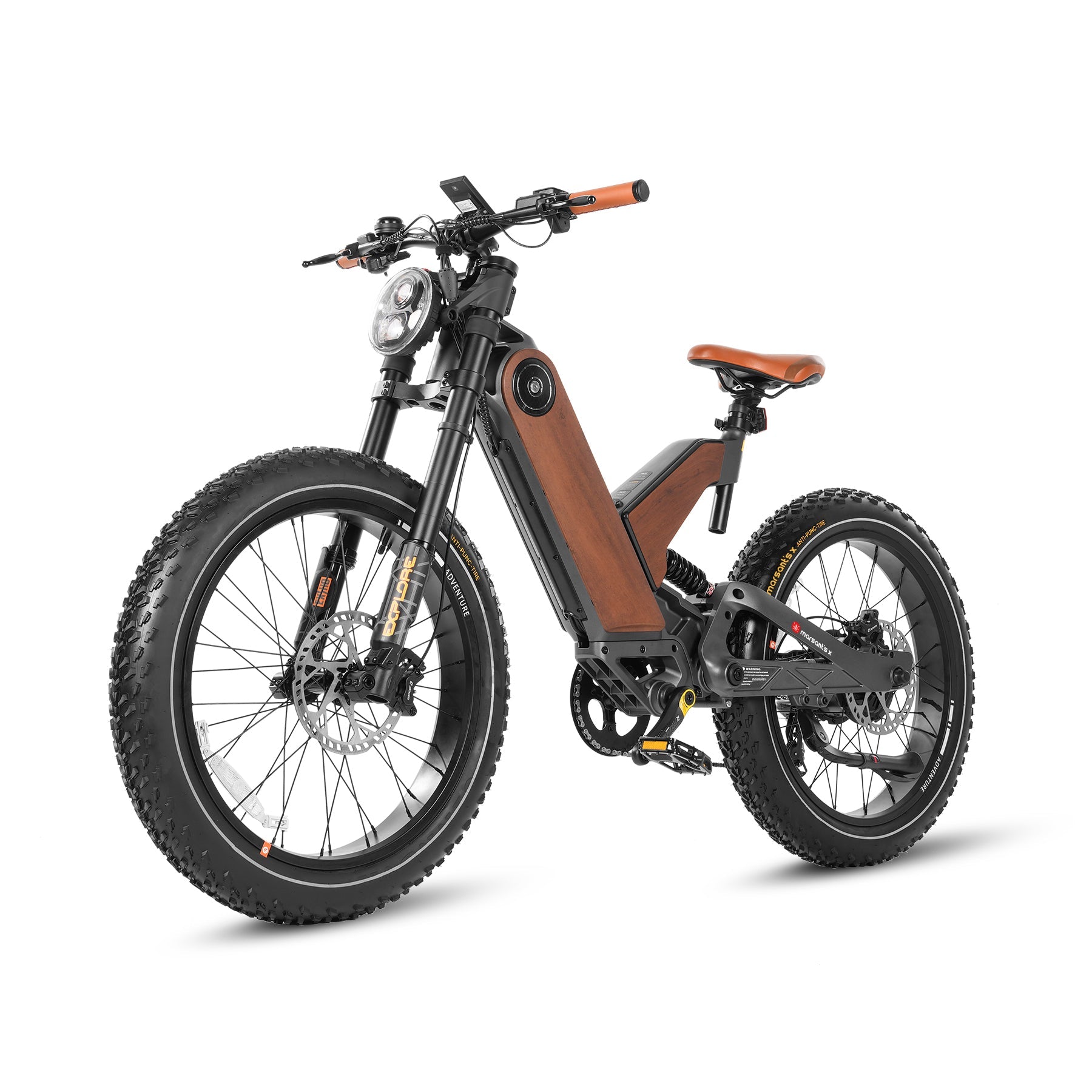

We modeled a 220 lb rider carrying 30 lbs of cargo on an 88 lb fat-tire e-bike. The ambient temperature is a typical summer day at 35°C (95°F). The rider is tackling a steady 8% grade at 15 mph using high throttle support.

Modeling Note (Method & Assumptions): This is a deterministic parameterized scenario model, not a controlled lab study. We used a terrain mastery physics model to estimate power demand and thermal dissipation.

In this scenario, the motor is generating approximately 375 Watts of waste heat inside the casing. Because the hub is a sealed environment, this heat has nowhere to go but through the motor axle and the outer housing. During a continuous 10-minute climb, the internal air and gear temperatures can rapidly climb toward the 80°C threshold.

As highlighted in The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, understanding these real-world limitations is essential for riders who prioritize durability over marketing hype. High-wattage labels do not always equate to high thermal capacity.

Detecting Trouble: The Sensory Warning Signs

Experienced mechanics often identify gear issues through sound and touch long before a catastrophic failure occurs. If you are riding in extreme heat, pay attention to these three indicators:

1. The Auditory Shift

Healthy nylon gears produce a smooth, consistent "whir" or "hum." As gears begin to deform or the internal lubrication thins out due to heat, this sound changes. Listen for a "gritty" or "chattering" noise, especially when starting from a standstill or under heavy load. This is often the sound of teeth slightly misaligning or "skipping" across the sun gear.

2. The 5-Second Hand Test (Heuristic)

While external casing temperature is a lagging indicator—meaning the internals are often much hotter than the shell—it remains a useful field test. After a long climb or a high-speed run in the sun, place your hand on the motor hub.

• Safe: You can keep your hand on the casing indefinitely.
• Caution: You can hold it for 5-10 seconds, but it is uncomfortably hot.
• Danger: You cannot keep your hand on the casing for more than 5 seconds.

If the motor reaches the "Danger" zone, internal temperatures are likely approaching the HDT of the nylon gears. Continuous operation at this level will eventually lead to gear deformation.

3. Resistance Changes

If you notice the bike feels "sluggish" or requires more battery power (Wh, or Watt-hours) than usual to maintain speed on the same route, it may be due to increased internal friction. High heat can cause the internal grease to migrate away from the gear teeth, increasing wear and mechanical resistance.

Practical Strategies to Protect Your Investment

Protecting your motor during the summer doesn't mean you have to stop riding. It requires a shift in how you manage the motor's workload.

Manage the Throttle

The primary cause of heat buildup is high current (Amps). Using the throttle exclusively, especially from a dead stop on a hill, forces the motor to work at its least efficient point, generating maximum heat.

• Action: Use pedal-assist (PAS) to get the bike moving before applying heavy throttle.
• Action: On long inclines, drop down one assist level. Reducing the power demand by even 15-20% can significantly lower the rate of heat accumulation.

Optimize Tire Pressure

Many utility riders overlook tire pressure as a thermal management tool. Fat tires (typically 4.0 inches wide) have a large contact patch. If the pressure is too low, rolling resistance increases dramatically. This forces the motor to pull more current just to maintain speed on flat ground.

• Action: Check your tire pressure weekly. For pavement commuting, staying at the higher end of the manufacturer's recommended PSI (pounds per square inch) reduces the load on the motor.

Allow for "Thermal Soaking"

Heat dissipates slowly from a hub motor. If you have just completed a heavy climb, the "thermal soak" effect means the internal temperatures may actually continue to rise for a few minutes after you stop, as heat moves from the stator to the gears.

• Action: If the motor feels excessively hot, give it 15 minutes to cool down in the shade before starting another high-load section of your ride.

Compliance, Safety, and Local Regulations

When operating high-power e-bikes in summer, safety extends beyond the mechanics. Heat also impacts battery stability. Ensure your e-bike is compliant with UL 2849 Standard for Electrical Systems for eBikes, which tests for electrical and thermal safety.

Furthermore, be aware of local speed and operation laws. For example, the California DMV and the New York DMV have strict definitions for Class 2 and Class 3 vehicles. Exceeding these speed limits not only risks legal trouble but also pushes your motor into a high-RPM, high-heat state that it may not be designed to sustain in 95°F weather.

According to the U.S. Consumer Product Safety Commission (CPSC), monitoring for product recalls related to motor or battery overheating is a critical part of ownership. Always verify that your manufacturer has a clear track record of safety compliance.

Summary of Maintenance Heuristics

To keep your e-bike operational throughout the summer, follow this checklist based on common shop practices and mechanical patterns:

1. Auditory Check: Listen for changes in motor pitch or "grit" during morning rides.
2. The Touch Test: Use the 5-second rule after every major hill.
3. Pressure Check: Maintain optimal PSI to minimize rolling resistance.
4. Load Management: Avoid "full throttle" starts when the ambient temperature exceeds 90°F.
5. Clean the Casing: Ensure the motor hub is free of thick mud or debris, which can act as an insulator and trap heat inside.

By understanding the thermal limits of nylon planetary gears and adjusting your riding habits during the peak of summer, you can prevent costly mid-season repairs and ensure your utility e-bike remains a reliable tool for years to come.

Disclaimer: This article is for informational purposes only and does not constitute professional mechanical, legal, or safety advice. Always refer to your e-bike manufacturer's specific owner's manual for maintenance schedules and operating limits. If you suspect internal motor damage, consult a certified e-bike technician. E-bike batteries and motors can pose fire risks if damaged or overheated; always follow CPSC safety guidelines.
