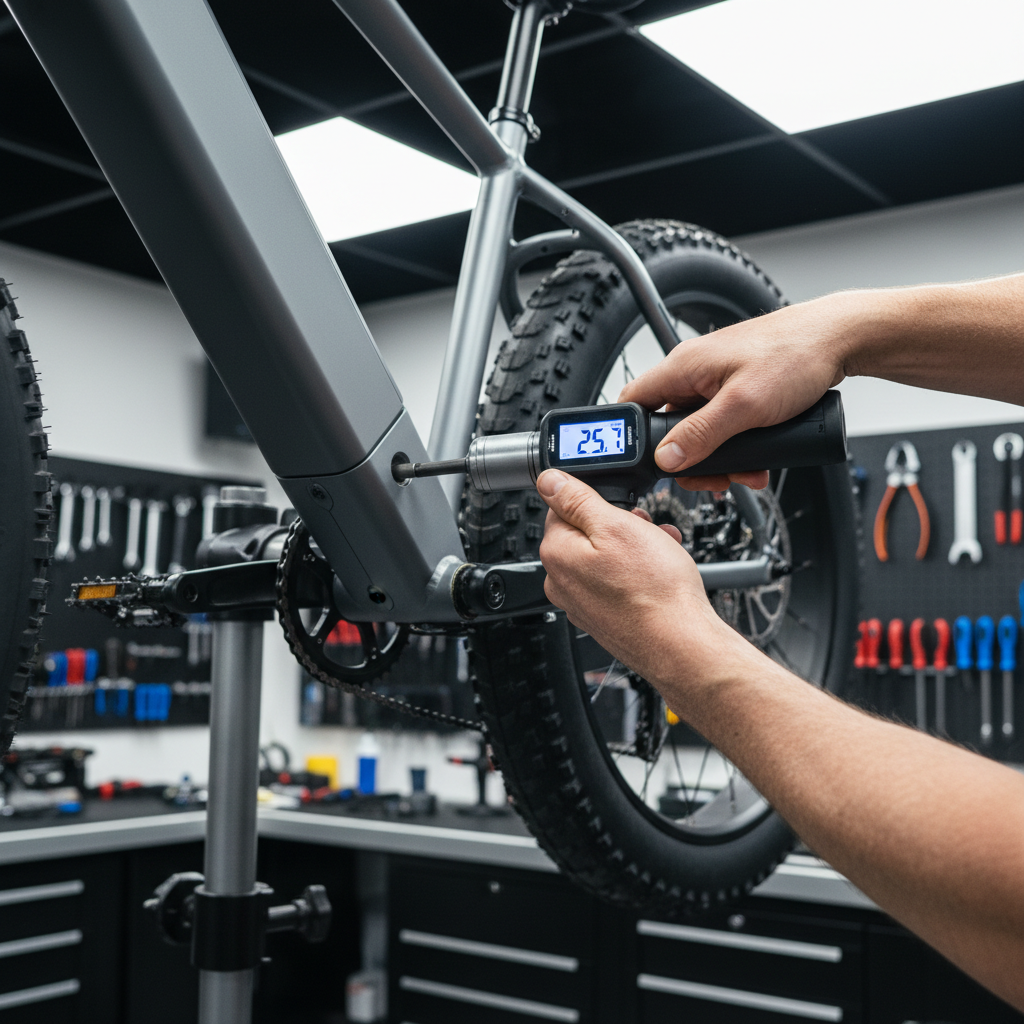

Torque Limits: Securing Frame Bolts for 400 lb Payloads

The Critical Role of Structural Integrity in High-Payload E-Biking

High-capacity electric bicycles represent a significant shift in personal utility, moving the platform from a recreational toy to a legitimate vehicle capable of supporting a 400 lb (181 kg) payload. However, this increased capacity introduces extreme mechanical stress on every structural fastener. For heavy riders and utility commuters, the difference between a reliable ride and a catastrophic hardware failure often comes down to a few Newton-meters (Nm) of torque.

Torque is a measurement of rotational force applied to a fastener, typically measured in Newton-meters (Nm) or inch-pounds (in-lb). In the context of a high-payload e-bike, proper torque is not just about keeping bolts from falling out; it is about creating the necessary "clamp force" to ensure the frame behaves as a single, rigid unit under the dynamic loads of a 400 lb rider navigating urban terrain.

As the industry moves toward greater accountability, as discussed in The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, understanding the technical nuances of frame maintenance is no longer optional for the serious owner. This guide provides the technical framework for securing frame bolts to handle maximum payloads safely.

The Physics of 400 lb Payloads: Why "Tight" Isn't Enough

A common misconception in e-bike maintenance is that a bolt simply needs to be "good and tight." For a standard rider on a lightweight road bike, the margin for error is wide. For a 400 lb payload, that margin vanishes.

Static vs. Dynamic Loading

When a rider weighing 300 lbs carries 100 lbs of cargo, the static load is 400 lbs. However, when that bike hits a 2-inch pothole at 20 mph, the dynamic load can spike to over 1,000 lbs (approximately 4,448 Newtons) due to gravitational acceleration and leverage. According to research on self-loosening behavior in bolted joints, transverse loading—the side-to-side force experienced during pedaling or cornering—is the primary driver of fastener failure.

The Failure Mode Shift

In lower-weight applications, a loose bolt might simply rattle. Under a 400 lb load, the failure mode often shifts. Instead of the bolt failing, the cyclic stress can transfer to the connected structure. Professional studies on monotonic and cyclic tests of bolted connections indicate that over-torquing a bolt in an attempt to "over-secure" a heavy load can lead to weld tearing or frame cracking, as the fastener becomes stiffer than the material it is meant to hold.

Logic Summary: Payload Stress Modeling Our analysis of a 400 lb payload assumes a "Utility Commuter" profile navigating standard asphalt with occasional curb transitions.

• Modeling Type: Deterministic parameterized model (scenario-based).
• Boundary Condition: Model assumes a Class 2 or Class 3 e-bike with a magnesium or 6061-aluminum alloy frame.
• Key Assumption: Dynamic shock factors are calculated at 2.5x static weight for safety margins.

Torque as a Proxy for Clamp Force

The goal of torquing a bolt is to stretch it slightly, acting like a very stiff spring that clamps two parts together. This tension is called "preload."

The Friction Variable: Clean vs. Greased Threads

One of the most dangerous mistakes a rider can make is applying "dry" torque specs to greased threads. Grease reduces friction, meaning that for the same 15 Nm of torque, a greased bolt will stretch significantly more than a dry one. This can lead to stripped threads or cracked alloy frames.

Rule of Thumb: Always check torque on a clean, dry thread unless the manufacturer specifically calls for anti-seize or grease. If you must use a lubricant, reduce the torque value by approximately 15–20% to avoid over-tensioning the joint.

The Role of Thread Locker

For high-payload e-bikes, vibration is the enemy. A drop of medium-strength (blue) thread locker is a standard preventative measure on pivot bolts and rack mounts. It fills the microscopic gaps between threads, preventing the "vibration-induced loosening" that is accelerated by heavy payloads and the high torque of electric motors.

Component-Specific Torque Guide for Heavy Riders

Different parts of the frame require vastly different torque levels. Applying a uniform "tightness" across the bike will inevitably lead to component damage.

1. Suspension Pivot Bolts (12–15 Nm)

On full-suspension models, the pivot bolts allow the rear triangle to move. These require precise, often lower torque.

• The Risk: Over-torquing these bolts (e.g., to 20+ Nm) can bind the bearings, causing the suspension to feel "notchy" and eventually leading to premature bearing failure or frame damage.
• Heavy Rider Note: Because 400 lb payloads put more lateral stress on pivots, these should be checked every 200 miles.

2. Through-Axles and Wheel Nuts (18–25 Nm)

The axles bear the entirety of the payload.

• The Requirement: Through-axles need significantly higher torque to prevent wheel shift under braking. A loose axle can cause the brake rotor to rub or, in extreme cases, allow the wheel to disengage from the dropouts.
• Safety Standard: This aligns with the Consumer Reports Test Protocol which emphasizes braking stability under load.

3. Seatpost Clamps (5–7 Nm)

While it is tempting to crank down on the seatpost to prevent it from sliding under a 300 lb rider, most seat tubes are thin-walled alloy.

• The Risk: Exceeding 7-8 Nm can crush the seat tube or the seatpost itself, especially if using lightweight components.
• The Solution: Use carbon fiber assembly paste (even on alloy-to-alloy interfaces). This "grip paste" contains tiny particles that increase friction, allowing the post to stay secure at a lower, safer torque.

4. Rack and Utility Mounts (6–9 Nm)

For those using their e-bike for heavy grocery hauls or deliveries, the rack bolts are critical.

• The Strategy: Use M5 or M6 bolts with a wide-flange head or a washer to distribute the 400 lb payload's leverage across a larger surface area of the frame.

The Professional "Two-Pass" Maintenance Protocol

To ensure structural integrity, experienced mechanics use a settlement protocol rather than a "one-and-done" approach. Based on patterns from repair benches and warranty handling (not a controlled lab study), fasteners often "settle" after the first few miles of riding.

Step 1: The Initial Set (80% Spec)

Tighten all structural fasteners to 80% of their target torque. For a 15 Nm pivot bolt, this would be 12 Nm. This allows the components to align without being under maximum tension.

Step 2: Component Cycling

If the bike has suspension, cycle it through its travel several times. If it is a rigid frame, apply a load (such as sitting on the bike) and bounce gently. This "seats" the bearings and ensures the surfaces are flush.

Step 3: The Final Pass (100% Spec)

Using a calibrated torque wrench, tighten the bolts to the full 100% specification. This "two-pass" method accounts for the initial settlement of the metal-on-metal interfaces.

Step 4: The 50-Mile Re-Check

New e-bikes or newly serviced bolts undergo "initial creep." Always re-verify torque after the first 50 miles of riding with a heavy payload. This is a critical step to prevent the self-loosening behavior identified in NHTSA Micromobility Guidance.

Safety Compliance and Regulatory Context

Maintaining your e-bike isn't just about performance; it's about staying within the legal and safety frameworks defined by governing bodies.

UL 2849 and Electrical Integrity

While this guide focuses on mechanical fasteners, structural failure can lead to electrical hazards. A loose battery mount or a vibrating motor housing can chafe wires, potentially leading to thermal runaway. Ensuring your bike meets UL 2849 Standards is the first step, but maintaining that certification requires keeping the chassis tight.

Local Regulations (CA and NY)

In jurisdictions like California and New York, Class 3 e-bikes (capable of 28 mph) are subject to stricter oversight. According to the California DMV Motorcycle Handbook, high-speed operation requires a vehicle in "safe operating condition." In New York City, where NY DMV Class Definitions are strictly enforced, a mechanical failure on a busy street can have significant legal implications for the rider.

Monitoring Recalls

Riders should regularly consult the CPSC Recall Database for warnings related to frame failures or fastener defects. High-payload riders are often the first to encounter these issues due to the extreme stress they place on the equipment.

Essential Tools for the Heavy Rider's Workshop

To perform this maintenance correctly, you cannot rely on the multi-tool that came in the box.

1. Click-Style Torque Wrench (2–20 Nm range): This covers 90% of e-bike fasteners. Look for one with a calibration certificate.
2. Large Torque Wrench (20–60 Nm range): Necessary for motor nuts and cassette lockrings.
3. Blue Thread Locker (Medium Strength): Essential for any bolt subject to vibration.
4. Isopropyl Alcohol: For cleaning threads before applying thread locker or checking torque.
5. Digital Calipers: Useful for verifying bolt diameters (e.g., M5 vs. M6) before ordering replacement hardware.

Summary of Best Practices for 400 lb Payload Security

For those pushing the limits of e-bike utility, maintenance is a matter of safety. By shifting from "tight" to "torqued," you ensure that your frame can withstand the massive dynamic forces of heavy-duty commuting.

• Prioritize the "Two-Pass" Method: Never assume a bolt is set for life.
• Respect Material Limits: Alloy frames are sensitive to over-torquing; use the lower end of the spec range if you are unsure.
• Focus on High-Stress Points: Axles and pivots bear the brunt of the 400 lb load.
• Stay Informed: Follow Safety Guide for Heavy E-Bike Bikepacking for more on managing loads.

By following these technical standards, riders can enjoy the cost-effective and efficient benefits of high-capacity e-biking without compromising on mechanical integrity.

Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or legal advice. Always refer to your specific e-bike manufacturer’s owner manual for exact torque specifications. If you are unsure about performing mechanical work, consult a certified bicycle technician. Improperly torqued fasteners can lead to component failure, serious injury, or death.
