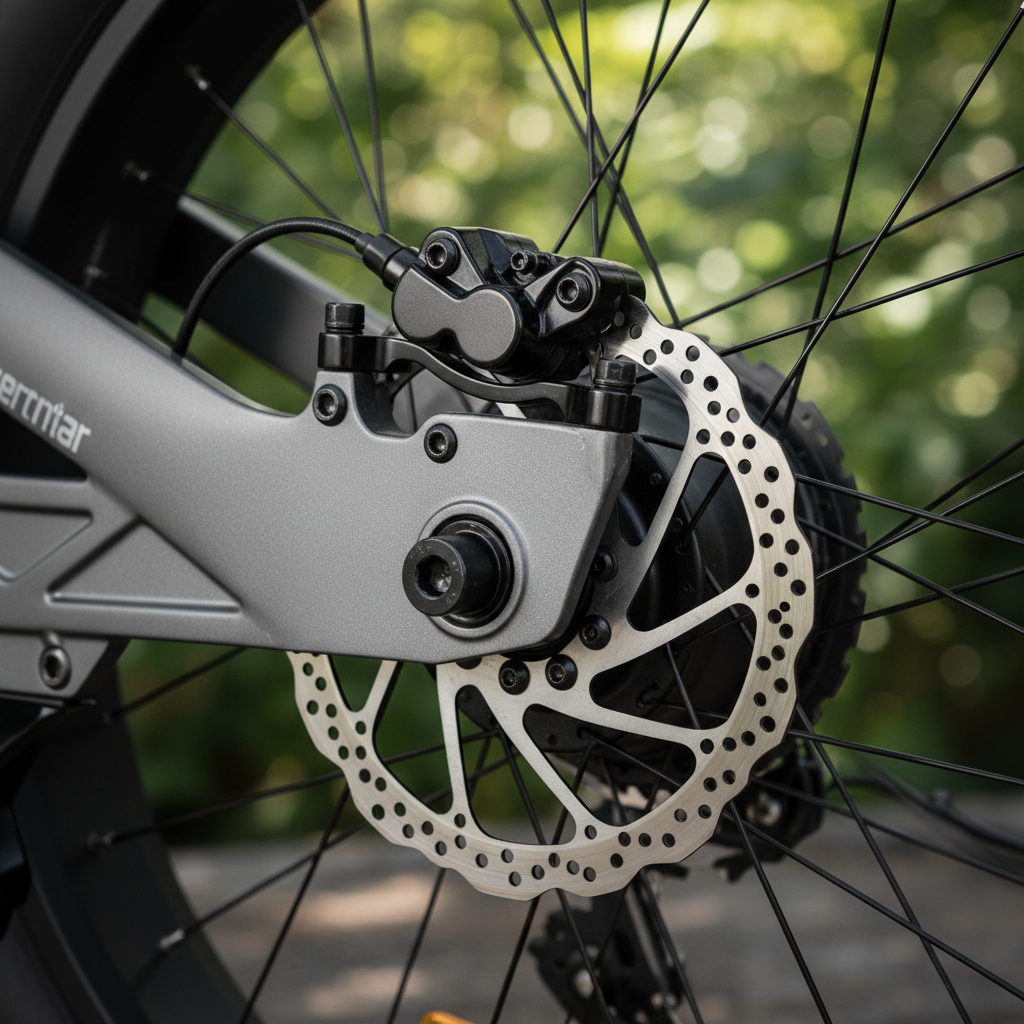

Rotor Adapters: Upgrading from 180mm to 203mm Standards
The Mechanics of Stopping Power: Why 203mm Matters
For riders of high-capacity e-bikes—those frequently carrying 400lb total loads including the rider, cargo, and the 70-80lb machine itself—braking is not just a convenience; it is a critical safety system. Most utility e-bikes in the 750W to 1000W class come standard with 180mm rotors. While sufficient for average use, these rotors often reach their thermal limits during sustained descents or heavy-load commuting.
Upgrading to a 203mm rotor increases the surface area and thermal mass of the braking system. According to the white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the industry is moving away from "spec-sheet padding" toward components that offer genuine, verifiable safety margins. A 203mm rotor provides approximately 27% more surface area than a 180mm rotor, allowing for significantly better heat dissipation and a reduced risk of brake fade.
Logic Summary: Thermal Mass and Leverage
- Mechanism: A larger diameter rotor increases the "moment arm" (leverage) the caliper has on the wheel.
- Thermal Management: Increased mass allows the rotor to absorb more Joules of energy before reaching the "glazing" temperature of the brake pads.
- Assumptions: High-metallic or semi-metallic pads are used; hydraulic system is properly bled.
Deciphering Mounting Standards: Post Mount (PM) Basics
The most common mounting standard for modern e-bike forks and frames is the Post Mount (PM). In this system, the brake caliper bolts directly into threaded "posts" on the fork lower or the rear dropout. These posts are designed for a specific "native" rotor size, usually PM 160 or PM 180.
To install a 203mm rotor on a bike designed for 180mm rotors, you cannot simply bolt the caliper back on. The caliper must be moved outward radially to align with the larger circumference. This is where the rotor adapter (also known as a caliper spacer or bracket) becomes essential.
Measuring Your Native Standard
The most frequent error we see on our repair bench is assuming an adapter size based on the rotor diameter alone. To get it right the first time, you must measure the distance between the mounting holes.
- PM 160 Native: The posts are short. To fit a 203mm rotor, you need a "+43mm" adapter.
- PM 180 Native: The posts are taller. To fit a 203mm rotor, you need a "+23mm" adapter.
Expert Heuristic: Use digital calipers to measure the distance from the center of the mounting bolt hole on the fork to the center of the caliper mounting hole. If the distance is exactly 20mm or 40mm, you are dealing with standard increments. Always verify the fork manufacturer's maximum rated rotor size. Exceeding this can lead to structural failure of the fork lowers.
Compliance, Liability, and Safety Standards
Braking performance is not just a matter of preference; it is a federal requirement. In the United States, the Consumer Product Safety Commission (CPSC) 16 CFR Part 1512 mandates specific braking distances and mechanical integrity for all bicycles.
Modifying your braking system can have legal and warranty implications. For example, while some brands like Himiway offer a robust 2-year warranty, others like Super73 have very strict return and modification policies. Before upgrading, understand that:
- Structural Stress: A 203mm rotor exerts significantly more torque on the fork posts. If the fork is not rated for this force, the posts can shear off.
- Certification: Most high-quality e-bikes are now built to UL 2849 standards, which evaluate the electrical system's safety. While UL 2849 focuses on electronics, the mechanical braking system must still meet NHTSA Micromobility Guidance to ensure the vehicle remains safe for road use.
| Feature | 180mm Rotor | 203mm Rotor | Impact for Heavy Riders |
|---|---|---|---|
| Surface Area | Baseline | ~+27% | Better heat dissipation |
| Leverage Ratio | Standard | High | Reduced hand fatigue |
| Rotational Mass | ~140g - 160g | ~220g - 260g | ~80-100g penalty to agility |
| Thermal Capacity | Moderate | High | Prevents fade on long hills |
Installation Heuristics and Common Pitfalls
Installing the adapter is straightforward, but the "gotchas" are in the details. Based on common patterns from customer support and mechanical troubleshooting, here are the non-negotiable steps for a successful upgrade.
1. The 1.6mm Spacer Risk
A common "hack" found in online forums involves using 1.6mm spacers to fit a 203mm rotor onto a mount designed for 200mm rotors. We strongly advise against this. Using spacers introduces "spacer creep" and quantifiable points of failure where the bolt torque may not remain consistent. Always use a single-piece, model-matched adapter.
2. Torque and Thread-Locking
The vibrations inherent in fat-tire e-bikes can loosen caliper bolts over time.
- Torque Spec: Tighten adapter and caliper bolts to 6-8 Nm.
- Compound: Always use a medium-strength (Blue) thread-locking compound.
- Check-up: Re-torque all bolts after the first 50 miles of riding.
3. Systemic Assessment
A larger rotor provides more power, but it also exposes weaknesses elsewhere. If your brakes feel "spongy" after the upgrade, the increased leverage is likely expanding lower-quality rubber brake lines or overwhelming a small master cylinder. In these cases, upgrading to steel-braided lines is recommended to maintain a firm lever feel.
The Bed-In Procedure: Achieving Full Friction
A new rotor and adapter will not provide maximum stopping power out of the box. The "bed-in" process (or seasoning) transfers a thin layer of pad material onto the rotor surface, creating the necessary friction.
Step-by-Step Bed-In:
- Find a flat, safe area away from traffic.
- Accelerate to a moderate speed (approx. 15 mph).
- Apply the brakes firmly and progressively until you reach a walking pace. Do not lock the wheels or come to a complete stop.
- Release the brakes and ride for a minute to allow the rotors to cool.
- Repeat this process 20-30 times.
Failure to follow this procedure can lead to glazed pads, permanent rotor warping, and a significant reduction in stopping power.
Modeling Note: Braking Distance Estimates
- Model Type: Deterministic kinematic model for a 400lb total system mass.
- Speed: 20 mph (Class 2 limit).
- Estimated Improvement: 15-20% reduction in stopping distance under high-heat conditions compared to 180mm rotors.
- Boundary Conditions: Model assumes dry pavement, 2.5-bar tire pressure, and hydraulic fluid temperature below 100°C.
Final Safety Check and Action Steps
Upgrading to 203mm rotors is one of the most cost-effective ways to improve the safety and utility of a heavy-duty e-bike. However, it requires a methodical approach to ensure mechanical integrity.
- Verify Compliance: Ensure your modification doesn't violate local laws, such as those defined by the California DMV or the New York DMV, which have strict definitions for Class 2 and Class 3 e-bikes.
- Measure Twice: Use the center-to-center measurement to choose the correct PM adapter (+23mm or +43mm).
- Check Clearances: Ensure the larger rotor does not rub against the fork legs or the frame stays.
- Monitor Wear: Larger rotors can wear through pads faster due to the increased friction. Inspect your pads every 200 miles.
By prioritizing these technical standards and following a rigorous installation process, you ensure that your "car replacement" e-bike remains a reliable and safe tool for years to come.
Disclaimer: This article is for informational purposes only and does not constitute professional mechanical advice. Modifying a braking system can void warranties and may impact the safety of the vehicle. Always consult with a certified bicycle mechanic and follow the manufacturer's specific torque and installation guidelines. Marsant is not responsible for any injury or damage resulting from DIY modifications.
