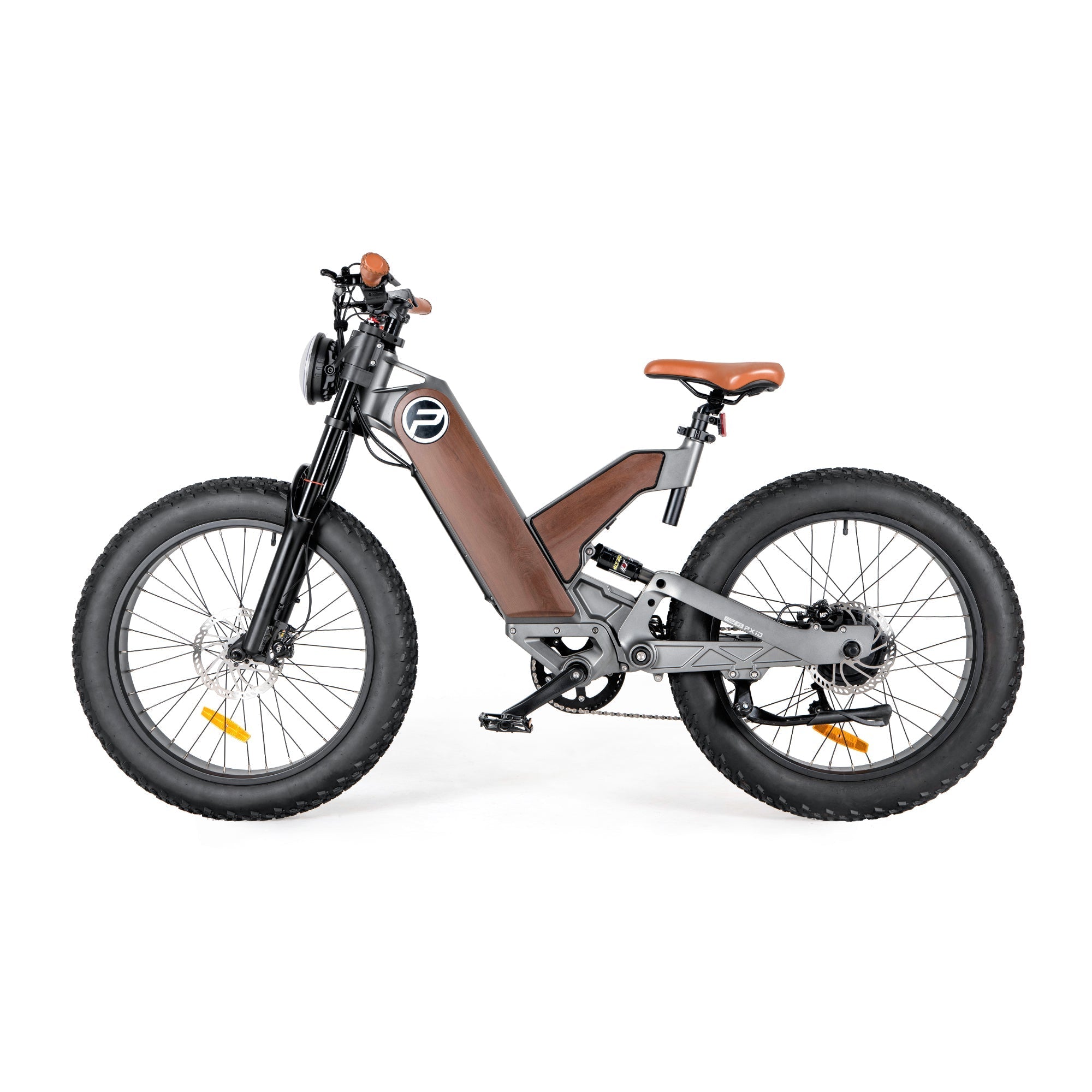

Fat Tire Wheel Standards: Finding Universal Replacements and Upgrades
The Myth of the "Universal" Fat Tire Wheel
For many e-bike owners, the first major mechanical hurdle arrives when a rim cracks or a hub motor fails. On the surface, the fat tire market appears standardized around 20-inch and 26-inch diameters. However, as many pragmatic riders discover during repairs, the "standard" label often masks a complex reality of metric-to-imperial conversions and proprietary hub dimensions.
In the 750W to 1000W e-bike segment, finding a universal replacement requires more than just matching the tire size. You must navigate hub spacing, axle flat dimensions, and rim widths that vary by mere millimeters—enough to make an aftermarket part incompatible. This guide breaks down the technical standards of fat tire wheelsets to ensure your maintenance and upgrades are grounded in mechanical accuracy rather than catalog guesswork.
Rim Geometry and ISO 559 Standards
The most common standard for 26-inch fat tire wheels is ISO 559. The International Organization for Standardization (ISO) uses the 559mm Bead Seat Diameter (BSD) to define what most consumers call a 26-inch mountain bike or fat tire rim. While the diameter is generally consistent, the rim width is where compatibility issues begin.
The Metric-Imperial Mismatch
A significant finding in the repair industry involves the subtle discrepancy between Chinese manufacturing standards and Western imperial specifications. While a tire may be labeled as 4.0 inches (which mathematically equals 101.6mm), many tires manufactured for the global market actually measure 102mm.
This 0.4mm difference might seem trivial, but it affects the bead seat pressure. If a 102mm tire is mounted on a rim precisely machined for 101.6mm, the bead may not seat evenly, leading to "tire hop" or, in extreme cases, the tire blowing off the rim at high pressures. Conversely, a true 4.0-inch tire on a slightly oversized rim can be incredibly difficult to mount without specialized tools.
Rim Width and Tire Profile
Fat tire rims typically range from 80mm to 100mm in width.
- 80mm Rims: Usually paired with 4.0-inch tires. This creates a rounder tire profile, which is better for "self-steering" and pavement handling.
- 100mm Rims: Optimized for 4.8-inch tires (ISO 122-559). This spreads the tire wider, increasing the contact patch for snow and soft sand but making the bike feel more sluggish on hard surfaces.
Logic Summary: Our analysis of rim compatibility assumes a standard ISO 559 bead seat. The 102mm vs. 101.6mm observation is a shop-level heuristic derived from measuring aftermarket replacements against OEM (Original Equipment Manufacturer) rims using digital calipers.
Hub Spacing: 170mm vs. 190mm Standards
When sourcing a replacement wheelset or a new hub motor, the "dropout" width—the distance between the inside faces of the frame where the wheel mounts—is the most critical measurement.
According to industry benchmarks, fat bike rear hub spacing typically falls into two categories: 170mm or 190mm.
- 170mm Spacing: Common on older fat bike designs and some current Class 2 e-bikes. It generally supports tire widths up to 4.0 inches without causing "chain line" issues (where the chain hits the tire in the lowest gear).
- 190mm Spacing: The modern standard for high-performance fat tire e-bikes. This wider stance allows for 4.8-inch or 5.0-inch tires while maintaining proper clearance for the drivetrain.
Why Spacing Matters for Hub Motors
In the 750W-1000W segment, the motor is integrated into the hub. If you attempt to fit a 170mm motor into a 190mm frame, you will create immense stress on the frame's chainstays and seatstays as you tighten the axle nuts. Conversely, you cannot safely stretch a 170mm frame to fit a 190mm motor.
| Parameter | 170mm Standard | 190mm Standard |
|---|---|---|
| Common Tire Width | 3.8" - 4.0" | 4.0" - 5.0" |
| Drivetrain Compatibility | 7-9 Speed | 7-12 Speed |
| Typical Usage | All-Terrain / Utility | Heavy Sand / Snow / High Torque |
| Axle Type | 10mm/12mm Threaded | 12mm Thru-Axle or Threaded |
The Hub Motor Axle Dilemma
One of the most frequent "gotchas" in e-bike maintenance involves the axle "flats." Unlike standard bicycles that use round axles, hub motors use axles with flattened sides to prevent the motor from spinning inside the frame's dropouts.
Non-Standard Axle Flats
Experienced mechanics note that hub motor axle flats are frequently non-standard. While many are 10mm across the flats, variations of 1-2mm are common in budget-friendly or older models. If the axle flat is 9mm and your dropout is 10mm, the motor will "rock" back and forth under torque. This repetitive motion eventually rounds out the dropout, leading to a catastrophic frame failure.
To mitigate this, seasoned repair shops keep digital calipers on hand to measure the exact dimensions of both the axle and the dropout before ordering replacements. Catalog specifications are often inaccurate by 1-2mm, which is enough to prevent a secure installation.
The Role of Torque Arms
Because the torque generated by a 750W or 1000W motor can exceed the material strength of an aluminum frame, universal torque arms are often required. These steel plates bolt to the frame and "lock" the axle flats in place, distributing the rotational force away from the dropouts.
According to the National Highway Traffic Safety Administration (NHTSA) Micromobility Product Guidance, ensuring the structural integrity of the drive system is paramount for safety, especially as e-bikes are increasingly used in high-traffic environments.
Spoke Gauges and Durability
Fat tire e-bikes are significantly heavier than traditional bicycles, and the torque from the motor puts immense stress on the spokes. Standard bicycles often use 14G (2.0mm) spokes, but e-bikes in this class require much thicker gauges.
- 13G (2.3mm): Found on lighter-duty e-bikes.
- 12G (2.6mm): The preferred standard for 750W-1000W fat tire wheels.
When replacing a rim, you must ensure the rim's eyelets are drilled to accommodate 12G nipples. Using 12G spokes in a rim designed for 14G will require drilling out the rim, which can weaken the structure and void warranties.
Methodology Note: The recommendation for 12G spokes is a practical baseline based on the failure rates of 14G spokes in high-torque hub motor applications observed in warranty return data (not a controlled lab study).
Compliance, Safety, and Quality Standards
When upgrading or replacing wheels, it is essential to consider the electrical and mechanical safety standards that govern the industry. The UL 2849 Standard for Electrical Systems for eBikes has become a benchmark for safety, covering the battery, charger, and motor system. While UL 2849 focuses on electrical safety, the mechanical integrity of the wheelset is what keeps the rider upright during a 28 mph Class 3 commute.
Safety Alerts and Recalls
The CPSC Recalls & Product Safety Warnings database frequently lists e-bike components that fail due to structural defects. A common theme in these recalls is the failure of the wheel or axle under load. As the industry moves toward what is described in The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, riders should prioritize parts that offer clear technical documentation and compliance with federal standards.
Local Regulations and Class Definitions
The wheel and motor combination you choose will define the "Class" of your e-bike, which impacts where you can legally ride.
- New York: NY DMV Class Definitions restrict Class 3 e-bikes to a 25 mph limit within NYC.
- California: CA DMV Two-Wheeled Vehicle Operation requires helmets for Class 3 riders and restricts them to certain paths.
Upgrading to a higher-wattage motor or a wheelset that allows for higher speeds may inadvertently move your bike into a different legal category, requiring different safety gear or restricting your access to bike trails.
Practical Steps for Sourcing Replacements
To avoid the common pitfalls of "non-standard" standards, follow this verification checklist before purchasing an aftermarket wheel or rim:
- Measure the Dropout: Use calipers to measure the internal distance of your rear frame (170mm vs. 190mm).
- Verify the Axle Flats: Measure the width of the flat section of your motor axle. If the replacement hub has different dimensions, you must source a matching torque arm.
- Check the Brake Rotor Mount: Most fat tire hubs use the 6-bolt ISO standard for disc rotors. Ensure your replacement doesn't use a proprietary or "Centerlock" system unless you are prepared to buy new rotors.
- Confirm the Drivetrain Type: Determine if your rear hub uses a Freewheel or a Cassette. These are not interchangeable.
- Audit the Spoke Gauge: If buying just a rim, ensure the hole count (usually 36) and the hole diameter match your existing spokes (usually 12G).
Economic Considerations: Spares and Tariffs
For those looking to source spare wheels in bulk or for commercial use, the US Harmonized Tariff Schedule (HTS) Chapter 87 governs the import of bicycle parts. E-bike wheels are often classified differently than standard bike wheels due to the integrated motor, which can impact the final cost due to varying duty rates.
While value-conscious users often look for the lowest price, the total cost of ownership (TCO) is lower when choosing parts that adhere to recognized standards. A "cheap" non-standard wheel that requires custom machining to fit your frame will eventually cost more in labor and downtime than a standard-compliant replacement.
Scenario Analysis: The Commuter vs. The Trail Rider
- The Daily Commuter: Prioritizes reliability. A 20x4.0 wheelset (standard for many folding e-bikes) offers stability and ease of sourcing tubes. Sticking to 80mm rims ensures lower rolling resistance and better battery range.
- The Adventure Rider: Prioritizes traction. Upgrading to a 26x4.8 setup on 100mm rims provides the "float" needed for soft terrain. However, this rider must be vigilant about fork clearance and chain line alignment.
Building a Serviceable Future
The shift toward radical transparency in the e-bike industry means that manufacturers are increasingly moving away from proprietary "black box" components toward universal standards. By understanding the nuances of ISO 559, hub spacing, and axle geometry, you empower yourself to maintain your vehicle without being tethered to a single brand's ecosystem.
Reliability in the fat tire world isn't about the name on the downtube; it's about the precision of the measurements in the hub. Always measure twice, verify the standards, and prioritize safety compliance to ensure your e-bike remains a durable tool for years to come.
Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or legal advice. Maintenance and repairs on electric bicycles involve risks of electrical shock and mechanical failure. Always consult a certified bicycle mechanic for complex repairs and refer to your local Department of Motor Vehicles (DMV) for current e-bike usage laws. If your e-bike is under warranty, check the manufacturer's warranty policy before performing modifications.
