Troubleshooting Lateral Play in Dual-Suspension Rear Ends
Quick Diagnostic & Action Card
If you suspect your e-bike’s rear end is unstable, use this 60-second checklist before proceeding with tools.
- The 2mm Check: Grip the rear wheel at 12 o’clock. Rock it side-to-side. If the movement at the axle feels greater than the thickness of a nickel (~2mm), your pivots require attention.
-
The Decision Tree:
- Loose Hardware? Retorque to 15 Nm (or manufacturer spec).
- Still Wiggles? Inspect bearings for "notchy" rotation or visible gaps.
- Visible Cracks or Impact? STOP. Do not ride. See a professional mechanic immediately.
- Essential Tools: Calibrated torque wrench, waterproof marine grease, and a dedicated bearing press (do not use a hammer).
Identifying the "Wiggle": Diagnosing Lateral Play in Heavy-Duty E-Bikes
Does the rear of your e-bike feel disconnected or "wiggly" when navigating a sharp turn or carrying a heavy grocery load? This sensation, often described as lateral play, is a common mechanical issue in dual-suspension frames. For utility riders who rely on their bikes for car replacement, this isn't just a nuisance—it can become a safety hazard that affects high-speed stability and braking performance.
Lateral play refers to the side-to-side movement of the rear triangle relative to the main frame. Unlike vertical suspension movement, which is designed to absorb bumps, lateral movement indicates a compromise in the structural integrity of the pivot points. When you are hauling cargo or navigating urban traffic at 20 mph, any instability in the chassis can lead to unpredictable handling.
The 2mm Rule: A Shop-Tested Diagnostic Heuristic
To determine if your e-bike has excessive play, you do not need laboratory equipment. At our service centers, we use a practical heuristic known as the 2mm Rule.
- Stabilize: Place the e-bike on a stable repair stand or have a partner hold the handlebars securely.
- Grip: Hold the rear wheel at the 12 o'clock position (near the axle).
- Test: Apply firm side-to-side pressure, rocking the wheel laterally.
- Observe: Watch the pivot points where the rear swingarm connects to the frame.
Shop Observation: Based on patterns from our customer support and repair bench data, lateral movement exceeding 1–2mm at the axle typically indicates that the pivot bearings have reached their service limit or the hardware has lost its preload. In a properly functioning system, sealed cartridge bearings are designed to exhibit near-zero radial play.
The Mechanics of Failure: Why Utility E-Bikes Develop Play
High-power e-bikes, particularly those with 750W or 1000W peak motors, subject the frame to forces that traditional mountain bikes rarely encounter. The combination of high motor torque and heavy rider weight creates a "twisting" force on the rear linkage.
Motor Torque and Axial Load
When you accelerate a hub motor, the torque is applied directly to the rear dropouts. In a dual-suspension setup, this force travels through the linkage. For heavy riders (250 lbs+), axial loads—forces acting parallel to the pivot axles—can wear out thrust surfaces or shim washers. While bearings are designed for radial loads, excessive side-loading can cause the bearing assembly to shift in its seat, manifesting as that "wiggly" feeling.
The Impact of Heavy Loads
For riders using bikes for utility purposes (e.g., a 250lb rider + 50lb cargo), the stress on the lower shock mount and main pivot is constant.
Service Recommendation: Based on our internal "Scenario A" modeling for heavy-duty commuters, we recommend a pivot torque inspection every 500 miles. We have observed that suspension pivot points in utility applications can experience significantly higher duty cycles than recreational bikes due to constant loading and higher average speeds.
Common Pitfalls: The Overtightening "Gotcha"
A frequent mistake DIY mechanics make is attempting to "crush" the play out of a frame by overtightening the pivot bolts. This is a critical error that can lead to permanent frame damage.
The Danger of Over-Torquing
Pivot bolts are not designed to be tightened indefinitely. Most manufacturers specify a torque range between 10–20 Nm. Exceeding these specifications does not eliminate play; instead, it:
- Crushes internal bearing races, leading to "notchy" suspension.
- Risk of warping pivot plates or magnesium alloy frame members.
- Causes bearings to bind, transferring stress directly to frame welds, which may lead to fatigue cracks.
Lubrication Missteps
Using standard bike chain lube on pivot points is another common error. Chain lube is designed to be thin and penetrative, but it quickly washes out of pivot assemblies. We recommend using a high-quality, waterproof marine-grade grease during reassembly to provide a durable barrier against road salt and grime.
Step-by-Step: Correcting Lateral Play
If you have confirmed play using the 2mm rule, follow these steps to restore chassis stability.
1. Hardware Inspection and Retorquing
Before replacing parts, check if the hardware has simply backed out due to vibration.

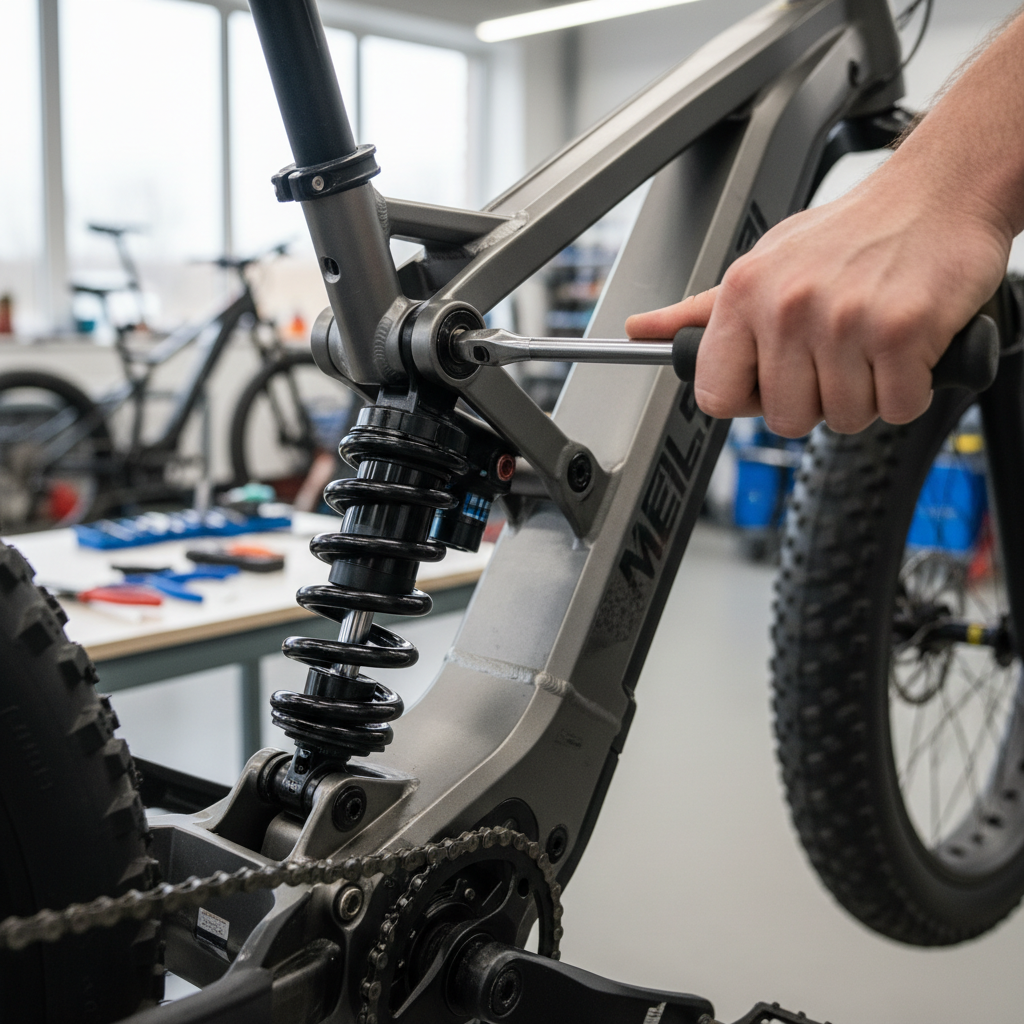

- Action: Using a calibrated torque wrench, check all pivot fasteners to the manufacturer's spec (typically 15 Nm for main pivots, but always verify with your specific manual).
- Safety Note: Always perform this with the suspension unloaded (bike in a stand, rear wheel off the ground) to ensure accurate torque readings. If play persists after torquing to spec, the bearings likely require replacement.
2. Identifying Worn Bearings
If the bolt is tight but the "wiggle" remains, the internal clearance of the bearing has failed. You may also hear a "creaking" sound. For more on sound-based diagnosis, see our Shop Insight: Diagnosing Pivot Creaks.
3. Professional Bearing Replacement
CRITICAL: Replacing suspension bearings requires specific tools. Do not use a hammer and a screwdriver to "punch" bearings out, as this risks damaging the precision-machined bearing seats in your frame.
- Required Tool: A dedicated Bearing Press for Bicycles. This ensures new bearings are pressed in perfectly square.
- Process: Remove old bearings, clean the bore, apply a thin layer of waterproof grease, and press the new bearings in until fully seated.
Safety and Compliance: When to See a Pro
Maintaining your e-bike’s structural integrity is a safety necessity. The CPSC Recalls database frequently lists e-bikes with frame failures that can lead to serious injury. Lateral play is often the early warning sign.
Seek professional help immediately if:
- You see any hairline cracks in the paint or metal around a pivot.
- The "wiggle" returns within 100 miles of a repair.
- You have been involved in a high-speed impact or crash.
As the industry moves toward stricter standards like UL 2849, the focus on total system safety—including the mechanical chassis—is increasing. As noted in our industry analysis on 2026 E-Bike Market Compliance (Company Resource), manufacturers are increasingly prioritizing long-term durability and maintenance transparency.
Modeling the Utility Rider: Economic and Performance Insights
To understand the stresses placed on these machines, we modeled a high-capacity utility scenario based on NYC-style commuting conditions.
TCO and Range Modeling (Heavy-Duty Scenario)
The following data represents a deterministic model for a 750W e-bike. These figures are illustrative and based on specific assumptions regarding fuel costs and maintenance intervals.
| Parameter | Value | Unit | Rationale/Assumption |
|---|---|---|---|
| Rider + Cargo Weight | 300 | lbs | Typical heavy-duty utility load |
| Annual Maintenance | ~$600 | USD | Includes 2x professional pivot/drivetrain services |
| Energy Consumption | ~81 | Wh/mile | Modeled at 18mph with 3% average grade |
| Est. Annual Savings | ~$11,300 | USD | Based on AAA 2023 avg. pickup truck TCO vs. E-bike |
Methodology Note: Savings are calculated by comparing the total cost of ownership (depreciation, insurance, fuel, and maintenance) of a mid-sized pickup truck (~$1.00/mile) against the e-bike (~$0.15/mile) over a 12,000-mile annual distance. Energy consumption utilizes a physics-based model assuming a CdA of 0.65 and standard rolling resistance on urban pavement.
Impact on Maintenance
Our model suggests that while the economic benefits are significant, the mechanical "cost" is higher for utility users. A rider covering 7,500+ miles per year will likely need to replace pivot bearings more frequently than a recreational rider. Neglecting this maintenance can lead to Frame Fatigue (Shop Insight), which may eventually result in structural failure.
Conclusion: Prioritizing Chassis Integrity
Lateral play is your e-bike's way of signaling that the connection between your power and the road is fraying. For the utility rider, the rear suspension is the backbone of the vehicle's cargo-carrying capability. By following the 2mm rule, respecting torque specifications, and using the correct tools, you can help ensure your ride remains stable and safe.
If you are unsure about the state of your frame, especially after a high-speed incident, we recommend consulting our guide on Lateral Stability Testing or visiting a certified mechanic.
Disclaimer: This article is for informational purposes only and does not constitute professional mechanical or legal advice. E-bike maintenance involves safety-critical components. If you are not comfortable performing these repairs, please consult a qualified bicycle technician. Always follow your local California DMV or New York DMV regulations regarding e-bike classes and operation.
