Choosing the Best Grease for Internal Planetary Gears

The Critical Role of Internal Lubrication in High-Torque E-Bikes

For riders operating 750W or 1000W peak geared hub motors, the internal planetary gear system is the mechanical heart of the vehicle. When hauling heavy loads up to 400 lbs—typical for delivery professionals or utility commuters—these gears endure extreme rotational stress and thermal loads. Choosing the correct grease is not merely a maintenance preference; it is a requirement for preventing catastrophic mechanical failure.

Geared hub motors rely on a reduction system where a high-speed motor drives a set of three planetary gears. These gears, often a combination of nylon (for noise reduction) and steel (for durability), must operate with minimal friction to maintain efficiency. As noted in the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, the shift toward high-power utility e-bikes necessitates a more rigorous approach to component maintenance and transparency regarding material limits.

Without proper lubrication, the friction between gear teeth generates localized heat that can exceed the glass transition temperature of nylon gears, leading to "stripped" teeth or "melted" gear sets. For steel gears, improper grease leads to micropitting—microscopic cracks on the gear surface that eventually cause gear tooth breakage under high torque (Nm).

Understanding Grease Specifications: NLGI and Additives

Selecting a grease requires understanding technical standards rather than brand marketing. The National Lubricating Grease Institute (NLGI) classifies grease by its consistency, ranging from 000 (fluid) to 6 (very hard).

NLGI Consistency Grades

For e-bike hub motors, NLGI Grade 2 is generally considered the industry standard. It has a consistency similar to peanut butter, which is firm enough to stay on the gear teeth at high RPMs but soft enough to be distributed by the gear action.

• NLGI 0 or 1: Too thin. Under high heat and centrifugal force, these greases may "sling off" the gears and pool at the bottom of the motor casing, leaving the teeth dry.
• NLGI 3 or Higher: Too thick. These greases create excessive "viscous drag," which reduces motor efficiency and can cause the motor to work harder, generating more heat.

The Importance of Base Oils and Thickeners

The "soap" or thickener in the grease holds the oil in place. Lithium-complex thickeners are preferred for e-bike applications because they offer high dropping points (the temperature at which the grease becomes liquid) and excellent water resistance. This is vital for motors that may be exposed to road spray or operated in high-ambient temperatures.

Extreme Pressure (EP) Additives

For motors frequently carrying 400 lb loads, EP additives are critical for steel-on-steel interfaces. These additives form a sacrificial chemical layer on the metal surfaces, preventing metal-to-metal contact when the lubricant film is squeezed out under extreme pressure. However, caution is required: some EP additives (specifically those containing certain sulfur-phosphorus compounds) can be chemically aggressive toward nylon or plastic gears.

Material Compatibility: Nylon vs. Steel Gears

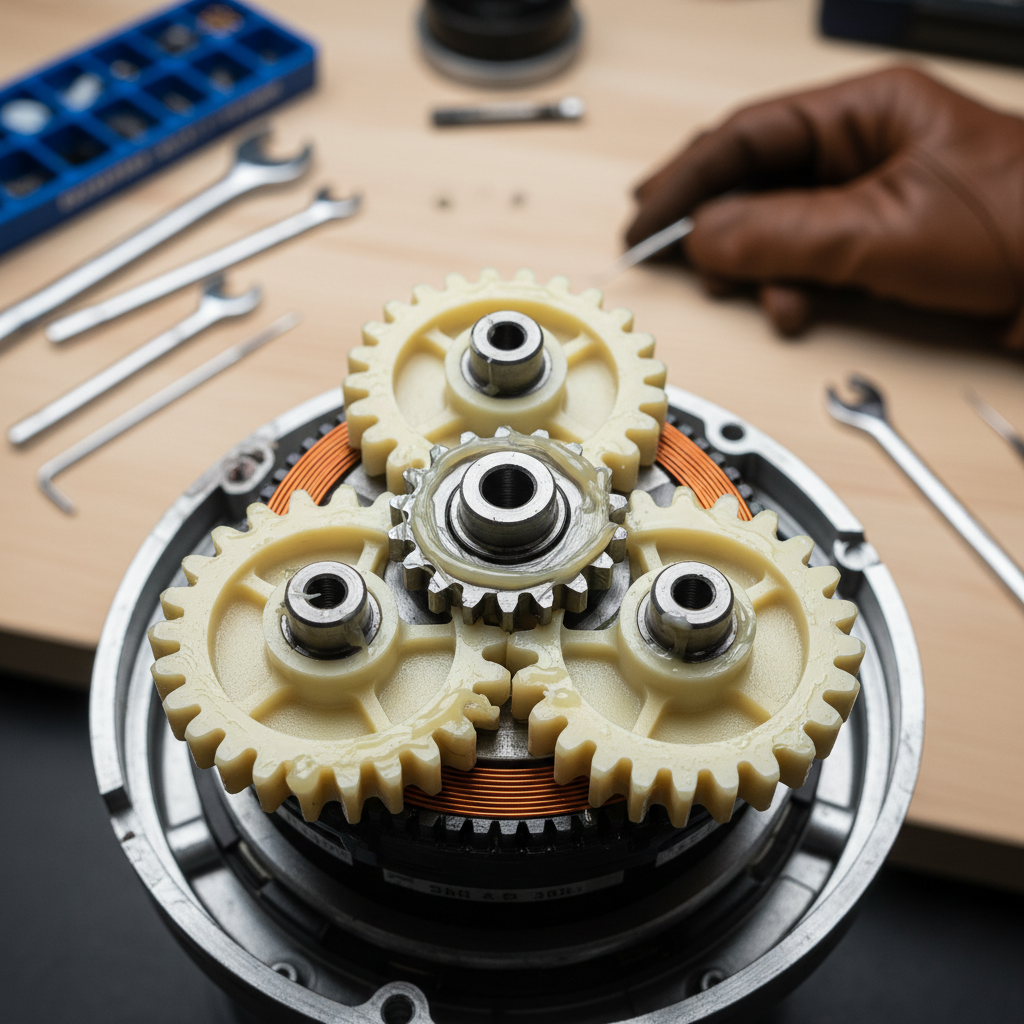

Most 750W hub motors use a "hybrid" gear set: one or more nylon gears paired with a steel sun gear or ring gear. This design balances noise dampening with strength. However, it complicates grease selection.

Lubricating Nylon (Plastic) Gears

Nylon is sensitive to petroleum-based products that contain high levels of aromatic hydrocarbons, which can cause the plastic to swell or become brittle.

• Recommended: Synthetic PAO (Polyalphaolefin) or high-quality lithium-complex greases that are explicitly labeled as "plastic-safe."
• Tackifiers: Look for greases with tackifiers. A tackifier makes the grease "stringy" and adhesive, preventing it from being thrown off the gears at high speeds (sling-off).

Lubricating Steel-on-Steel Gears

When gears are entirely steel, the primary concern is wear from high torque. In these cases, a grease with molybdenum disulfide ("moly") or other EP additives is highly effective. These additives are essential for preventing micropitting and gear failure.

Logic Summary: Our recommendation for hybrid gear sets (nylon/steel) favors high-quality lithium-complex synthetic greases. This choice balances the chemical stability needed for nylon with the film strength required for steel under 400 lb loads.

Modeling the "Heavy-Hauling Delivery Professional" Scenario

To understand why grease selection is critical, we modeled the demands placed on a 750W motor by a professional delivery rider. This rider represents the "upper limit" of e-bike usage, where maintenance failures have direct financial consequences.

Parameter	Value / Range	Unit	Rationale
Annual Mileage	~18,000	Miles	6 hrs/day, 250 days/year
Total Payload	350 - 400	Lbs	Rider + Cargo + Bike
Torque Loading	+40%	%	Compared to recreational riding
Internal Gear Temp	80 - 100	°C	Estimated during peak hill climbs
Maintenance Interval	3,000	Miles	Accelerated wear schedule

Quantitative Insights for Heavy Users

In this scenario, the motor operates at its thermal limit frequently. According to a SAE/IEEE study on thermal factors, sustained high temperatures accelerate the oxidation of grease, causing it to harden and lose its lubricating properties. For a delivery professional, using a low-quality or "generic" chassis grease can lead to gear deformation within 2,000 miles of heavy use.

Qualitative Impact

For the delivery professional, a gearbox failure results in approximately $200–$400 in repair costs and several days of lost income. Implementing a preventive lubrication schedule using the correct synthetic grease provides a significant Return on Investment (ROI) by extending the motor's life from 5,000 miles (unmaintained) to over 15,000 miles.

The 30-40% Fill Rule: Avoiding Churning Losses

A common mistake among DIY mechanics is "over-packing" the gear chamber. It is a logical fallacy to assume that "more grease equals more protection."

The Mechanism of Churning

When the gear chamber is filled more than 40%, the gears must physically push through the excess grease. This creates "churning losses," where the energy from the motor is converted into heat within the grease itself rather than moving the bike.

• Thermal Spike: Over-packing can cause an immediate 10–15°C rise in operating temperature during the first hour of use.
• Seal Failure: Increased internal pressure from heat and excess grease can blow out the motor's side-plate seals, allowing grease to leak onto the brake rotors—a significant safety hazard.

How to Apply the Heuristic

1. Clean Thoroughly: Remove all old, contaminated grease using a plastic-safe degreaser.
2. Estimate Volume: Visually estimate the free space in the gear housing.
3. Apply Sparingly: Apply grease only to the teeth of the planetary gears and the sun gear.
4. The 30-40% Rule: Ensure the total volume of grease does not exceed 40% of the empty space.
5. Run-In Period: After reassembly, run the motor at a low speed (walk mode or light throttle) for 3-5 minutes. This allows the gears to distribute the grease evenly and "shed" excess lubricant into the non-moving parts of the housing before a full-power ride.

Safety, Compliance, and Warranty Considerations

Maintenance of internal motor components carries inherent risks and legal implications.

Regulatory Standards

The UL 2849 Standard covers the entire electrical system, including the motor. While opening the motor for lubrication is a mechanical task, improper reassembly can lead to electrical shorts or compromised ingress protection (IP) ratings. If a motor is not properly resealed, moisture can enter, leading to corrosion and potential battery/controller failure.

Warranty Limitations

Riders should be aware that opening the motor casing often voids the manufacturer's warranty. For example, brands like Himiway provide a 2-year warranty covering manufacturing defects, but this typically excludes damage caused by "unauthorized" repairs or modifications. Always weigh the benefit of DIY lubrication against the remaining warranty period.

Consumer Safety

The CPSC Recalls database frequently lists e-bikes for fire risks, often stemming from battery issues, but mechanical failures that lead to wheel lock-ups are equally dangerous. A seized planetary gear system can cause the rear wheel to lock instantly, leading to a loss of control. Regular lubrication is a key preventive measure against such mechanical "catastrophes."

Step-by-Step Maintenance Protocol

For those committed to maintaining their high-torque hub motors, follow this professional protocol:

1. Preparation: Ensure the bike is powered off and the battery is removed.
2. Disassembly: Remove the motor from the wheel (if necessary) and unscrew the side plate. Use a gear puller if the plate is press-fitted.
3. Inspection: Look for signs of nylon gear deformation or metal shavings. If gears are already damaged, lubrication will not "fix" them; they must be replaced.
4. Degreasing: Use a lint-free cloth and a plastic-safe cleaner to remove all old grease. Old grease often contains microscopic metal particles that act as sandpaper if left behind.
5. Application: Use a small brush to apply the selected synthetic NLGI 2 grease to the gear teeth. Follow the 30-40% fill heuristic.
6. Resealing: Apply a thin bead of high-quality silicone sealant to the motor side plate before closing to maintain water resistance.
7. Verification: Spin the wheel by hand to ensure smooth movement before reconnecting power.

Methodology and Modeling Disclosure

The recommendations provided in this article are based on a deterministic parameterized model of e-bike motor wear under heavy loads. This is a scenario model, not a controlled laboratory study.

Modeling Assumptions:

• Motor Type: 750W continuous, 1000W peak geared hub motor.
• Gear Material: Glass-reinforced nylon planetary gears and AISI 4140 steel sun gear.
• Environmental Conditions: Ambient temperature of 25°C (77°F) with typical urban road vibration.
• Load Profile: Continuous operation at 80% of max rated torque for 60-minute intervals.

Boundary Conditions: This model may not apply to mid-drive motors, gearless (direct-drive) hub motors, or motors operating in extreme sub-zero temperatures where grease viscosity changes drastically.

Summary of Lubrication Strategy

Properly lubricating internal planetary gears is the most cost-effective way to ensure the longevity of a high-power e-bike. For the 400 lb load-carrying rider, the choice of grease directly impacts the reliability of their "workhorse."

• For Hybrid Gears: Use synthetic, plastic-safe Lithium-Complex NLGI 2 grease.
• For All-Steel Gears: Prioritize Extreme Pressure (EP) additives.
• The Golden Rule: Never exceed 40% fill volume to prevent overheating.

By adhering to these technical standards, riders can avoid the most common causes of hub motor failure and maintain peak performance over thousands of miles.

---

Disclaimer: This article is for informational purposes only. Performing internal maintenance on e-bike motors may void your warranty and carries risks of mechanical or electrical failure if done incorrectly. Always consult your owner's manual or a certified e-bike technician. We are not responsible for any damage or injury resulting from the use of this information.
