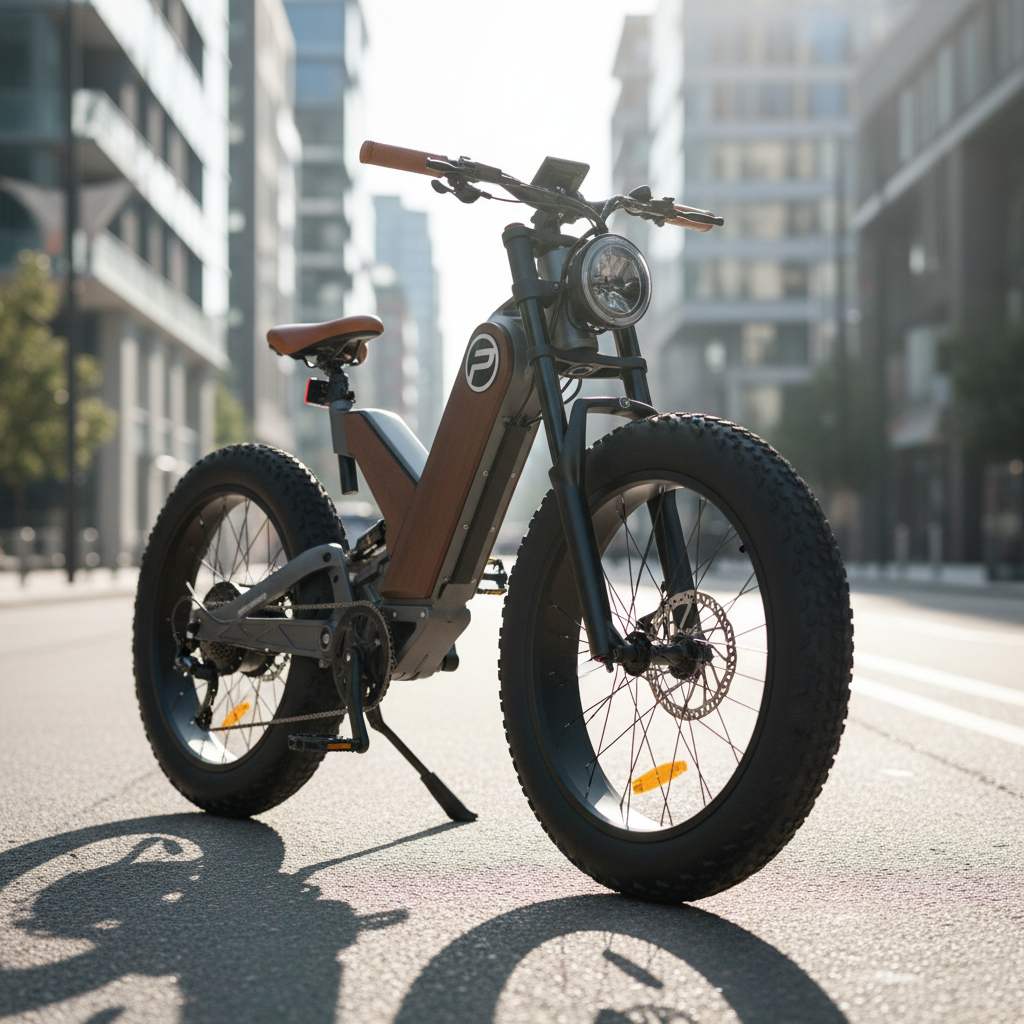

Heavy Rider Tuning: Eliminating Harshness on City Commutes
The Engineering Reality of Heavy-Duty Commuting
For riders using high-power e-bikes as primary car replacements, the suspension system is not a luxury—it is a critical safety and utility component. When a rider approaches the 300 to 400 lb limit, the physics of urban infrastructure changes. A standard pothole that feels like a minor jar to a 160 lb rider becomes a high-velocity impact event for a heavy-duty commuter.
On our repair bench, we frequently see the results of "harshness"—not just discomfort for the rider, but structural fatigue on the frame and premature failure of the suspension seals. Most factory-tuned e-bikes are optimized for a "median" rider (typically 170–190 lbs). When you exceed this range, the suspension often operates too deep in its travel, leaving no "reserve" for impacts. This results in "bottoming out," where the fork or shock hits its physical limit, transmitting the full force of the road directly into the frame and the rider's spine.
To solve this, we must move beyond basic adjustments. True tuning for heavy payloads requires understanding the relationship between air pressure, spring progressivity, and mechanical maintenance. This guide focuses on transforming a harsh, "clunky" ride into a supportive, controlled platform that can handle the rigors of daily utility use.
The "Preload Trap": Why Stiffer Isn't Always Better
The most common mistake we observe in customer support logs is riders maxing out their preload to prevent bottoming out. Preload is the initial tension placed on a spring (either a metal coil or an air spring) to set the bike's ride height. While increasing preload does raise the bike higher in its travel, it does not change the "spring rate"—the amount of force required to compress the spring a specific distance.
By maxing out preload, you create an "over-sprung" initial feel. The suspension becomes "dead" to small bumps because it requires a massive initial force just to start moving. This creates a harsh ride on textured pavement or small cracks while still failing to provide enough support for large hits.
Logic Summary: Our analysis of suspension behavior for heavy riders (Persona A: ~350 lbs) assumes that preload primarily manages "sag" (static ride height) but is insufficient for "bottom-out resistance" (dynamic force management) based on standard mechanical heuristics.
Instead of relying on preload, heavy riders must focus on the air spring's pressure and the internal volume of the air chamber. According to the Consumer Reports: Electric Bikes Test Protocol, performance in braking and acceleration is heavily influenced by how the suspension manages weight transfer. An over-preloaded fork will "dive" less initially but will lose traction more easily on uneven surfaces because the tire cannot track the ground effectively.
Step-by-Step: Setting Sag for Maximum Utility
"Sag" is the amount the suspension compresses under the static weight of the rider in full gear. For heavy-duty commuting, the goal is to find the "sweet spot" where the bike sits high enough to preserve travel but remains active enough to absorb vibrations.
We recommend a target sag of 25–30% of the total suspension travel. For a fork with 100mm of travel, this means the bike should compress 25–30mm when you sit on it.
The Measurement Process
- Gear Up: Wear your helmet, backpack, and any cargo you typically carry. Weight bias is critical; a heavy backpack can shift your center of gravity significantly.
- Equalize the System: Use a high-pressure shock pump to set the air pressure to the manufacturer’s recommended starting point for your weight. Cycle the suspension fully 5–10 times. This is vital to equalize the pressure between the positive and negative air chambers. Without this step, your sag measurements will be inaccurate.
- The "O-Ring" Test: Slide the rubber O-ring on the fork stanchion down to the seal. Gently mount the bike (have a friend hold it or lean against a wall). Stand in your neutral "attack" position, then gently dismount.
- Measure and Adjust: Measure the distance the O-ring moved. If it moved more than 30% of the total travel, add air pressure (typically in 5–10 PSI increments). If it moved less than 25%, release air.
The 2-3% Rear Bias Rule
In our experience with dual-suspension e-bikes, rear sag should often be set 2–3% firmer (less sag) than the front. This is a practical heuristic to account for the rearward weight bias common in hub-motor e-bikes and the additional load of rear-rack cargo. This prevents the bike from "squatting" too much under acceleration, which can lighten the front wheel and compromise steering precision.
Advanced Tuning: Volume Spacers and Progressivity
For riders near the 400 lb limit, setting the correct sag often requires high air pressures that can make the first half of the travel feel stiff. This is where volume spacers (also known as "tokens" or "bottomless tokens") become essential.
Volume spacers are small plastic inserts that sit inside the air chamber. By reducing the volume of air, you make the spring "progressive." This means the air pressure rises more sharply as the suspension compresses.
- The Benefit: You can run a slightly lower air pressure to maintain "small-bump sensitivity" (comfort on chattered roads), while the volume spacers provide a massive ramp-up in support during the final third of the stroke to prevent harsh bottom-outs on potholes.
- The Heuristic: If you have set your sag correctly at 25% but still find yourself "clunking" on standard city curbs, you need more volume spacers, not more air pressure.
According to technical studies by Vorsprung Suspension, modifying the spring rate via volume spacers is the only way to solve the fundamental force/deflection mismatch for heavy riders without sacrificing initial comfort.
High-Load Maintenance: Preventing Stiction and Wear
Heavy riders subject suspension components to significantly higher lateral and vertical forces. This accelerates the degradation of internal lubricants.
One non-obvious issue we see is "stiction"—static friction that prevents the suspension from moving smoothly. This often happens because the factory-installed grease on the air spring seals dries out or becomes contaminated. Under high loads, this friction creates a "notchy" feel that transmits high-frequency vibrations directly to the handlebars.
The 50-Hour Rule
While many manufacturers suggest a 100-hour service interval, we recommend a 50-hour lower-leg service for heavy-duty commuters. This involves:
- Removing the lower legs of the fork.
- Cleaning the dust wipers and foam rings.
- Applying a light coat of suspension-specific grease (like SRAM Butter or Slick Honey).
- Replacing the bath oil.
This recurring maintenance (estimated at $50–$80 per service) is a necessary operational cost for high-payload e-biking, similar to more frequent oil changes on a truck used for towing. As noted in the Bicycle Maintenance Pros suspension guide, neglecting this leads to stanchion wear, which can eventually require a full fork replacement costing hundreds of dollars.
Safety Standards and Regulatory Compliance
When tuning for performance, safety must remain the baseline. For heavy riders, the electrical and mechanical integrity of the bike is under constant stress.
UL 2849 and Fire Safety
Ensure your e-bike's electrical system is certified to UL 2849. This standard covers the battery, charger, and drive train. For heavy riders, the motor draws more current to maintain speed, which generates more heat. A SAE/IEEE study on thermal runaway indicates that high States of Charge (SoC) combined with high thermal loads can increase the risk of battery failure. A UL-certified system ensures that the battery management system (BMS) can safely handle these high-demand scenarios.
Local Laws (CA & NY)
If you are riding a Class 3 e-bike (capable of 28 mph), be aware of local restrictions. In California, Class 3 riders must be at least 16 years old and wear a helmet. In New York, Class 3 bikes are limited to 25 mph within New York City. Tuning your suspension for these higher speeds is critical, as a suspension failure at 28 mph is significantly more dangerous than at 15 mph.
For a deeper look at how the industry is moving toward higher safety benchmarks, refer to the industry white paper The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency.
Modeling Suspension Performance (Appendix)
To demonstrate the difference in suspension requirements, we modeled the force required to bottom out a standard 100mm air fork under two different rider profiles.
Method & Assumptions: This is a deterministic parameterized model based on a linear-to-progressive air spring curve. It assumes a 1.4x dynamic load factor (representative of hitting a 2-inch square-edge bump at 15 mph).
| Parameter | Persona A (Heavy) | Persona B (Standard) | Unit | Rationale |
|---|---|---|---|---|
| Rider Weight | 350 | 180 | lbs | Target audience vs. design median |
| Target Sag | 25% | 25% | % | Standard setup heuristic |
| Required PSI | ~145 | ~85 | PSI | Estimated to achieve target sag |
| Volume Spacers | 3 (Max) | 1 (Std) | count | Needed for ramp-up |
| Force to Bottom | ~1,200 | ~650 | lbs | Total force at 100% travel |
Boundary Conditions:
- This model does not account for damping (rebound/compression) settings, which also influence "harshness."
- Results may vary based on the specific air chamber volume of different fork brands.
- The 350 lb rider profile assumes the bike frame is rated for a total payload of at least 400 lbs.
Optimizing for the Long Haul
Tuning a high-power e-bike for a heavy rider is about finding balance. By moving away from the "max preload" myth and embracing sag tuning and volume spacers, you create a vehicle that is both comfortable and durable.
Remember to check your Standover Clearance to ensure you can safely plant your feet when stopped, especially since a properly tuned suspension will sit slightly higher than one that is perpetually "sagged out." Additionally, consider the High-Payload Maintenance requirements as part of your total cost of ownership.
If you find that your current setup still feels inadequate, it may be time to look for E-Bikes specifically designed for 400 lb+ payloads. These machines often feature reinforced head tubes and oversized suspension stanchions designed specifically for the forces we have discussed.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional mechanical, safety, or legal advice. E-bike suspension systems are under high pressure and can be dangerous if mishandled. Always consult your e-bike manufacturer's manual and have work performed by a certified technician if you are unsure. Improper tuning can lead to component failure and serious injury.
