Identifying Ovalized Pivot Holes in High-Mileage Chassis

Quick-Reference: Pivot Integrity Fast Facts

For high-mileage utility e-bike owners, distinguishing between routine maintenance and structural failure is critical. Below is a summary of the key diagnostic thresholds discussed in this guide.

Understanding Frame Integrity in High-Capacity Utility E-Bikes

For commuters and utility riders who rely on high-power e-bikes as primary vehicles, the chassis is a structural foundation subjected to constant, high-amplitude stress. While industry marketing often focuses on battery capacity (Wh) or motor torque (Nm), long-term reliability frequently hinges on the smallest interfaces: the pivot points.

In high-mileage scenarios—particularly with open-mold frames common in the value-driven segment—a phenomenon known as "ovalization" can occur. This is the deformation of a circular pivot hole into an elliptical or "egg" shape. Once a pivot hole loses its circularity, the mechanical bond between the bolt, bearing, and frame is compromised. This can lead to persistent noise, degraded handling, and may eventually render a frame unserviceable.

Adhering to the principles of The 2026 E-Bike Market Shift: From Spec Wars to Radical Transparency, this guide provides a technical framework for identifying, measuring, and preventing pivot hole deformation based on workshop experience and engineering heuristics.

The Mechanics of Ovalization: Why Holes Deform

Ovalization is rarely the result of a single impact. Instead, it is typically driven by fretting wear—a process where repeated, microscopic oscillations between two surfaces under load gradually remove material. In an e-bike chassis, this occurs when the clamping force of a pivot bolt is insufficient to overcome the shear forces generated by the rider's weight and motor torque.

The Impact of Multi-Axial Loading

Unlike industrial machinery that may experience steady radial loads, an e-bike suspension pivot experiences multi-axial movement. Every pothole, hard acceleration, and cornering maneuver applies a different vector of force to the pivot.

• Impact Loads: Sharp vertical forces from road imperfections.
• Torsional Loads: Side-to-side twisting during cornering.
• Bushing Deflection: Small movements within the pivot sleeve that accelerate material erosion.

Technical Threshold Note: Based on general mechanical engineering heuristics for bolted joints in aluminum assemblies, wear exceeding 0.1mm (approx. 0.004 inches) is often the threshold where a component is considered functionally compromised. While nearly invisible, this gap allows for the "play" that can eventually degrade the frame's structural integrity.

The "False Torque" Trap: A Common Maintenance Error

A significant contributor to accelerated ovalization is improper fastener maintenance. A common mistake is checking bolt tightness without first cleaning the hardware.

The Risk of Dirty Threads

Dirt, grit, and oxidized grease can accumulate in the threads. When a torque wrench is applied to a dirty bolt, the friction from the debris creates resistance. The wrench may "click" at the specified 10Nm or 15Nm, but much of that force was spent overcoming thread friction rather than creating actual clamp load. Without sufficient clamp load, the pivot bolt can rock slightly, initiating the ovalization process.

The Professional Two-Step Cleaning Process

To ensure an accurate torque reading, we recommend this workshop-derived heuristic:

1. Solvent Clean: Remove the pivot bolt entirely. Use isopropyl alcohol and a stiff brush to clean all threads on the bolt and inside the frame's pivot bore.
2. Appropriate Lubrication: Apply a fresh, task-specific lubricant. For steel bolts in aluminum frames, an anti-seize compound is often preferred. If the manufacturer specifies a threadlocker (e.g., blue Loctite), ensure threads are completely dry before application.

Note: This process assumes manufacturer torque specs are for "clean" threads. Presence of debris can invalidate these values by up to 30-50%.

Identifying Symptoms: The "Clunk" vs. The "Creak"

The Acceleration "Clunk"

Listen for a mechanical "clunk" or "pop" that occurs specifically under load reversal (the moment you transition from coasting to hard pedaling, or from acceleration to braking). This sound often indicates the pivot bolt is physically shifting within an enlarged hole.

Visual Play and Lateral Flex

To test for progressed wear:

1. Stand beside the bike and secure the front wheel.
2. Grasp the seat stay or rear rack and firmly pull the rear triangle laterally (side-to-side).
3. Observation: Any visible movement or "gap" appearing at the pivot junction—distinct from tire or wheel flex—is a red flag for hole or bearing wear.

For more on distinguishing these sounds, see our guide on Diagnosing Pivot Creaks: Dry Bearings vs. Loose Hardware.

Precision Diagnosis: The Caliper Test

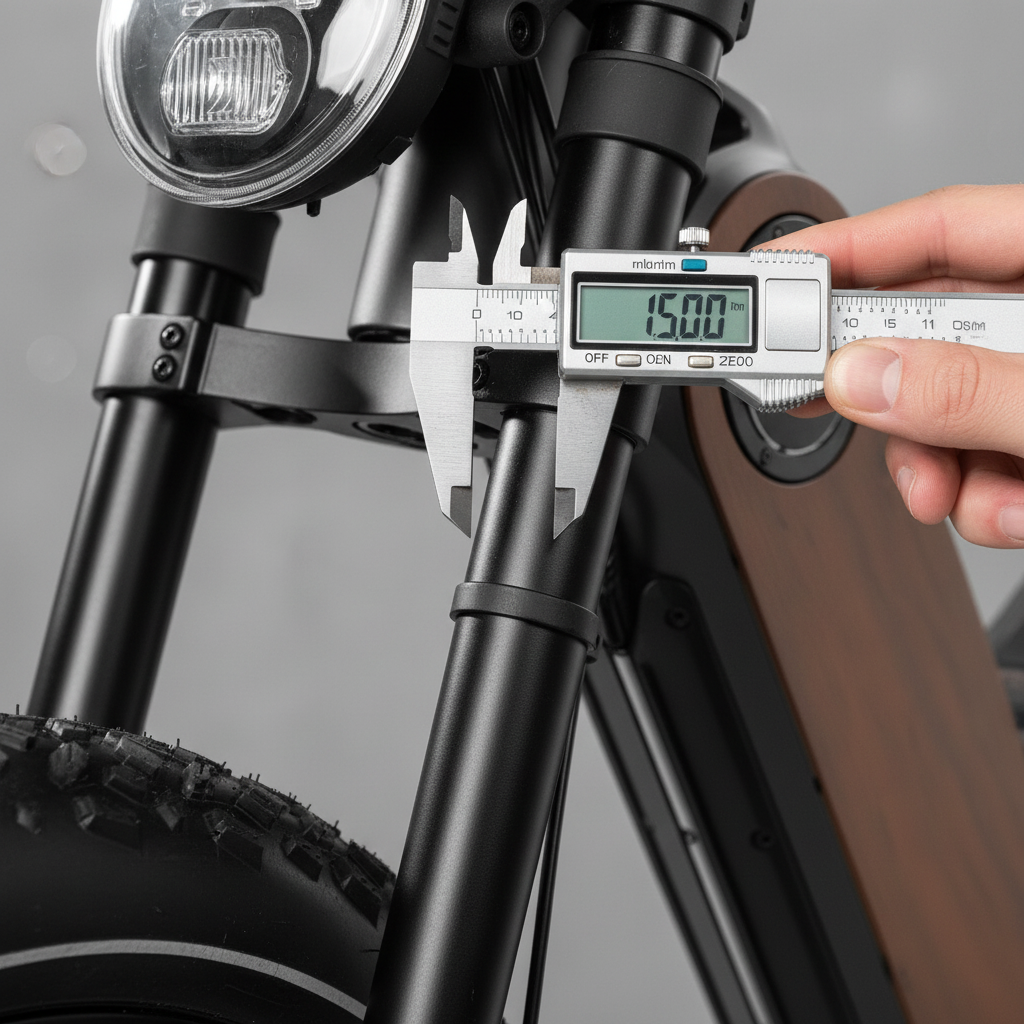

Because ovalization often starts asymmetrically, visual inspection is frequently insufficient. To confirm deformation, use a digital caliper (recommended accuracy of ±0.02mm).

How to Measure for Asymmetry

The hole typically expands in the direction of the most frequent load (usually the vertical axis).

1. Disassemble: Remove the bolt and all bushings/bearings. Clean the bore surface.
2. Measure Axis A (Vertical): Place the caliper internal jaws at the 12 o'clock and 6 o'clock positions.
3. Measure Axis B (Horizontal): Place the jaws at the 3 o'clock and 9 o'clock positions.
4. Repeatability Check: Take each measurement three times and average the results to account for measurement uncertainty.
5. Assessment: If Axis A is >0.15mm larger than Axis B, the hole is becoming ovalized.

Example: If a 10mm hole measures 10.02mm horizontally but 10.18mm vertically, the frame component has reached a critical wear state.

Modeling the Impact: Stress and Economics

To illustrate the stakes of pivot maintenance, we modeled a high-usage scenario.

Scenario Model: High-Capacity Utility Usage

This model is illustrative and based on a heavy-duty commuting profile; results may vary based on specific frame geometry.

Under these conditions, a loose pivot allows the kinetic energy of a 300lb mass to act as a "hammer" within the pivot hole. If play reaches 0.5mm, the impact forces during a pothole strike can exceed the local yield strength of the aluminum, causing rapid, permanent deformation.

The Economic Cost of Neglect

For many, the e-bike is a car-replacement tool. Our TCO (Total Cost of Ownership) example compares a high-capacity e-bike to a standard vehicle over 7,500 miles/year:

• Car Annual Cost: ~$8,250 (Based on AAA 2024 benchmarks).
• E-Bike Annual Cost: ~$263 (Electricity + routine maintenance).
• The Risk: A frame replacement due to neglected pivots can cost $500–$1,000. If this occurs annually, the "freedom dividend" of e-bike ownership is reduced by approximately 15%.

Repair Realities: Sleeving vs. Replacement

The OEM Standard and Verification

For the majority of manufacturers, the only approved repair for an ovalized pivot is the replacement of the affected component (e.g., the rear swingarm).

How to Verify Your Repair Options:

1. Locate the Serial Number: Usually found under the bottom bracket.
2. Contact the Manufacturer: Ask specifically for the "Frame Component Replacement Policy."
3. Check Warranty Exclusions: Most warranties exclude wear-and-tear resulting from "insufficient maintenance" (i.e., riding with loose bolts).

Why "Sleeving" is Discouraged

While common in heavy machinery, "sleeving" (drilling out the hole and pressing in a metal insert) is rarely recommended for e-bike frames:

• Material Thinning: Drilling a larger hole can dangerously reduce the "wall thickness" of the frame lug.
• Alignment Risks: Without a CNC mill, centering the new hole is difficult, potentially leading to permanent wheel misalignment.
• Safety Standards: Altering the frame may void certifications like UL 2849, which evaluates the system's structural and electrical integrity.

Safety and Compliance Context

A sudden pivot failure at Class 3 speeds (up to 28 mph) can lead to a loss of control. Regulatory bodies are increasingly focusing on these mechanical aspects.

• NYC and UL Standards: New York City mandates UL 2849 certification for e-bikes. While primarily electrical, structural stability is essential to protect internal wiring from vibration damage.
• Local Regulations: Maintaining a stable frame is essential for safely operating within California DMV Class 3 restrictions, which involve higher speeds and stricter safety requirements.

Disclaimer: This article is for informational purposes only. Frame inspection and repair involve critical safety components. If you are unsure about the structural integrity of your e-bike, consult a certified bicycle mechanic or the manufacturer. Numerical thresholds provided are workshop heuristics and should not supersede specific manufacturer service limits.
